DI Type Adaptors
Regular price
From
$105.00 CAD
Unit price
/
Unavailable

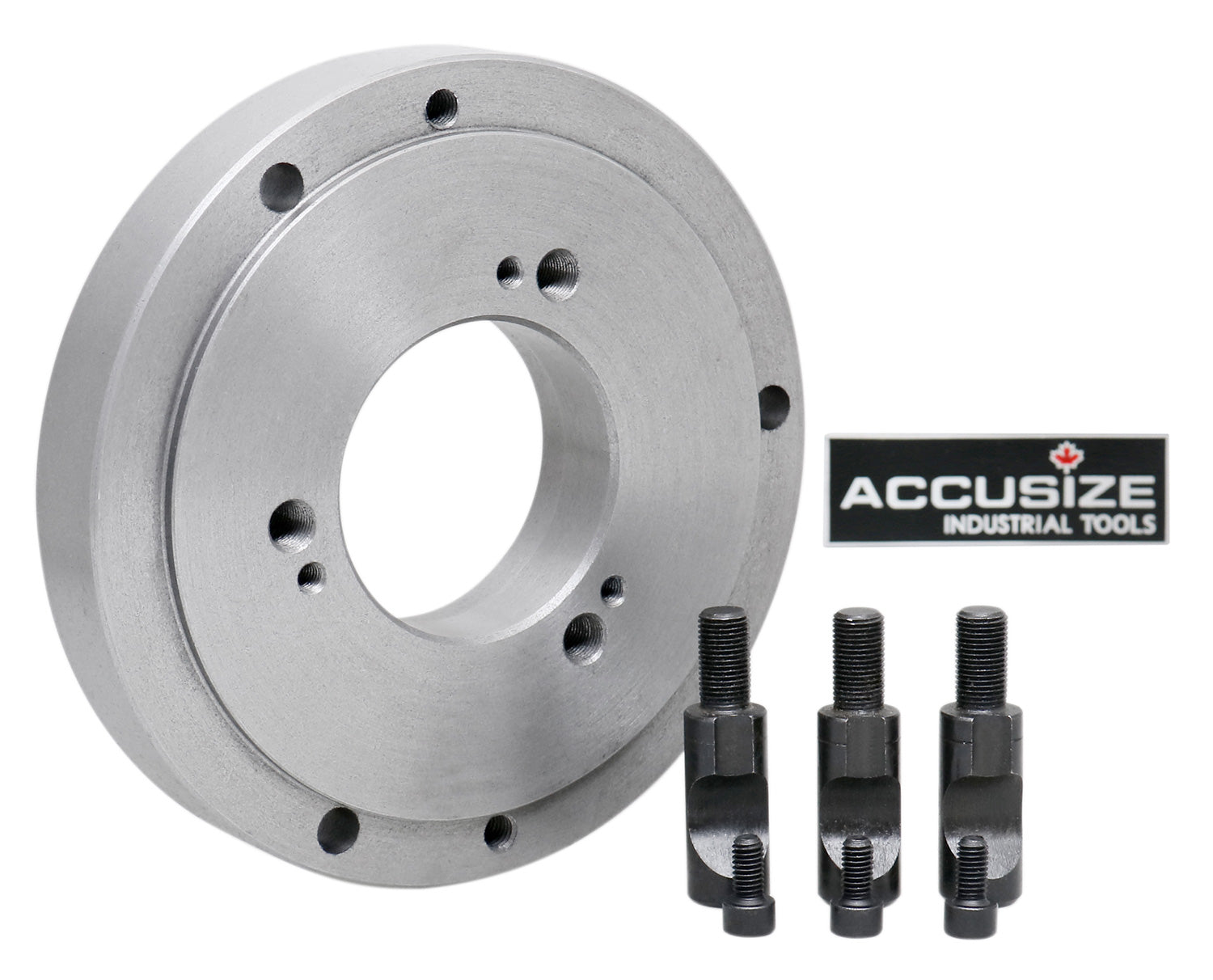

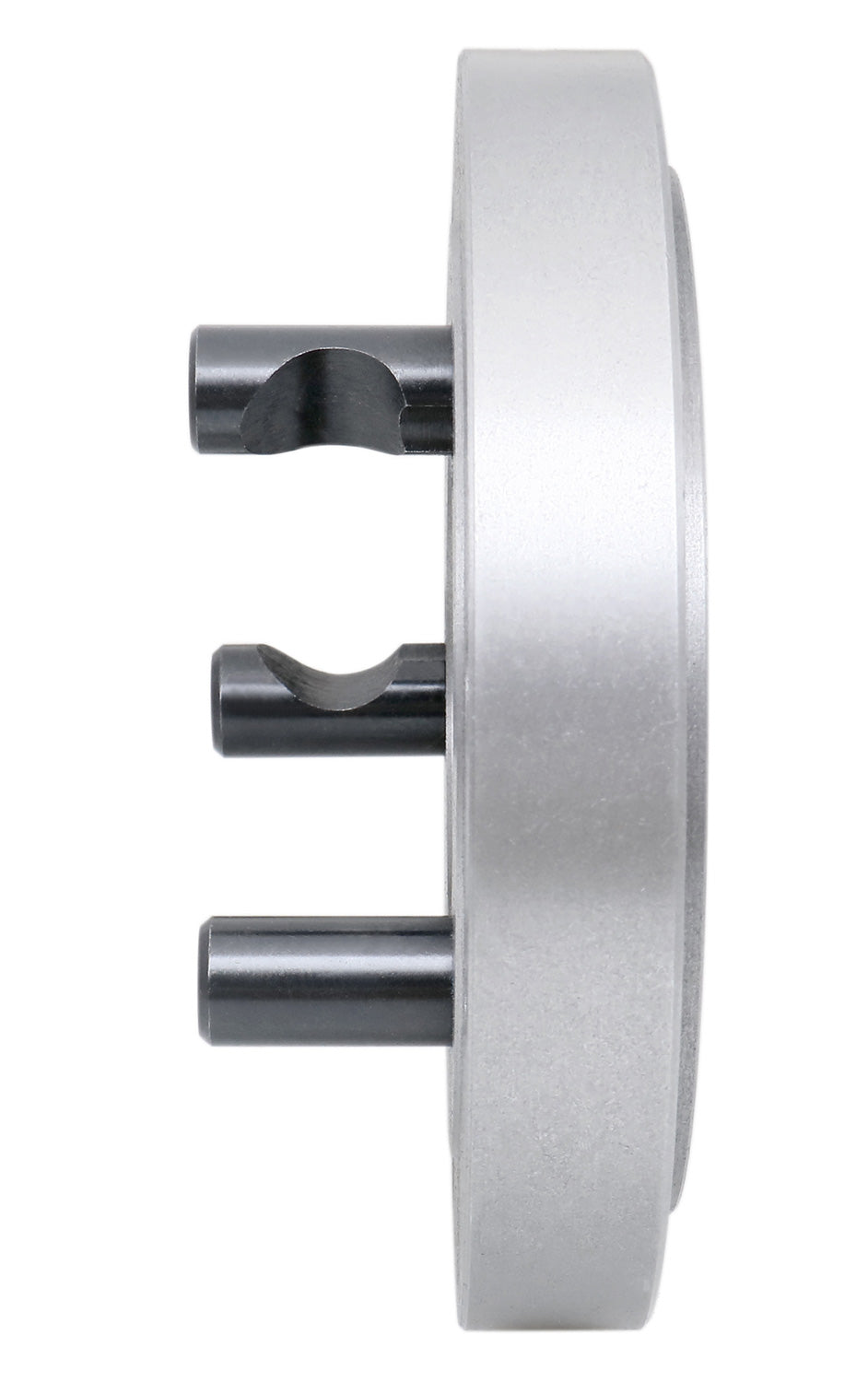

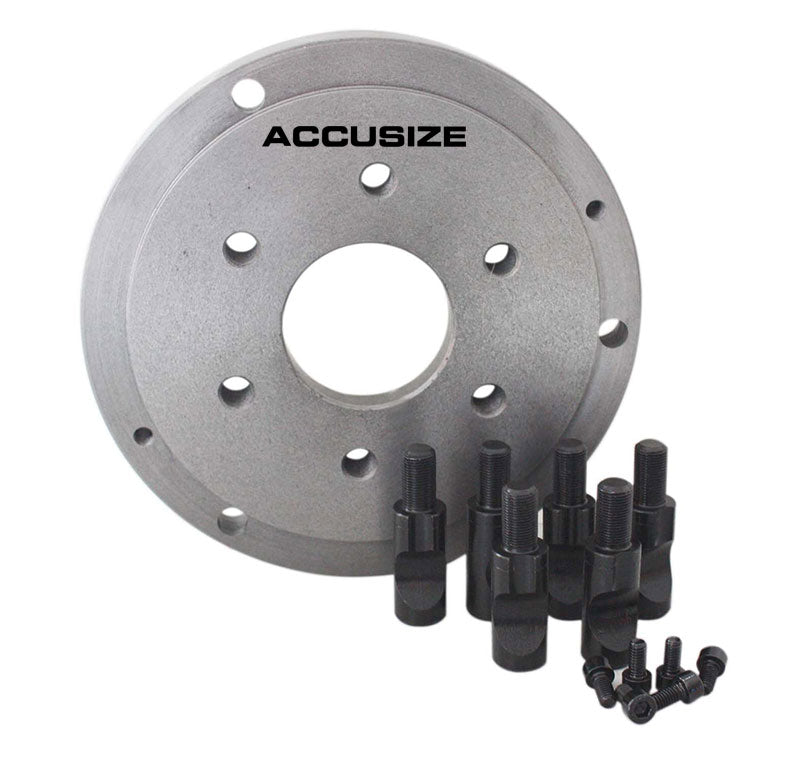

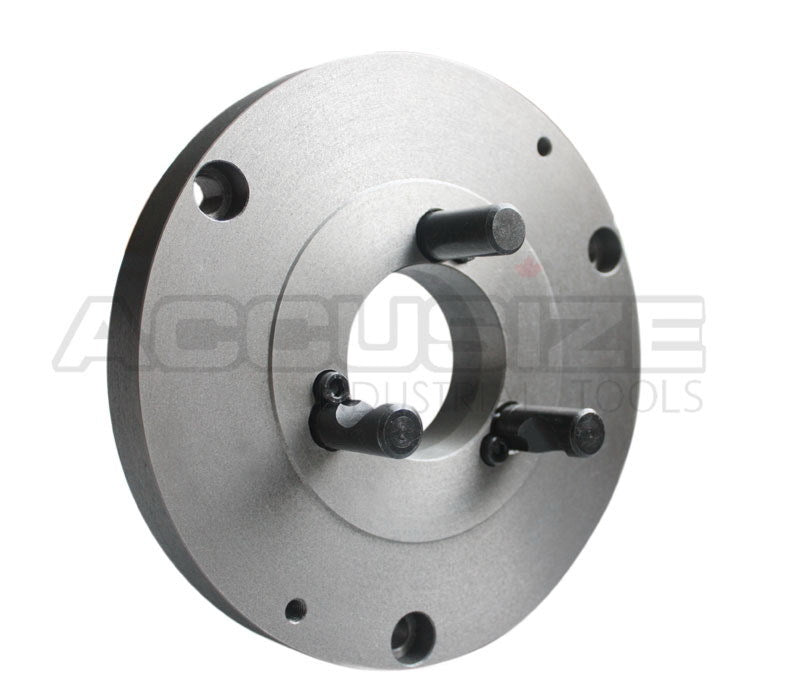

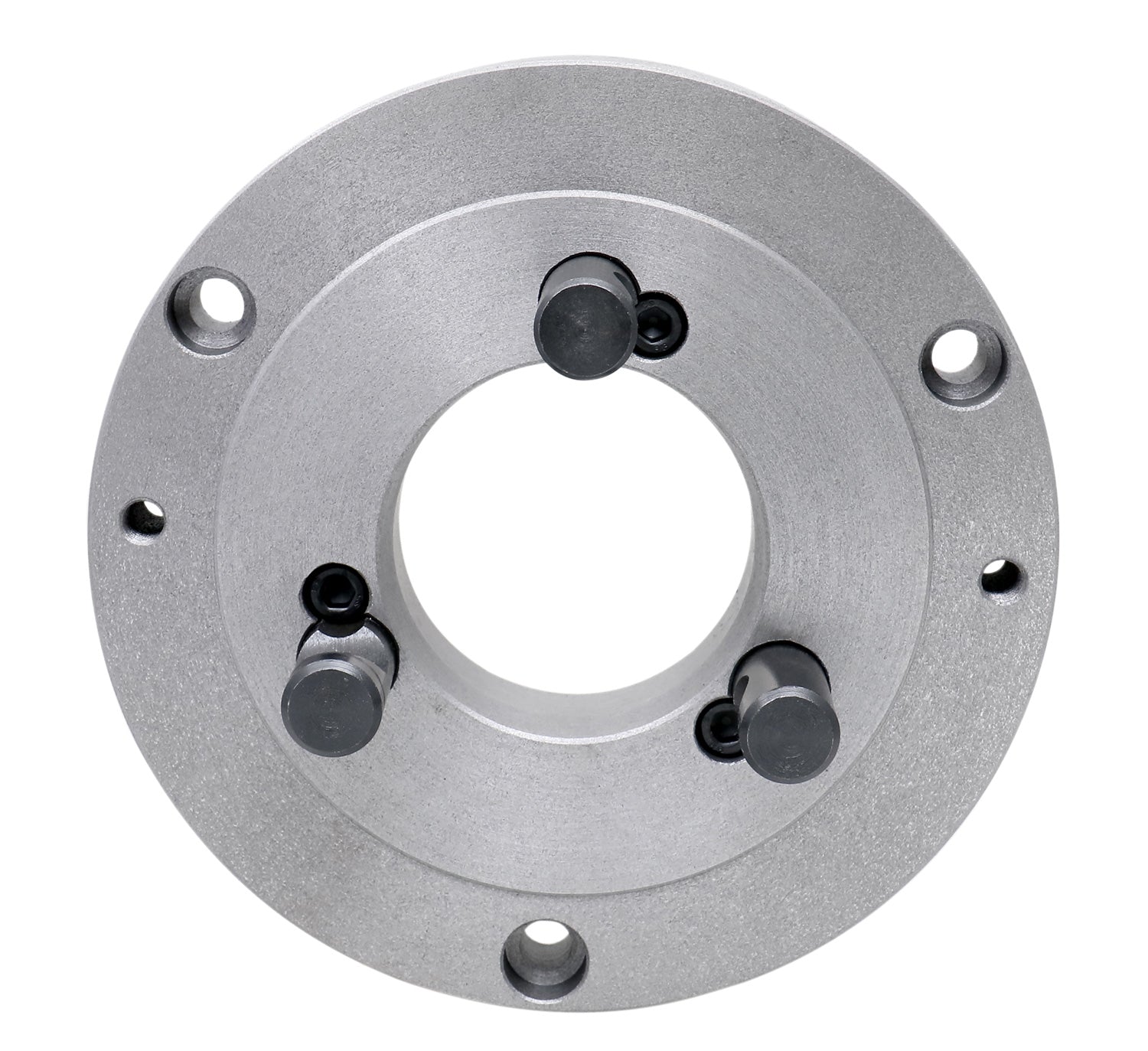

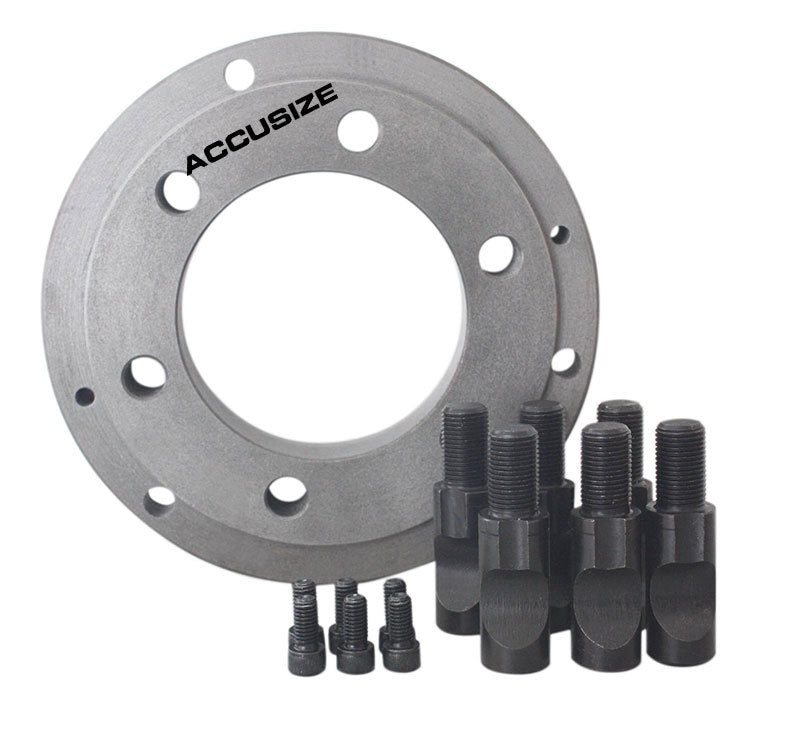

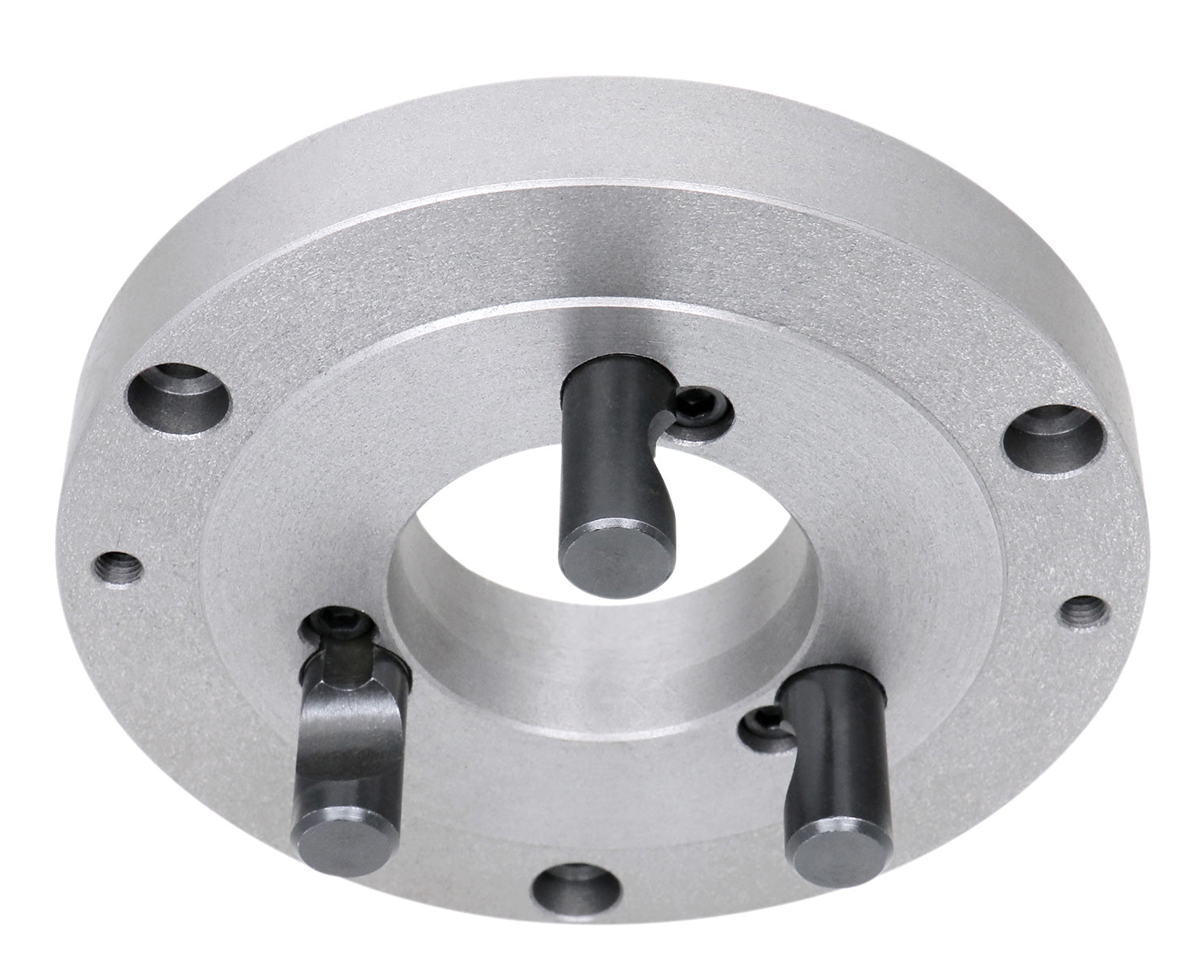

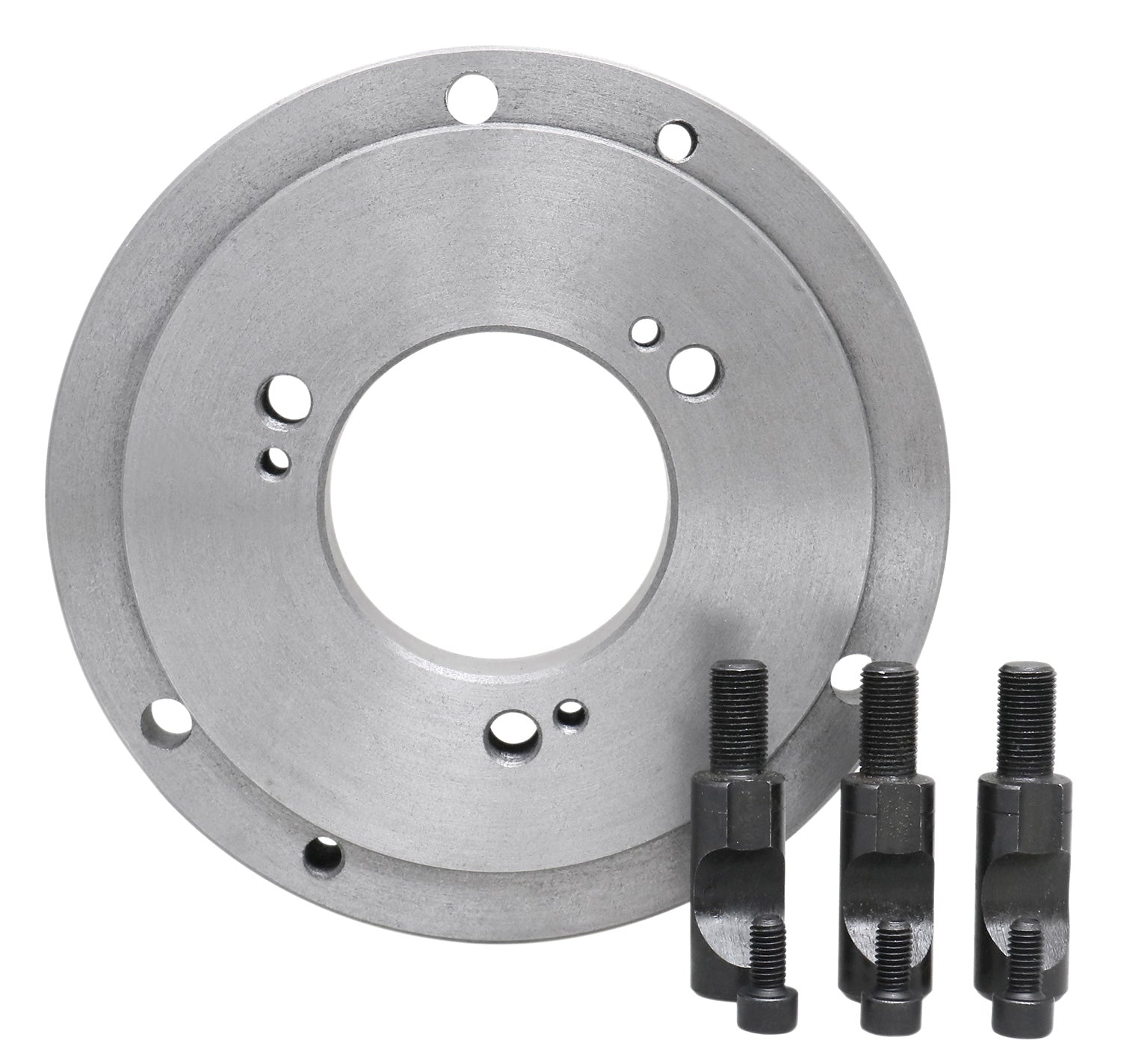

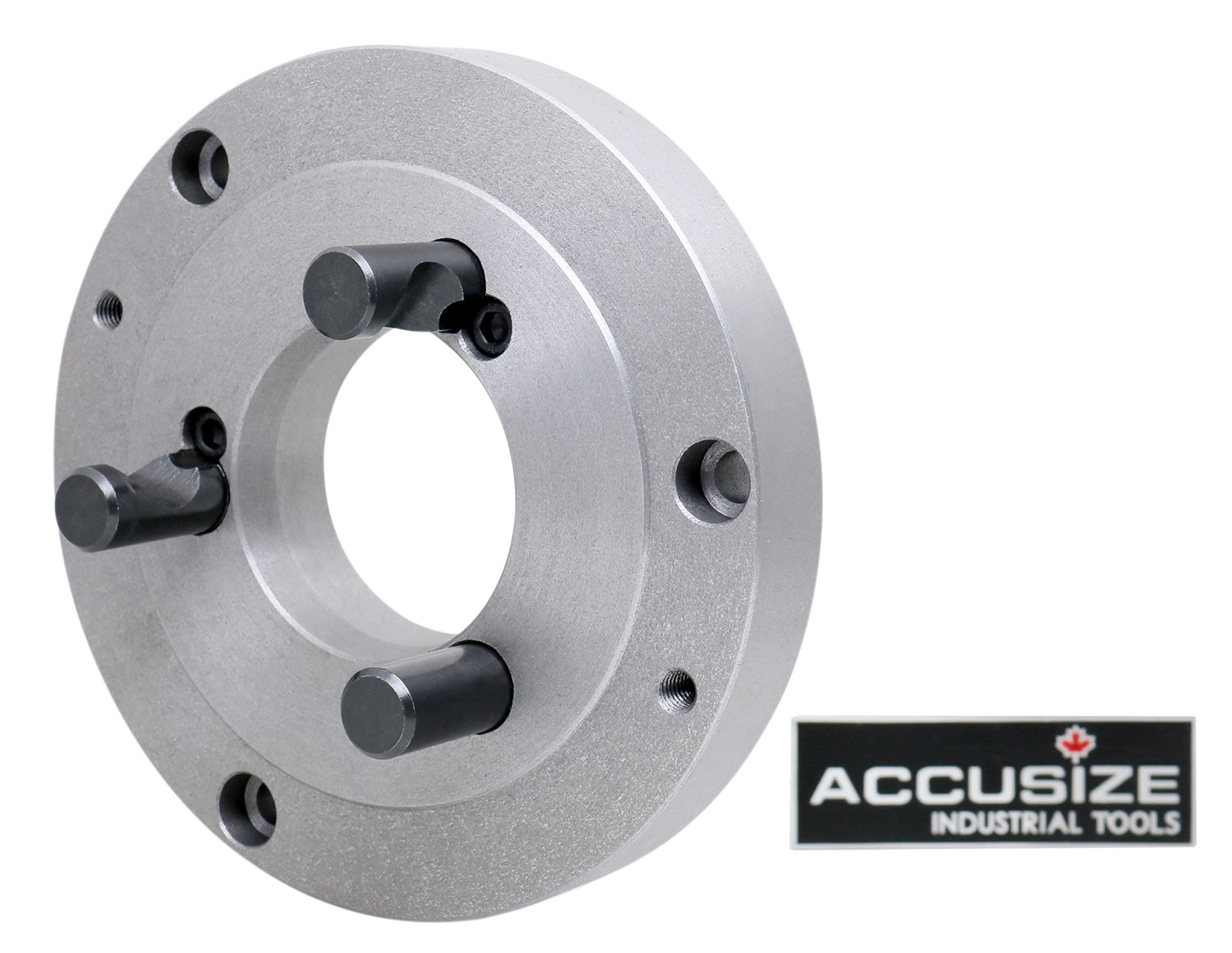

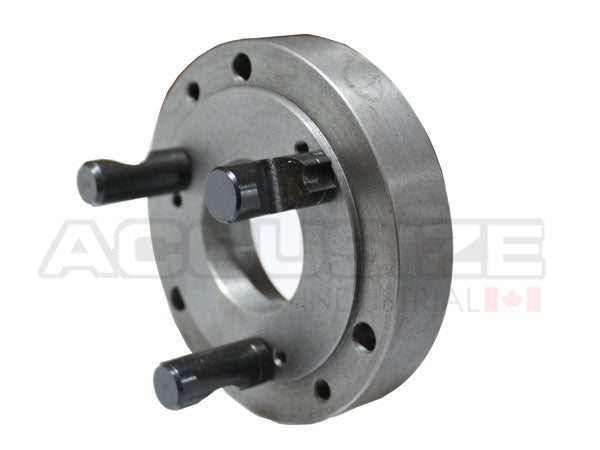

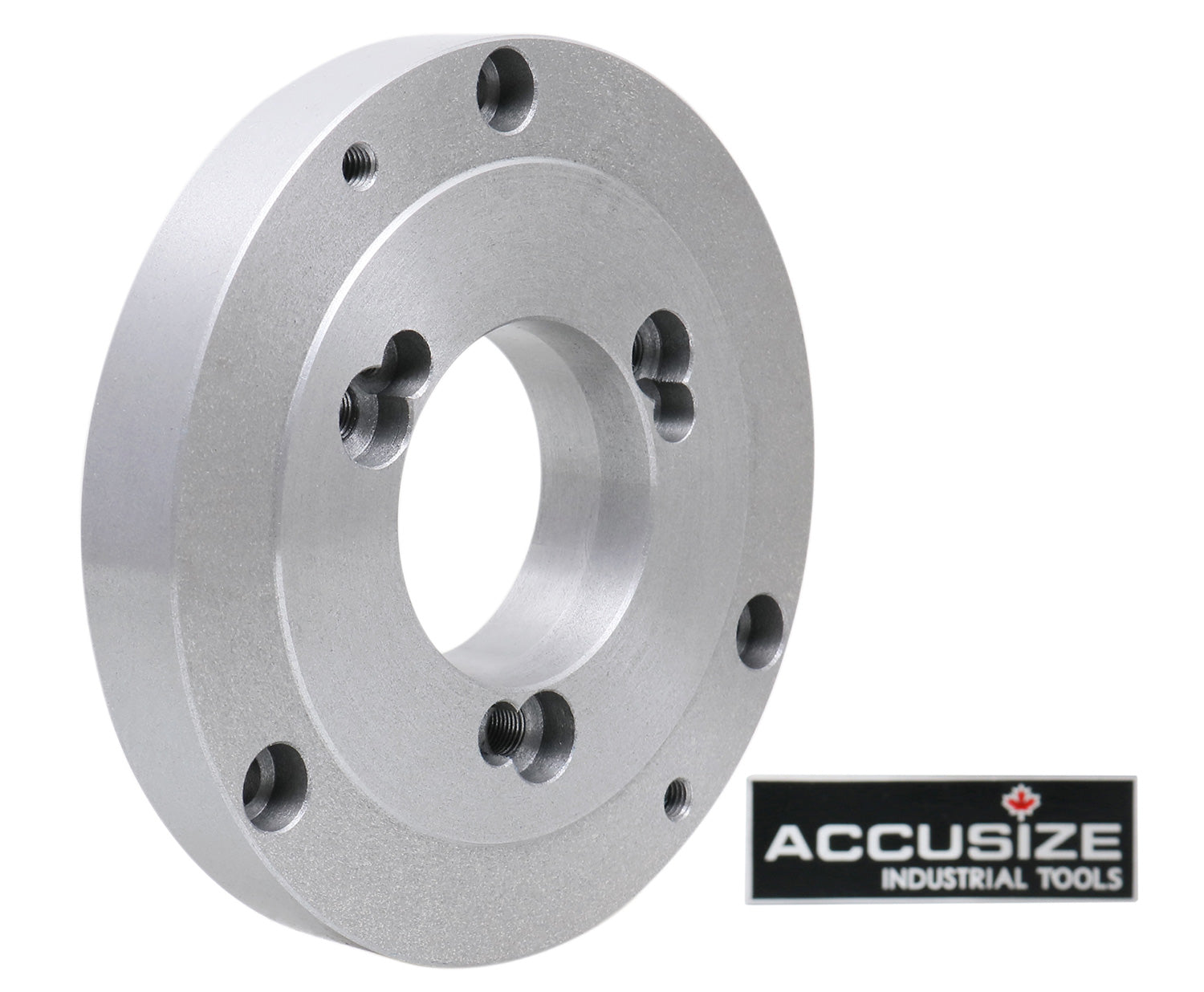

DI Type Adaptors
- For 3 jaw lathe chucks only.
| Item # | Spindle Taper | Chuck Diameter | Pitch Circle Diameter |
|---|---|---|---|
| 2600-0517 | D1-3, 5" | 5" | 108mm(4.25") |
| 2600-0518 | D1-3 | 6" | 142mm(5.59") |
| 2600-0510 | D1-4 | 5" | 108mm(4.25") |
| 2600-0511 | D1-4 | 6" | 142mm(5.59") |
| 2600-0512 | D1-4 | 8" | 180mm(7.09") |
| 2600-0513 | D1-6 | 8" | 180mm(7.09") |
| 2600-0515 | D1-5 | 8" | 180mm(7.09") |
| For Self-centering Chucks | For independent chucks | |||||||
| A | E | F(Countersunk) | G | E | F(Countersunk) | G | ||
| 2600-0517 | D1-3, 5" | 5"(125mm) | 3-49/64"(96mm) | 4-15/64"(108mm) | 7/64"(3mm) | 3-49/64"(96mm) | 4-15/64"(108mm) | 7/64"(3mm) |
| 2600-0518 | D1-3, 6" | 6-1/4"(160mm) | 5-9/64"(131mm) | 5-37/64"(142mm) | 9/64"(4mm) | 2-7/64"(54mm) | 2-3/4"(71mm) | 9/64"(4mm) |
| 2600-0510 | D1-4, 5" | 5"(125mm) | 3-49/64"(96mm) | 4-15/64"(108mm) | 7/64"(3mm) | 3-49/64"(96mm) | 4-15/64"(108mm) | 7/64"(3mm) |
| 2600-0511 | D1-4, 6" | 6-1/4"(160mm) | 5-9/64"(131mm) | 5-37/64"(142mm) | 9/64"(4mm) | 2-7/64"(54mm) | 2-3/4"(71mm) | 9/64"(4mm) |
| 2600-0512 | D1-4, 8" | 8"(200mm) | 6-17/32"(166mm) | 7-5/64"(180mm) | 9/64"(4mm) | 2-63/64"(76mm) | 3-47/64"(95mm) | 3/16"(5mm) |
| 2600-0513 | D1-6, 8" | 8"(200mm) | 6-17/32"(166mm) | 7-5/64"(180mm) | 9/64"(4mm) | 2-63/64"(76mm) | 3-47/64"(95mm) | 3/16"(5mm) |
| 2600-0515 | D1-5,8" ( 3/4" Dia. Stud. ) | 8"(200mm) | 6-17/32"(166mm) | 7-5/64"(180mm) | 9/64"(4mm) | 2-63/64"(76mm) | 3-47/64"(95mm) | 3/16"(5mm) |
