Dial Bore Gages, Inch and mm
Regular price
From
$106.00 CAD
Unit price
/
Unavailable

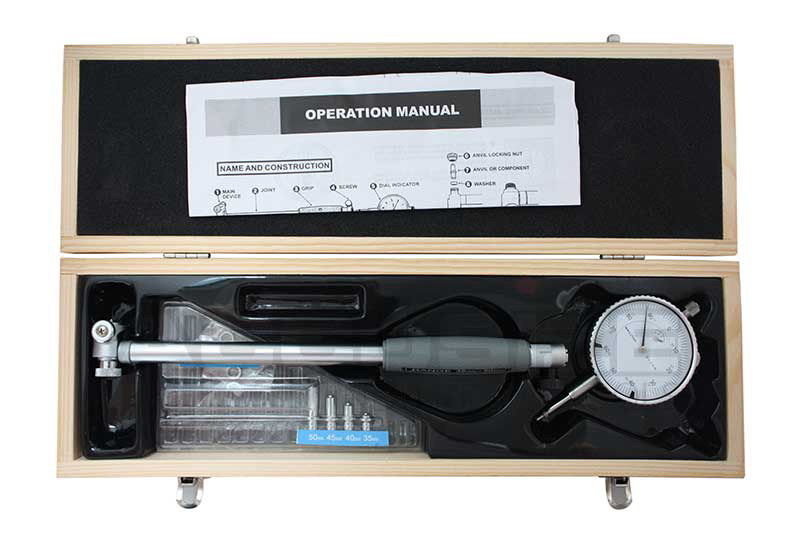

Dial Bore Gages, Inch and mm

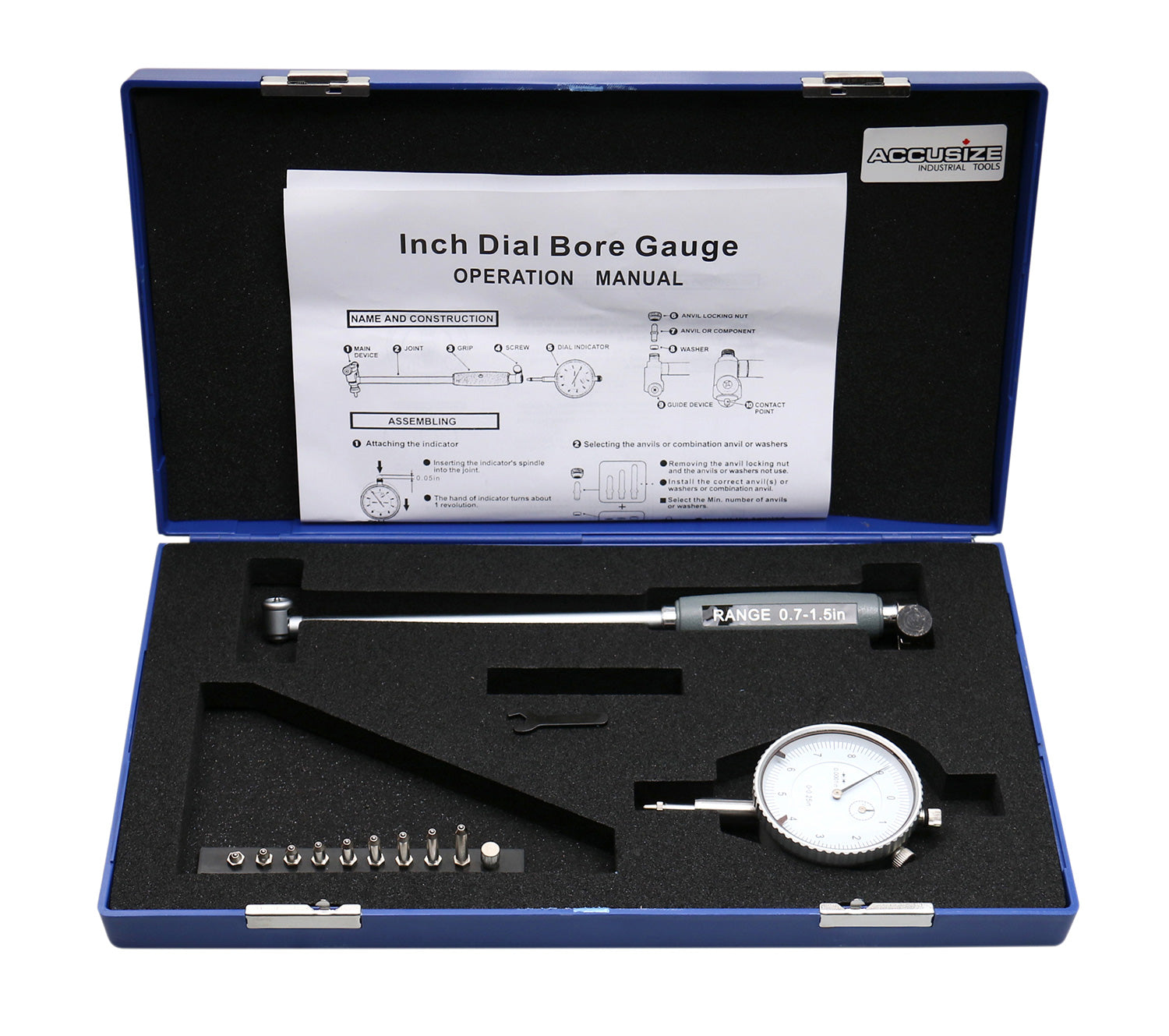

- Includes extension holders and fitted cases
- Chrome plated handle
- Insulated grip
- Self-centering
- Easily adjustable
| Item | Range | Stem Length |

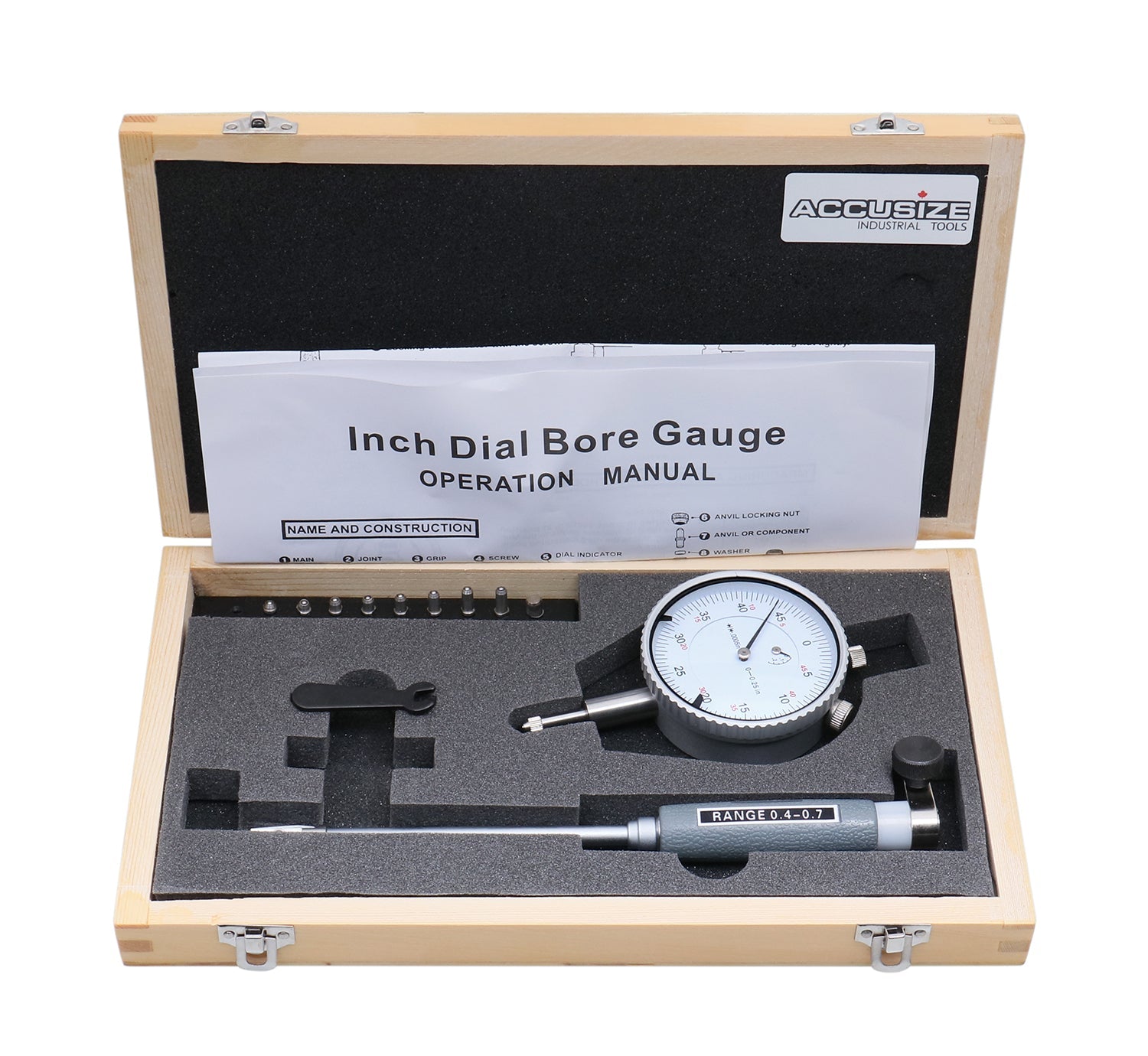

| EE20-5007 | 0.4-0.7" x 0.0005" | 4" |

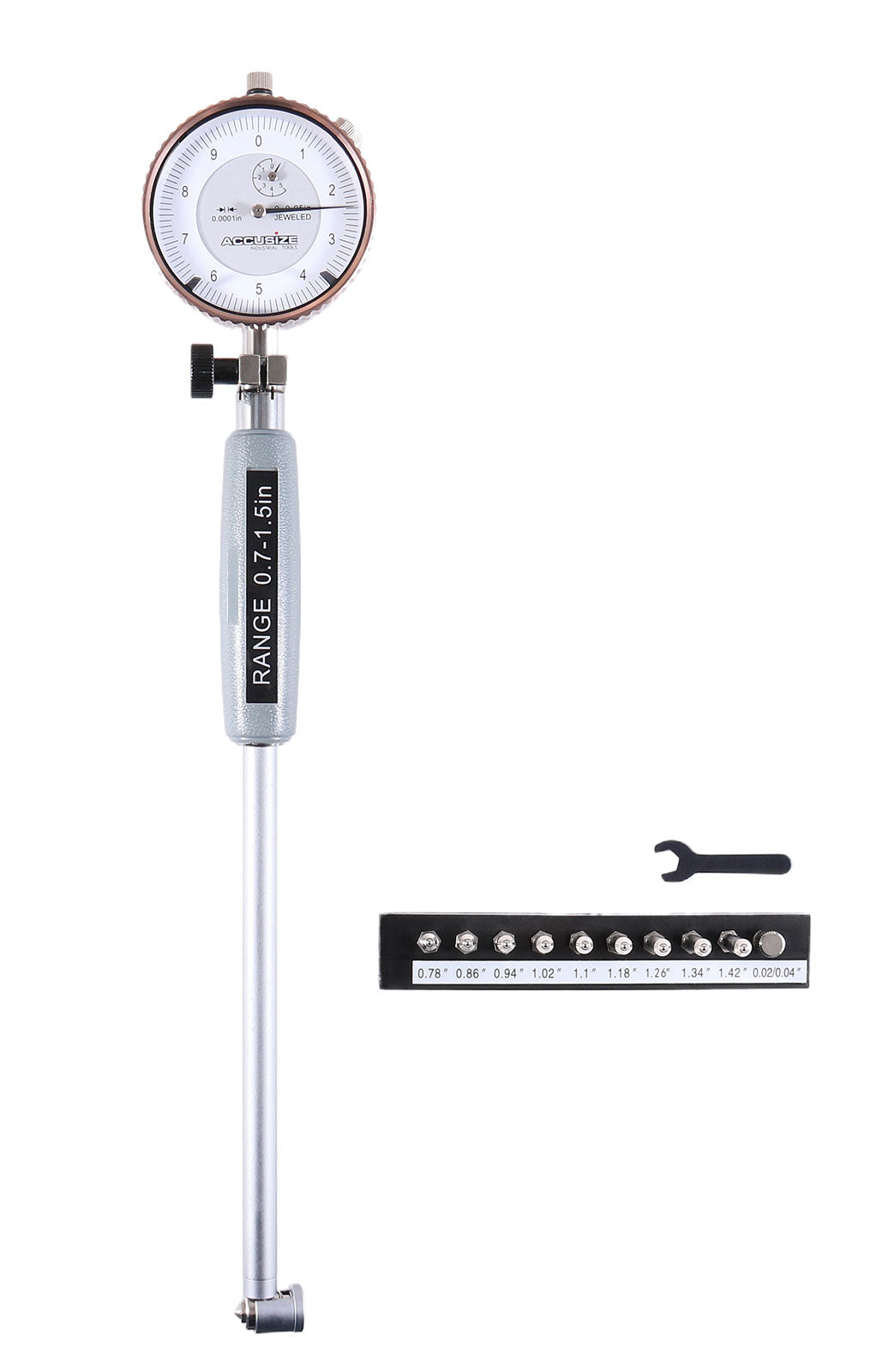

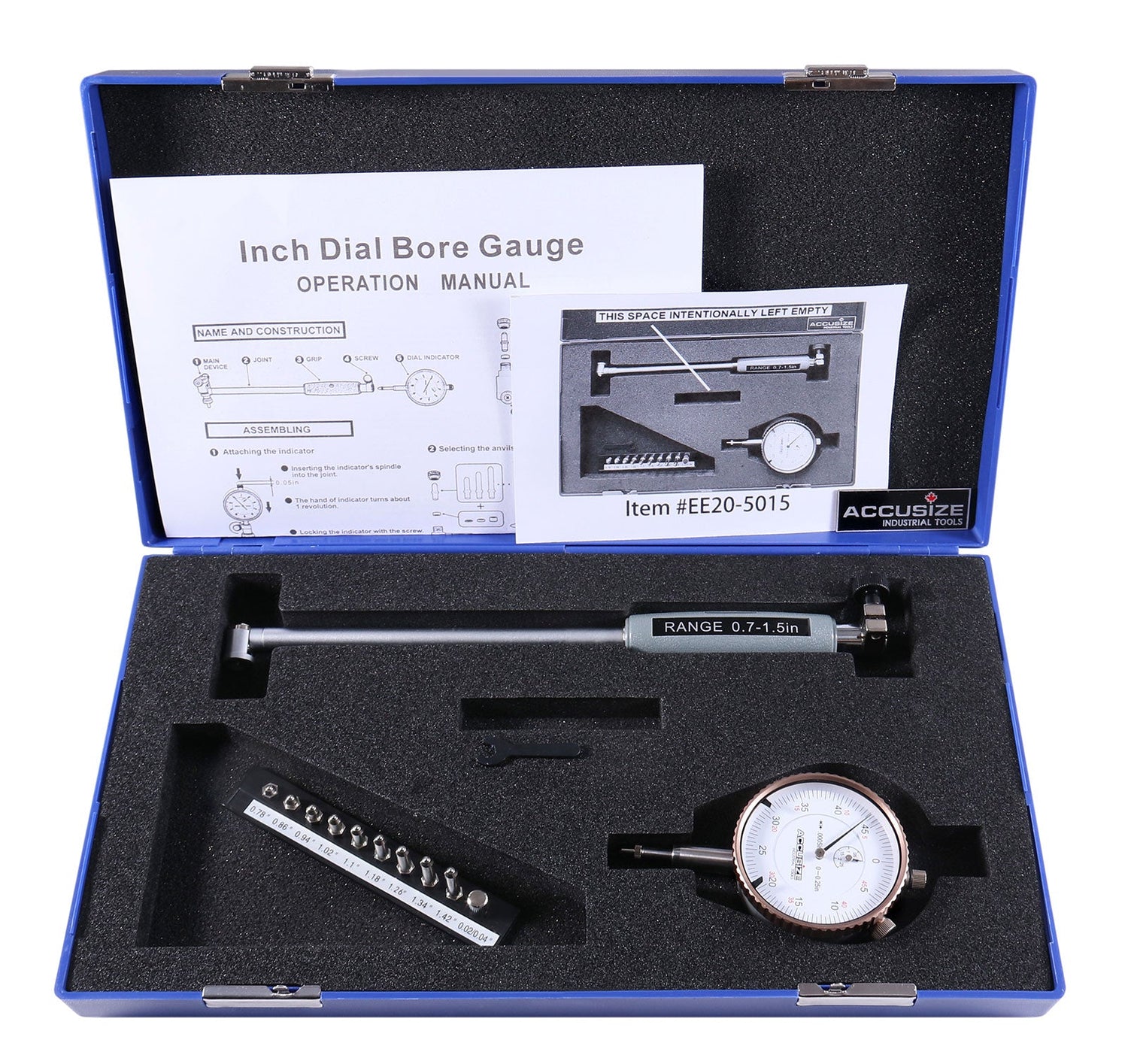

| EE20-5015 | 0.7-1.5" x 0.0005" | 6" |

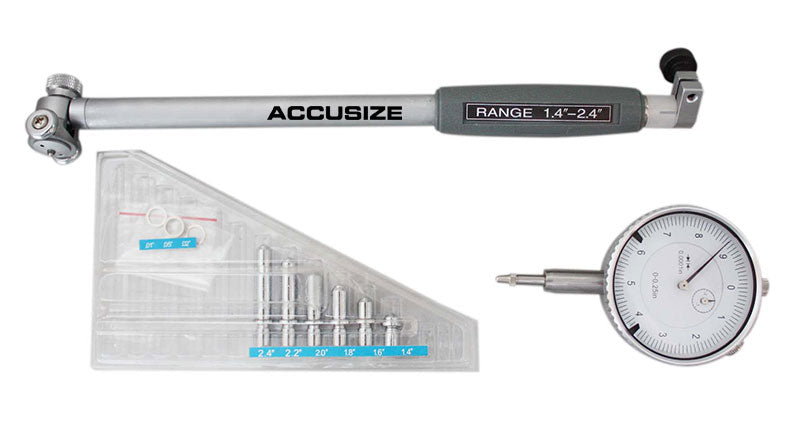

| EE20-5024 | 1.4-2.4" x 0.0005" | 6" |

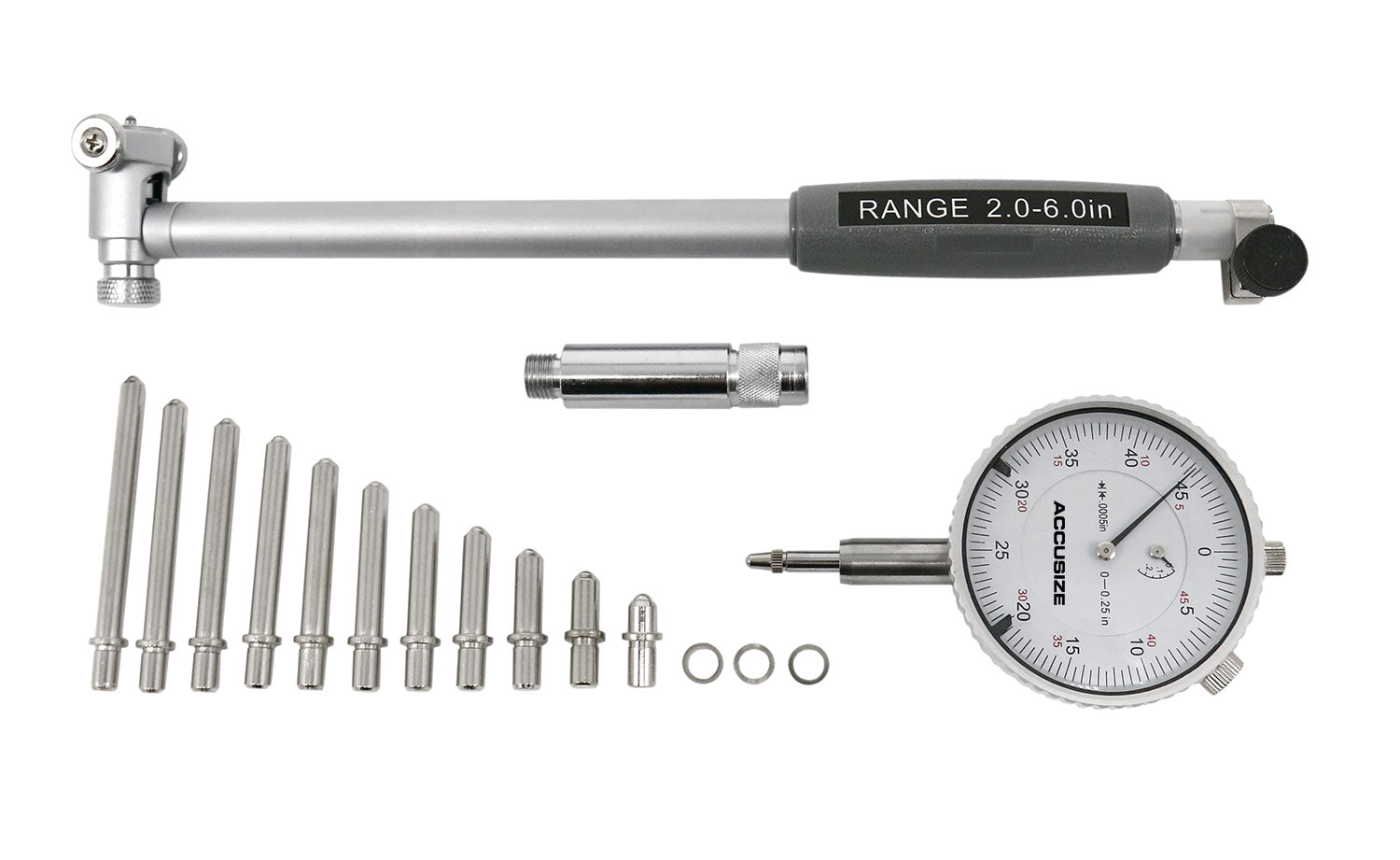

| EE20-5006 | 2-6" x 0.0005" | 6" |

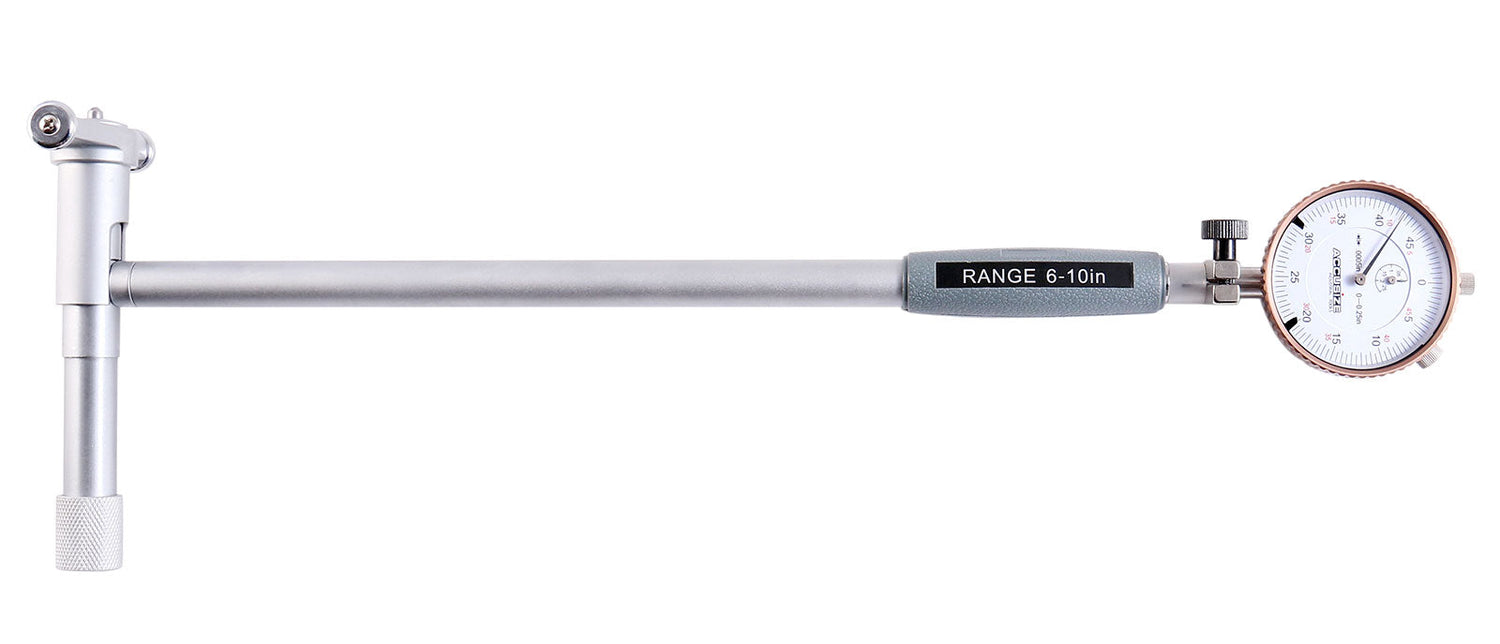

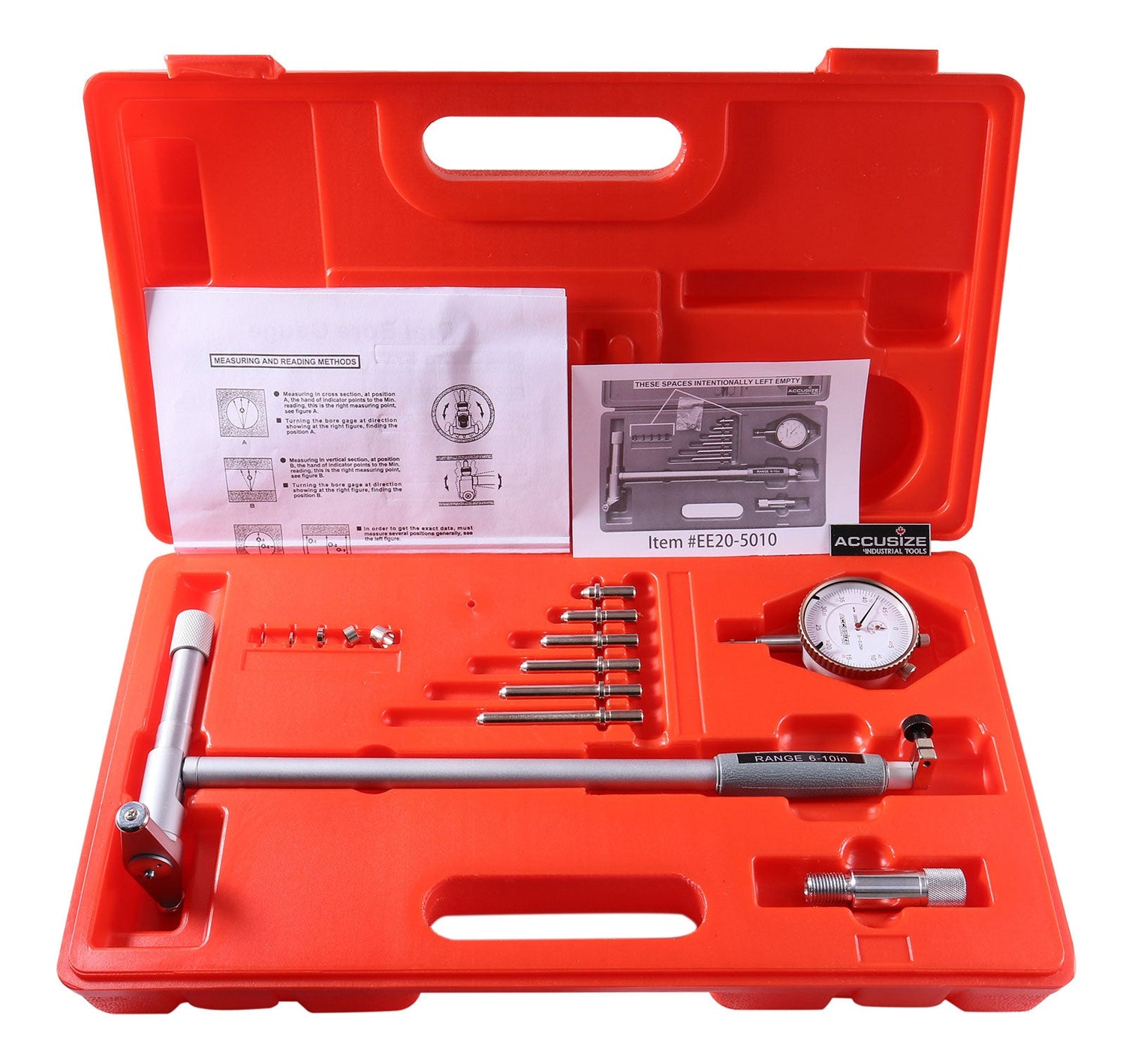

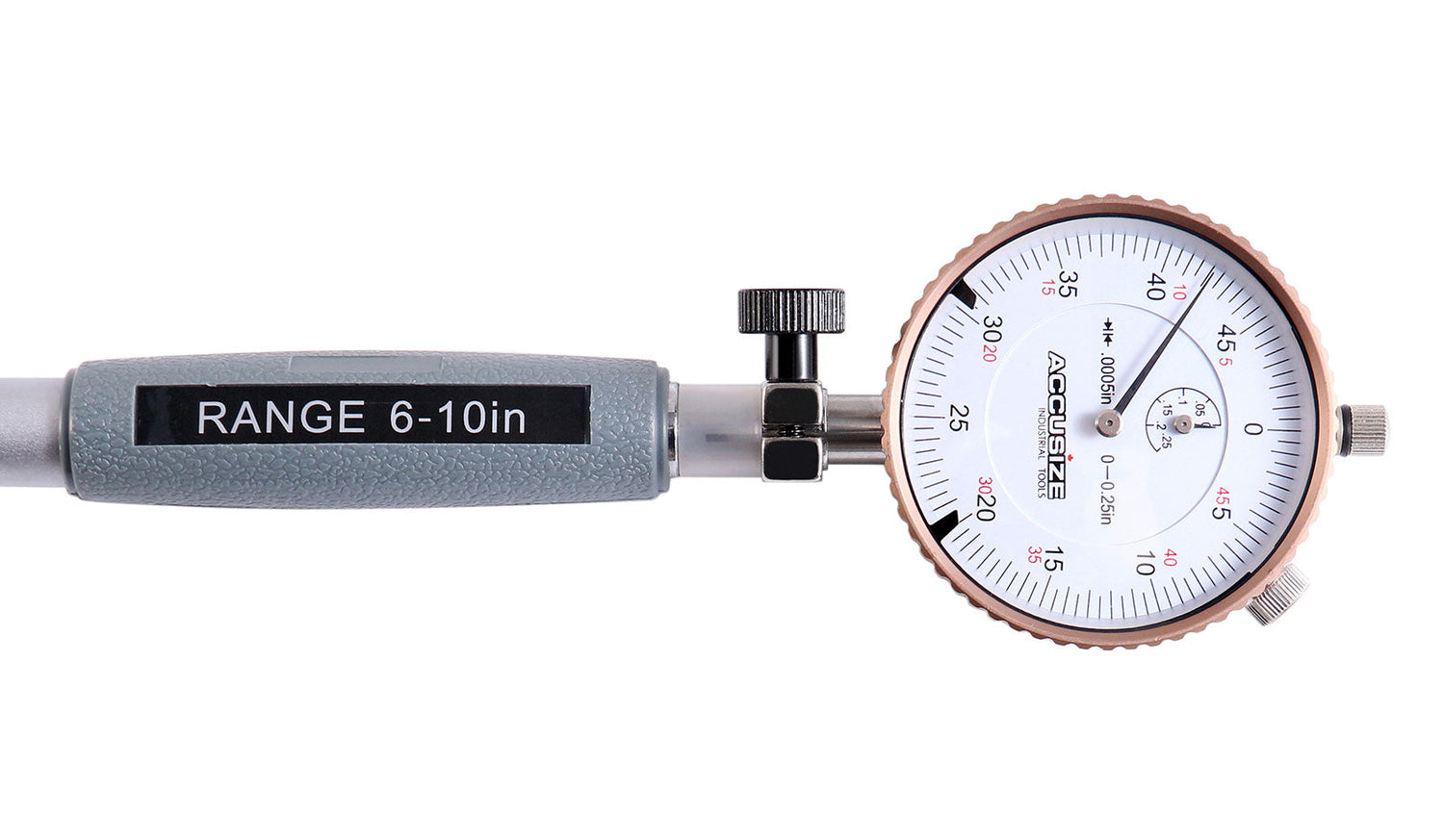

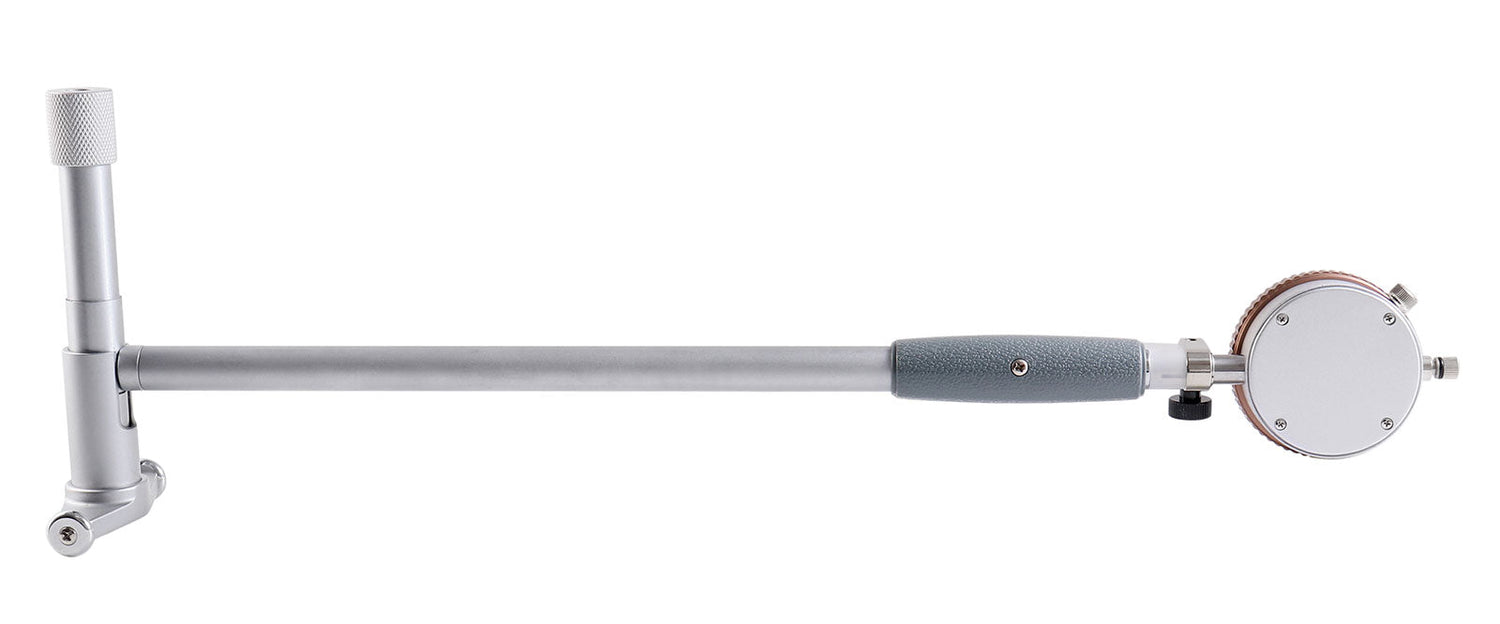

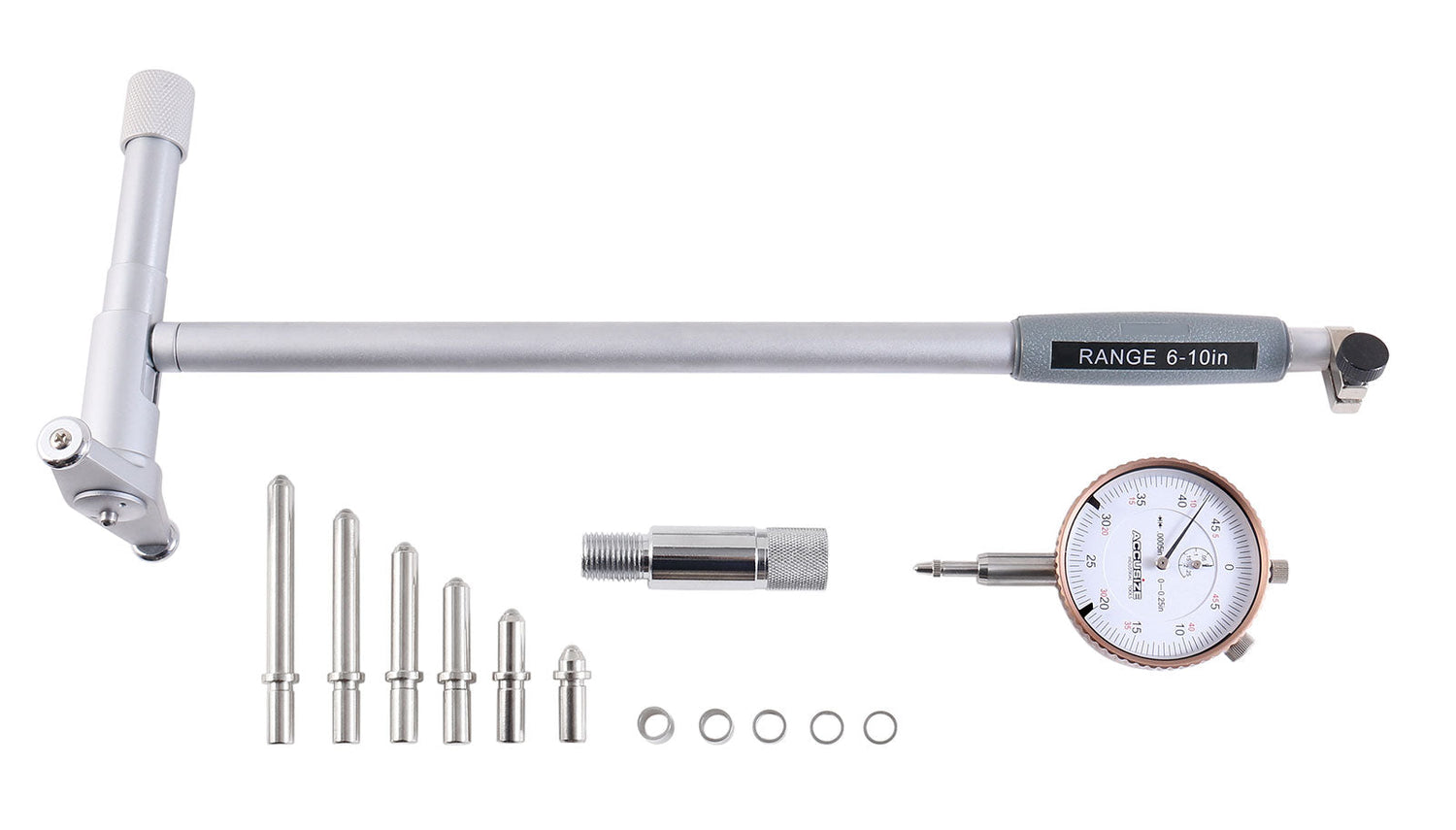

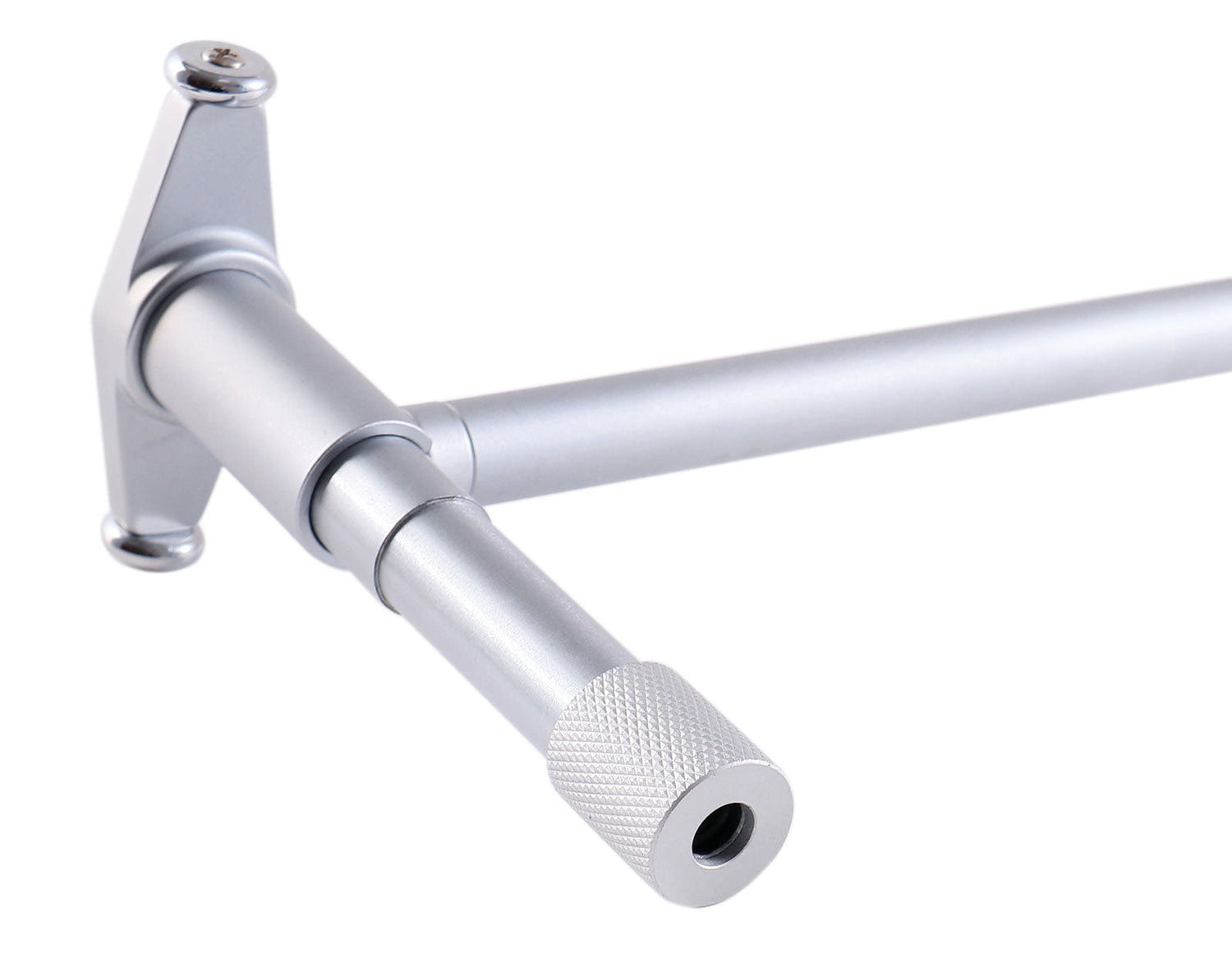

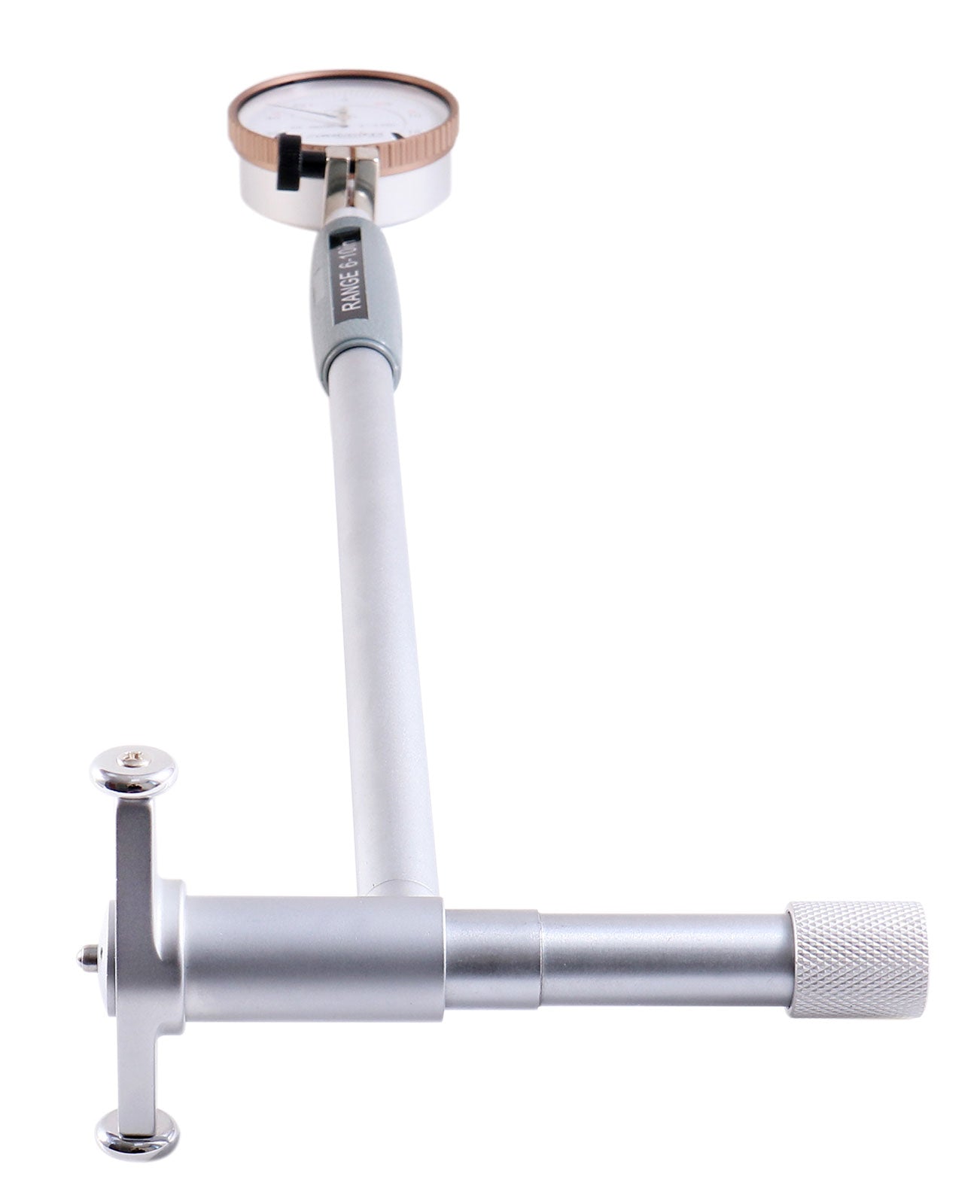

| EE20-5010 | 6-10" x 0.0005" | 6" |
| EE20-1007 | 0.4-0.7" x 0.0001" | 4" |

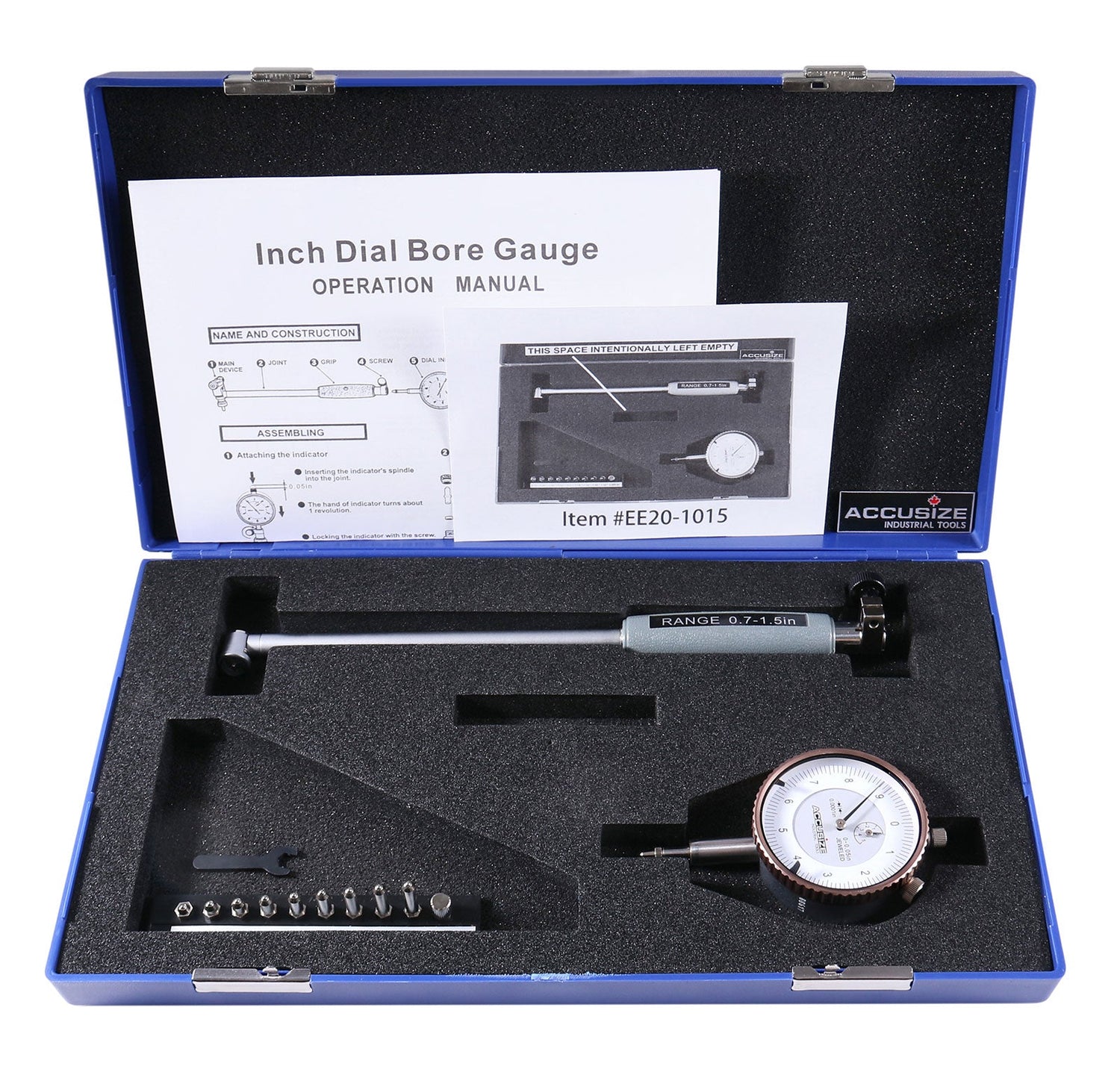

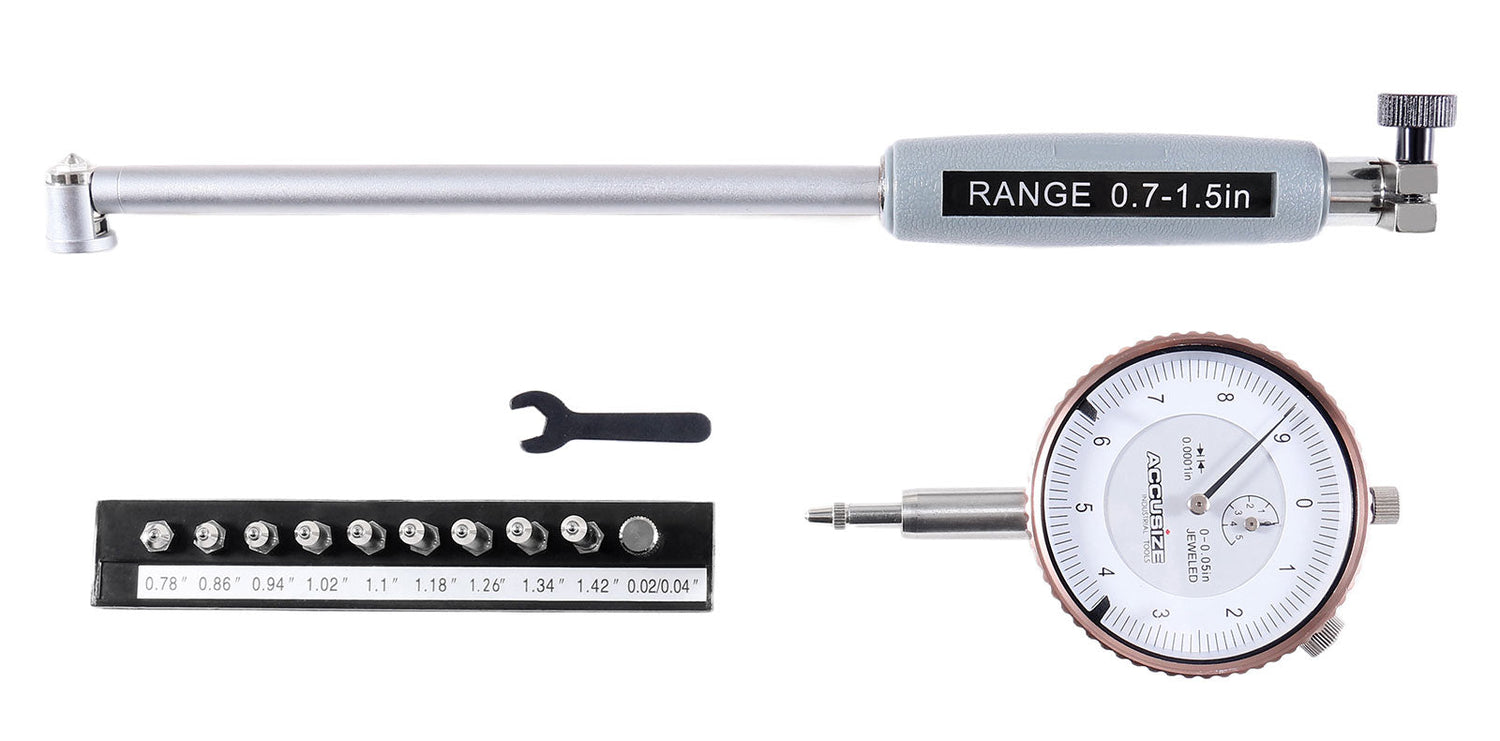

| EE20-1015 | 0.7-1.5" x 0.0001" | 5" |
| EE20-1024 | 1.4-2.4" x 0.0001" | 6" |

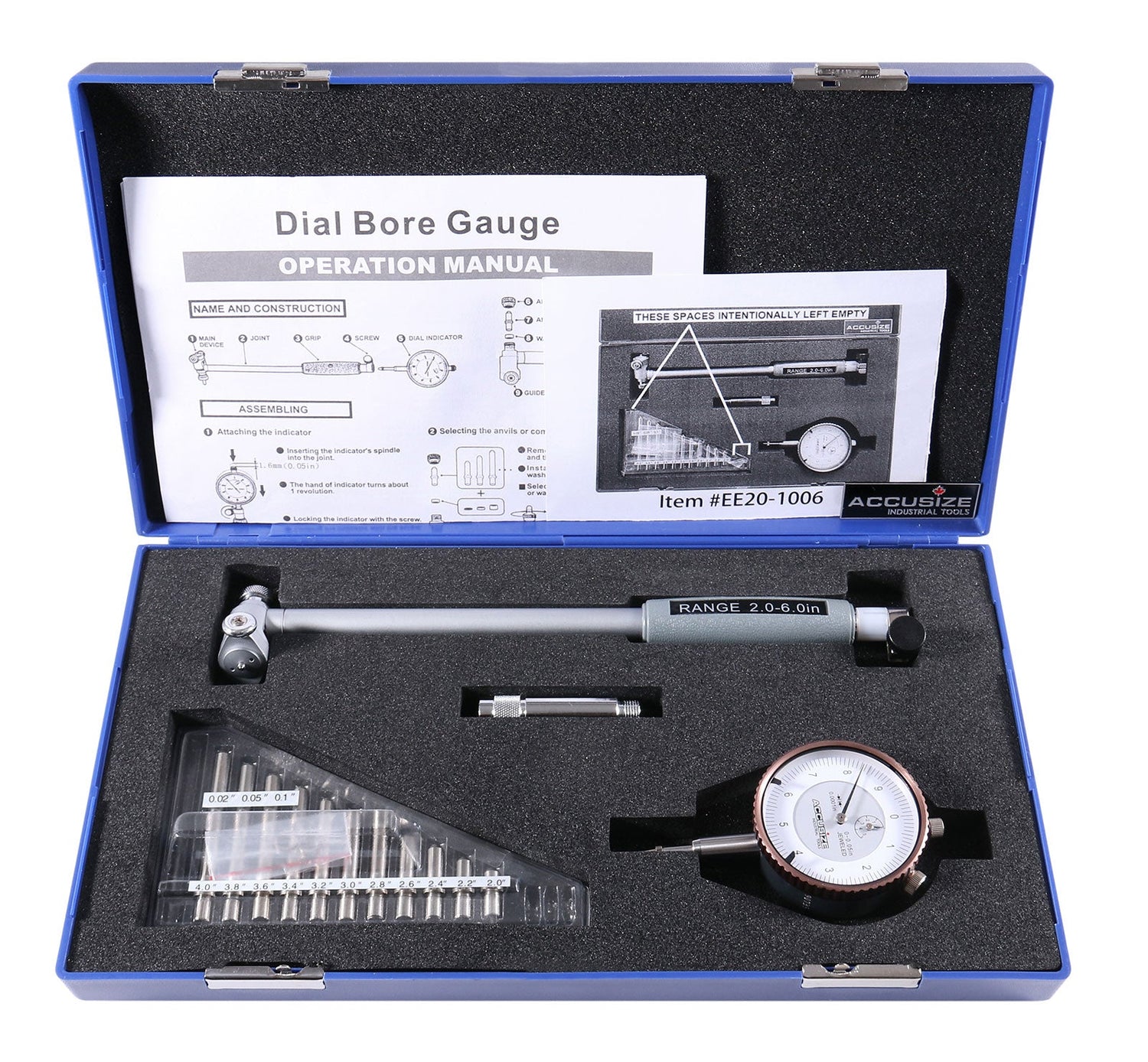

| EE20-1006 | 2-6"; 0.0001" Graduation; +/-0.0004" Accuracy; | 6" |

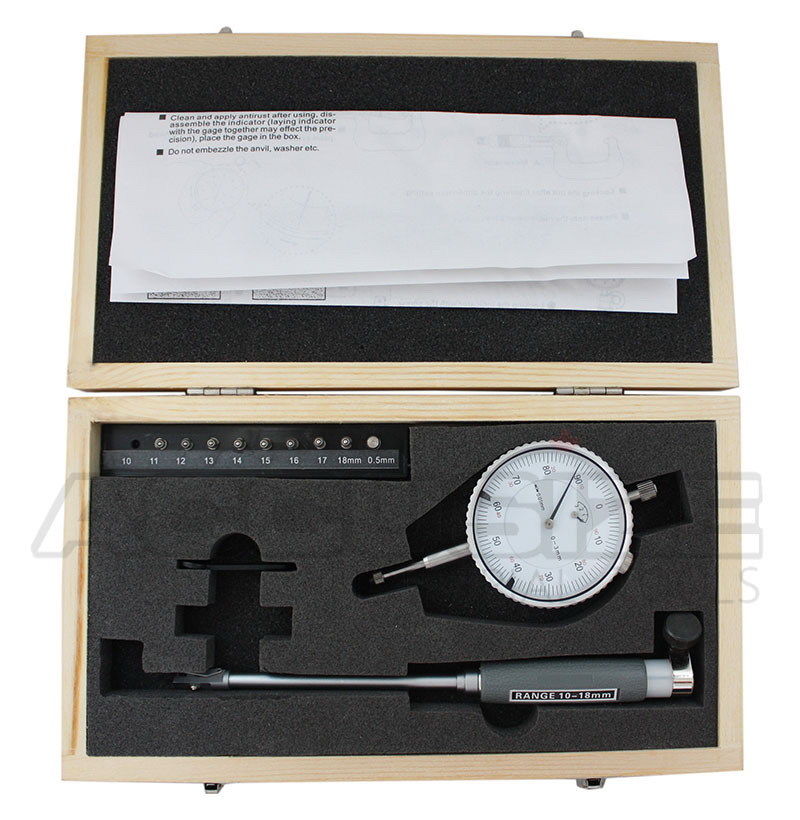

| EG20-0018 | 10-18mm x 0.01mm | 100mm |

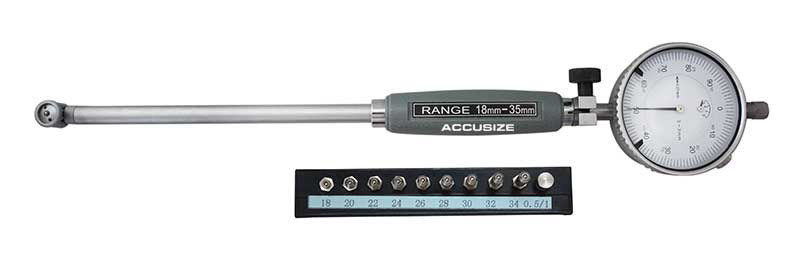

| EG20-0035 | 18-35mm x 0.01mm | 150mm |
| EG20-0050 | 35-50mm x 0.01mm | 150mm |

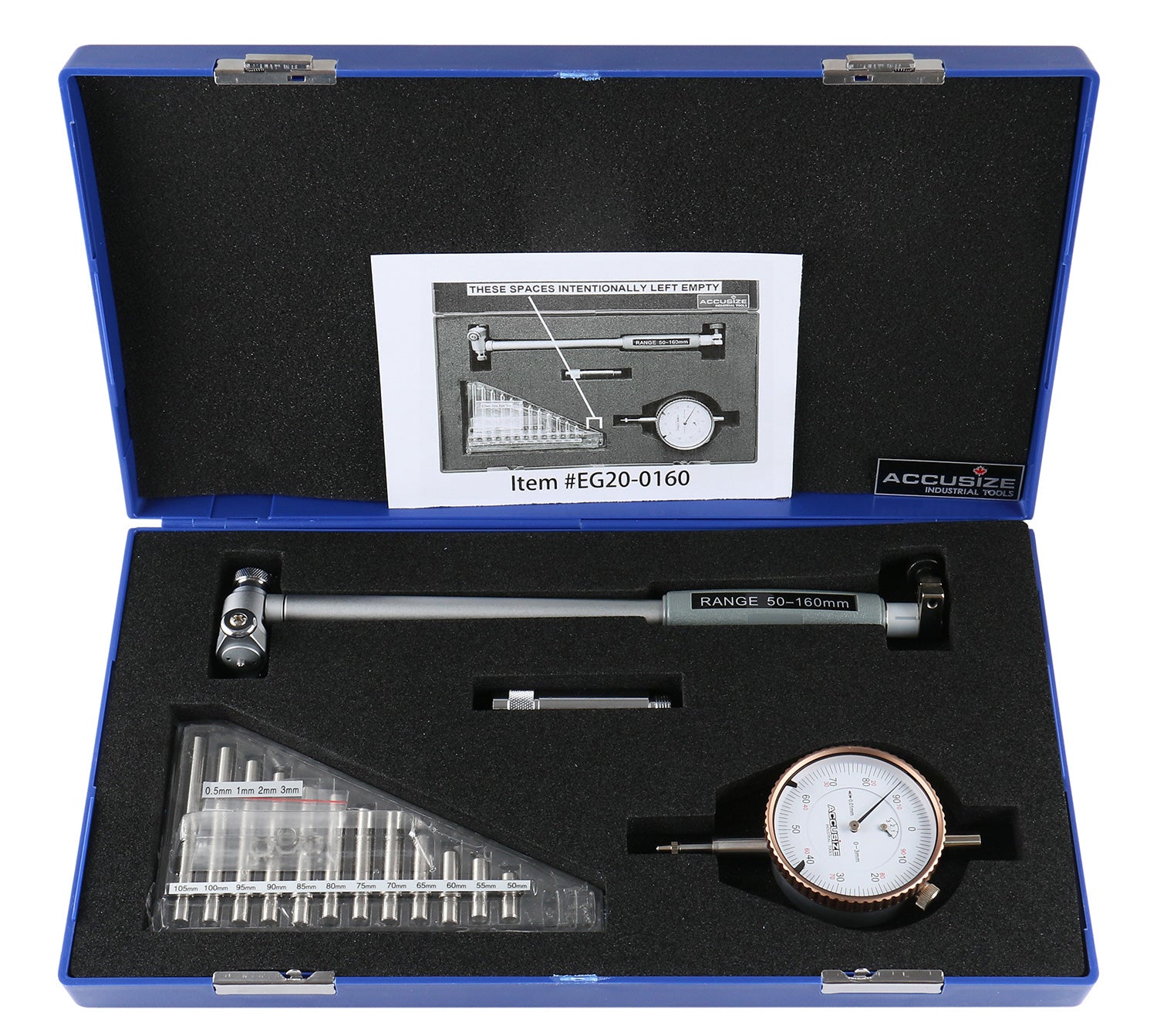

| EG20-0160 | 50-160mm x 0.01mm | 150mm |
