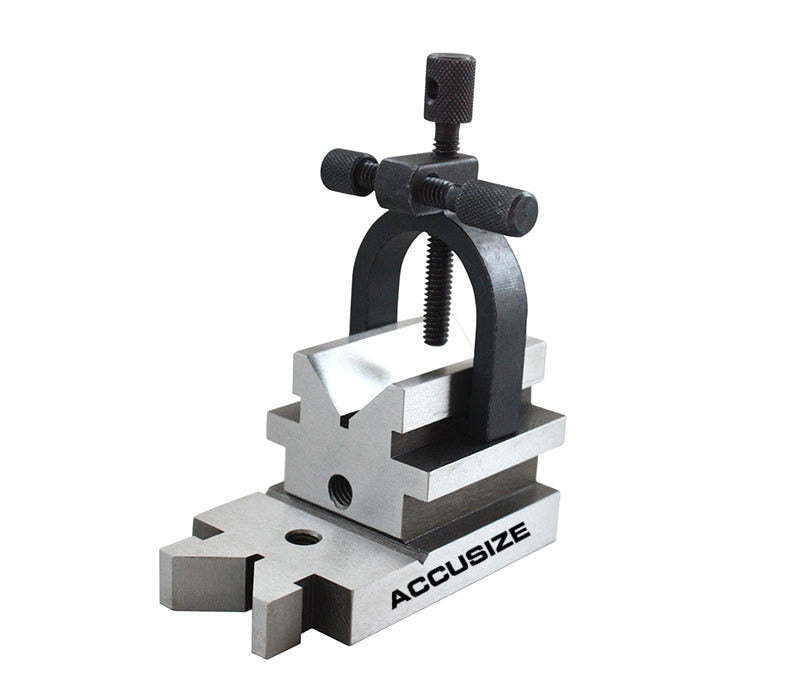

3605-3050, ALL-ANGLE V-BLOCK & CLAMP

ALL-ANGLE V-BLOCK & CLAMP #3605-3050

• Applications:
  • For grinding,milling or drilling work.
• Features:
  • Made of hardened and precision ground tool steel.
  • Sides are parallel and vee is central and ground.
  • Central hole is provided for drilling or removing pins
  • V-block has (4)3/8"16 tapped holes, (2) in the base and (1) on each side for angle iron clamping.
  • Block is provided with black oxidized clamp.
  • Parallelism tolerance of Vee axis to base:within
  • 0.0003"/8 microns
  • Dimensions: 3-5/8" Lx1-7/8"Wx1-7/8"H
  • Holding capacity: 1-5/16"
