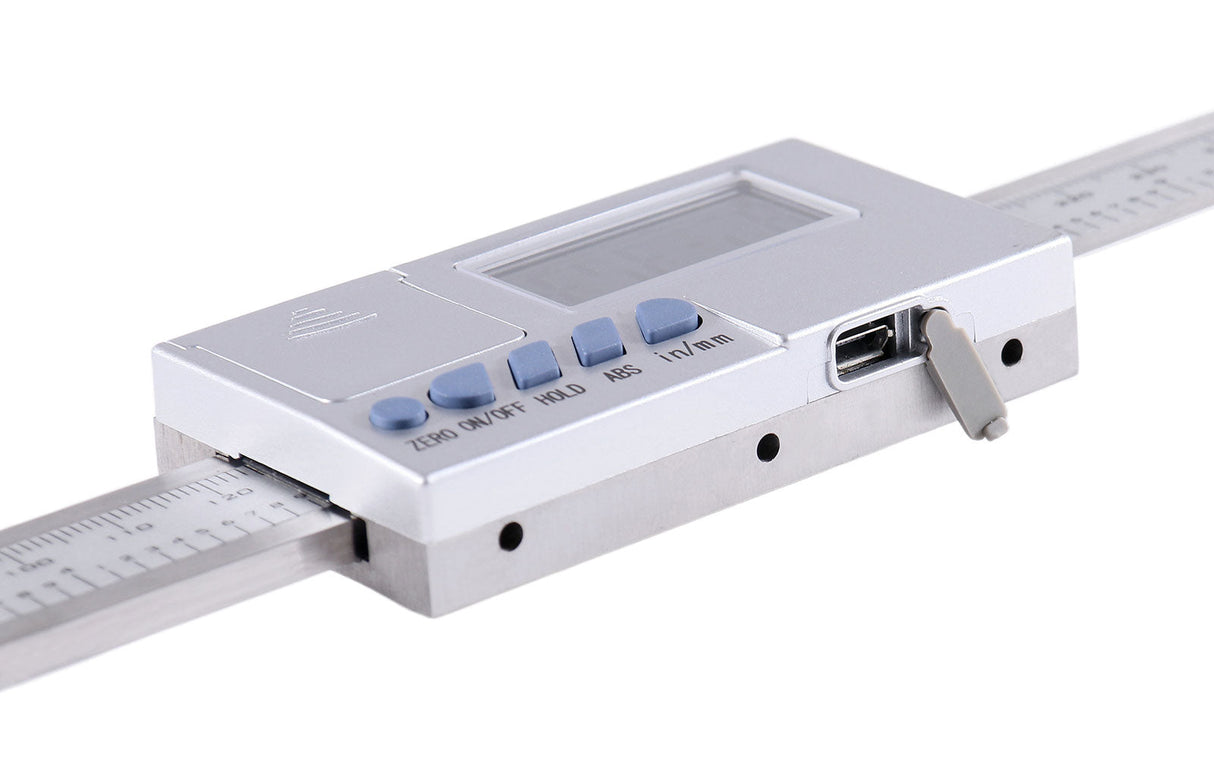

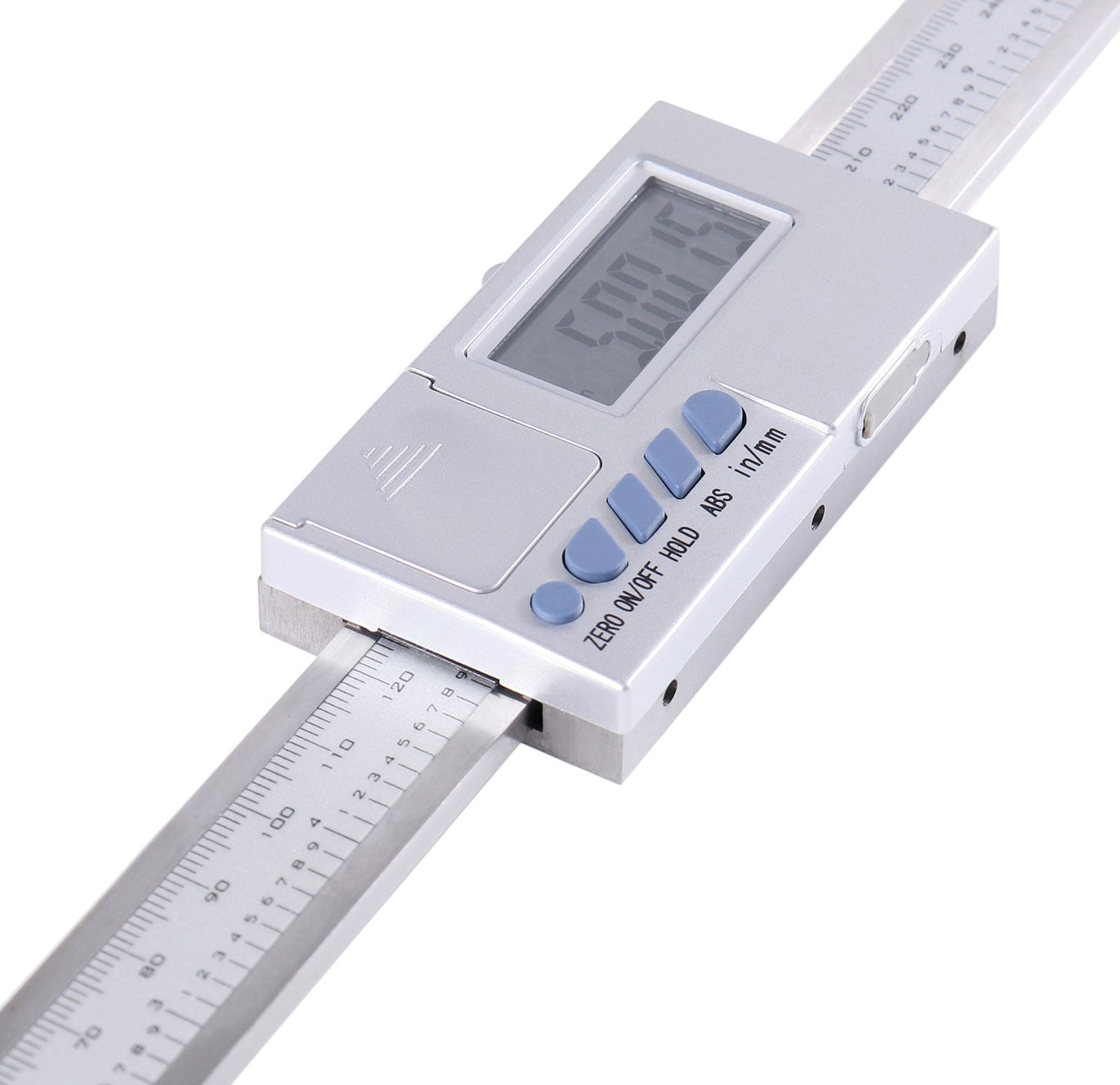

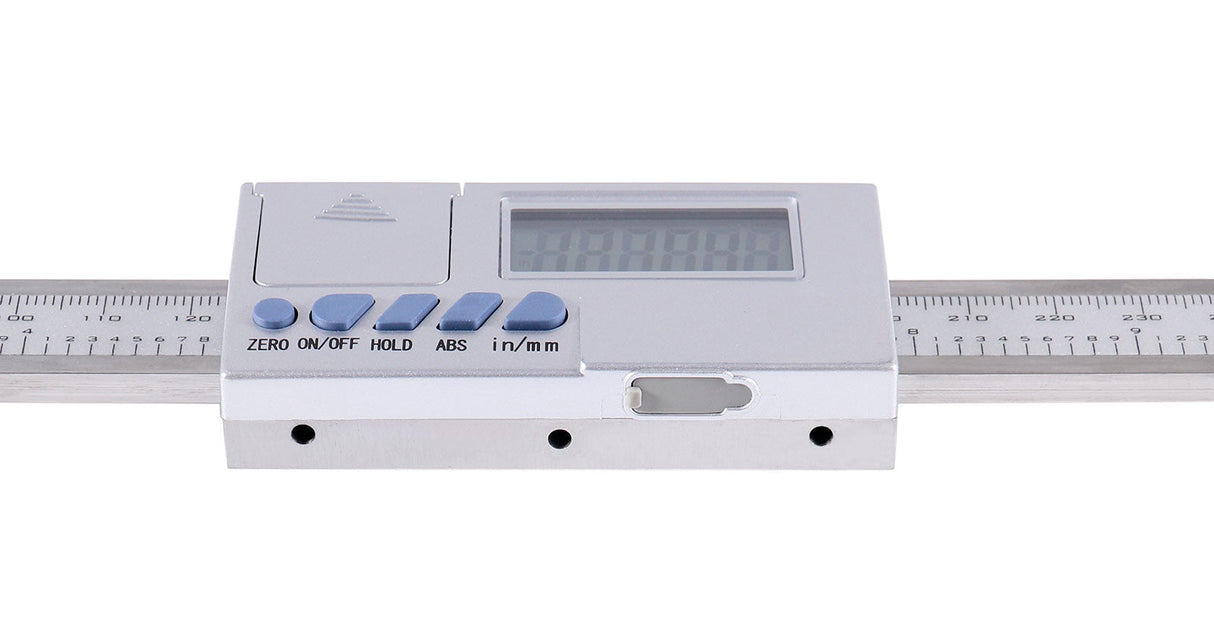

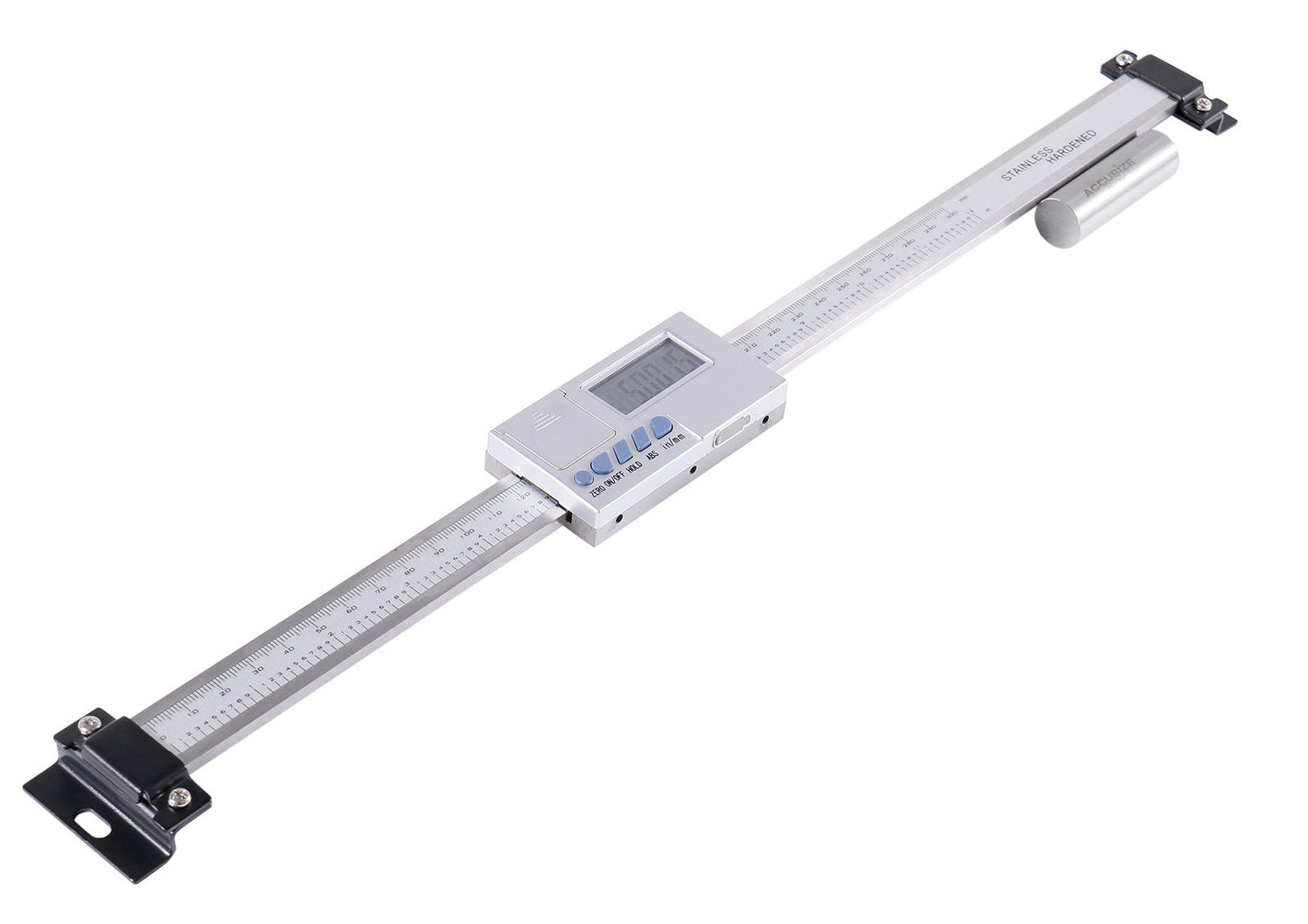

Electronic Digital DRO Scale Unit Horizontal
Regular price
From
$88.00 CAD
Unit price
/
Unavailable
- Measuring range:0-1000mm(0-40")
- Resolution:0.01 mm.
- Accuracy:±(0.02+0.00005×L) mm, (L=length in mm).

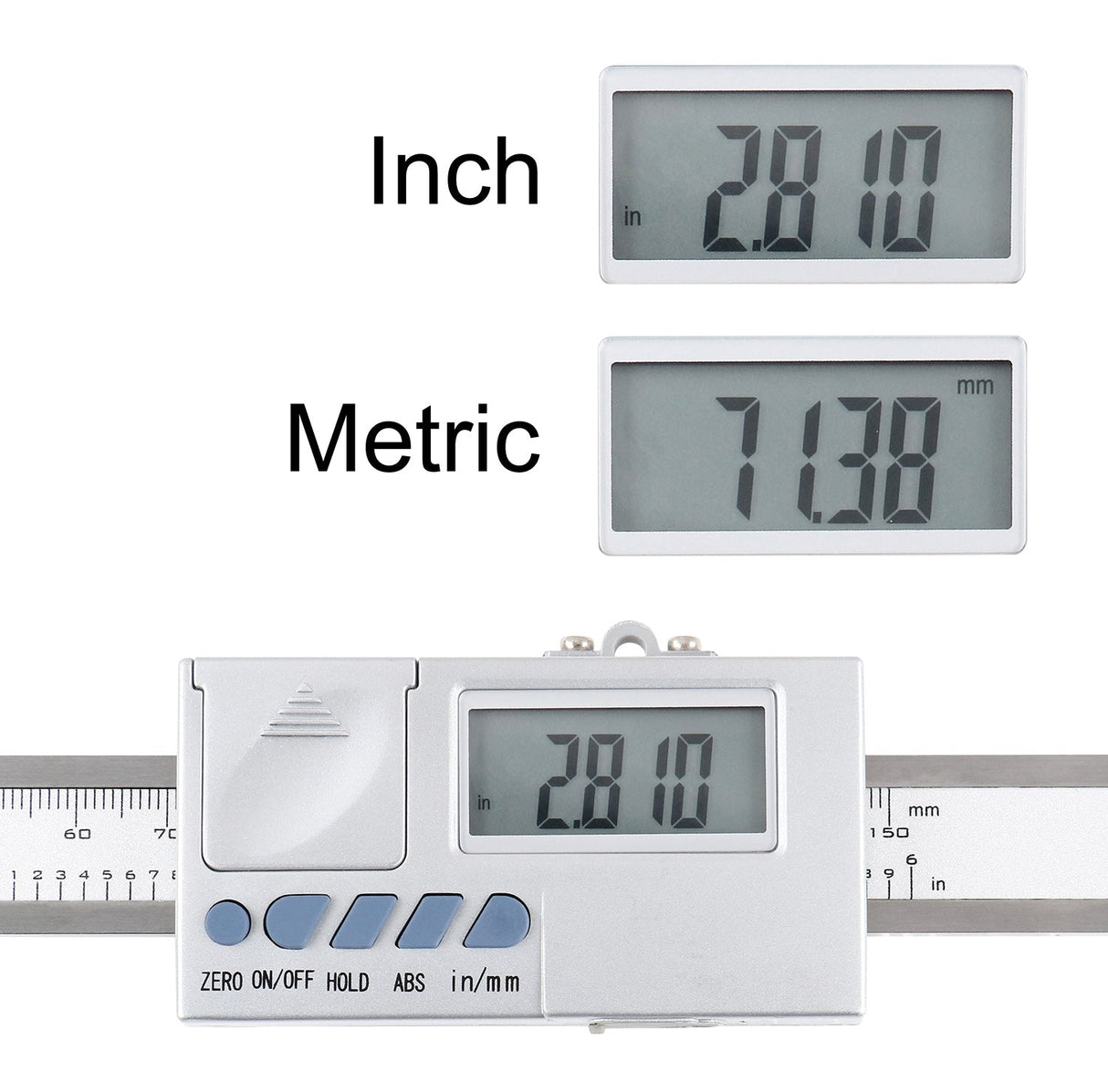

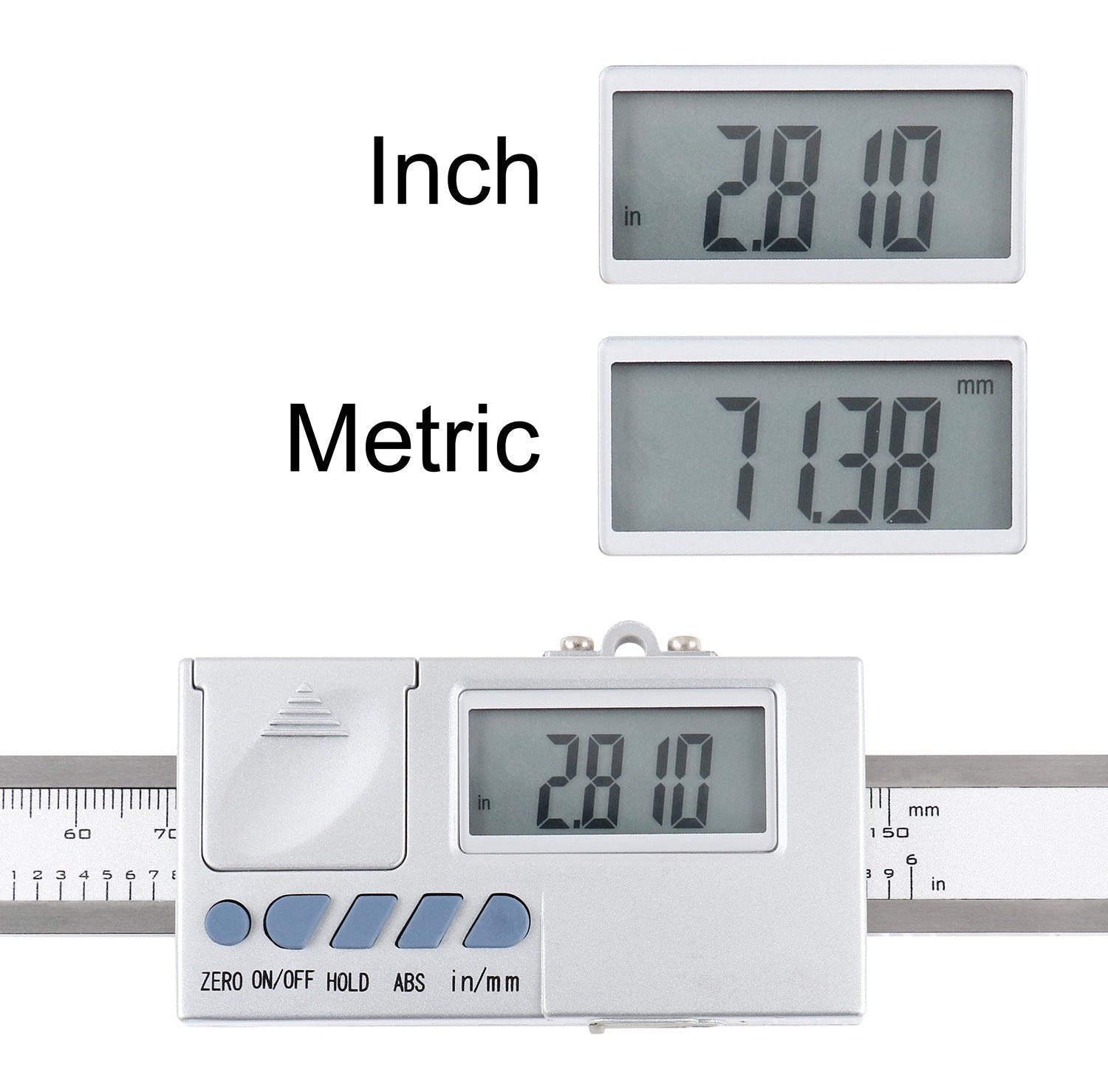

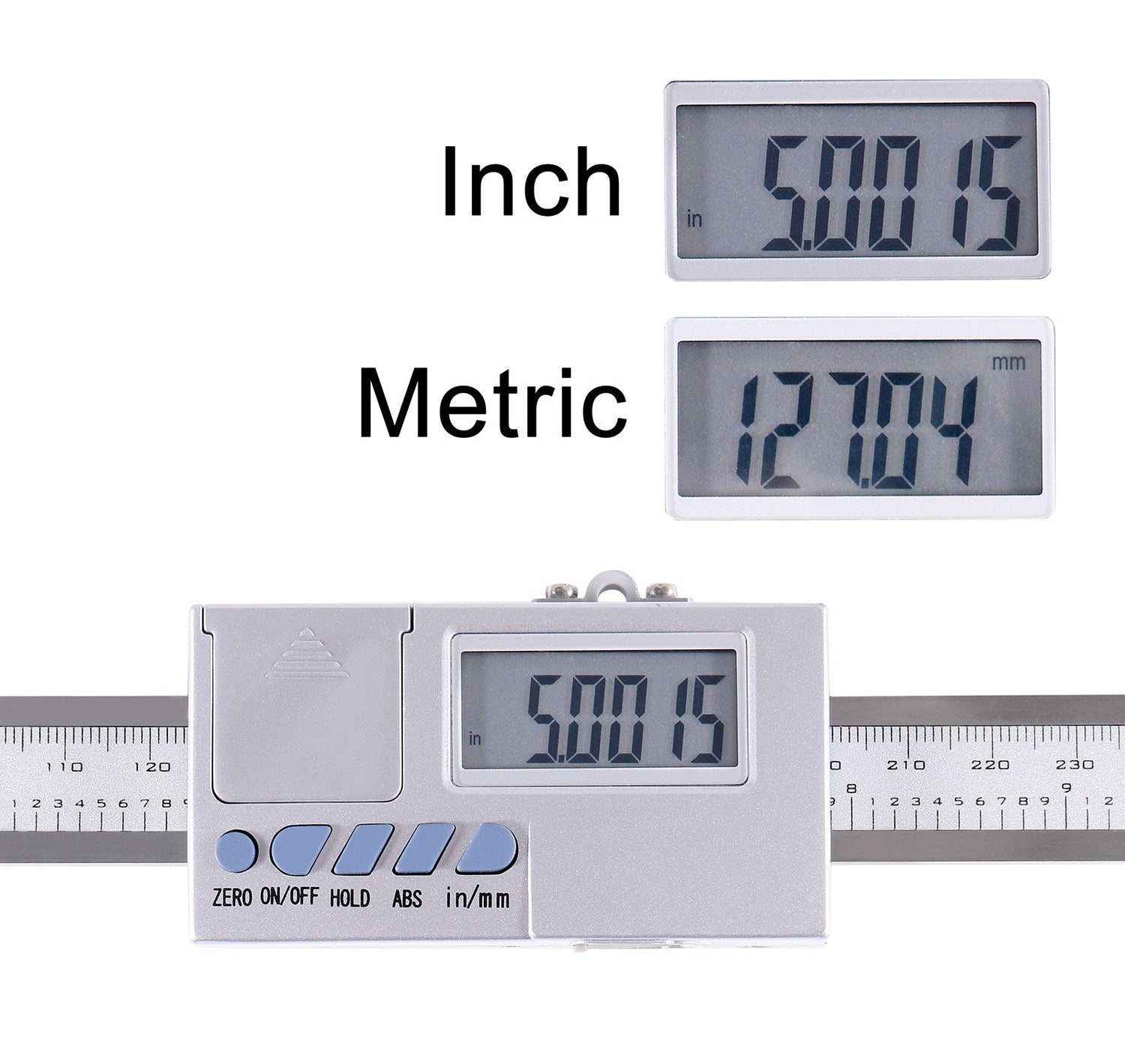

- mm/inch conversion.
- Repeatabilty: ±0.01 mm/0.0005".
- Max.measuring speed: 0-450mm:1.5m/s, 500-1000mm:1m/s
- Reset
- On/off switch

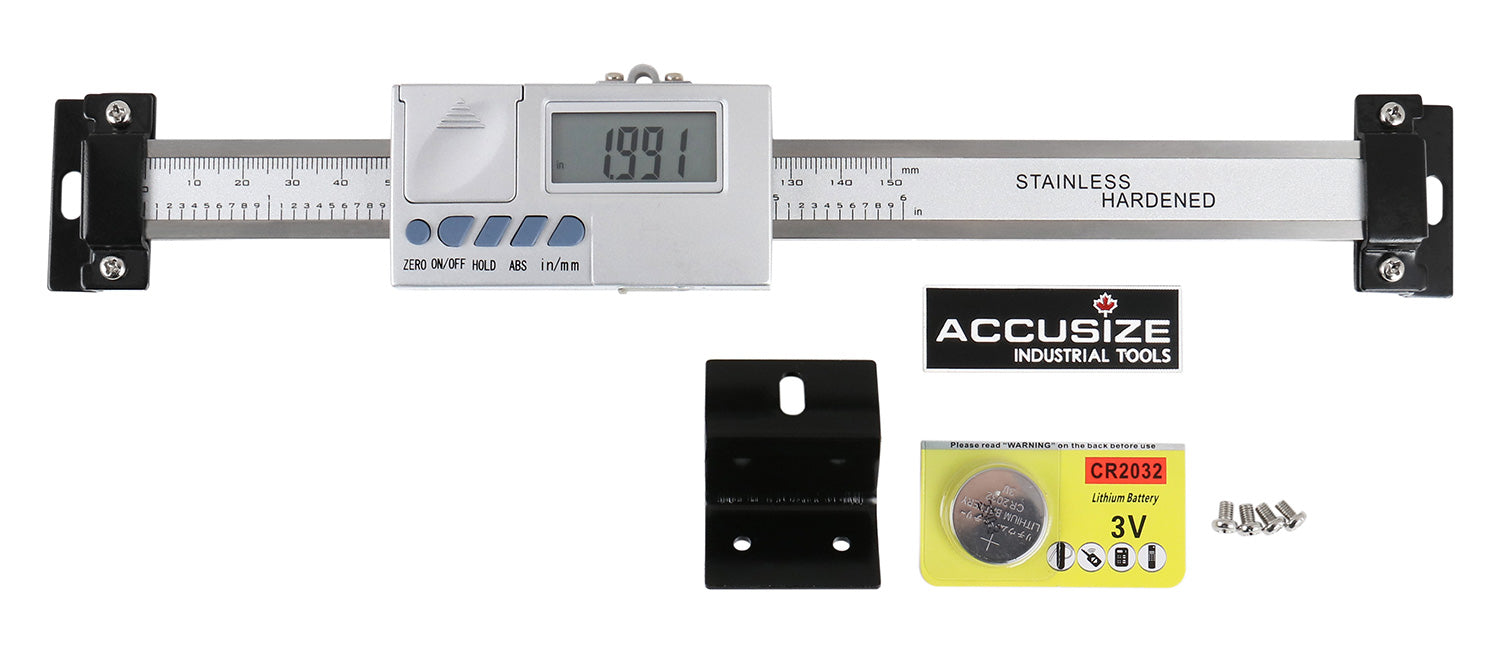

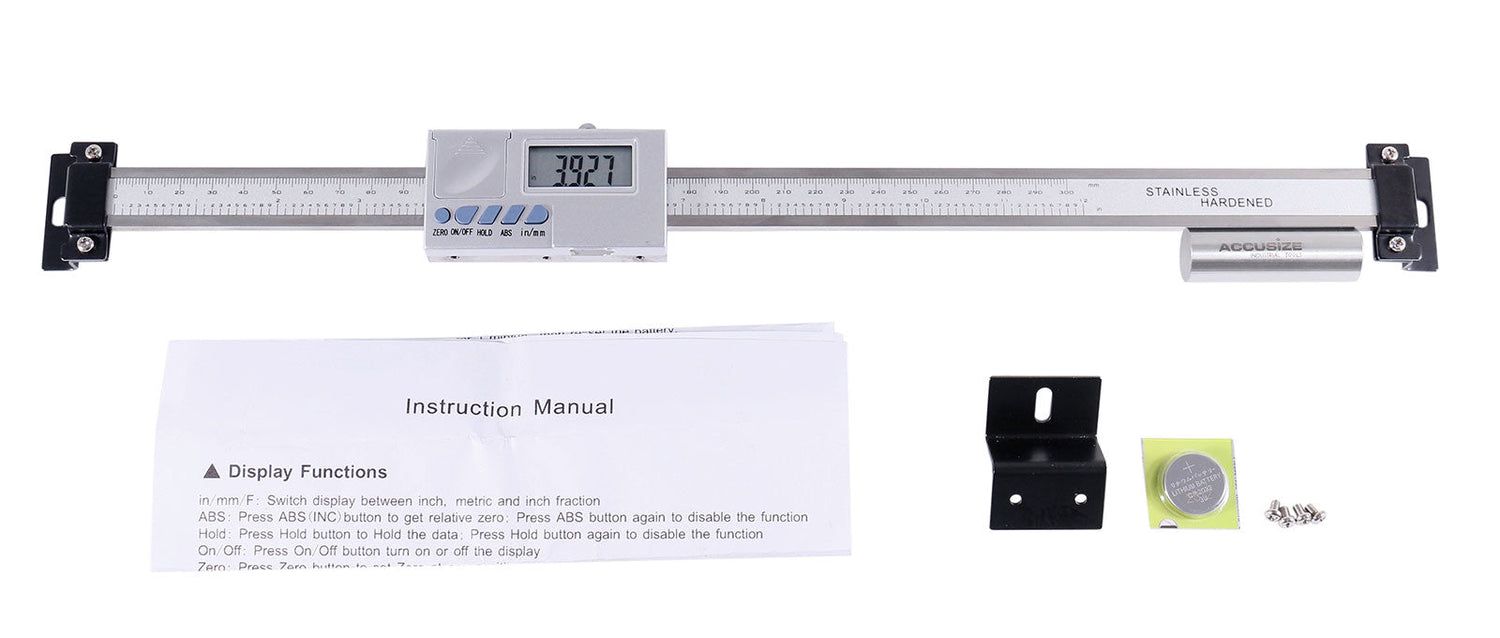

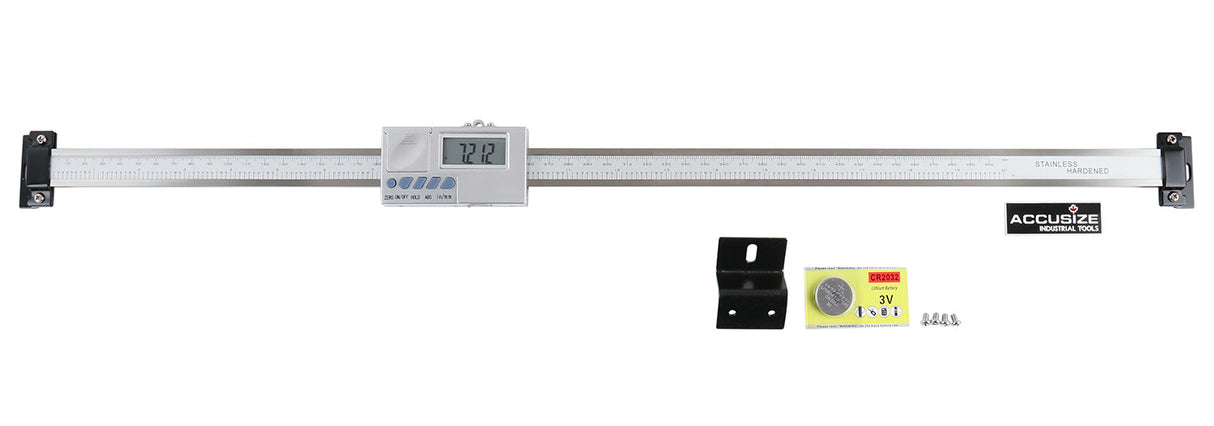

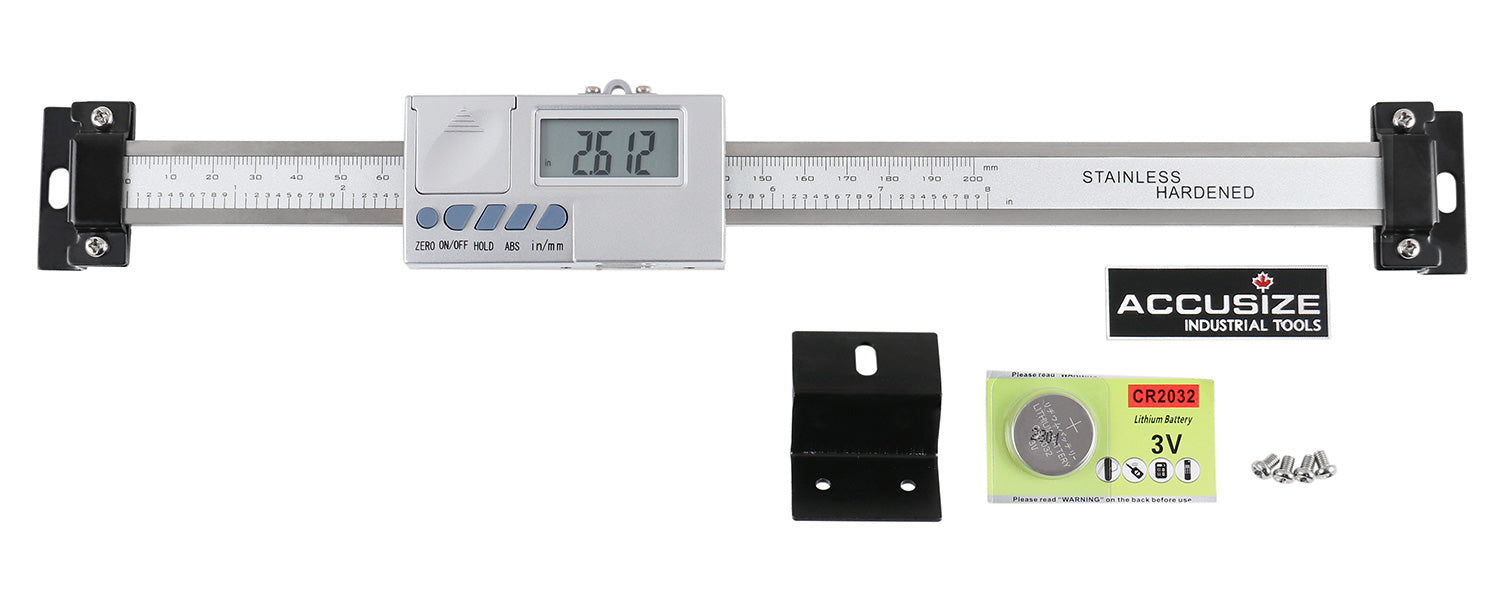

- Delivery complete with mounting material.
- Power supply:1 battery
- From 500mm with the extra functions
- ABS/INC switchable
- Preset function.
- Cab be used with 3-Axis DRO display # 1104-0220(1104-0110V) or one Axis DRO position #1104-7950(1104-8111) or individually
| Item | Description | Range | Resolution | Max. Measuring Speed |
| ABHO-0006 | HORIZONTAL | 0-6"/0-150mm | 0.0005"/0.01mm | 1.5m/s |
| ABHO-0008 | HORIZONTAL | 0-8"/0-200mm | 0.0005"/0.01mm | 1.5m/s |
| ABHO-0012 | HORIZONTAL | 0-12"/0-300mm | 0.0005"/0.01mm | 1.5m/s |
| ABHO-0018 | HORIZONTAL | 0-18"/0-450mm | 0.0005"/0.01mm | 1.5m/s |
| ABHO-0024 | HORIZONTAL | 0-24"/0-600mm | 0.0005"/0.01mm | 1m/s |
| ABHO-0040 | HORIZONTAL | 0-40"/0-1000mm | 0.0005"/0.01mm | 1m/s |
