SKU: 2600-0162

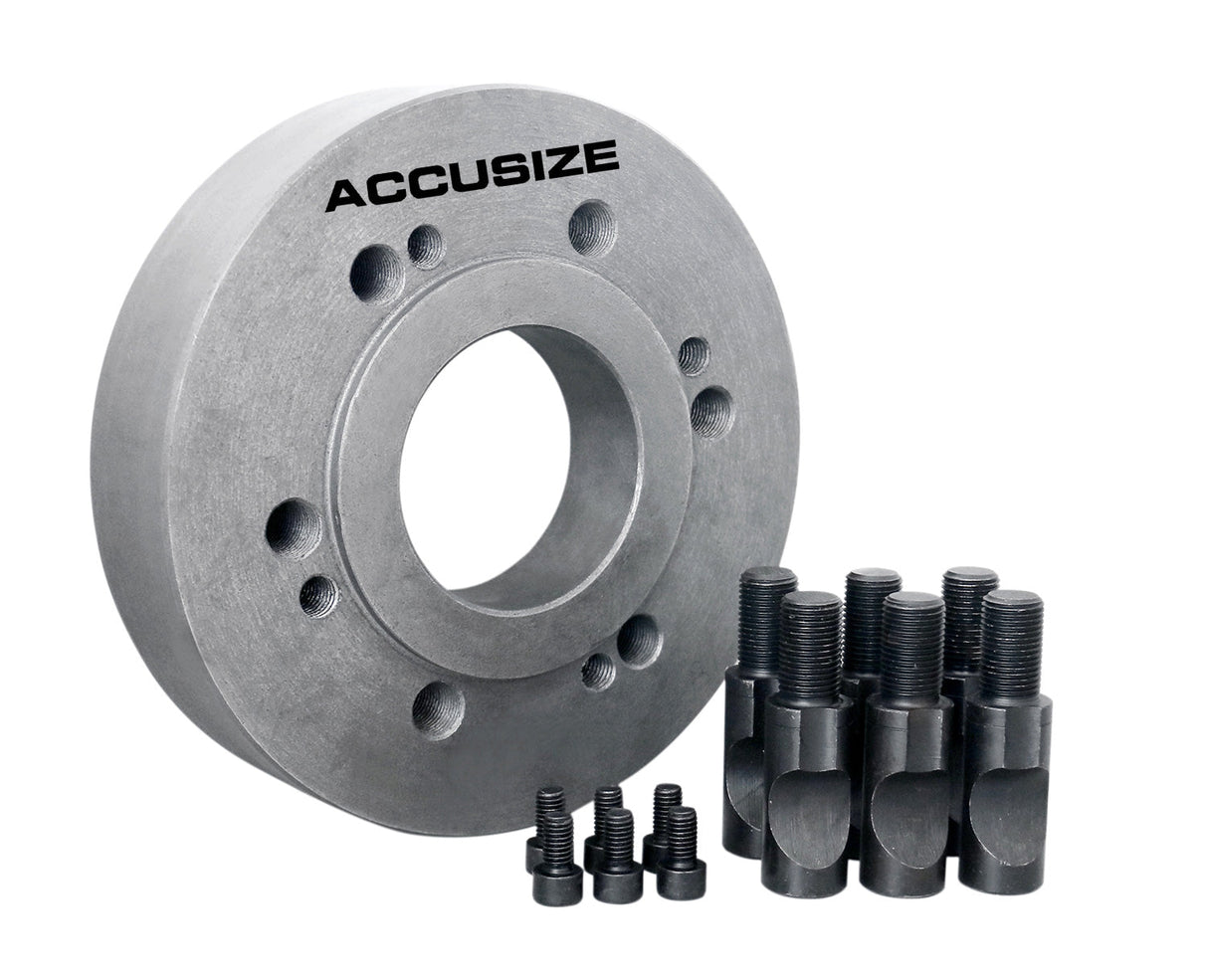

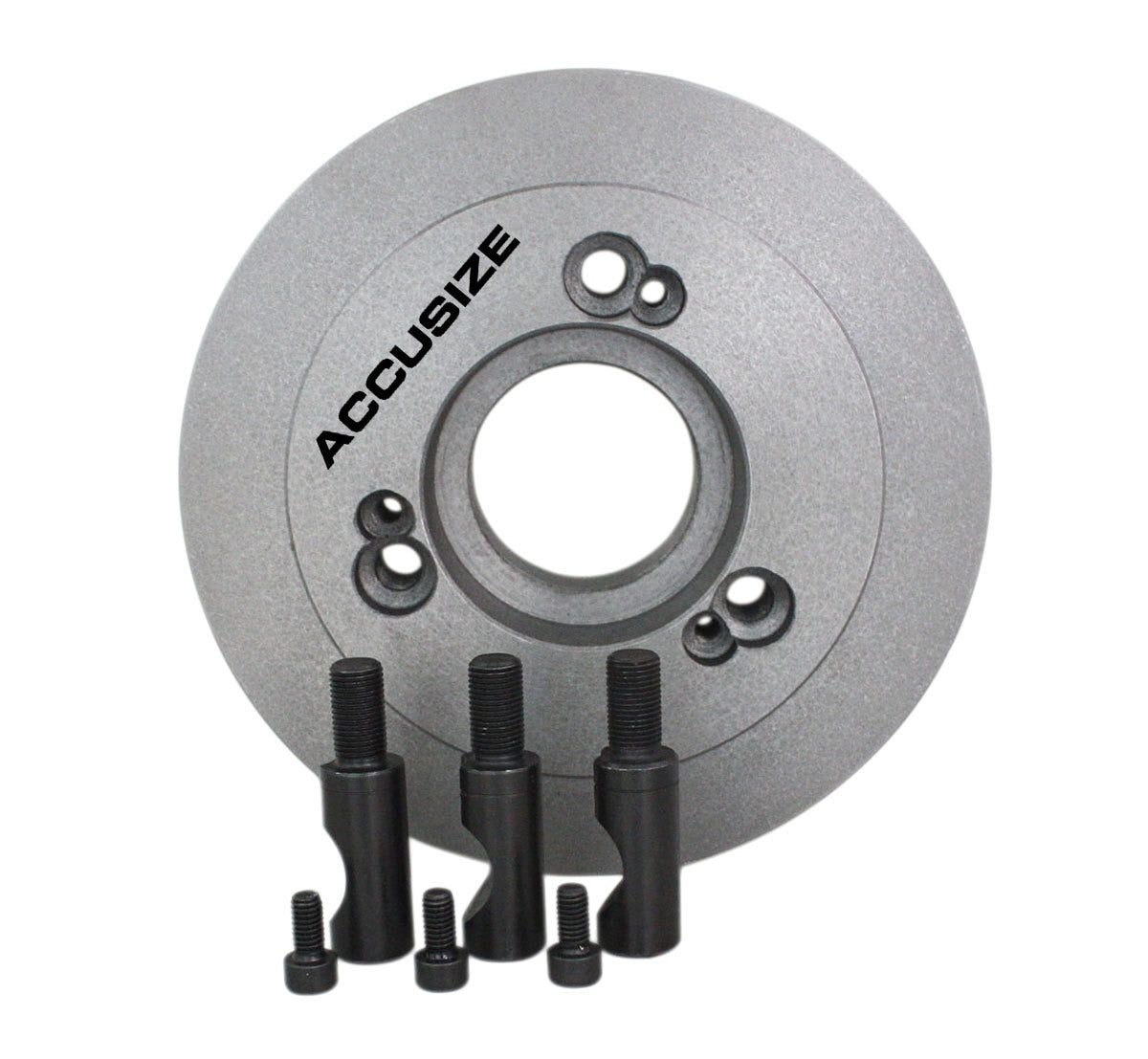

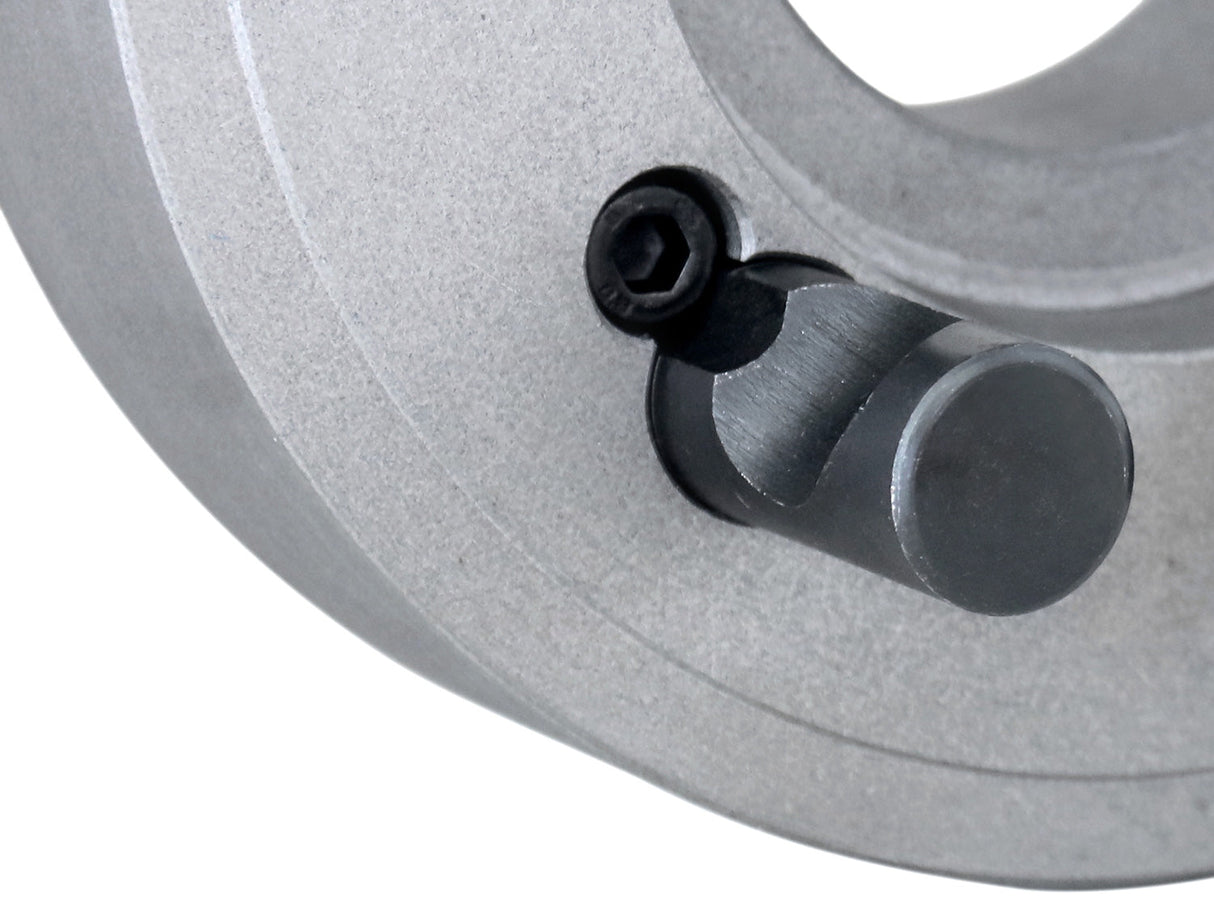

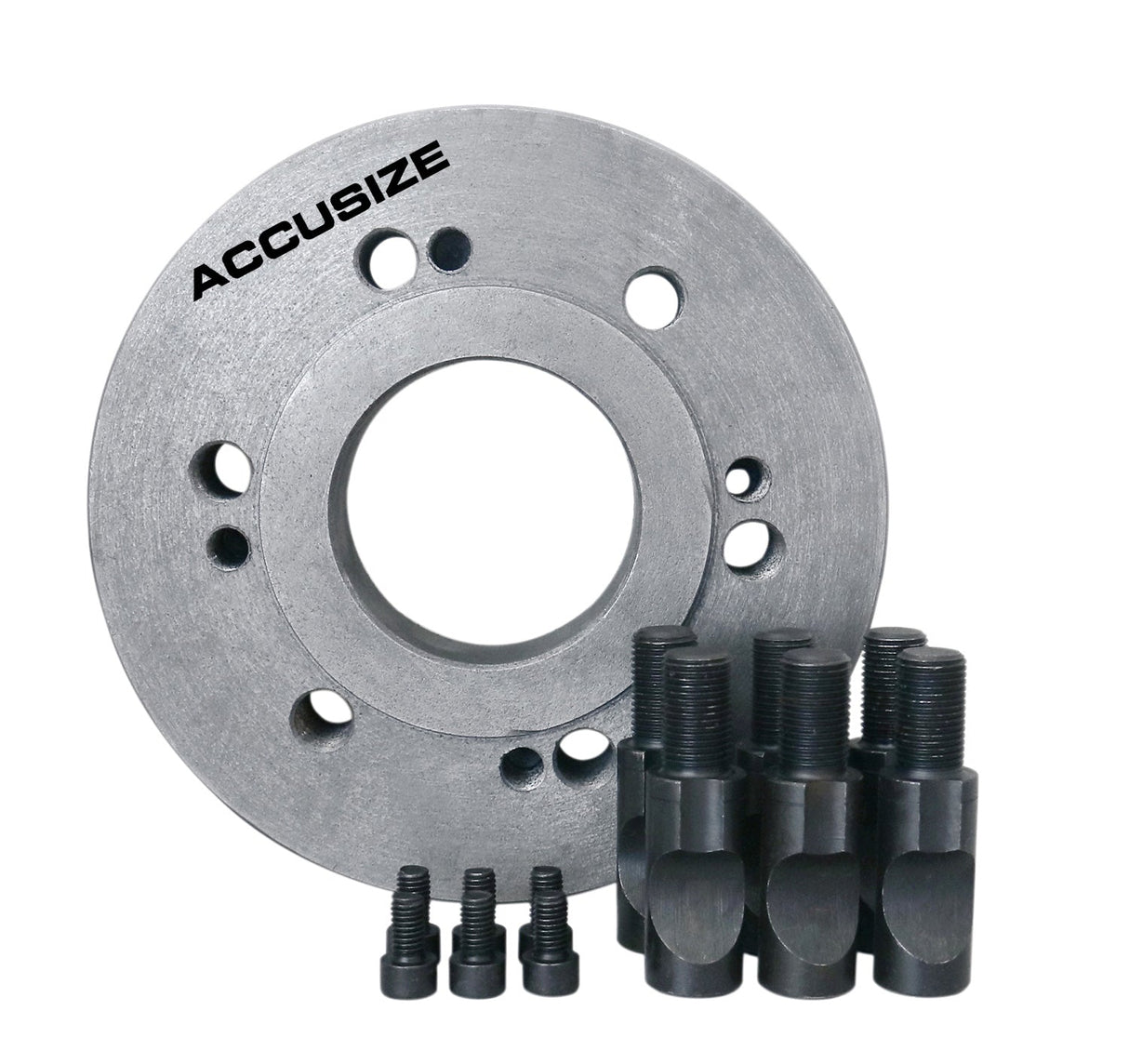

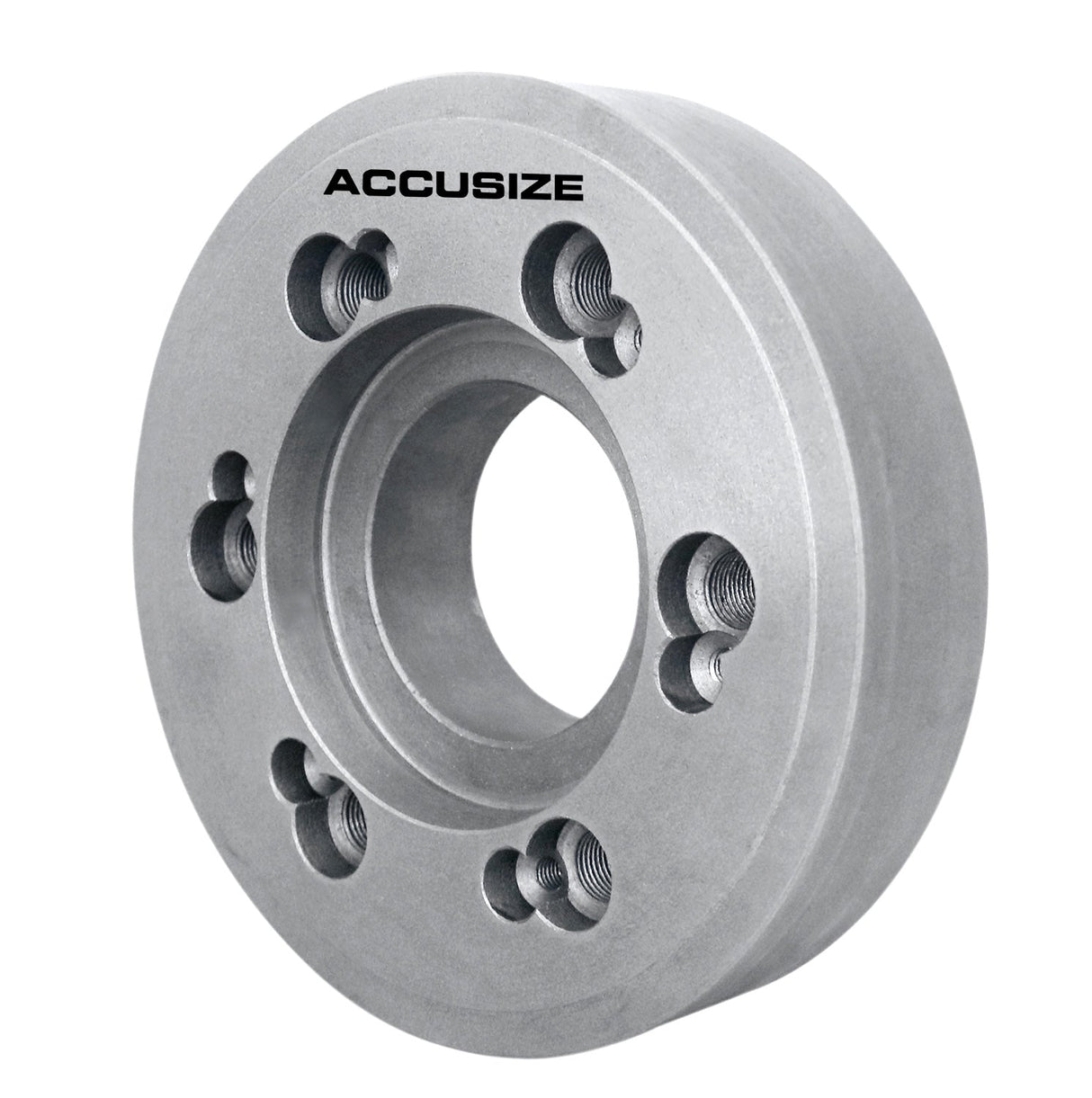

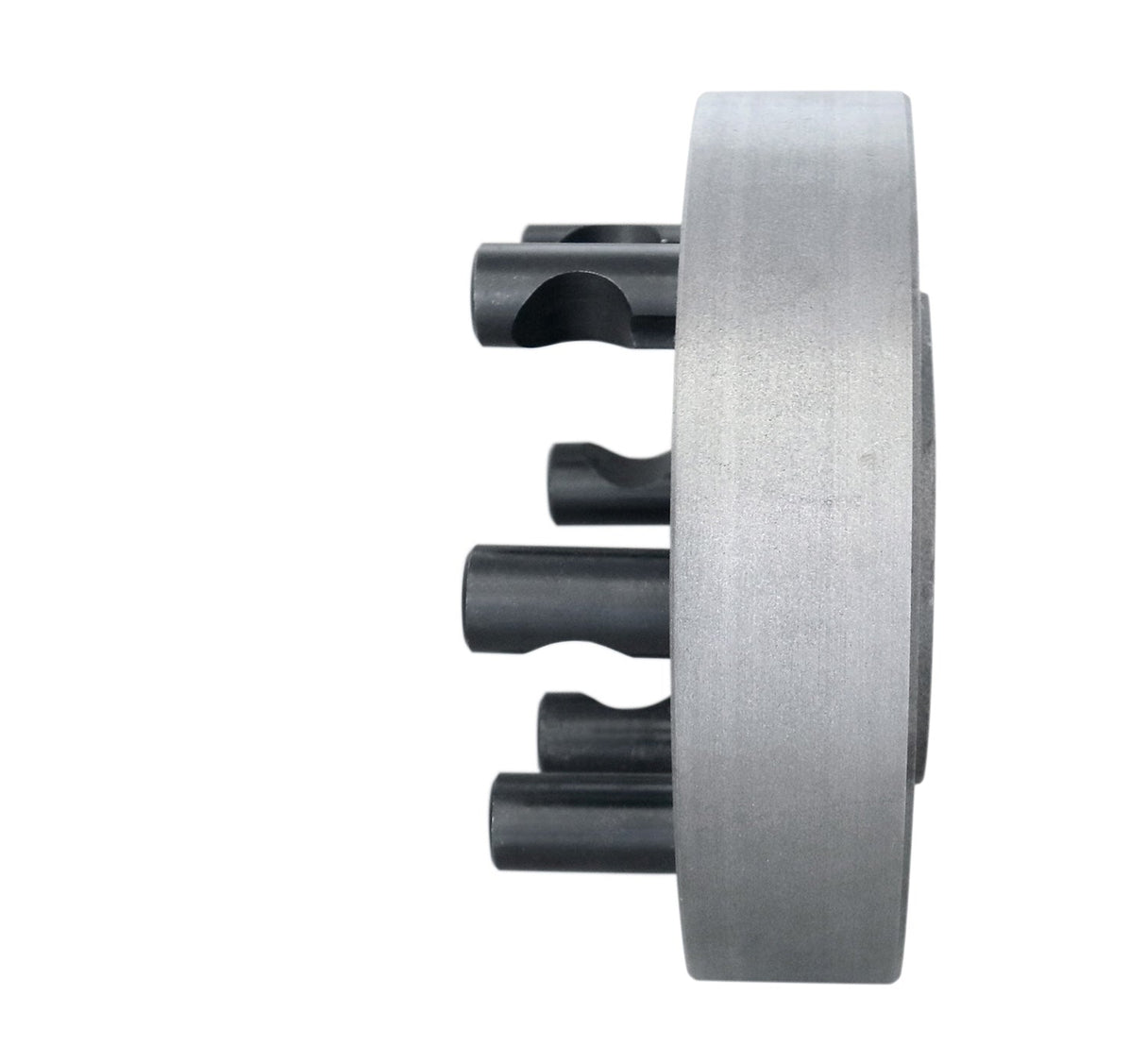

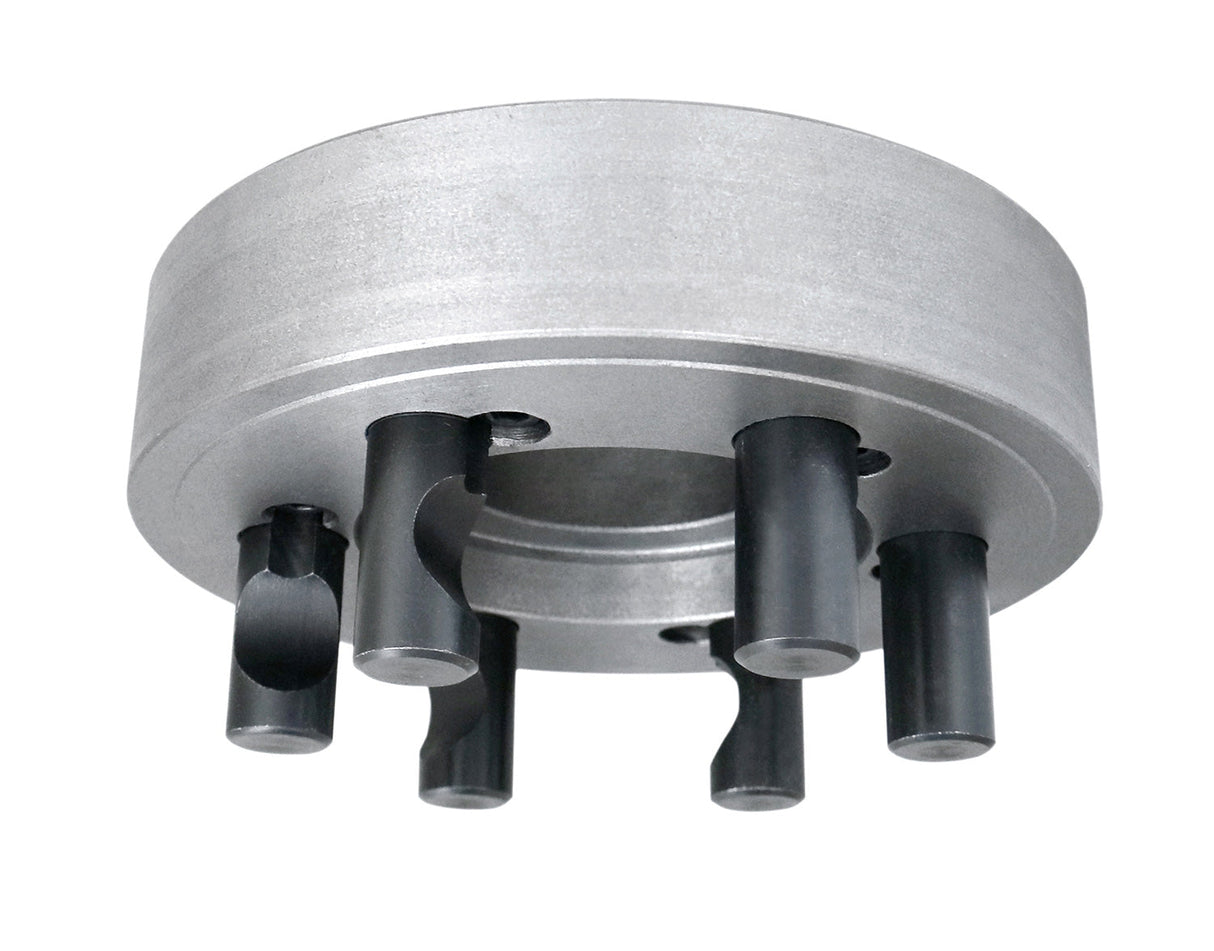

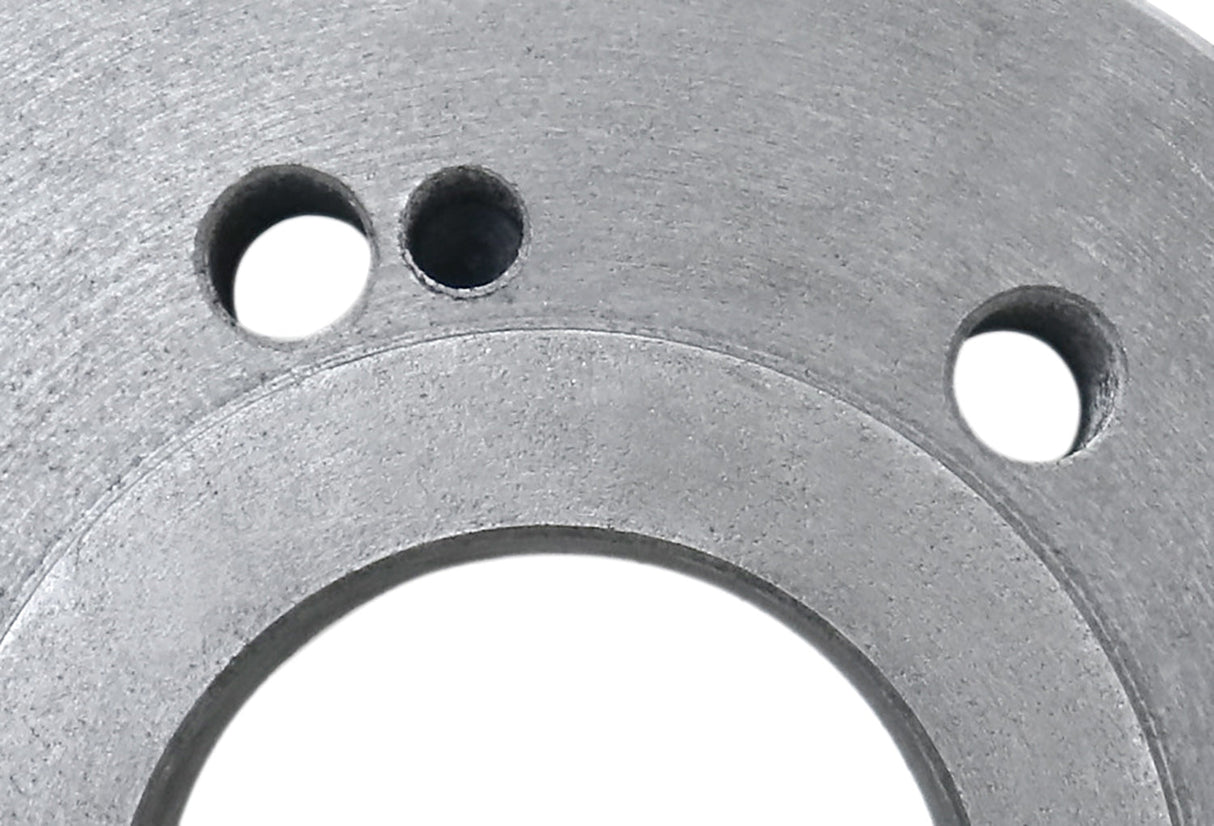

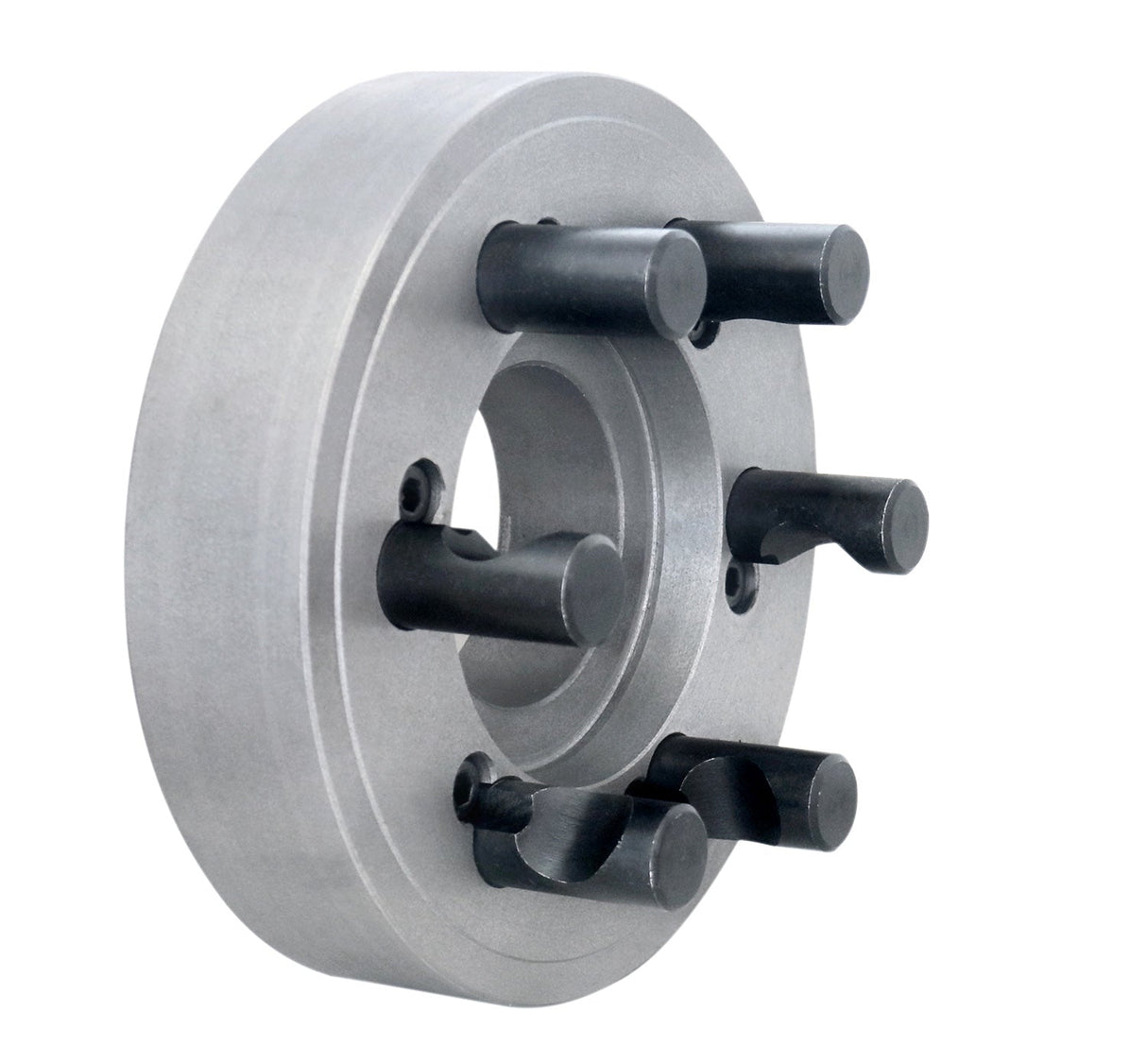

Fully Machined Lathe Chuck Back Plate, D1 Type Adapter for Most 4 Jaw Independent Chucks

$129.00 CAD

Size

Fully Machined Lathe Chuck Back Plate, D1 Type Adapter for Most 4 Jaw Independent Chucks

  • Need machining the backplate shoulders based on different 4 jaw independent chucks
  • The backplate outside diameter is smaller than the lathe chuck diameter due to the mounting holes are towards the center of the lathe chuck, then the recess diameter D2 of the lathe chuck still provide a tight fit.

Item

Chuck

Spindle

A

C

D

E

F

G





Taper













2600-0162

6"

D1-3

6.299"

2.125"

2.779"

2.125"

2.795"

0.157"

2600-0163

6"

D1-4

6.299"

2.500"

3.251"

2.125"

2.795"

0.157"

2600-0164

6"

D1-5

6.299"

3.250"

4.125"

2.125"

2.795"

0.157"

2600-0165

8"

D1-3

6.299"

2.125"

2.779"

2.992"

3.740"

0.196"

2600-0166

8"

D1-4

6.299"

2.500"

3.251"

2.992"

3.740"

0.196"

2600-0167

8"

D1-6

7.086"

4.187"

5.251"

2.992"

3.740"

0.196"

2600-0168

10"

D1-6

7.086"

4.187"

5.251"

4.370"

5.118"

0.196"

2600-0169

10"

D1-8

8.346"

5.500"

6.748"

4.370"

5.118"

0.196"



Short taper No. Size of screw thread Piece of stud Dia.of stud
D3 M10 x 1 3 9/16"
D4 M10 x 1 3 5/8"
D5 M12 x 1 6 3/4"
D6 M16 x 1.5 6 7/8"
D8 M20 x 1.5 6 1"
