H.S.S. Tap & Drill Sets (NF, NC and Metric)
Regular price
$86.00 CAD
Unit price
/
Unavailable
H.S.S. Tap & Drill Sets (NF, NC and Metric)
- HSS Fully Ground
- High Quality
- Includes the Following 3 Different Sets
| Item | Description |
| 0001-0040 | 18pcs/set UNC Taps & Drills Set |
| 0001-0050 | 18pcs/set UNF Taps & Drills Set |
| 0001-0052 | 18pcs/set Metric Taps & Drills Set |

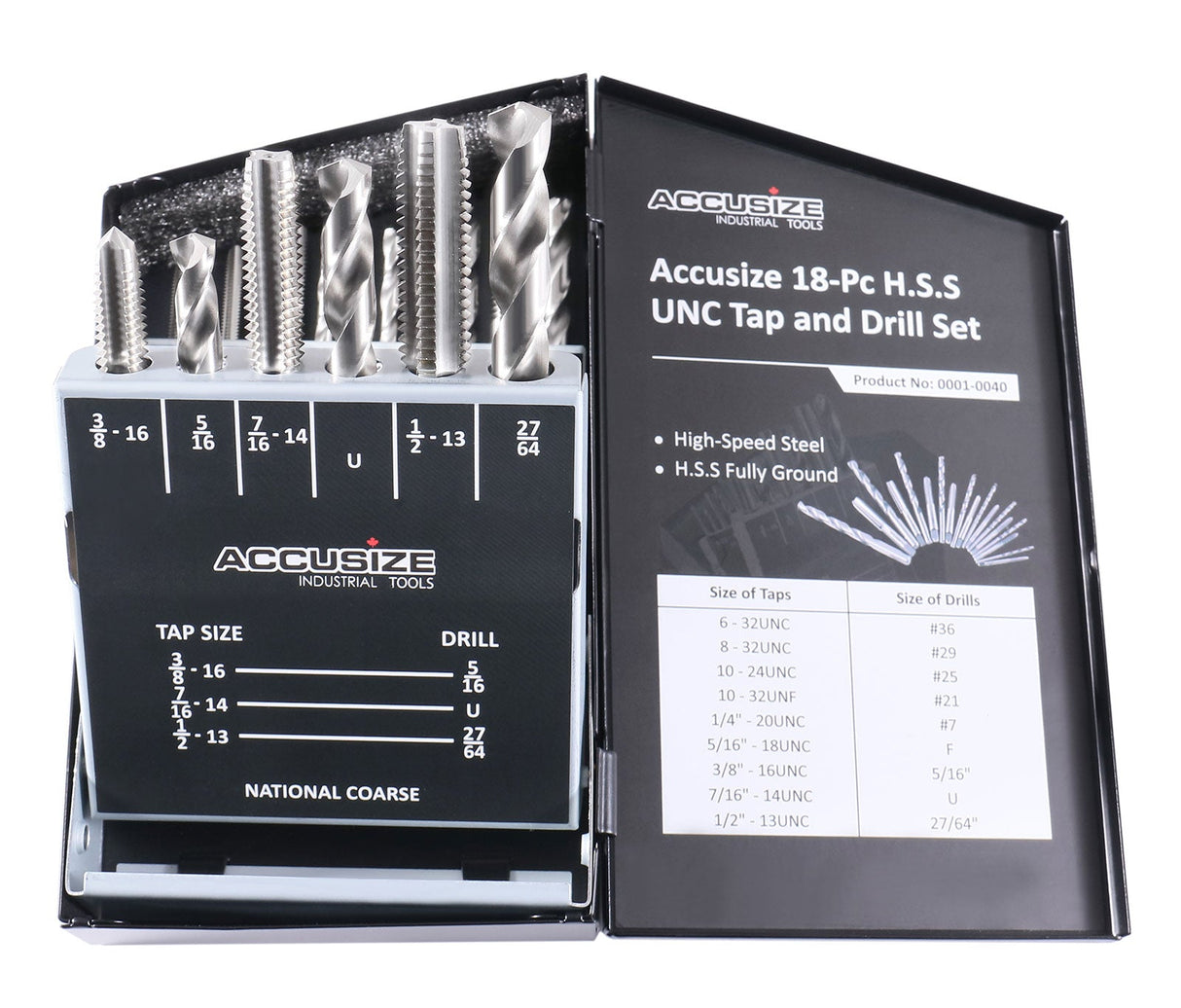

For 0001-0040:
| Size of Taps | Size of Drills |
| 6-32UNC | #36 |
| 8-32UNC | #29 |
| 10-24UNC | #25 |
| 10-32UNF | #21 |
| 1/4"-20UNC | #7 |
| 5/16"-18UNC | F |
| 3/8"-16UNC | 5/16" |
| 7/16"-14UNC | U |
| 1/2"-13UNC | 27/64" |
For 0001-0050:
| Size of Taps | Size of Drills |
| 6-40UNF | #33 |
| 8-36UNF | #29 |
| 10-24UNC | #25 |
| 10-32UNF | #21 |
| 1/4"-28UNF | #3 |
| 5/16"-24UNF | I |
| 3/8"-24UNF | Q |
| 7/16"-20UNF | 25/64" |
| 1/2"-20UNF | 29/64" |

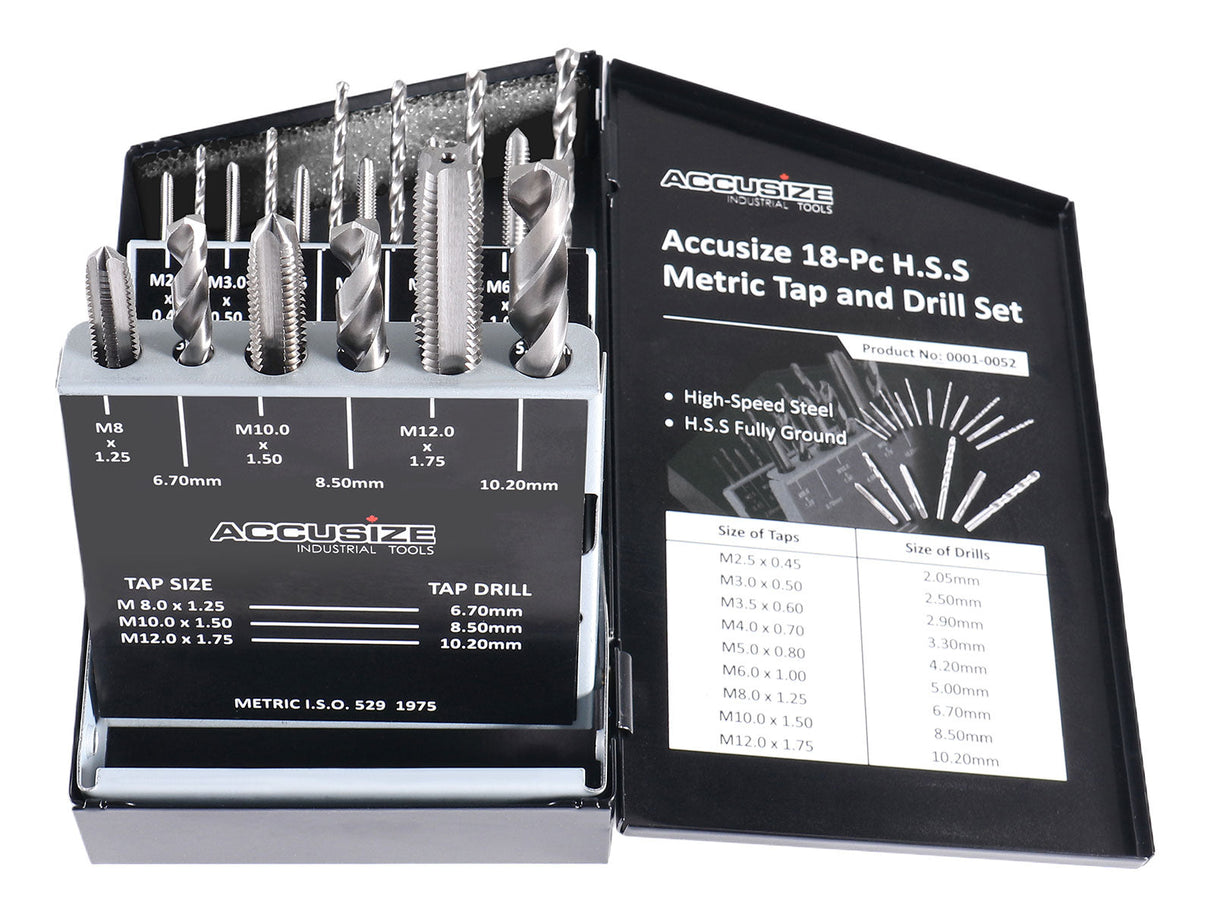

For 0001-0052:
| Size of Taps | Size of Drills |
| M2.5X0.45 | 2.05mm |
| M3.0X0.50 | 2.50mm |
| M3.5X0.60 | 2.90mm |
| M4.0X0.70 | 3.30mm |
| M5.0X0.80 | 4.20mm |
| M6.0X1.00 | 5.00mm |
| M8.0X1.25 | 6.70mm |
| M10.0X1.50 | 8.50mm |
| M12.0X1.75 | 10.20mm |
