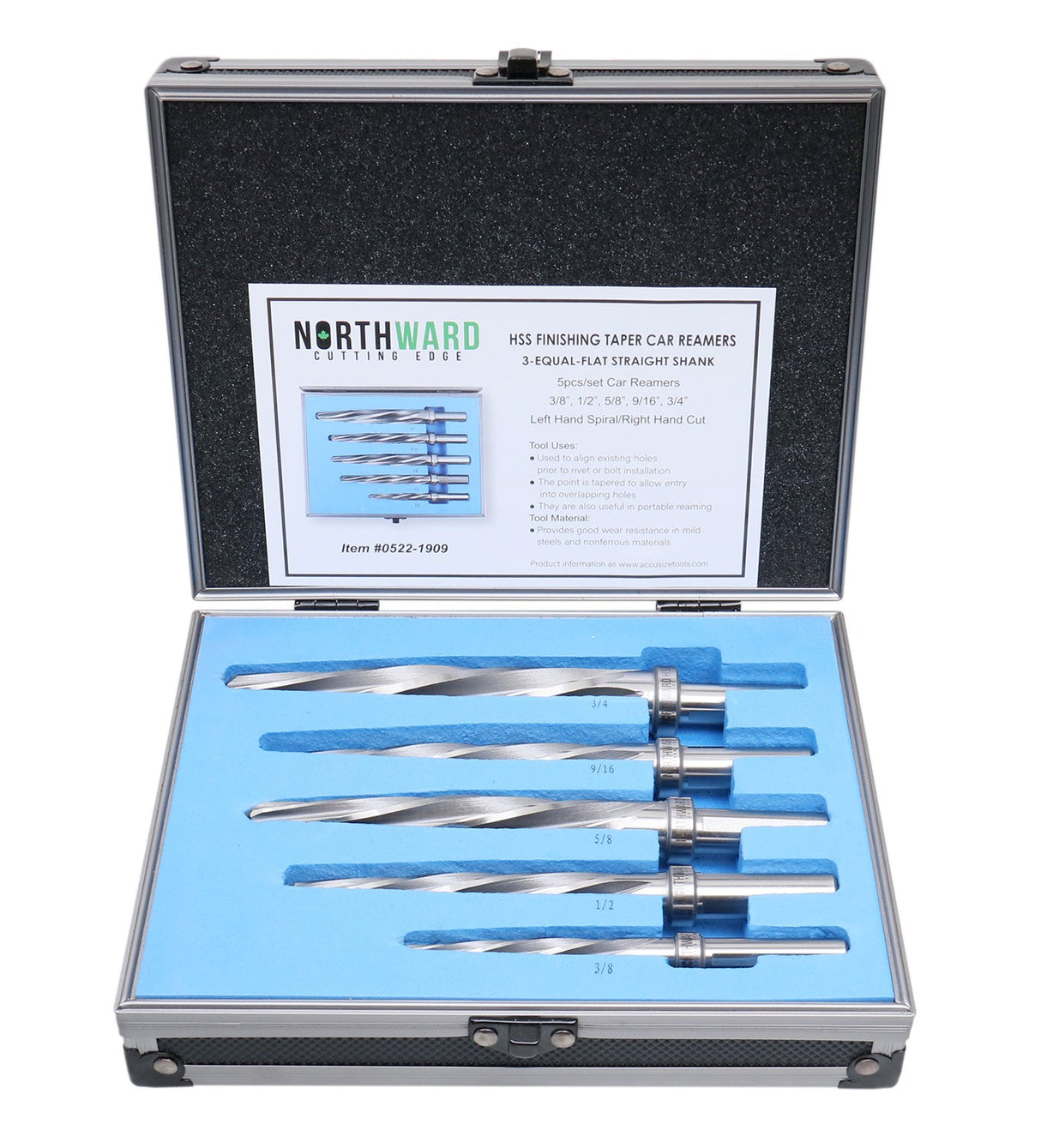

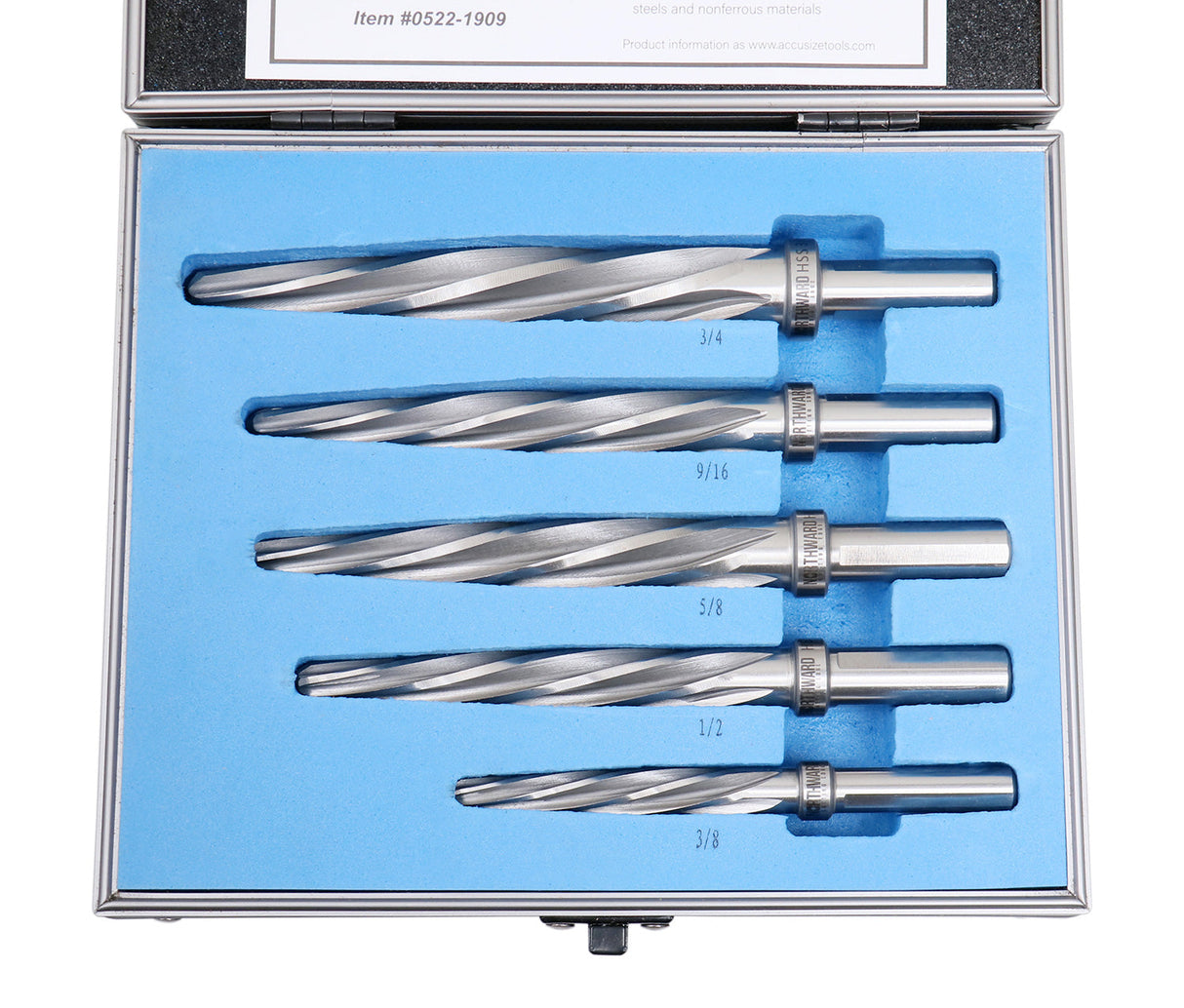

M2 H.S.S. Standard Spiral Flute Deluxe Car Reamer Set, Black Oxide,...
From
$192.00 CAD
Unit price
/
Unavailable
H.S.S. Standard Flute Premium Car Reamer Set
- Material: M2 (H.S.S.)
- Used to enlarge, form or drill holes.
- Straight Shank with 3-Equal-Flats to Fit 3/8" or 1/2" Chuck
- 3 cuts on the shank which prevent it spinning in the drills
- Spiral Flute
- 5 Flute
- Polished
- Straight shank with a stop collar to prevent the reamer from running through the hole
- Packed in fitted box
- Faster to cut through metal and achieve reamed holes.
- With stoppers on the end
- With tighter flutes
- Polished
- Left hand spiral, right hand cut
** Size of each reamer in #0522-1808 **
| Reamer Dia: | Shank Dia | Shank Length | Flute Length | Overall Length |
| 3/8" | 3/8" | 1-1/2" | 2-3/4" | 4-5/8" |
| 1/2'' | 1/2'' | 1-1/2'' | 4'' | 5-7/8'' |
| 5/8'' | 1/2'' | 1-1/2'' | 4-1/2'' | 6-3/8'' |
| 3/4'' | 1/2'' | 1-1/2'' | 5'' | 6-7/8'' |
** Size of each reamer in #0522-1909 **
| Reamer Dia: | Shank Dia | Shank Length | Flute Length | Overall Length |
| 3/8" | 3/8" | 1-1/2" | 2-3/4" | 4-5/8" |
| 1/2'' | 1/2'' | 1-1/2'' | 4'' | 5-7/8'' |
| 9/16'' | 1/2'' | 1-1/2'' | 4" | 5-7/8" |
| 5/8'' | 1/2'' | 1-1/2'' | 4-1/2'' | 6-3/8'' |
| 3/4'' | 1/2'' | 1-1/2'' | 5'' | 6-7/8'' |
