Metric Precision Screwless Vise - 0536 Series
Regular price
From
$139.00 CAD
Unit price
/
Unavailable

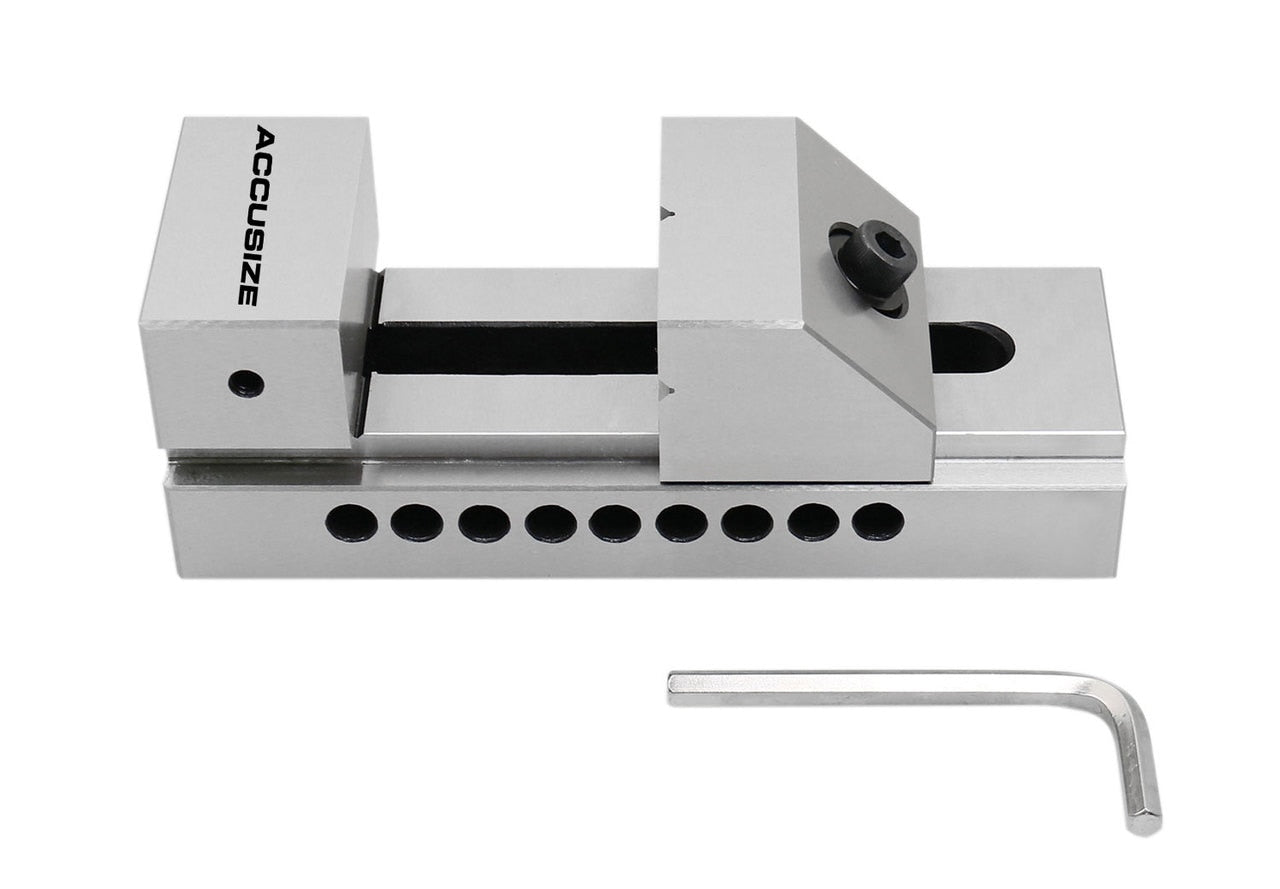

Precision Screwless Vise - 0536 Series
- Produced of high quality steel, carburized to surface hardness: HRC55-60
- Parallelism 0.003mm/100mm, squareness 0.005mm/100mm
- Quickly to clamp and easy to operate
- Used for precision measurement and inspection precision grinding, EDM and wire-cutting machine
- Guarantee high accuracy in any position
- Material 20GrMnTi
- Has ground “Vâ€?way, Detachable replacement jaws

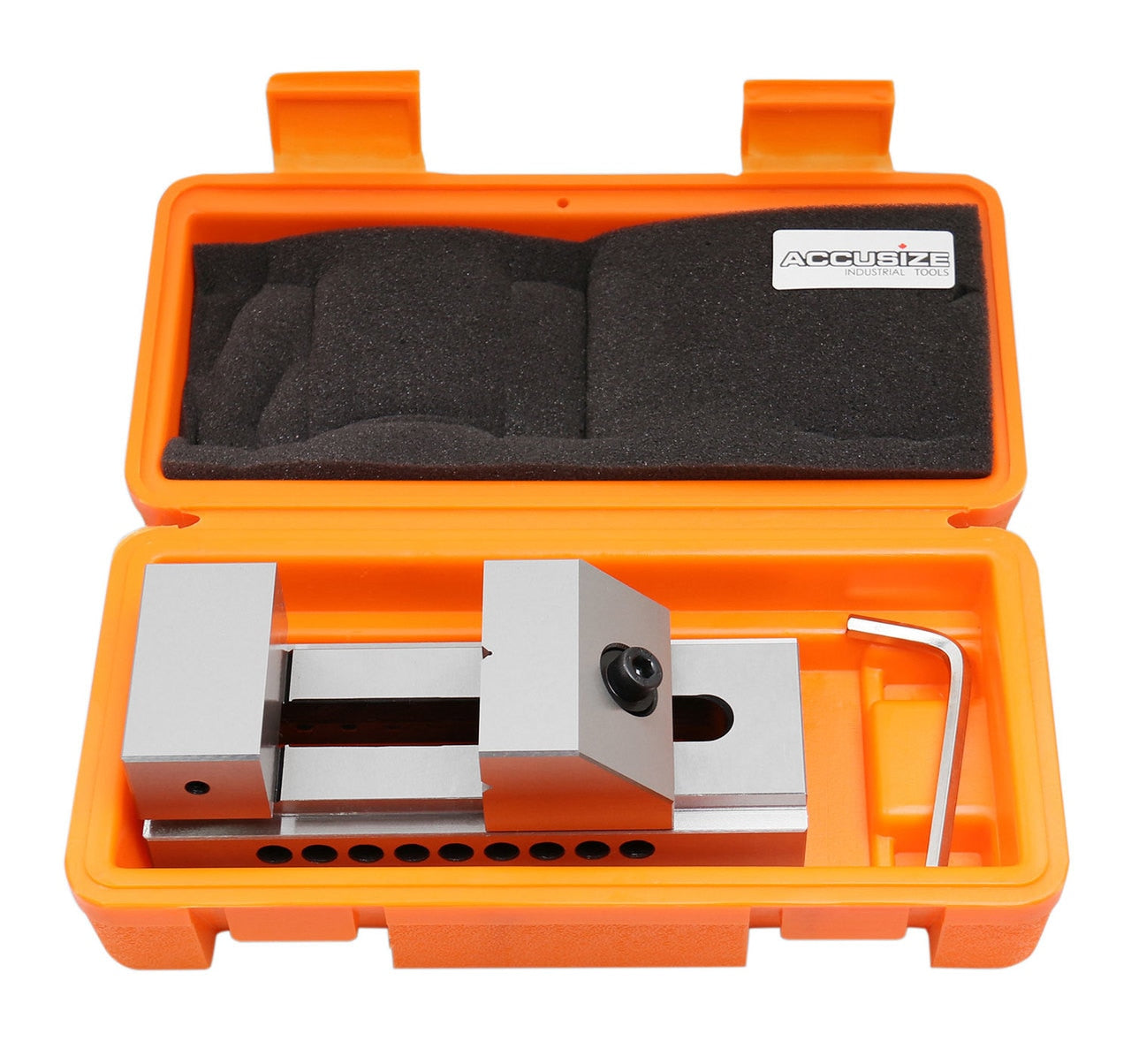

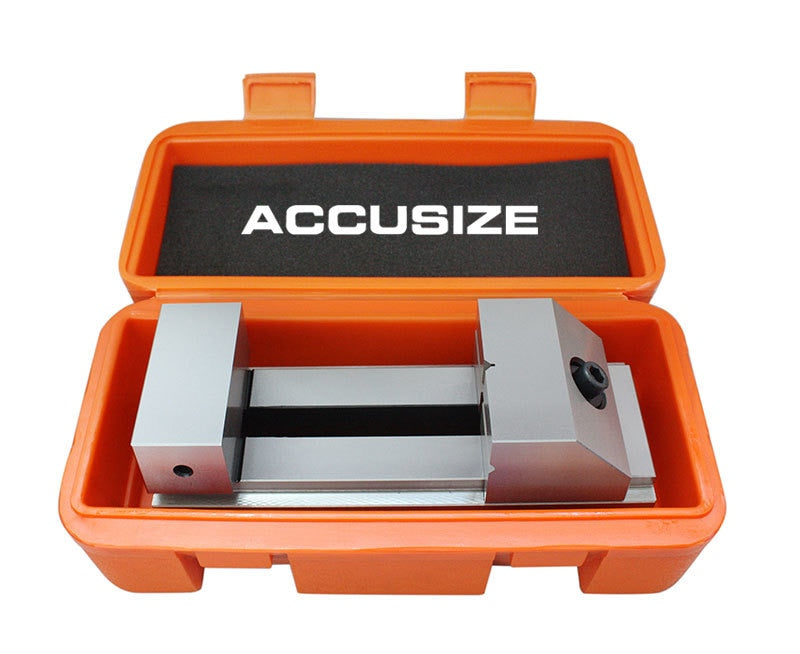

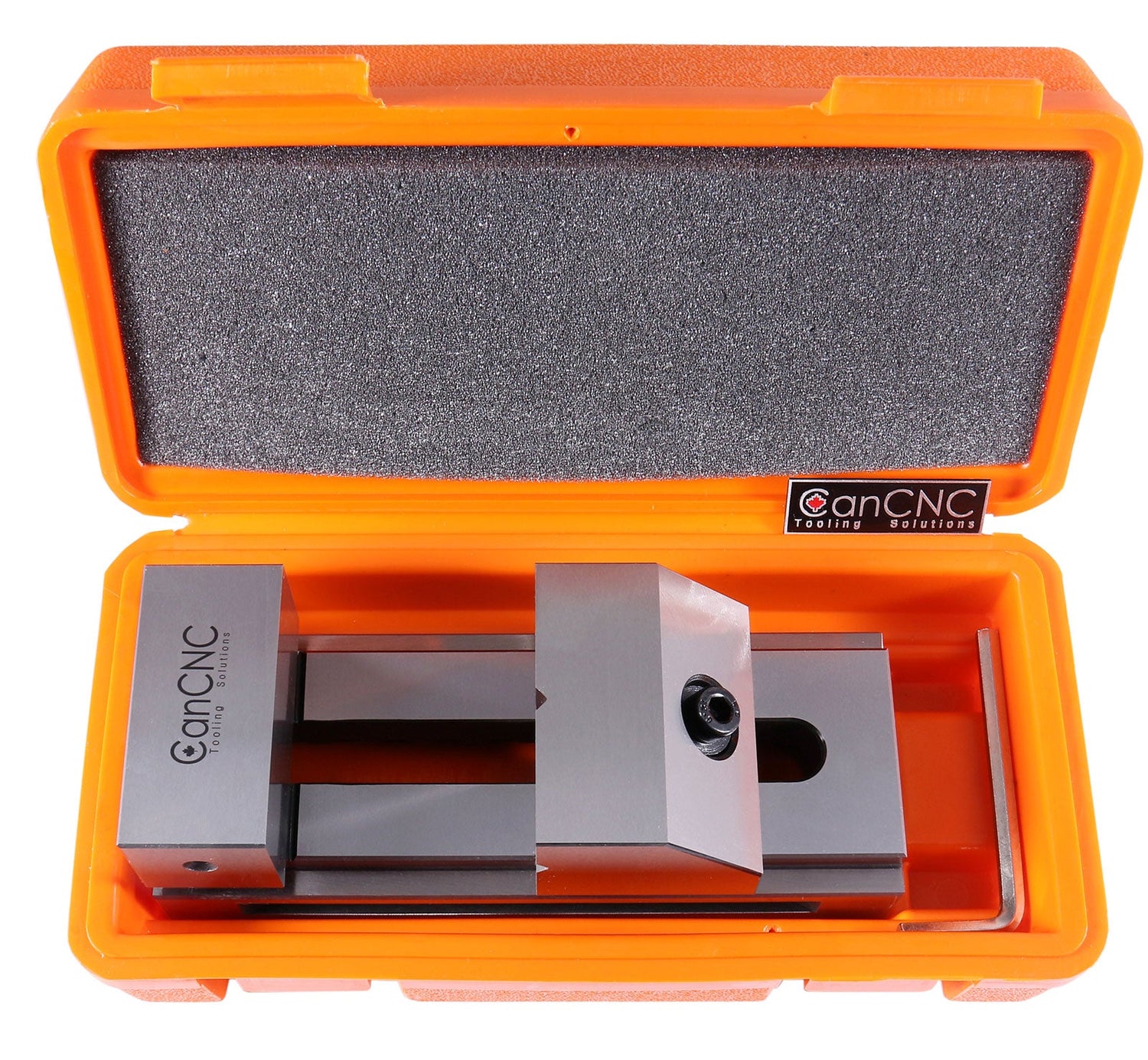

- Strong fitted box
| Item |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
I |
J (mm) |
K (mm) |
Weight (kg) |
| 0536-VB25 | 175 | 63 | 63 | 32 | 31 | 35 | 0-90 | M6 | 11 | 11 | 2.9 |
| 0536-VB30 | 190 | 73 | 70 | 35 | 35 | 35 | 0-100 | M6 | 12 | 12 | 4.3 |
| 0536-VB35 | 235 | 88 | 80 | 40 | 40 | 40 | 0-130 | M8 | 14 | 14 | 6.5 |
