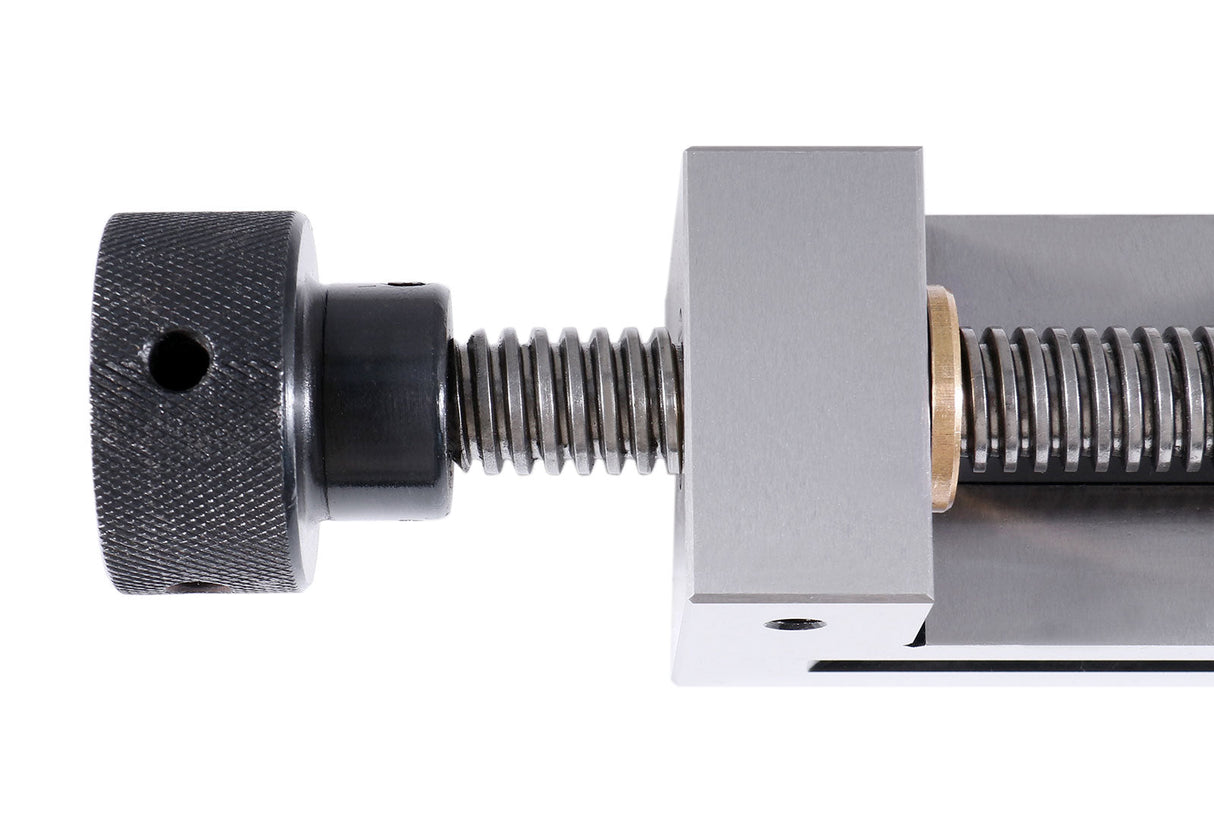

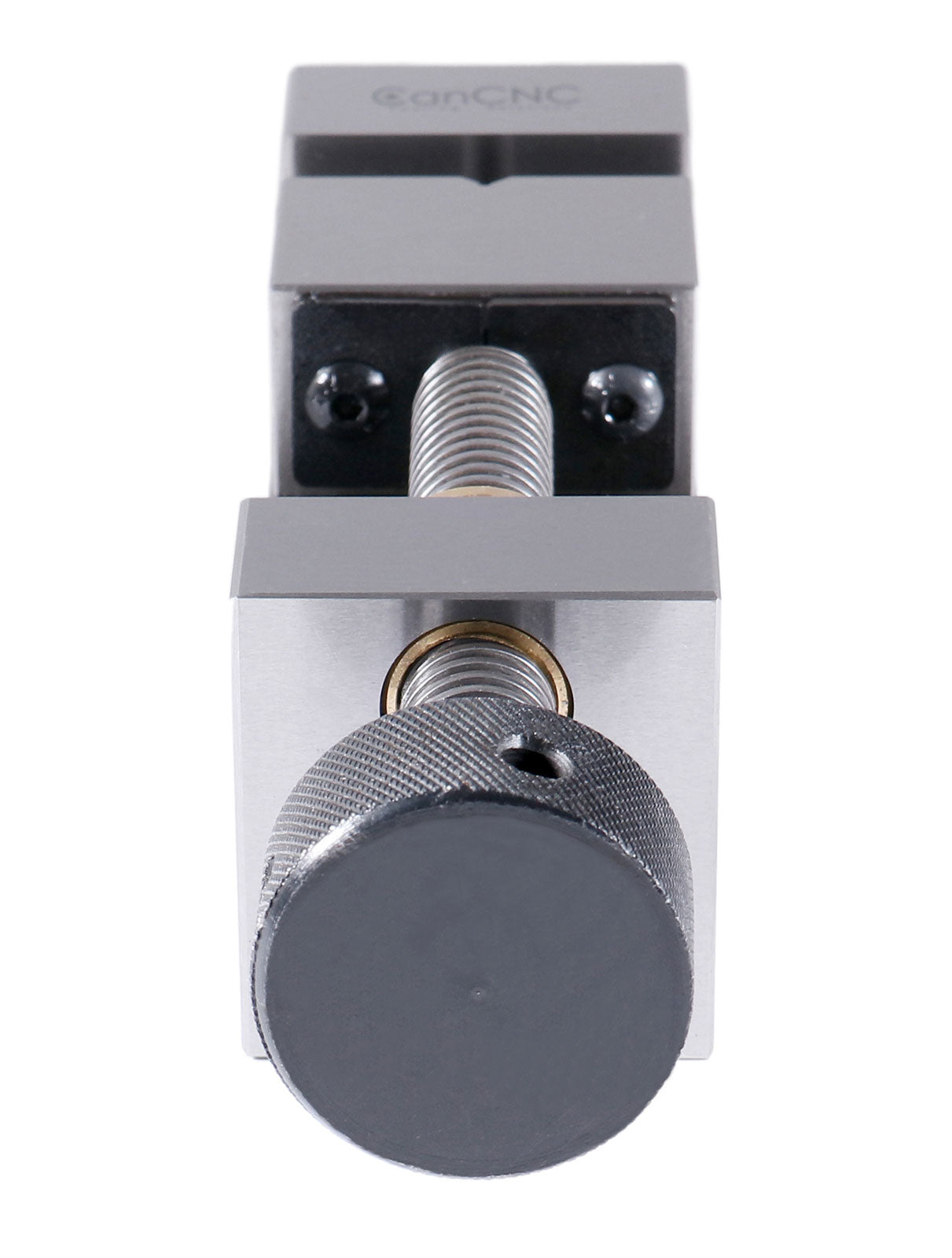

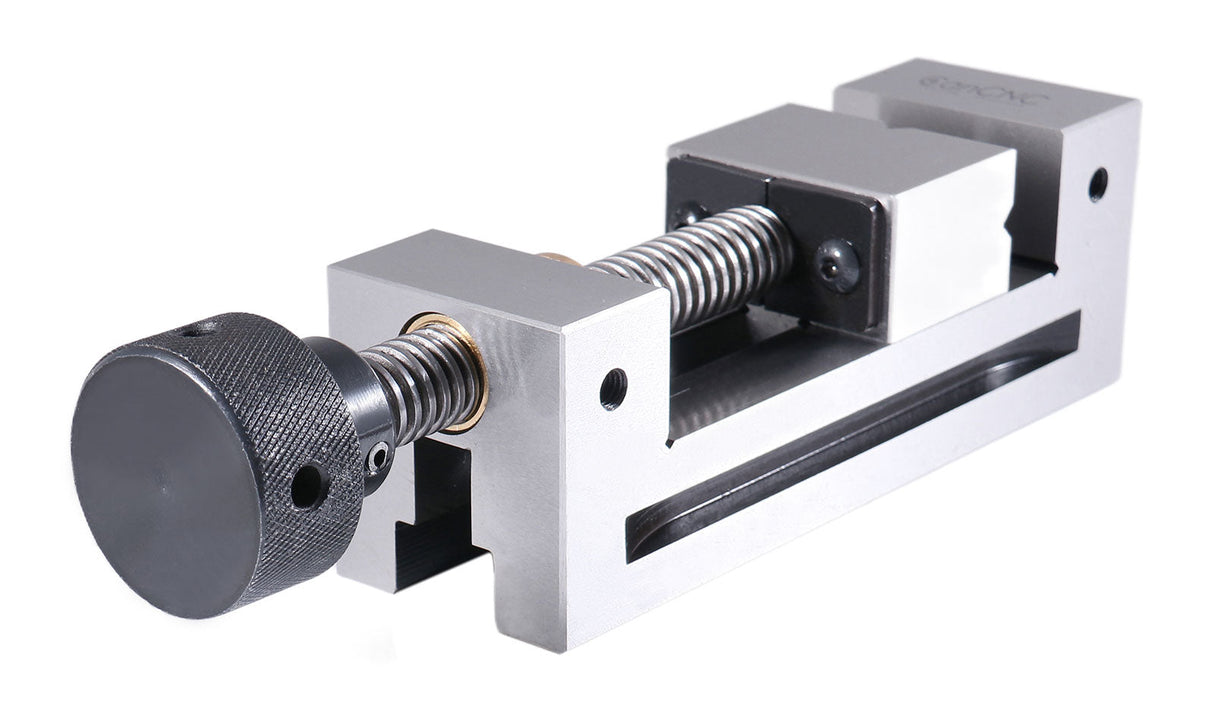

Metric Precision Toolmakers Vise - 0536 Series
Regular price
From
$139.00 CAD
Unit price
/
Unavailable
Precision Toolmakers Vise - 0536 Series
- Produced of high quality steel, carburized to surface hardness: HRC55-60
- Parallelism 0.003mm/100mm, squareness 0.005mm/100mm
- Quickly to clamp and easy to operate
- Used for precision measurement and inspection precision grinding, EDM and wire-cutting machine
- Guarantee high accuracy in any position
- Material 20GrMnTi
- Has ground “Vâ€?way

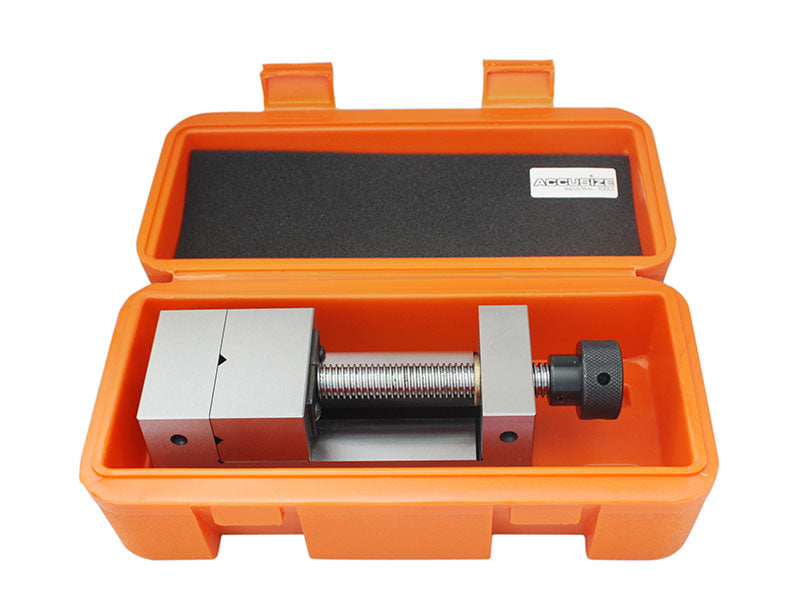

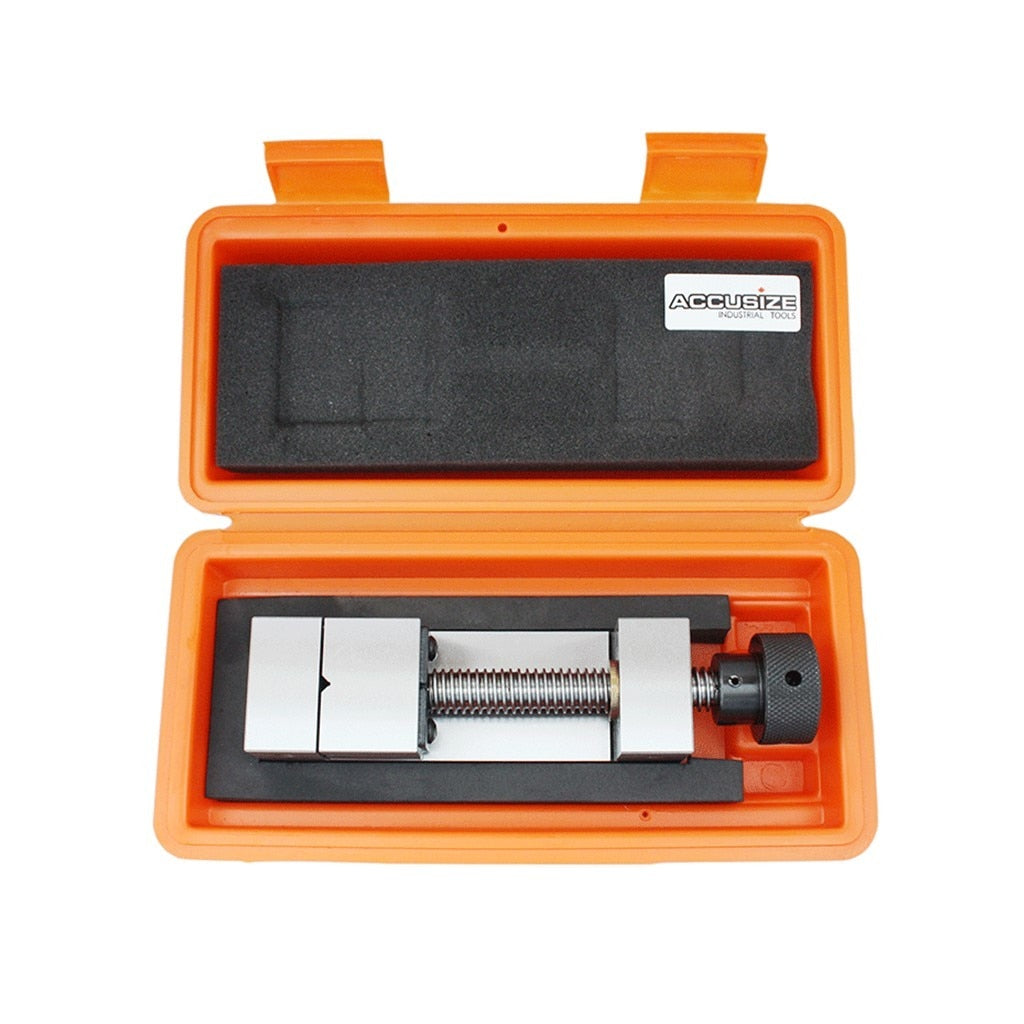

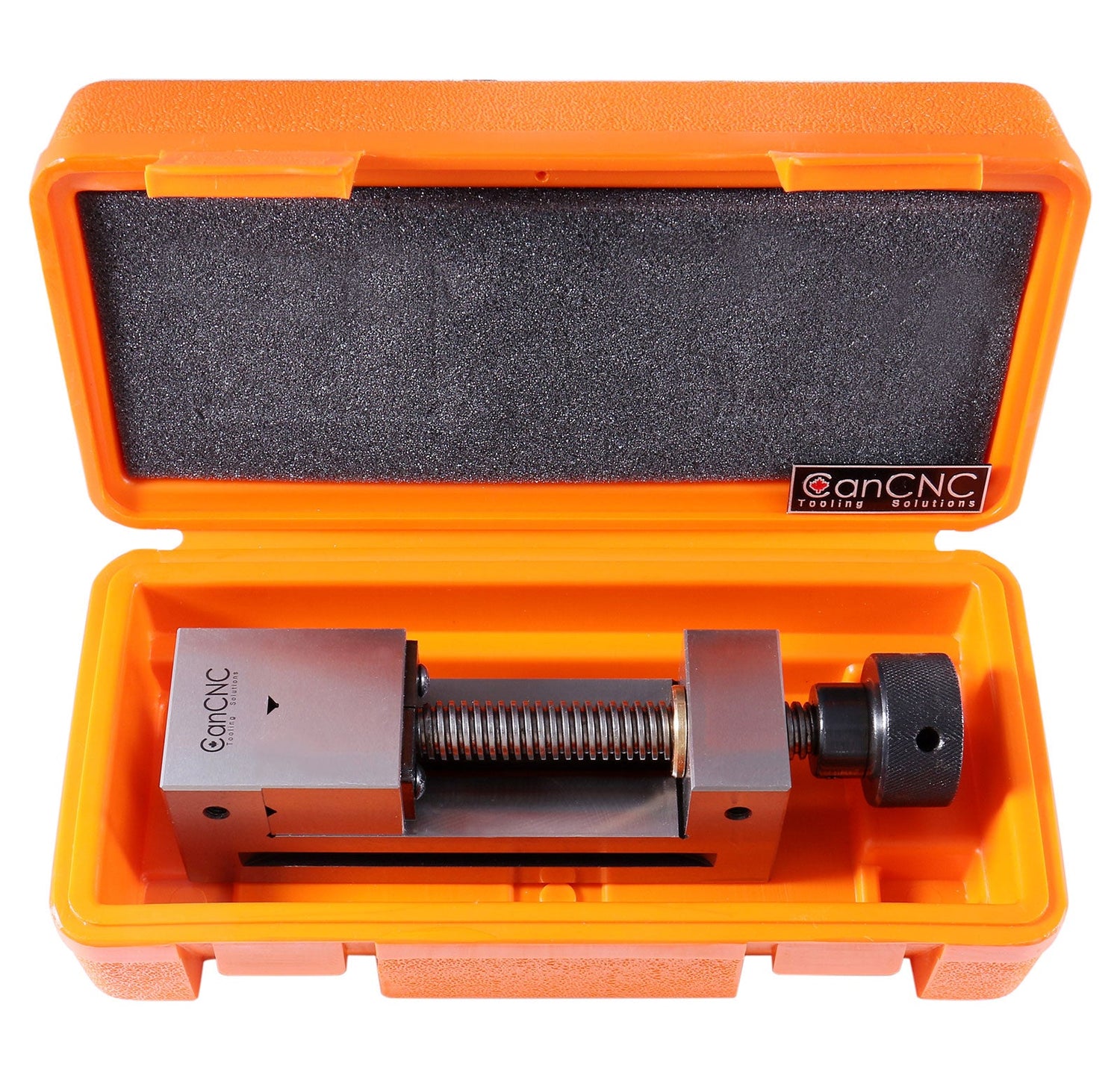

- Strong fitted box
| Item |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
H (mm) |
I |
J (mm) |
K (mm) |
Weight (kg) |
| 0536-VS20 | 156 | 48 | 52 | 25 | 27 | 25 | 0-63 | 34 | M6 | 8 | 8 | 2.3 |
| 0536-VS25 | 176 | 63 | 63 | 30 | 33 | 30 | 0-73 | 40 | M6 | 11 | 11 | 4.0 |
| 0536-VS30 | 190 | 73 | 73 | 35 | 38 | 35 | 0-76 | 45 | M6 | 12 | 12 | 5.5 |
| 0536-VS35 | 250 | 88 | 80 | 42 | 38 | 40 | 0-115 | M8 | 10 |
