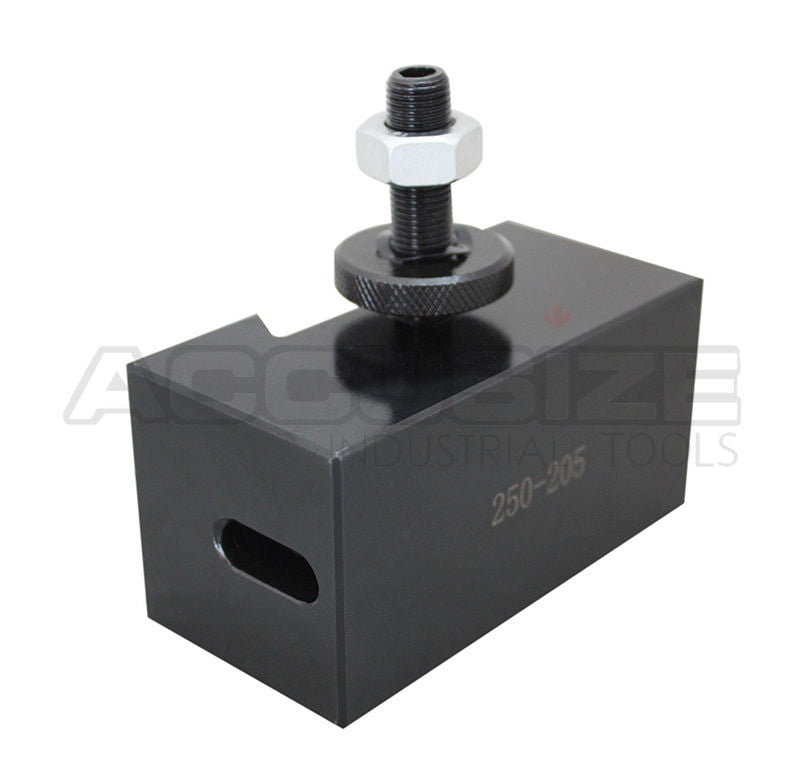

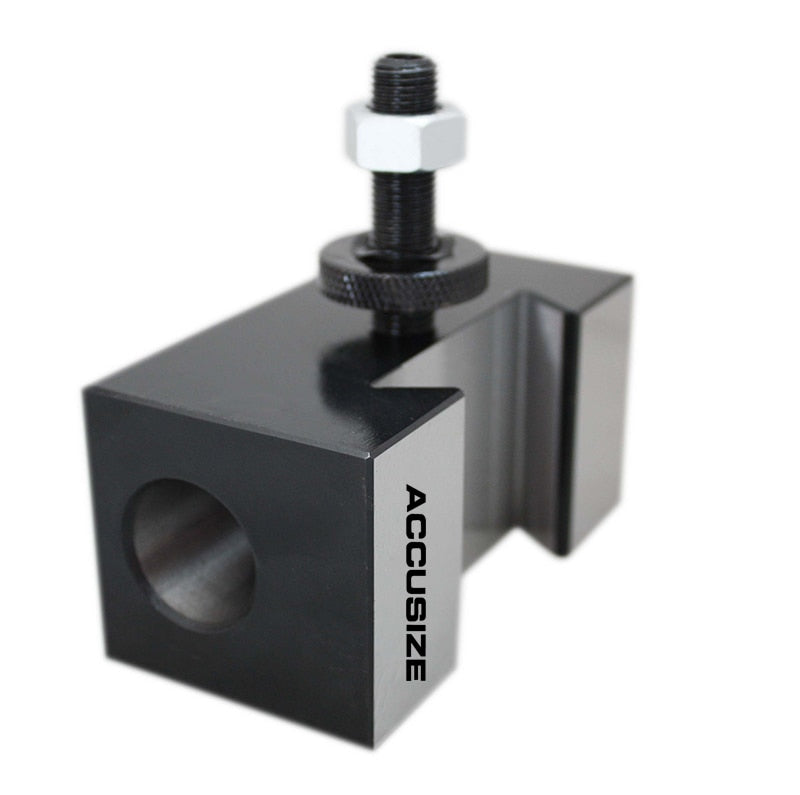

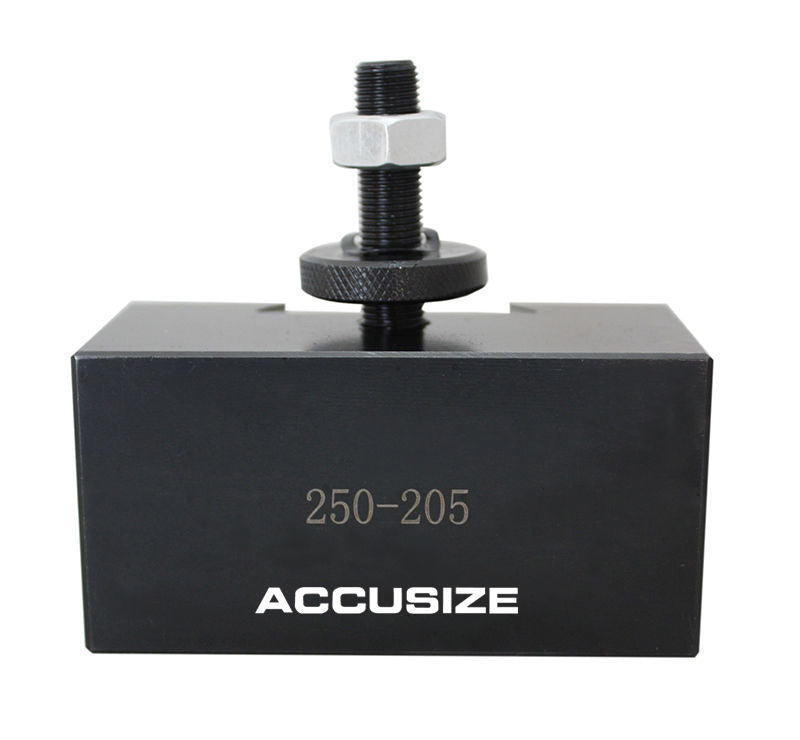

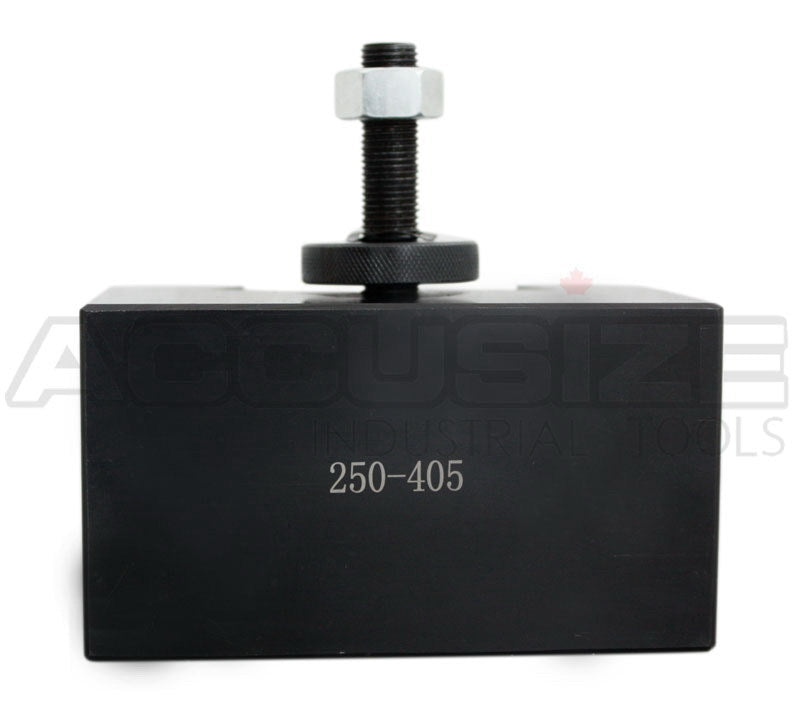

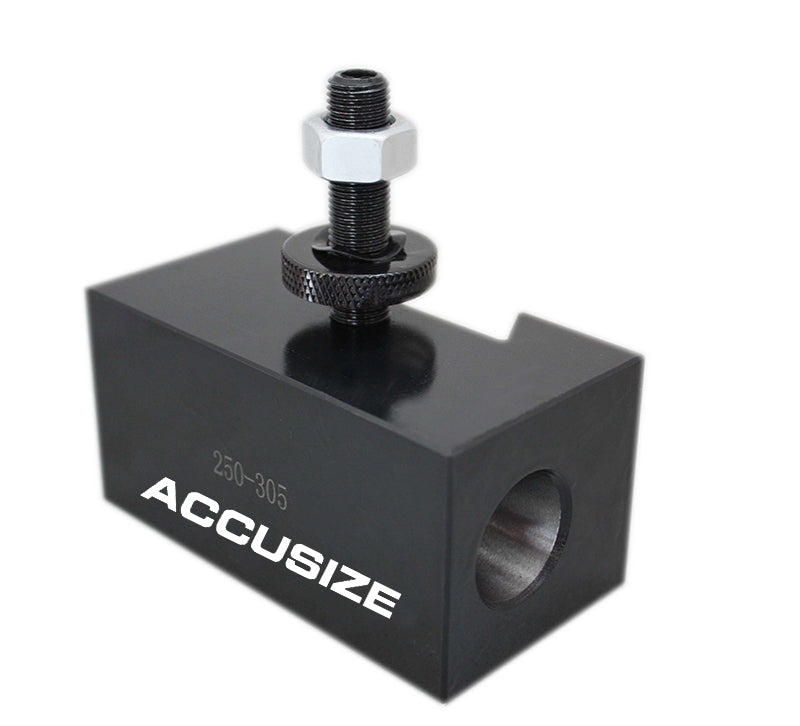

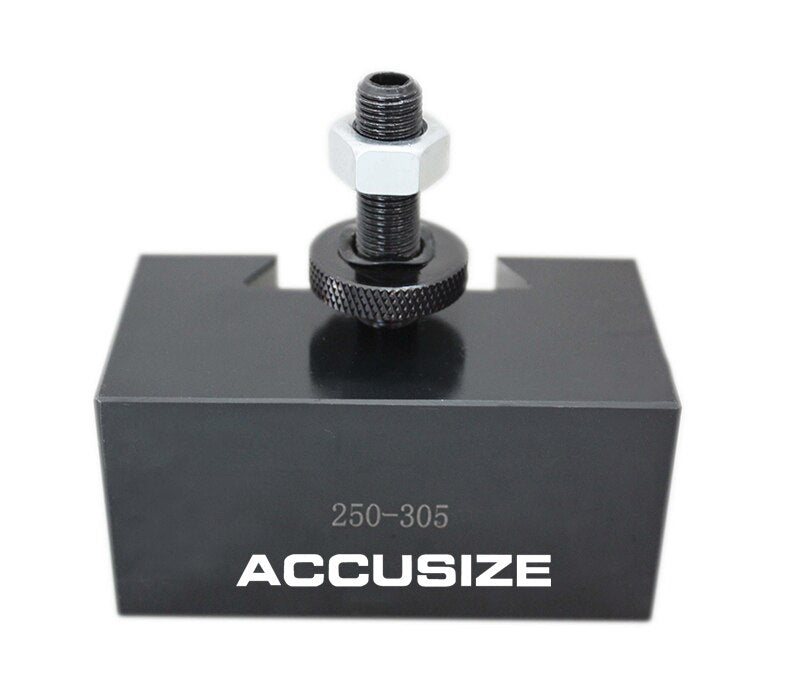

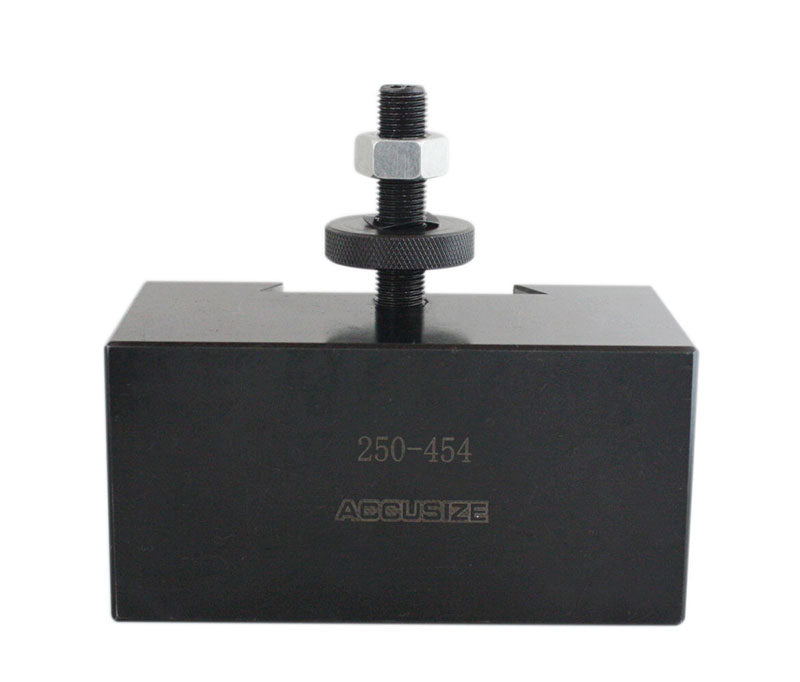

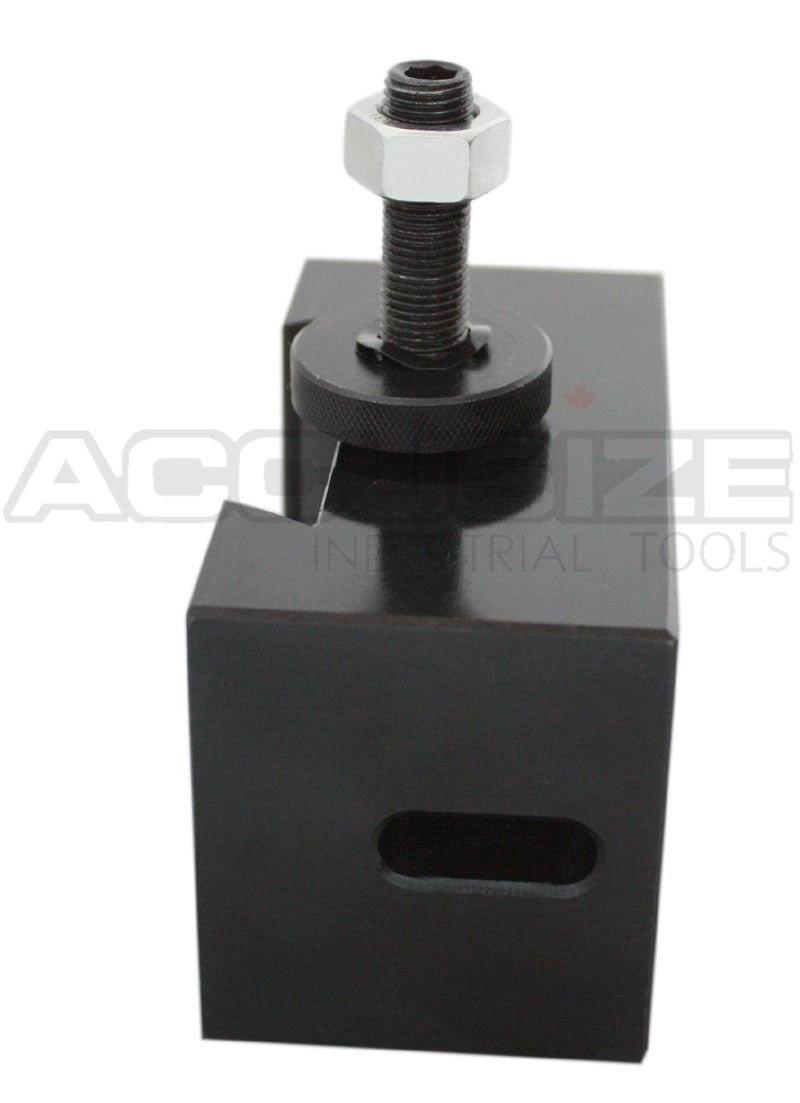

Morse Taper Holders
Regular price
From
$42.00 CAD
Unit price
/
Unavailable
Morse Taper Holders #5
- Drills with carriage by using power feed instead of the tailstock. Easily centered.
- For Nos. 2, 3 and 4.
- Morse taper drill(not included).
- Made of Steel
| Item | Model | A | B | Hole Size | L1 | L2 | H |
| 0250-0105 | AXA | 3/4" | 1-1/2" | 2MT | 1.691" | 1.250" | 0.382" |
| 0250-0205 | BXA | 7/8" | 1-3/4" | 2MT | 1.761" | 1.265" | 0.409" |
| 0250-0305 | CXA | 1" | 2" | 3MT | 2.208" | 1.567" | 0.555" |
| 0250-0405 | CA | 1-1/4" | 2-1/2" | 3MT | 2.663" | 2.100" | 0.488" |
| 0250-0454 | CA | 1-3/16" | 2-3/8" | 4 MT | 2.663" | 2.100" | 0.488" |
