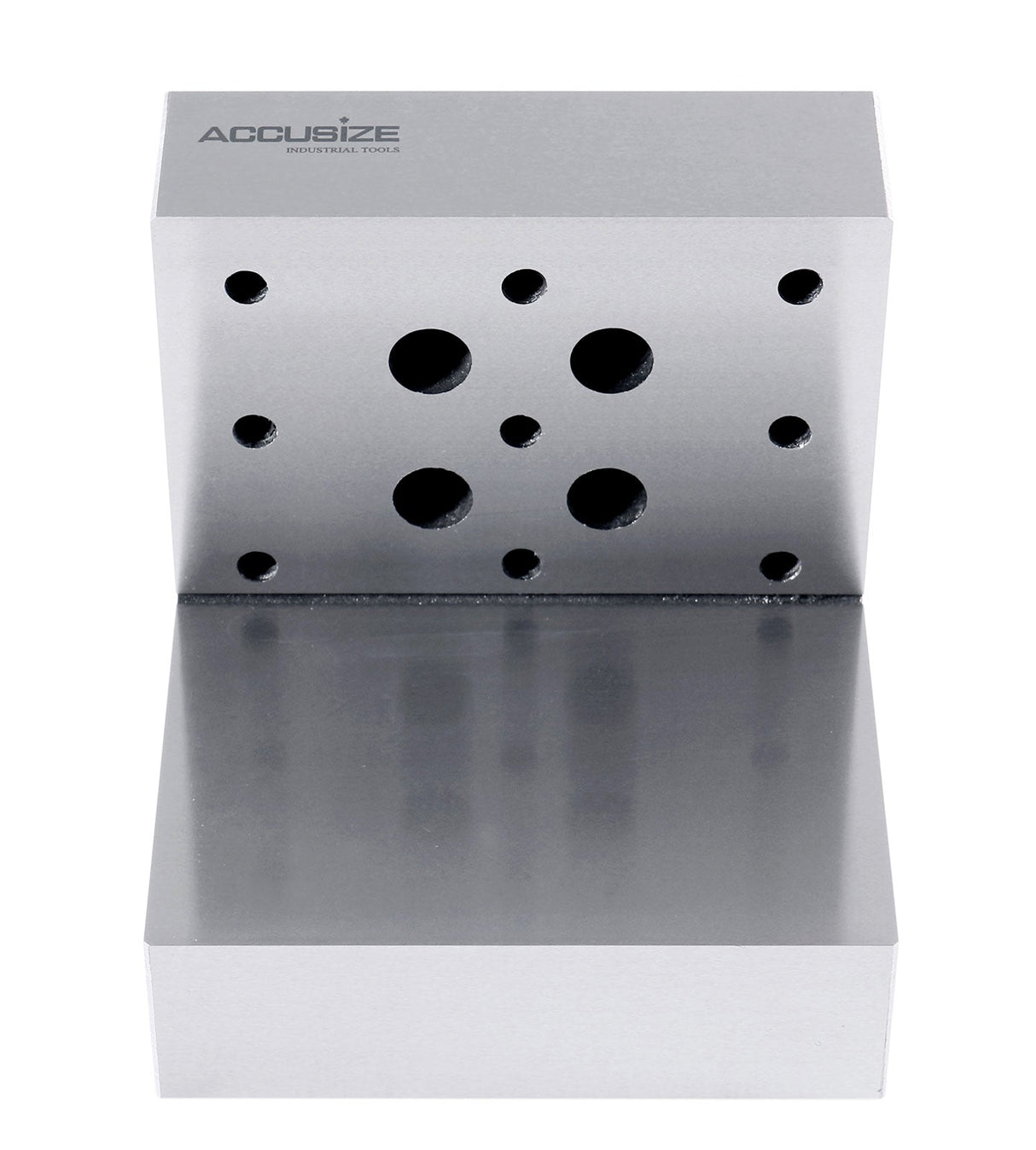

Precision Steel Angle Plates
Regular price
From
$120.00 CAD
Unit price
/
Unavailable

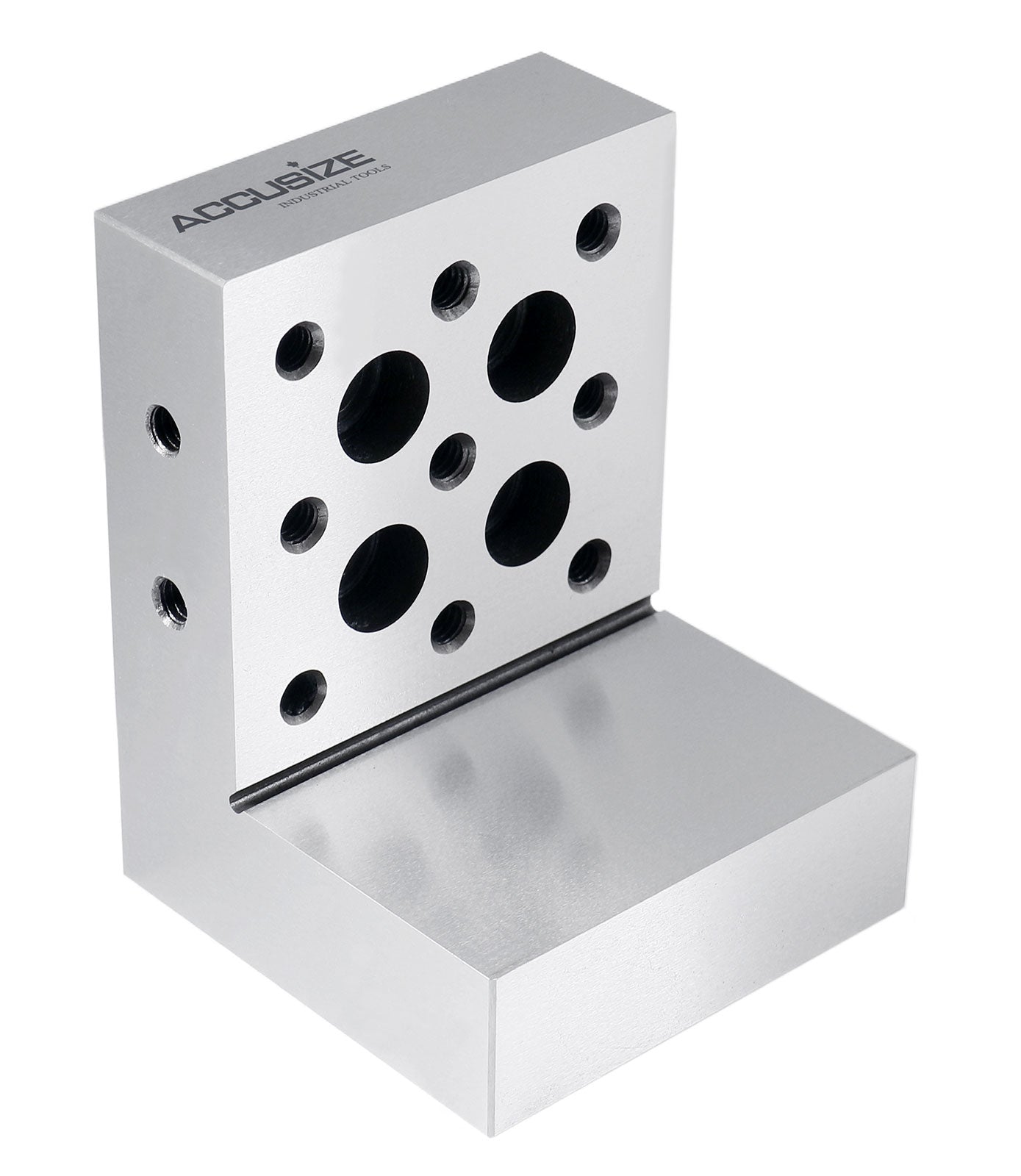

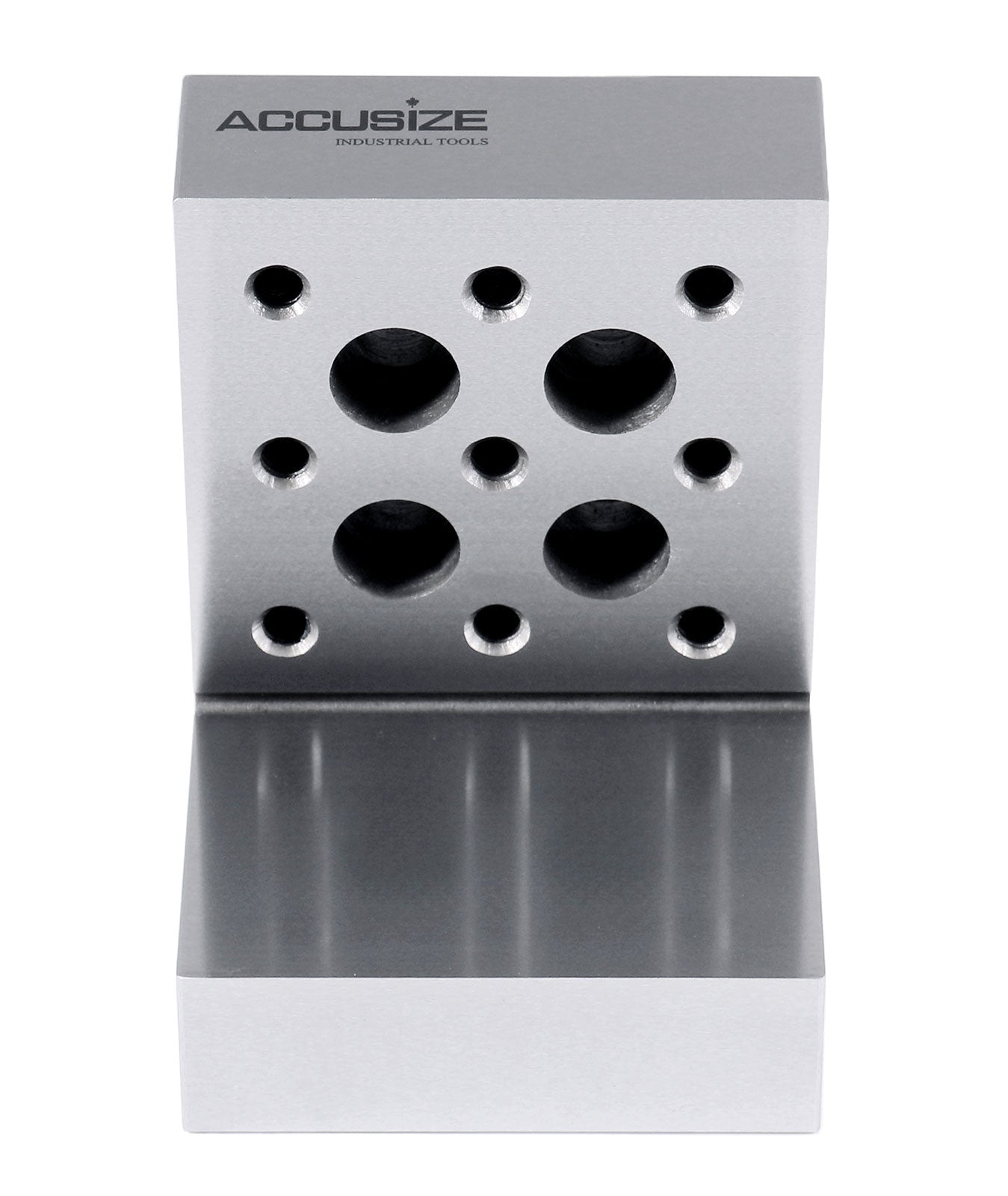

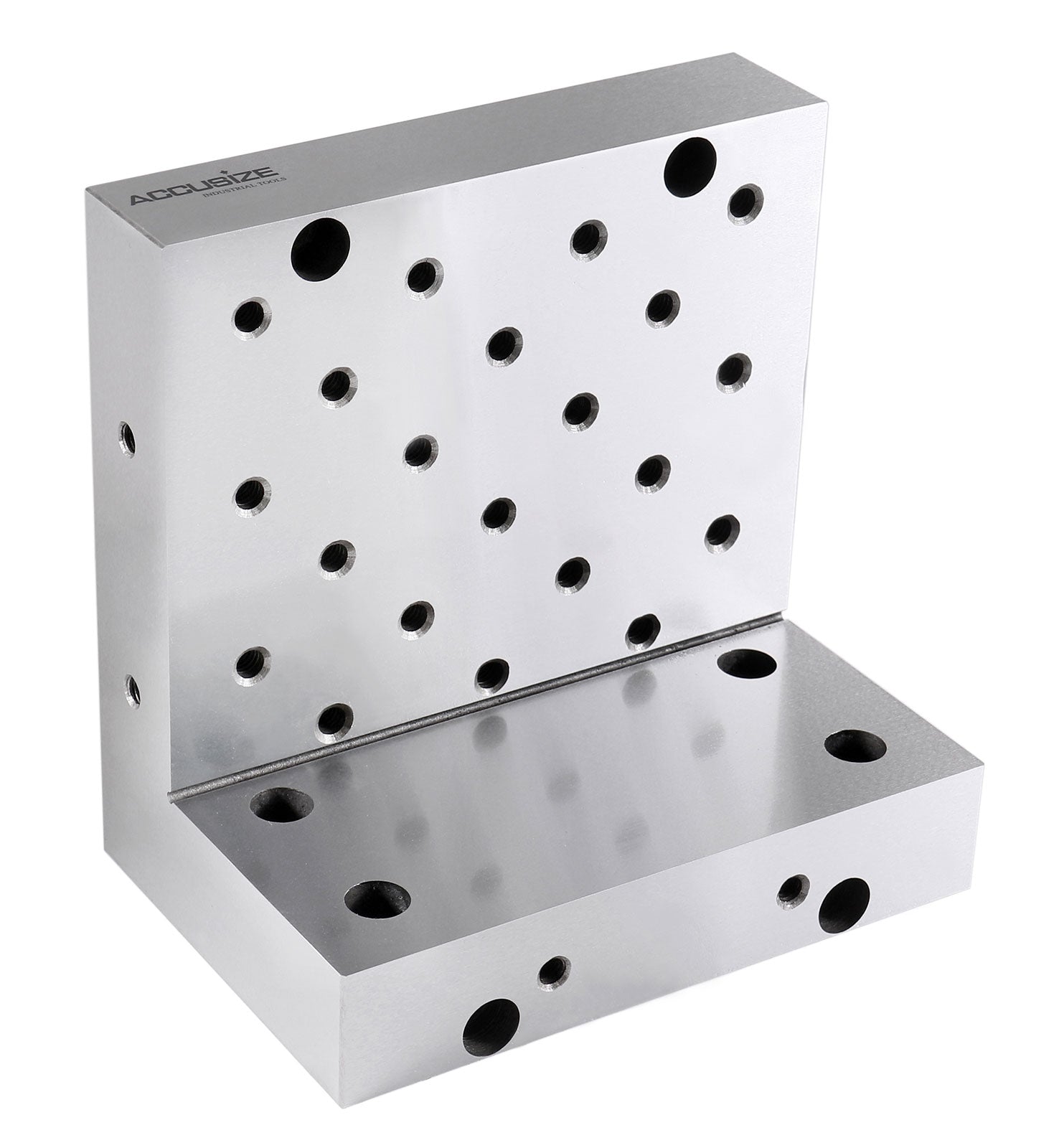

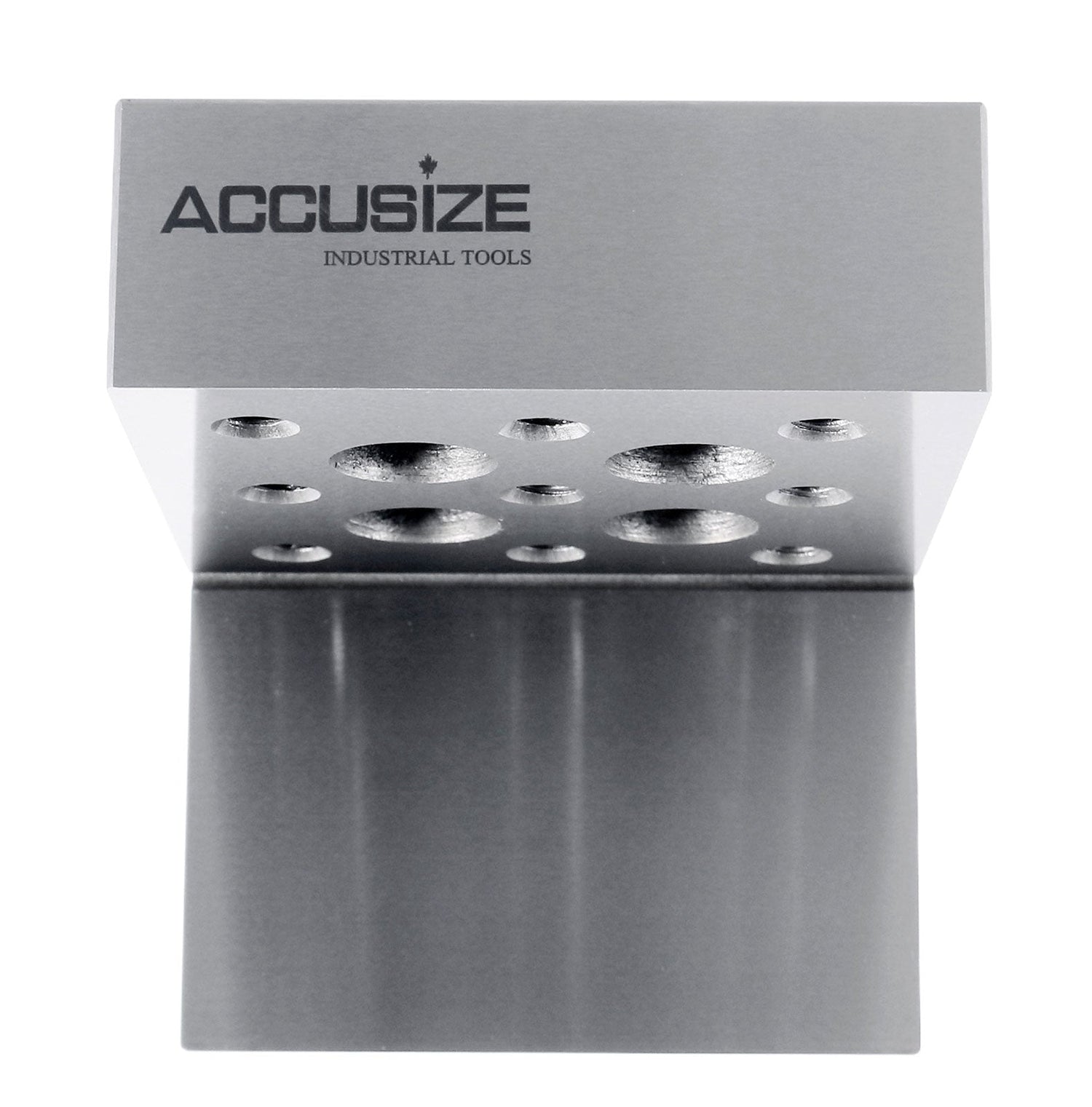

Precision Angle Plates
- Solid one-piece steel construction
- Hardened to RC58-62
- Ground flat, square and parallel to 0.0002"
- the material of the precision angle plate are:
- 20CrMnTi ( C:0.17-0.23; Si: 0.17-0.37; Mn:0.8-1.1; Cr: 1.00-1.30; Ti: 0.04-0.10)
| Item | Size | Thick | Number of Holes |
| 2200-0901 | 4" x 3" x 3" | 1" | 13 Tapped 1/4"-20 |
| 2200-0903 | 4" x 4" x 4" | 1-1/4" | 13 Tapped 1/4"-20 |
| 2200-0904 | 6" x 6" x 4" | 1-1/4" | 26 Tapped 1/4"-20 |
Drawing of 2200-0901:
Drawing of 2200-0903:
Drawing of 2200-0904:
