Quick Change Tool Post Sets (USA STYLE), Wedge Type (6 Piece/Sets)
Regular price
From
$362.00 CAD
Unit price
/
Unavailable
Quick Change Tool Post Sets(USA Style), Wedge Type Tool Post Sets (6 Pieces Sets)
Each set consist of one Wedge type tool Post and one of each of 5 tool holders:
- Style 1: Turning & Facing
- Style 2: Boring Turning & Facing
- Style 4: Boring, Heavy duty
- Style 7: Universal Parting Blades
- Style 10: Knurling, Facing & Turning.
| Item | Model | Swing | Description |
| 0251-0111 | AXA | 9-12" | Each 1pc: 0250-0111, 0250-0101, 0250-0102, 0250-0104, 0250-0107, 0250-0110 |
| 0251-0222 | BXA | 10-15" | Each 1pc: 0250-0222, 0250-0201, 0250-0202, 0250-0204, 0250-0207, 0250-0210 |

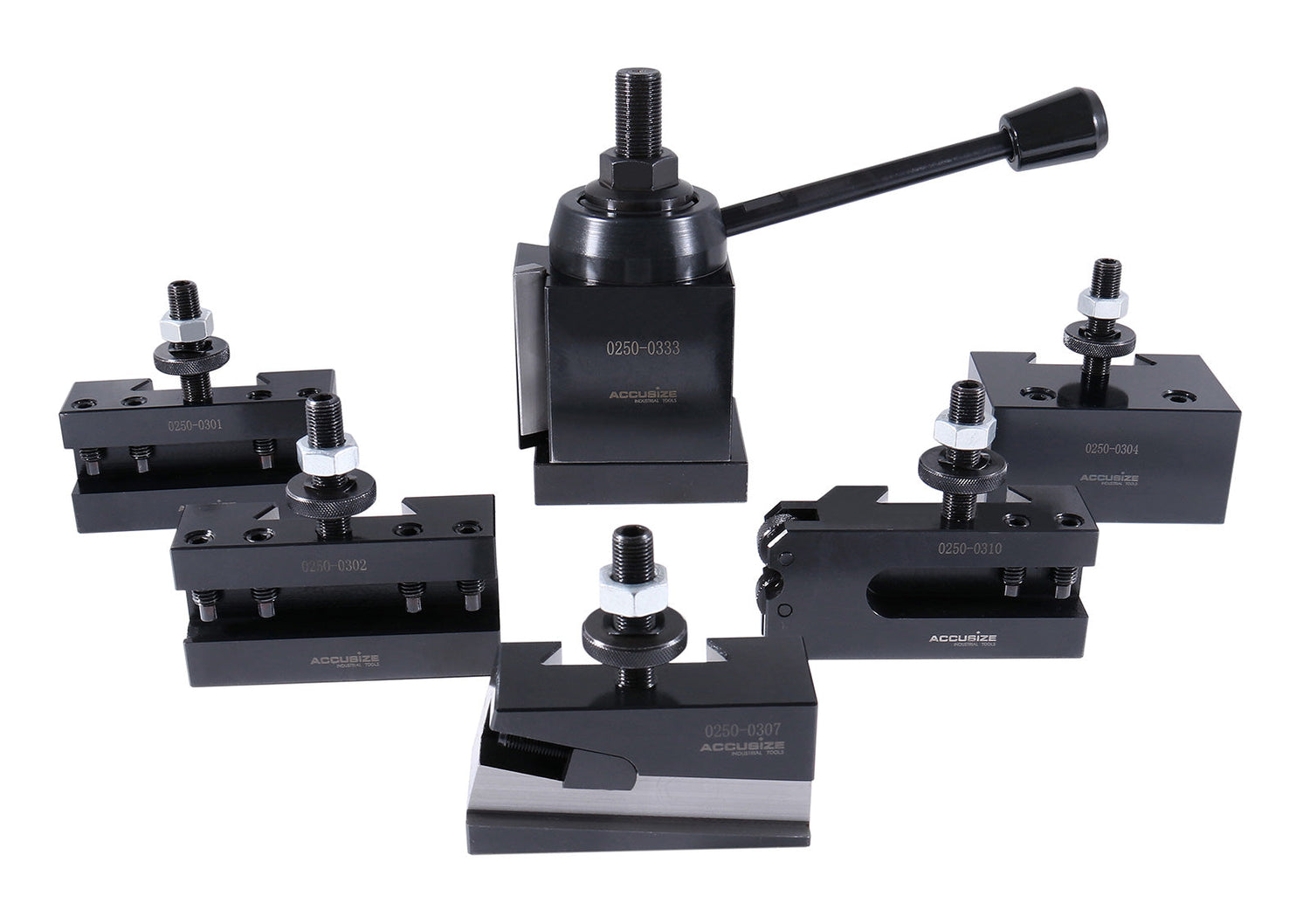

| 0251-0333 | CXA | 13-18" | Each 1pc: 0250-0333, 0250-0301, 0250-0302, 0250-0304, 0250-0307, 0250-0310 |

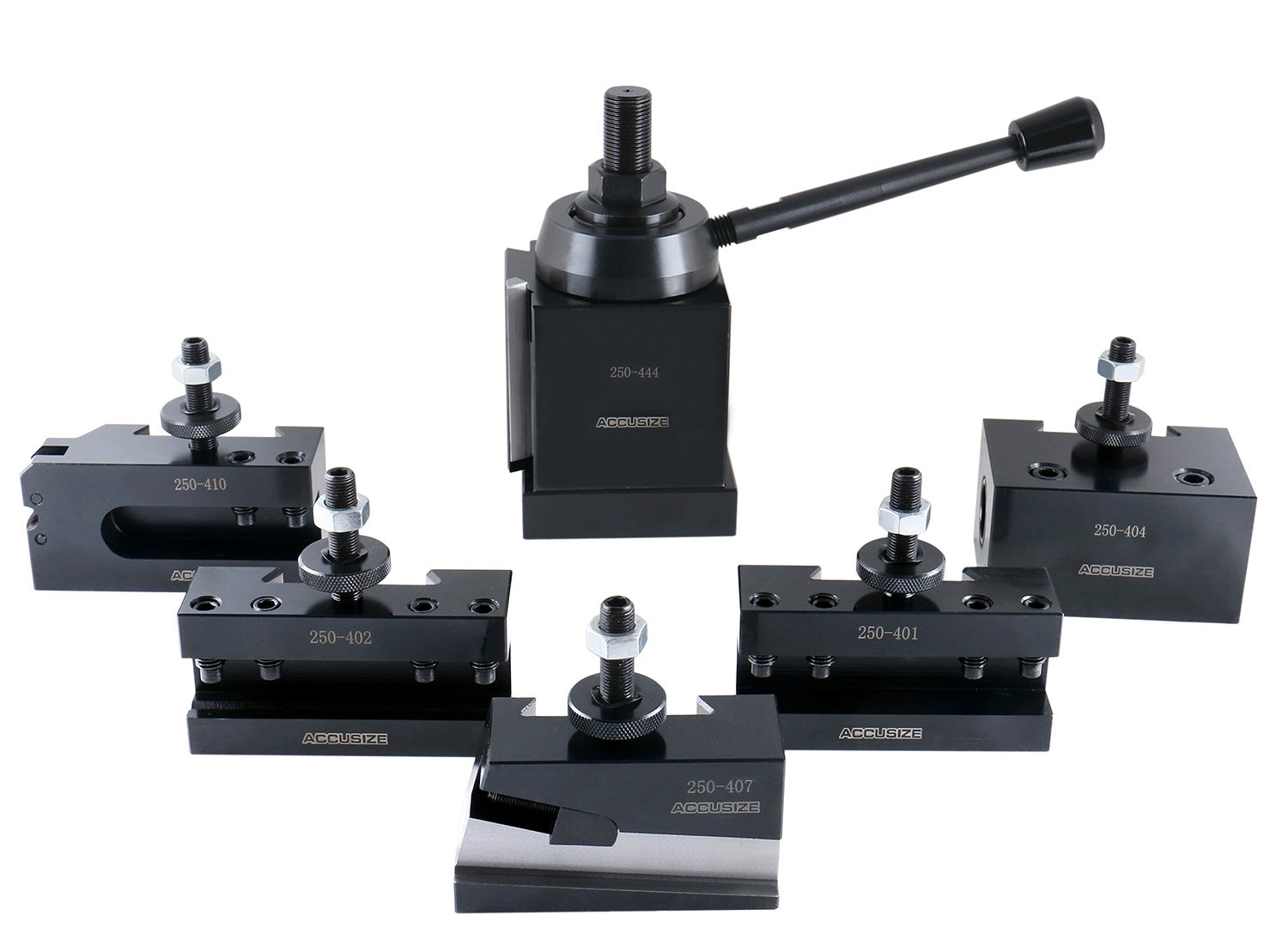

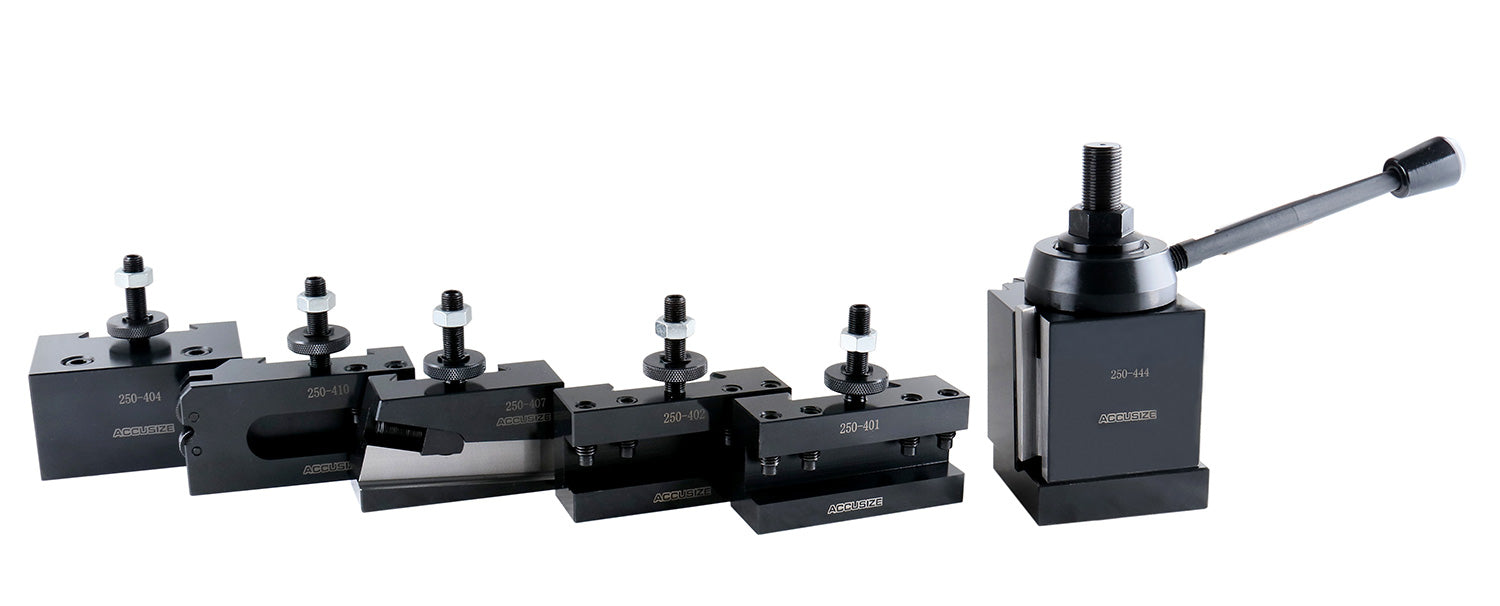

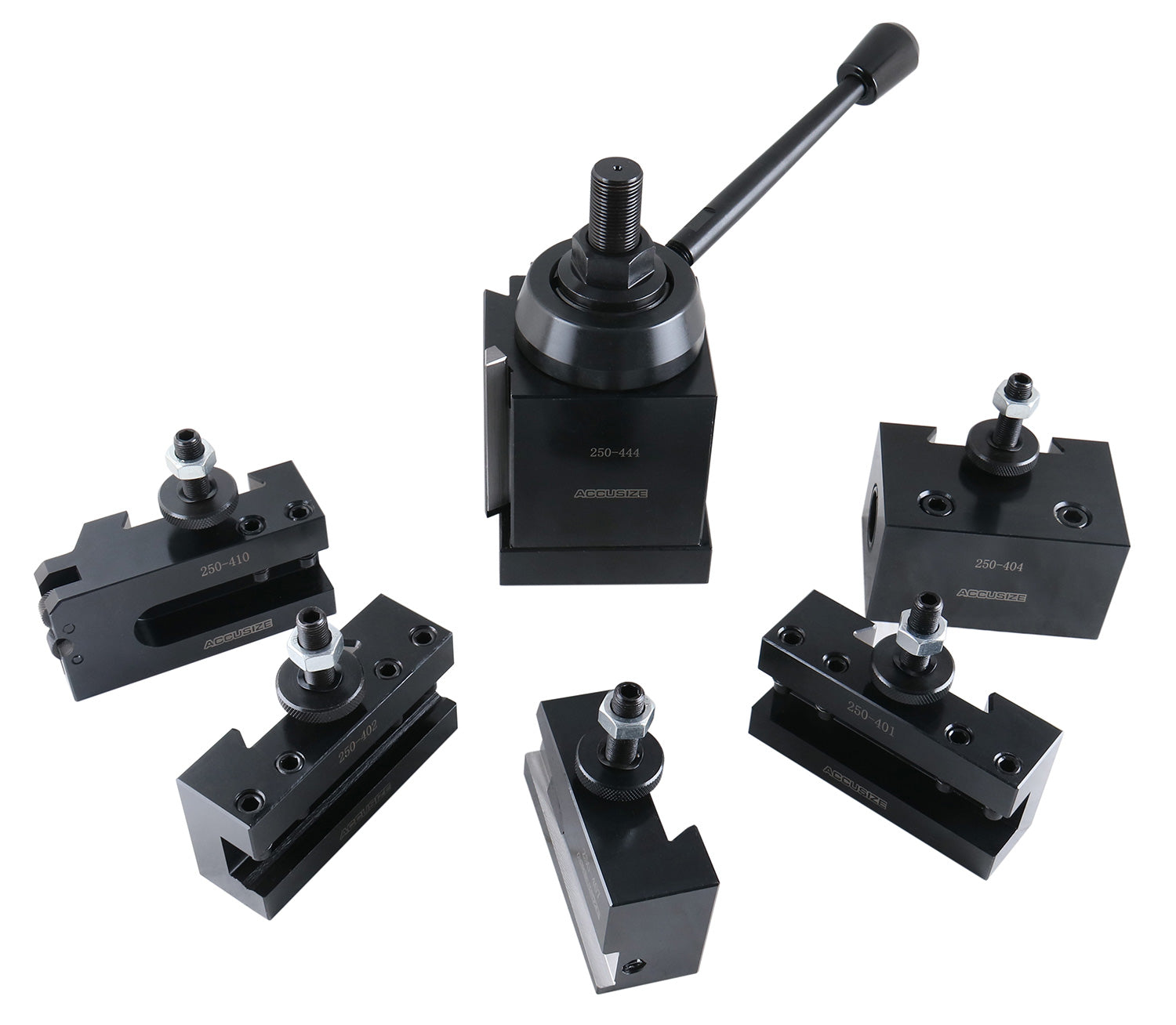

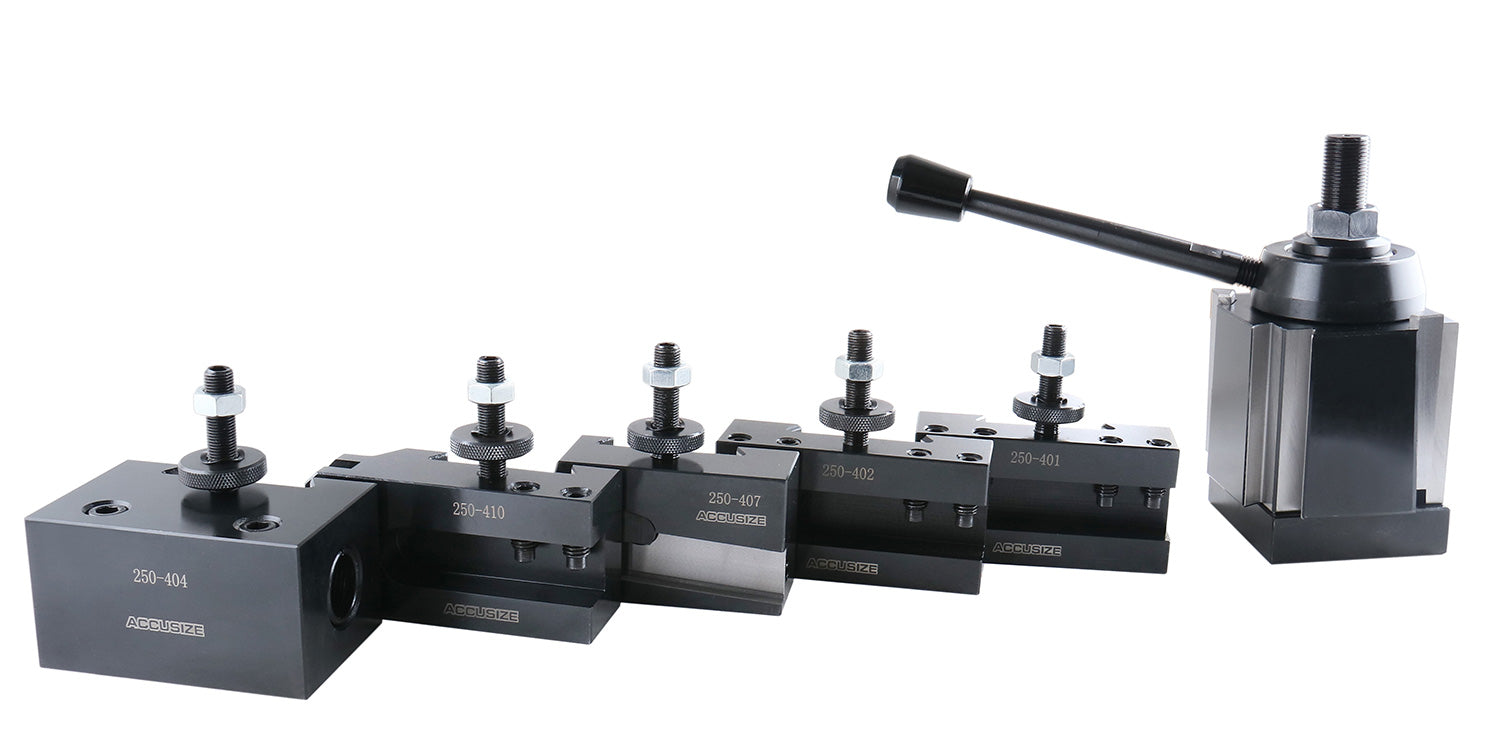

| 0251-0444 | CA | 14-20" | Each 1pc: 0250-0444, 0250-0401, 0250-0402, 0250-0404, 0250-0407, 0250-0410 |

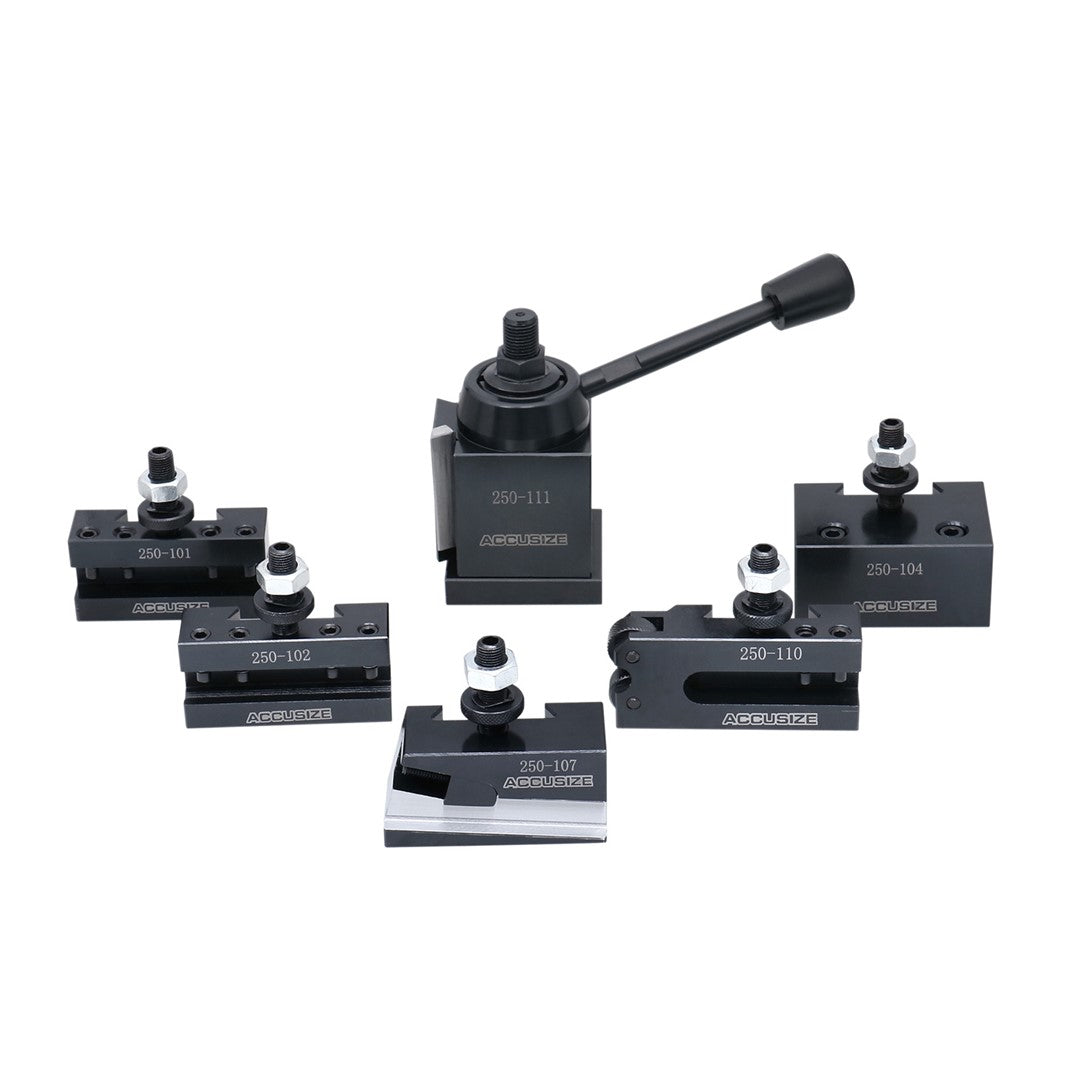

0251-0111
- Interchangeable with Aloris, Phase II, Dorian, Yuasa
- Suitable for lathe center height 0.60 - 1.75" ( top compound surface to lathe centerline), such as:
- South Bend 9" & 10" ,
- Delta 10 & 11" ,
- Atlas 10 & 12",
- Nardini TT1000 & TT1200
- many other imported lathes

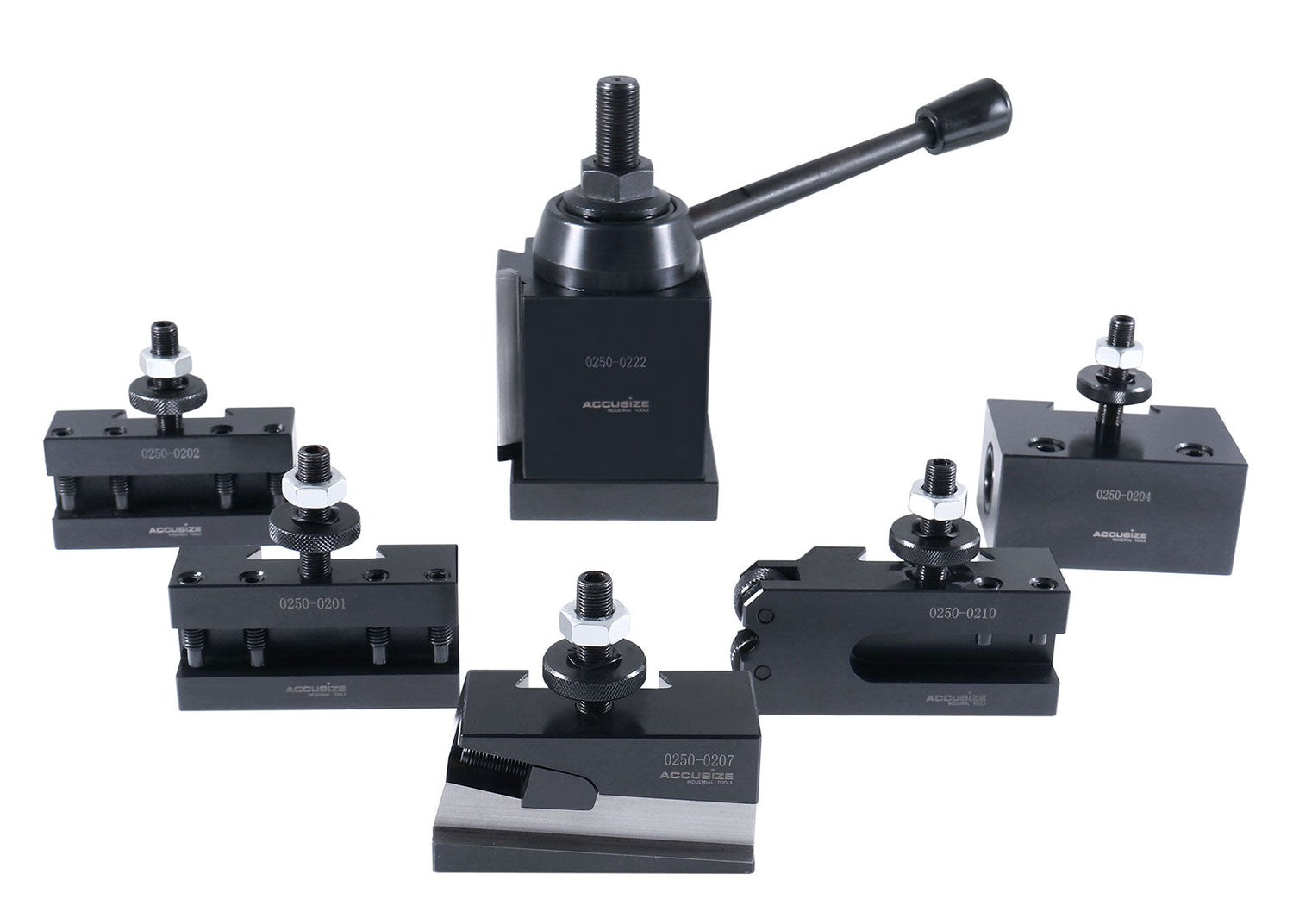

0251-0222
- Interchangeable with Aloris, Phase II, Dorian, Yuasa
- Suitable for lathe center height 0.70 - 2.20" (Top compound surface to lathe centerline), such as:
- South Bend 13" , 14" & 1307 ,
- Harrison: 11,12 &13"
- Clausing: 1300 series
- Delta 14"
- Logan 14"
- Emco: Elnomat 13S
- Sheldon: 11 & 13"
- Monarch: 13
- Nardini: MS1400 MS1600
- Acer: 1340
- and many other important lathes.
-
The Rockwell Hardness of the tool post is HRC 40 - 45. The Rockwell hardness of the tool holder is HRC 44
