Quick Change Tool Posts
Regular price
From
$141.00 CAD
Unit price
/
Unavailable
Quick Change Tool Posts, Two Different Styles - Piston and Wedge
- Both are precision engineered to assure repetitive accuracy.
- Advanced design provides built-in quick tool changing versatility with positive rigidity to meet the most exacting tolerances.
- Quickly and easily installed on an engine,bench, or turret lathe for a wide range of operations,from fine precise work to heavy duty cutting.
- Piston type posts are economical,while the Wedge type posts are clearly ultra-precise.Both accept the toolholders and interchange with Aloris,
Dorian, and DTM Tooling.
Piston Style
| Item | Model | Swing | Size Description |

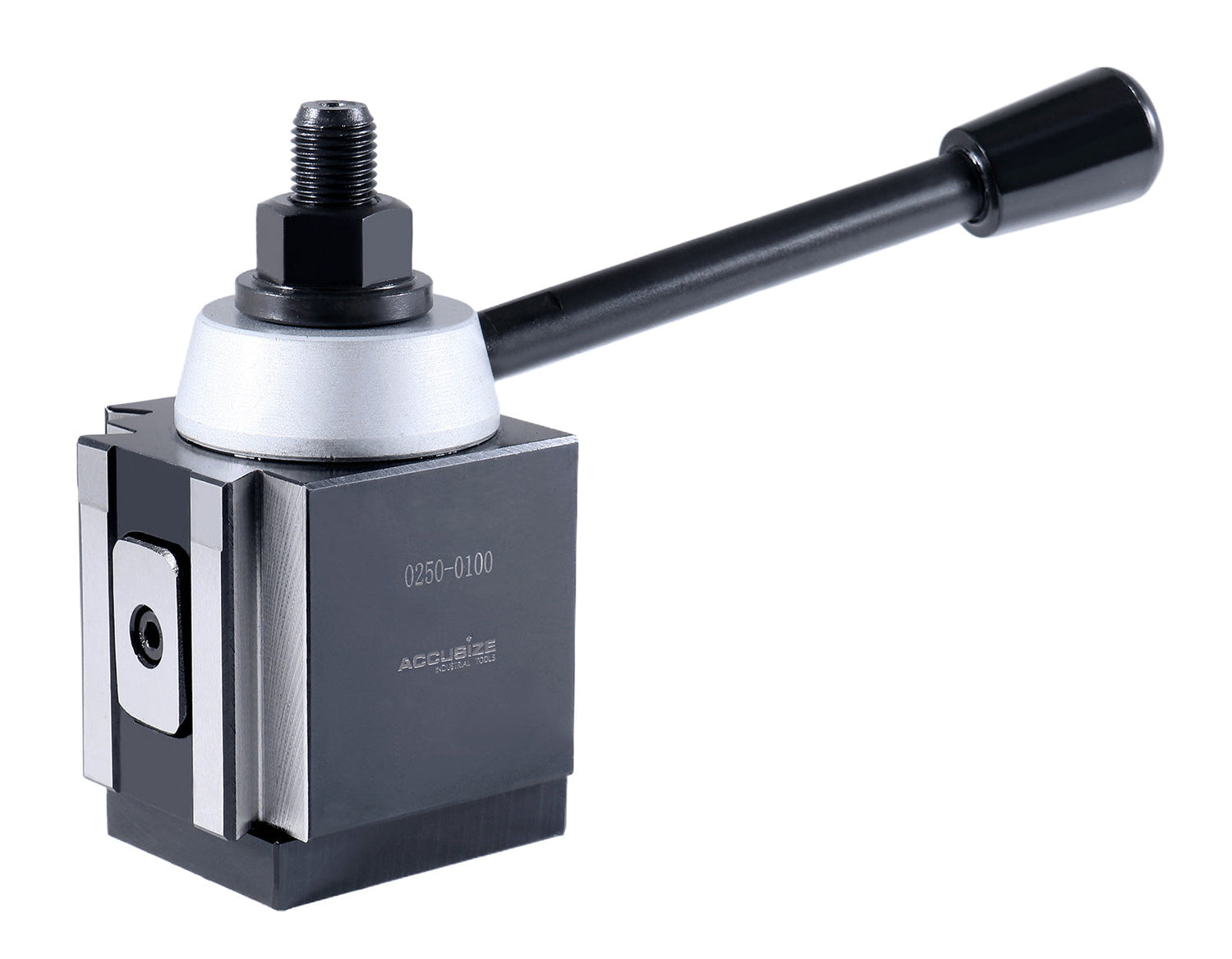

| 0250-0100 | AXA | 6-12" | A: 2-1/2", B: 3-7/8", C: 2-1/4", D: 9/16", E: 1-7/16", H: 4-11/16", R: 5-3/4", L1: 1.691", L2: 1.250", H: 0.382" |

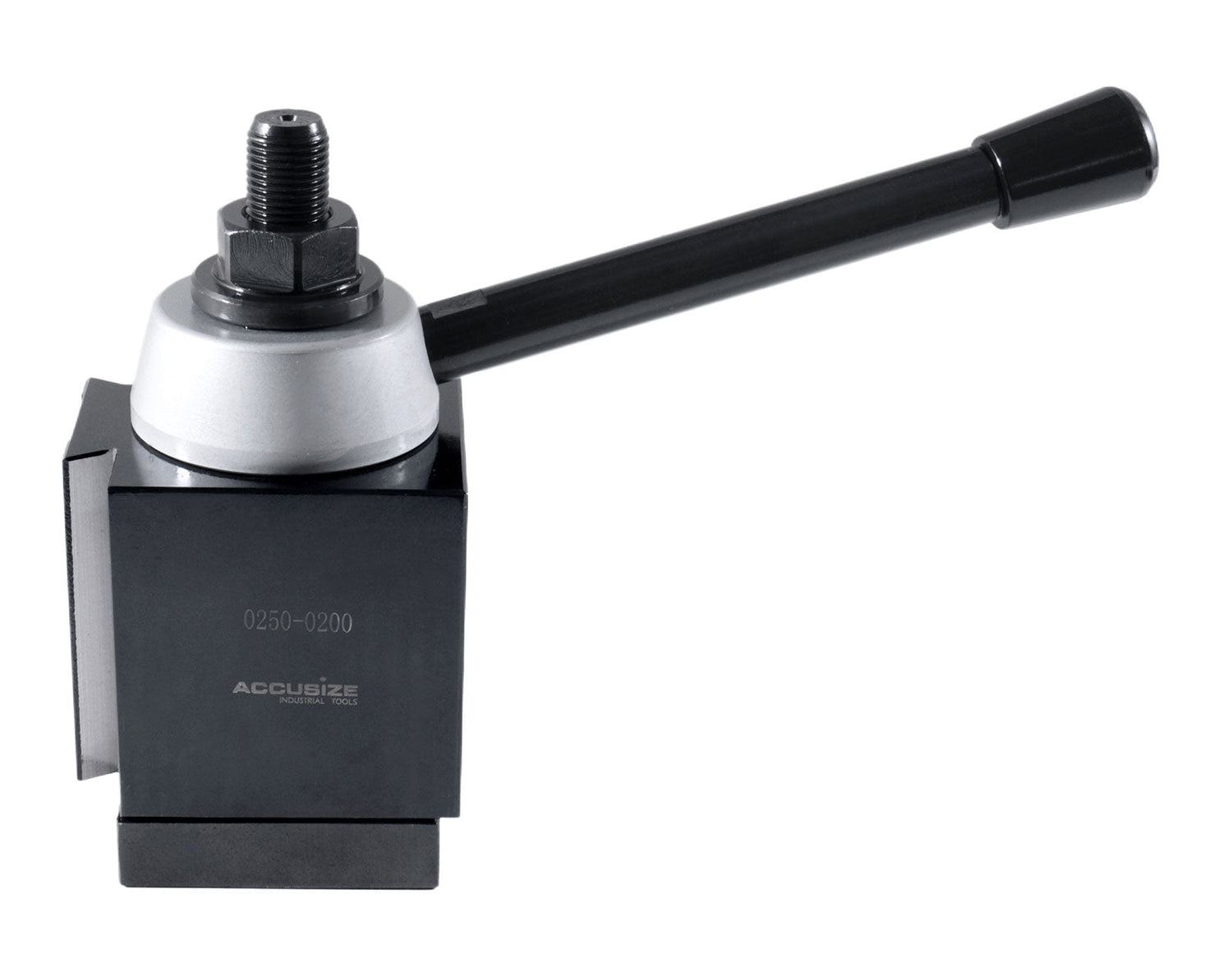

| 0250-0200 | BXA | 10-15" | A: 3", B: 4-5/8", C: 2-3/4"D: 5/8", E: 1-5/8" , H: 5-9/16", R: 7-5/16", L1: 1.761", L2: 1.265", H: 0.409" |

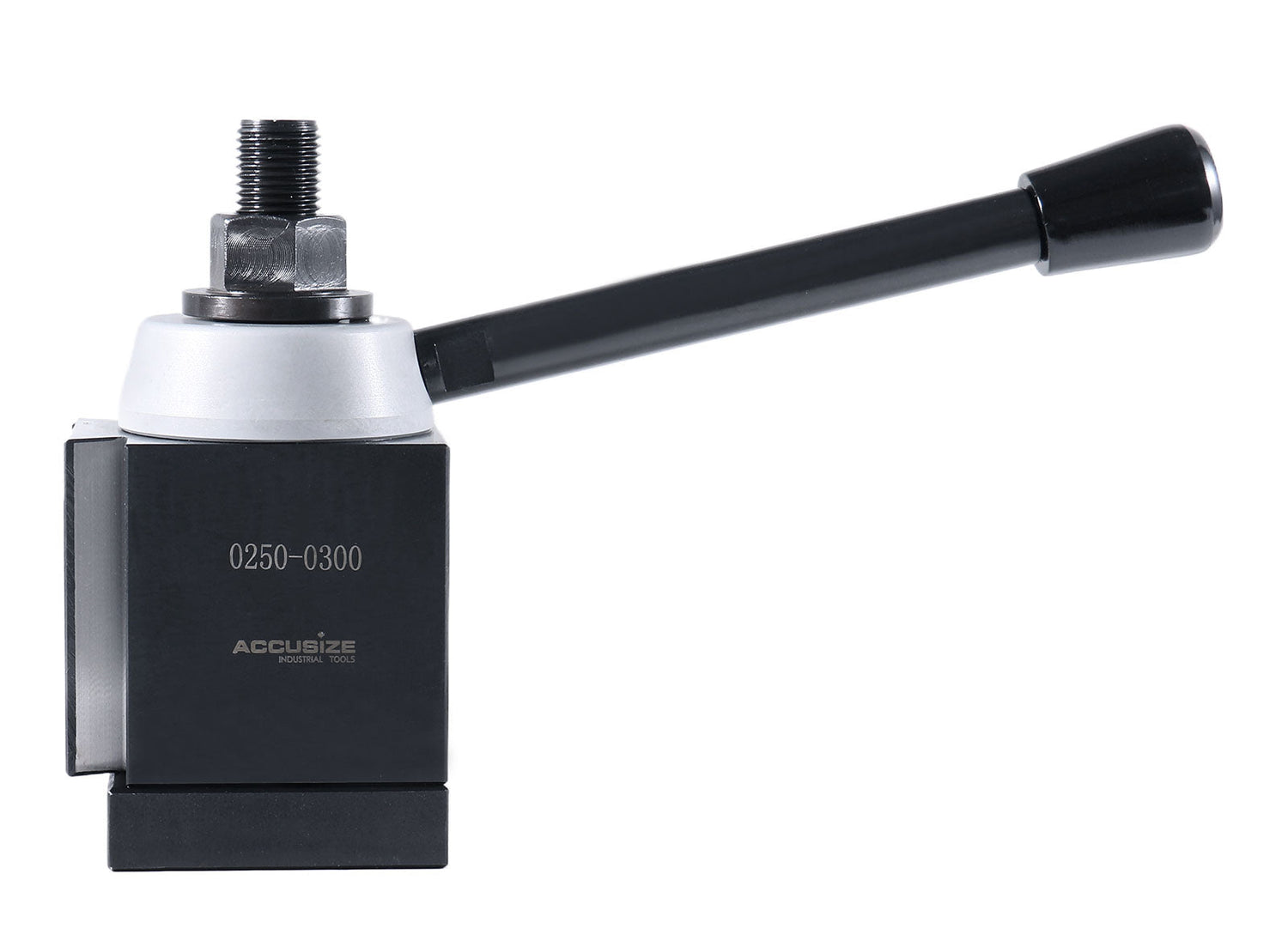

| 0250-0300 | CXA | 13-18" | A: 3-3/8", B: 5-1/8", C: 3", D: 3/4", E: 1-7/8", h: 6-1/8", R: 7-7/8", L1: 2.208", L2: 1.567", H: 0.555" |

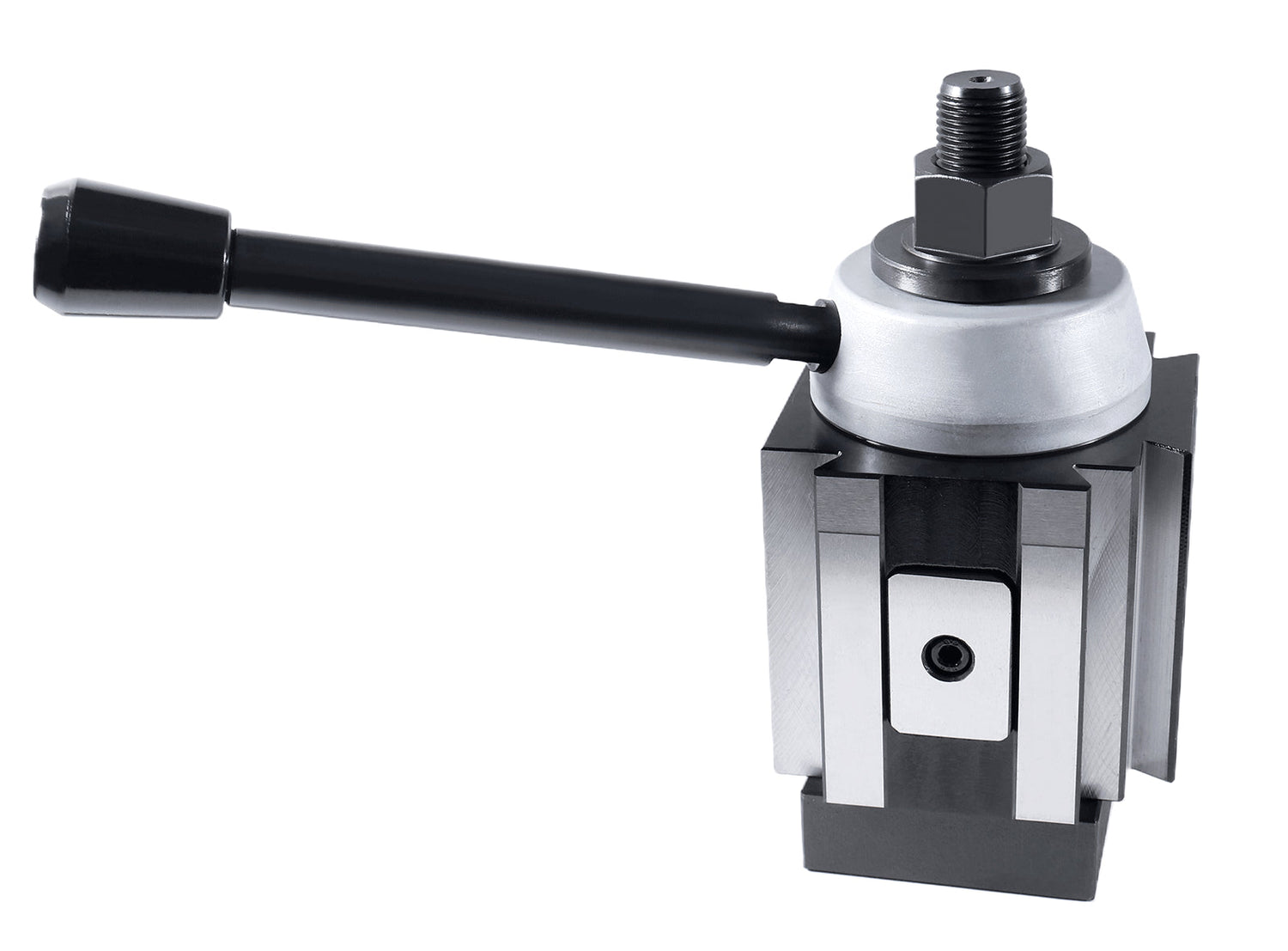

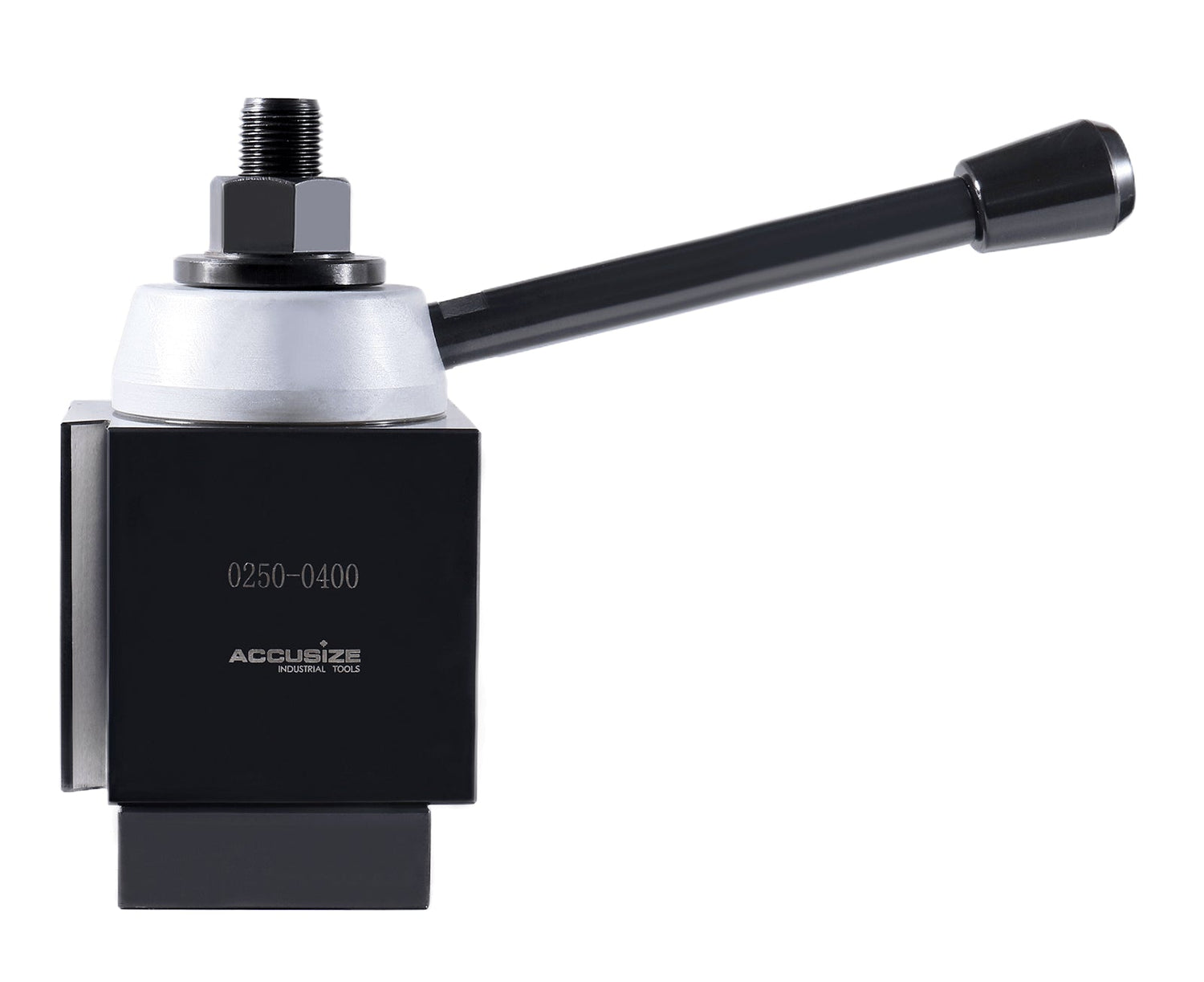

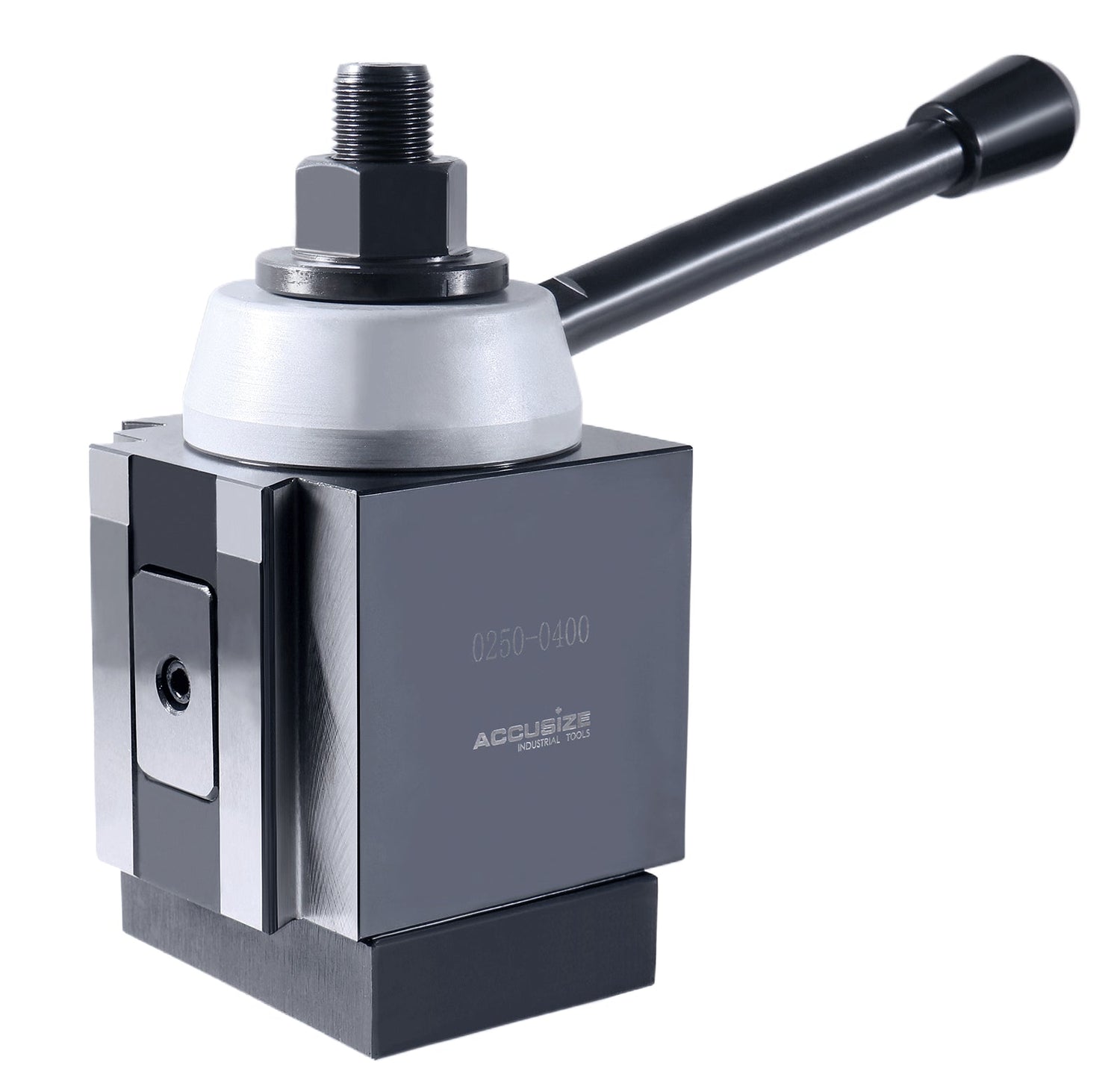

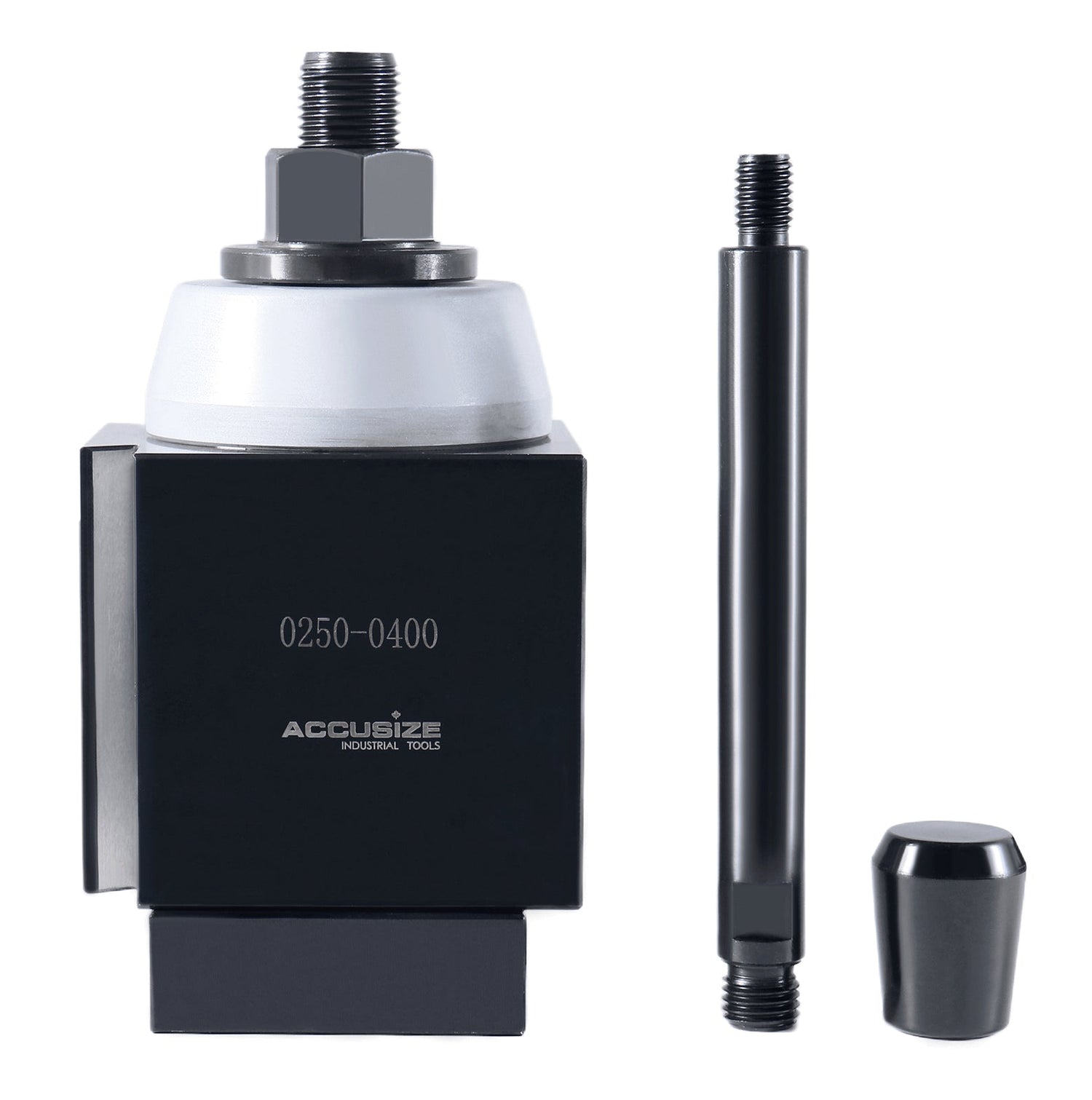

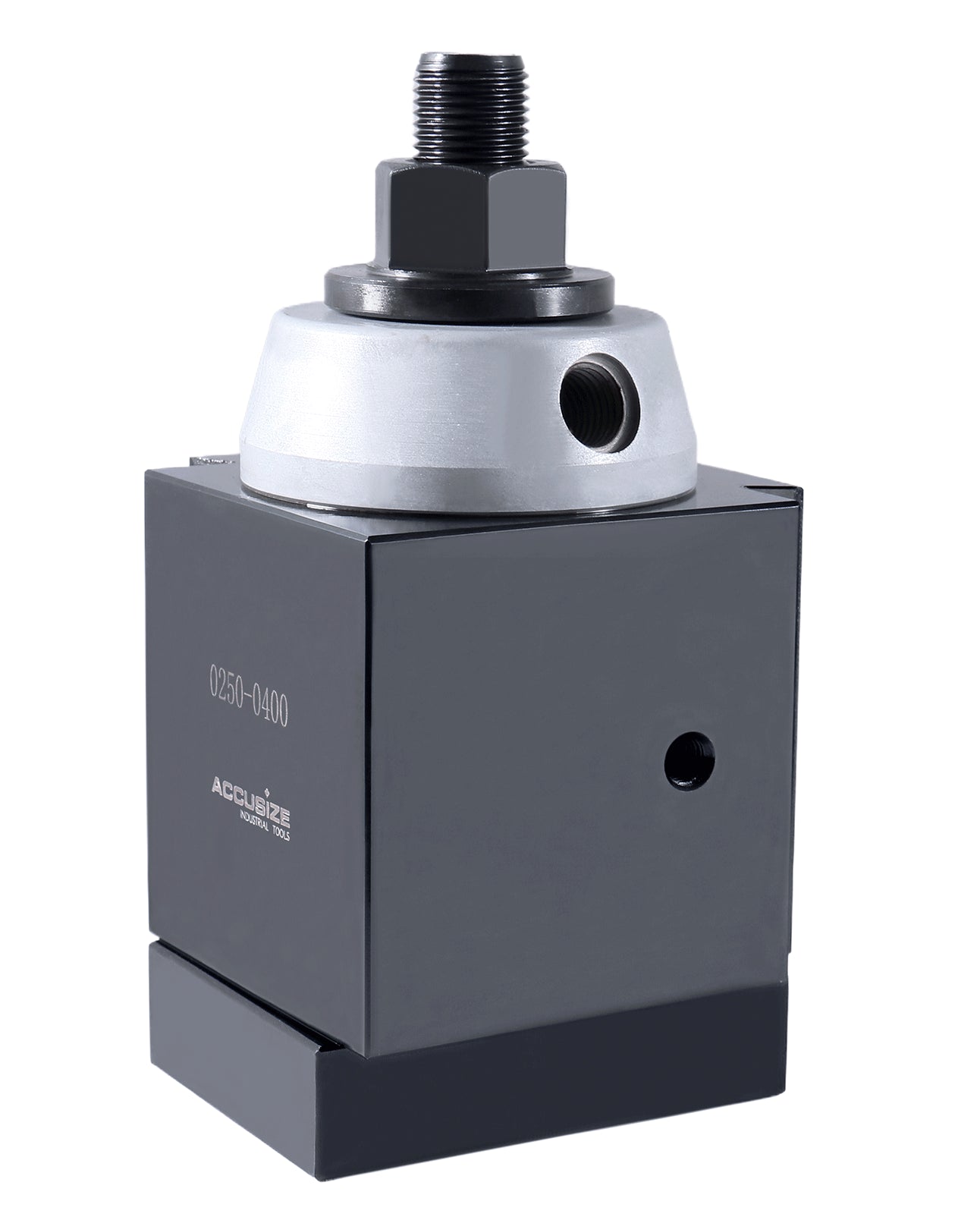

| 0250-0400 | CA | 14-20" | A: 4", B: 6-1/4", C: 3-5/8", D: 7/8", E: 2-1/8", H: 7", R: 9", L1: 2.663", L2: 2.100", H: 0.488" |
Wedge Style
| Item | Model | Swing | Size Description |

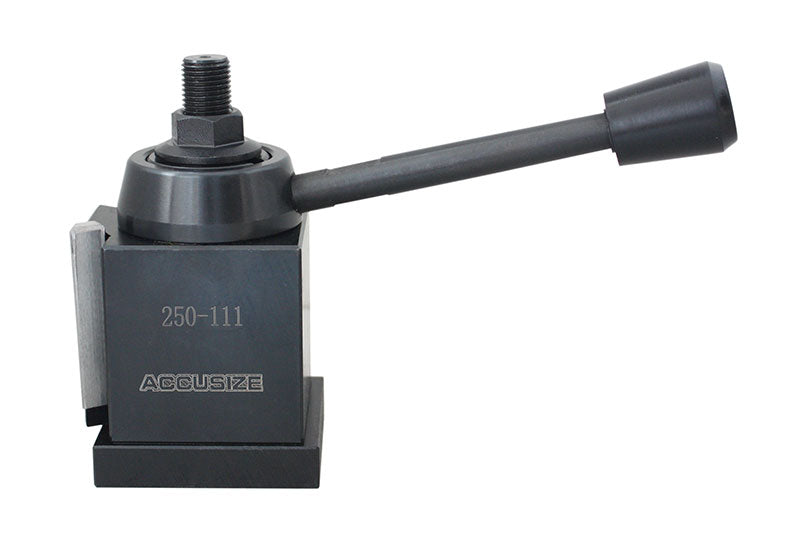

| 0250-0111 | AXA | 6-12" | A: 2-1/2", B: 3-7/8", C: 2-1/4", D: 9/16", E: 1-3/8", H: 4-11/16", R: 5-3/4", L1: 1.691", L2: 1.250", H: 0.382" |

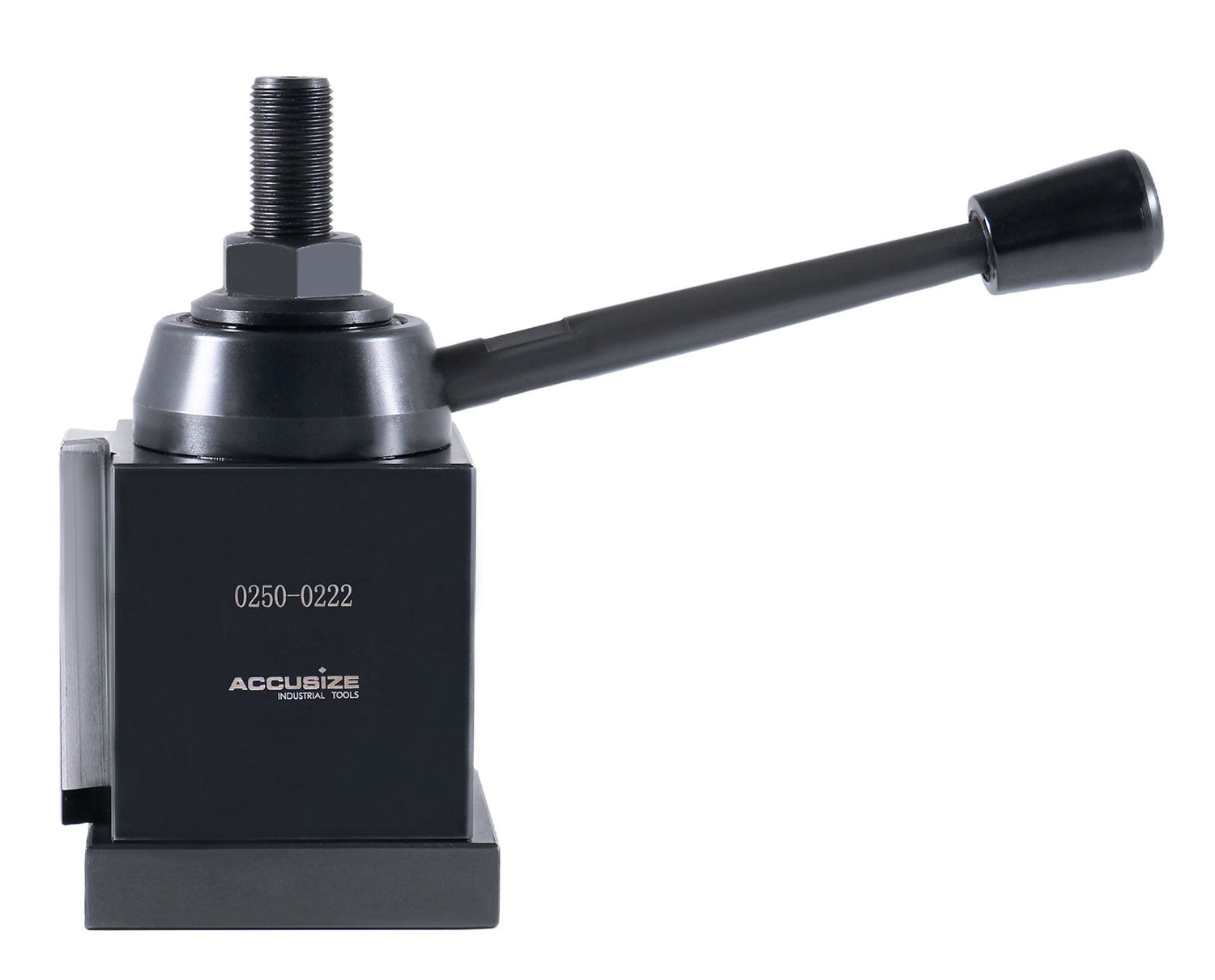

| 0250-0222 | BXA | 10-15" | A: 3", B: 4-5/8", C: 2-3/4"D: 5/8", E: 1-9/16" , H: 5-9/16", R: 7-5/16", L1: 1.761", L2: 1.265", H: 0.409" |

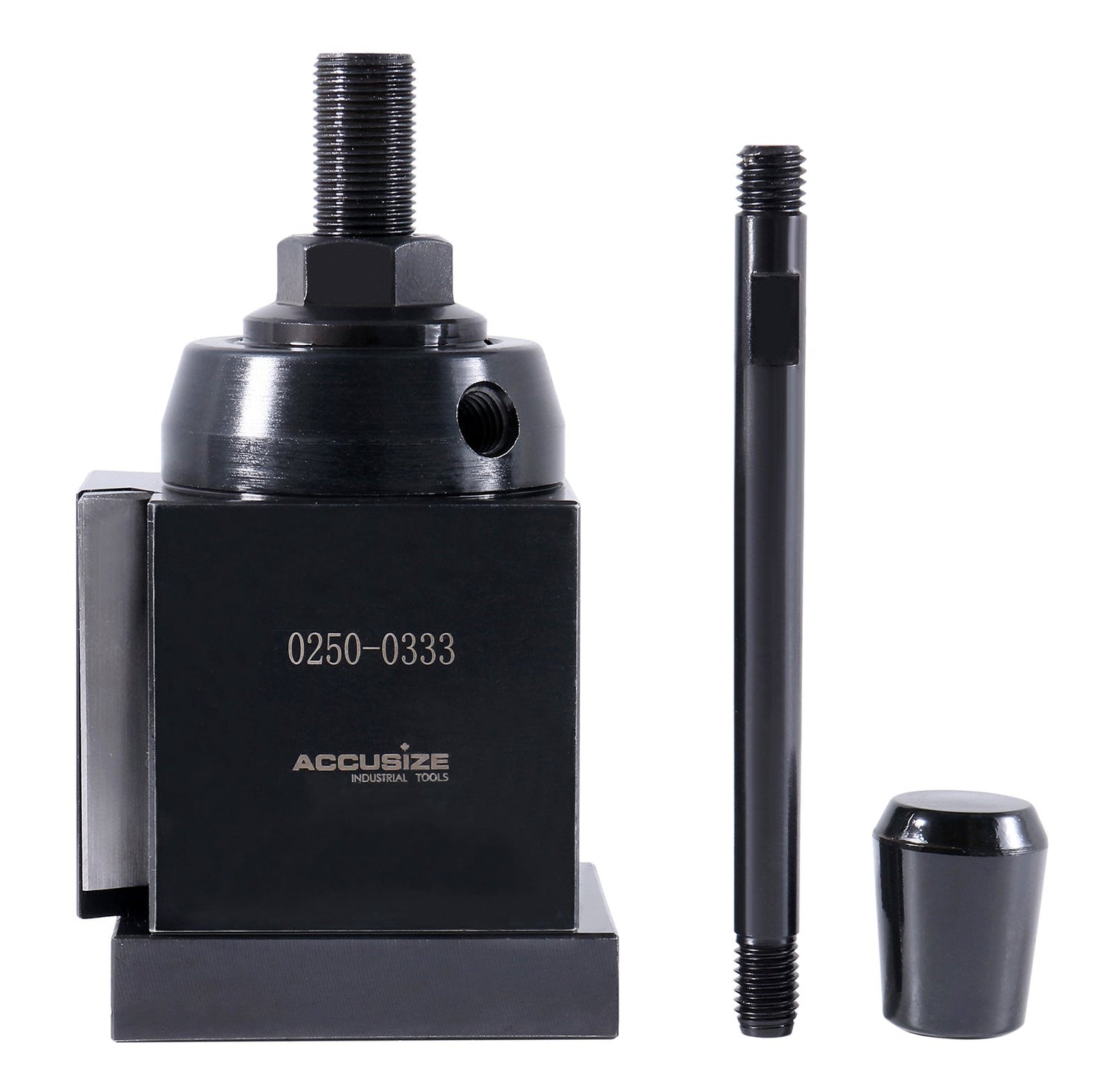

| 0250-0333 | CXA | 13-18" | A: 3-3/8", B: 5-1/8", C: 3", D: 3/4", E: 1-29/32", h: 6-1/8", R: 7-7/8", L1: 2.208", L2: 1.567", H: 0.555" |

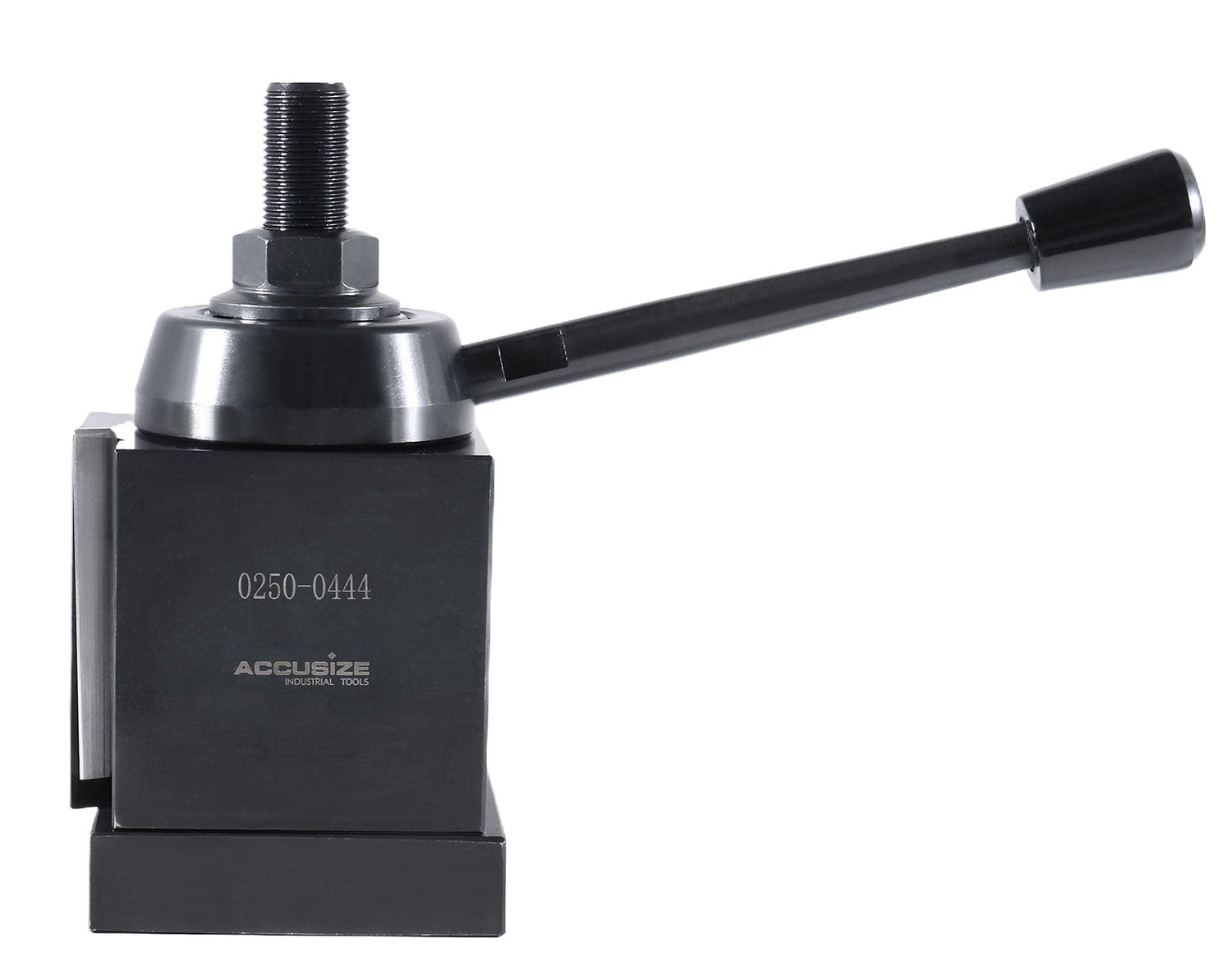

| 0250-0444 | CA | 14-20" | A: 4", B: 6-1/4", C: 3-5/8", D: 7/8", E: 2-1/8", H: 7", R: 9", L1: 2.663", L2: 2.100", H: 0.488" |
