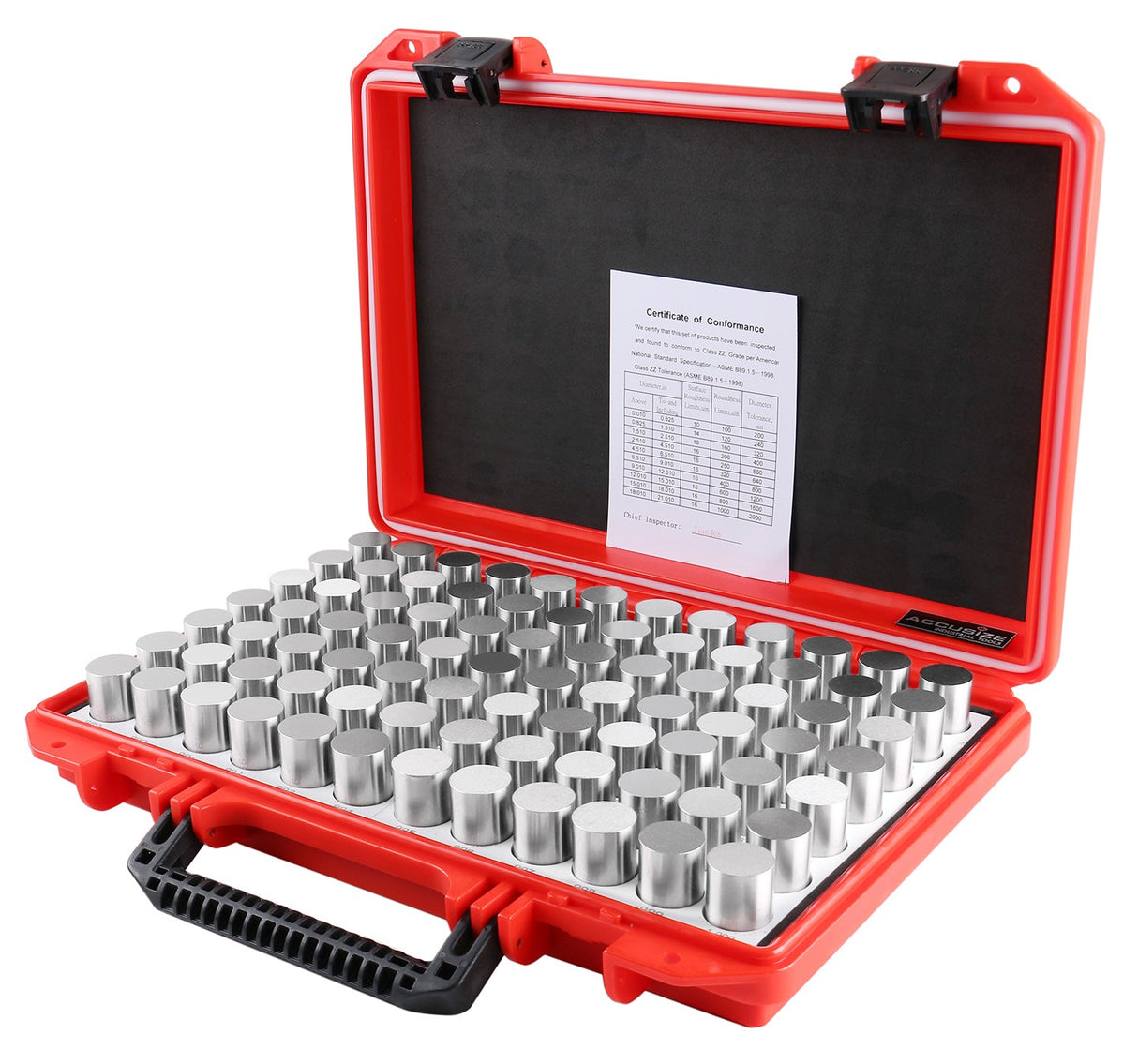

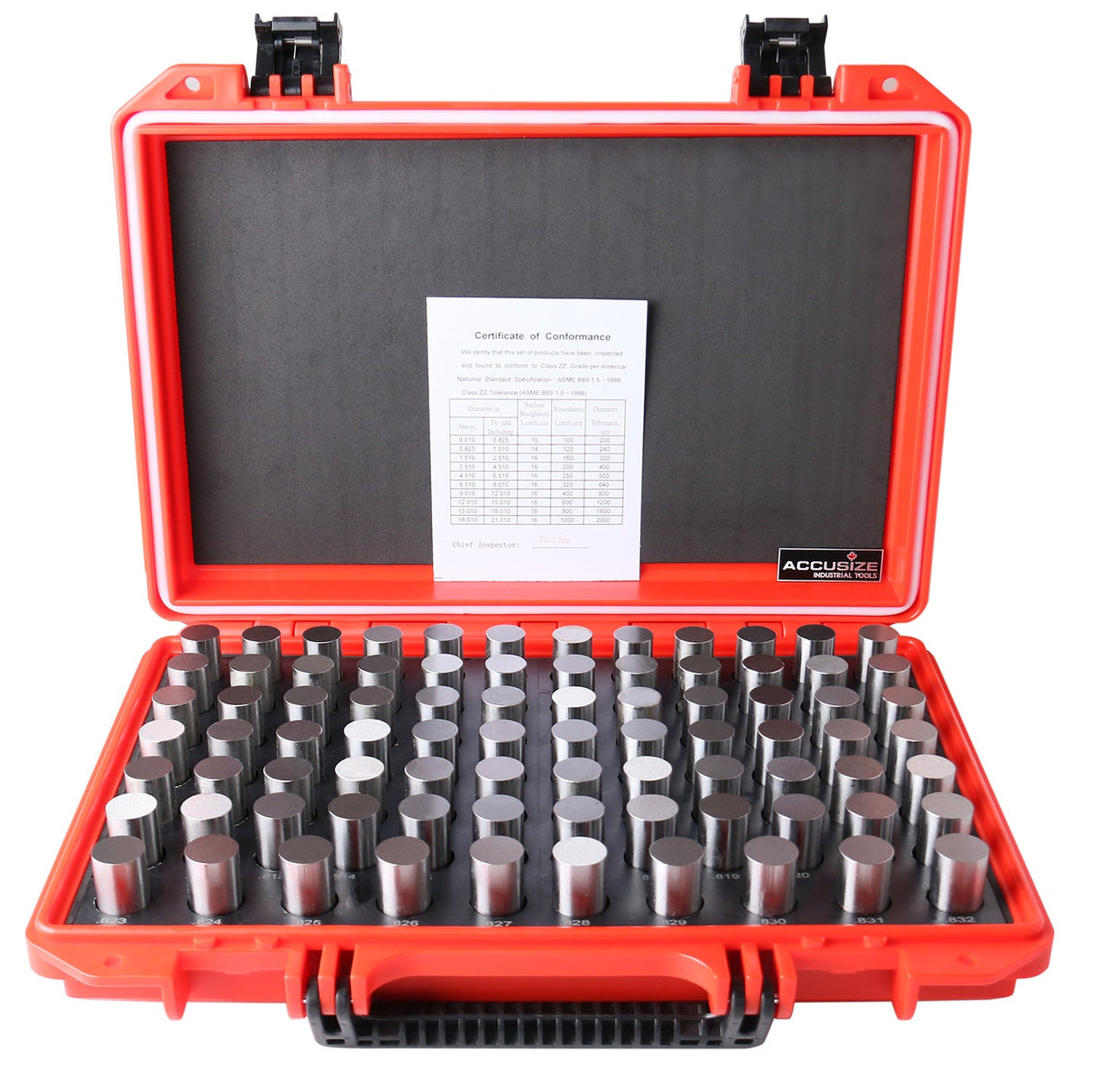

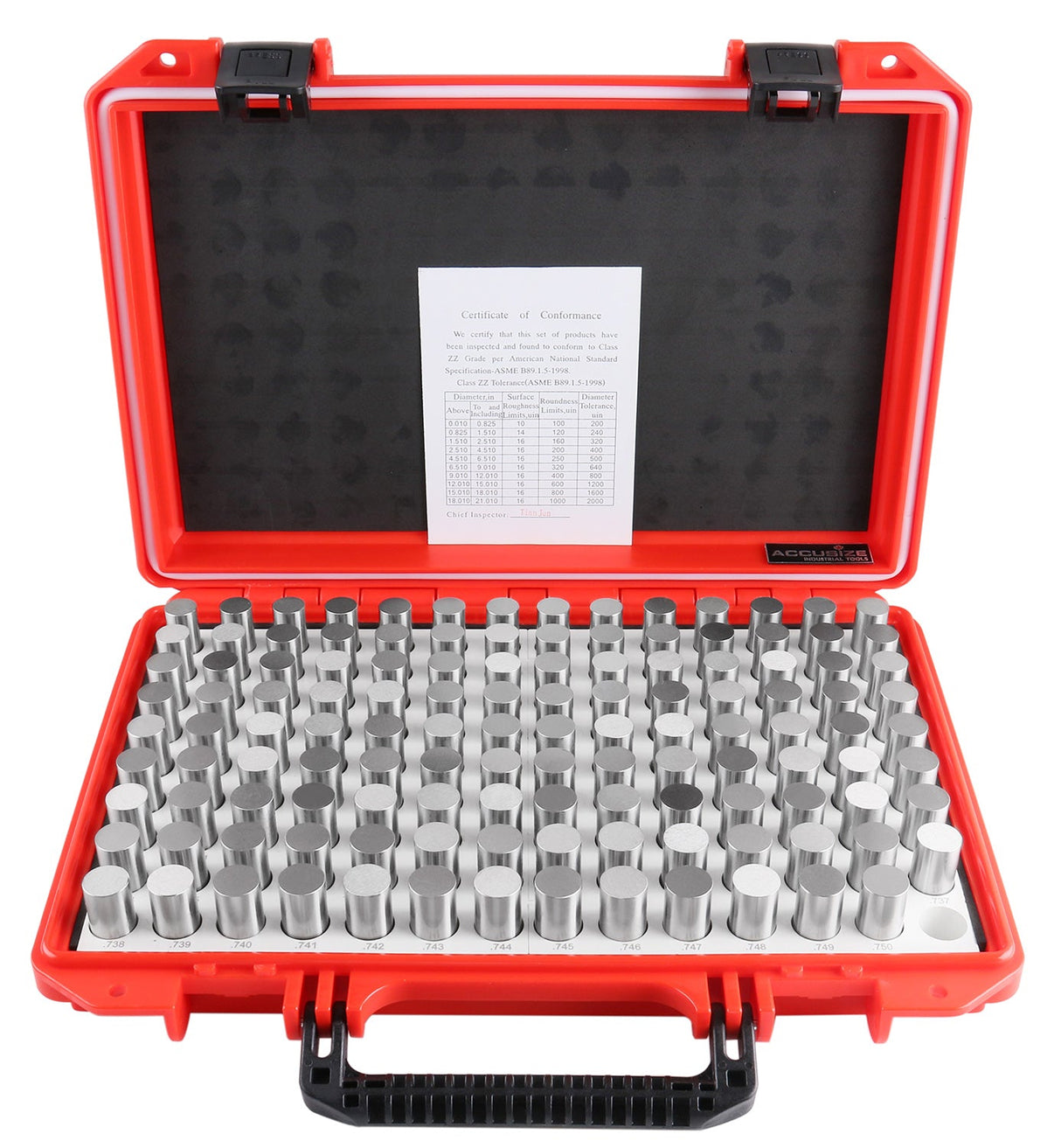

Steel Plug Pin Gage Sets
From
$53.00 CAD
Unit price
/
Unavailable
Pin Gage Sets
- Class ZZ

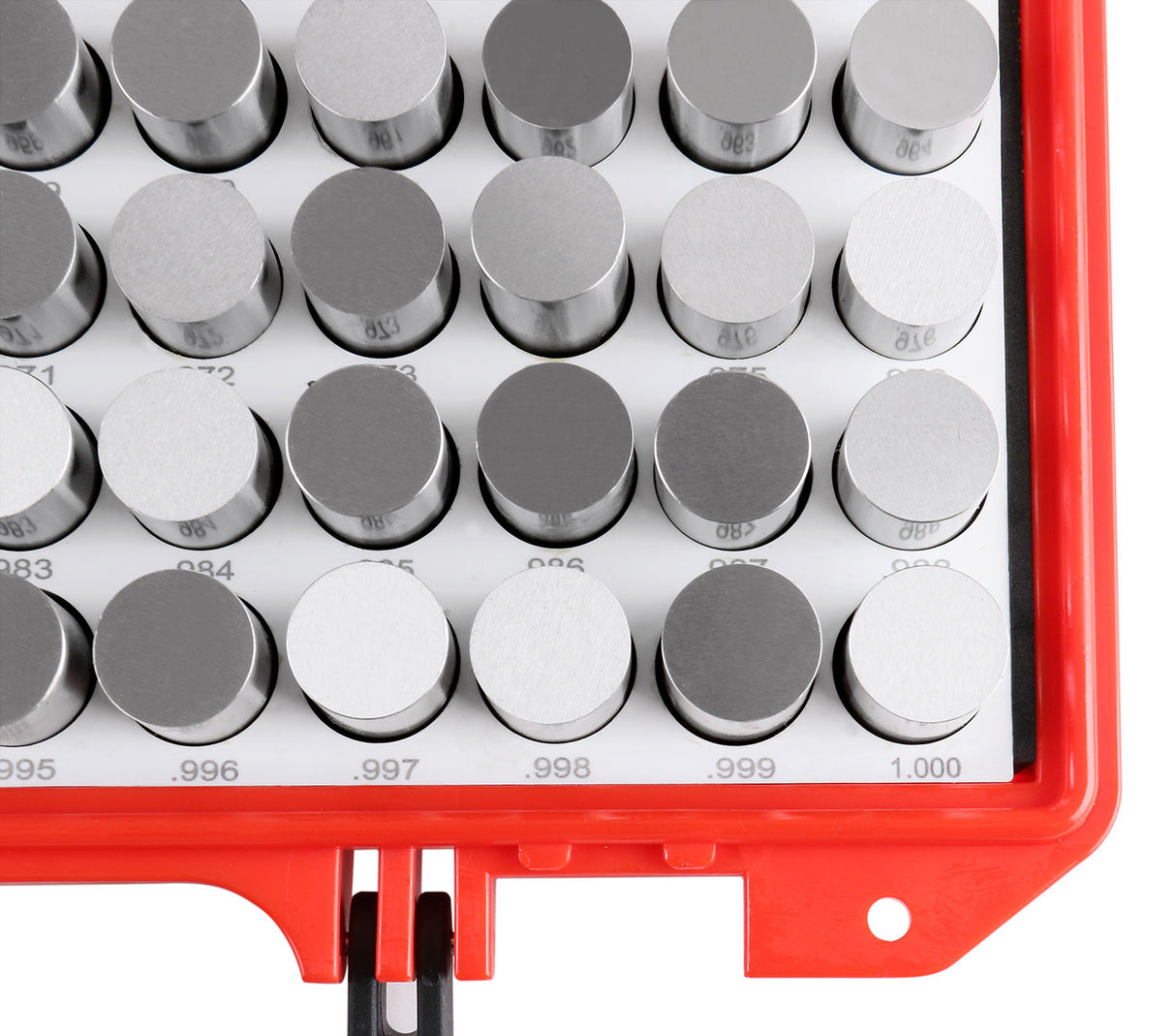

- Each gage is electro-etched with its actual size.
- Tolerance:
For minus set tolerance : +0.0000" / -0.0002"
For plus sets tolerance : +0.0002" / -0.0000" - All gage are 2"long,centerless lapped.
- Hardness: heat treated to HRc 60-62 .
- Finish: each gage has a 10 microfinish or better.
- Overall length 2".
Minus tolerance sets
| Item | Range |
| M0(-) | 0.011"-0.060"x50PCS |

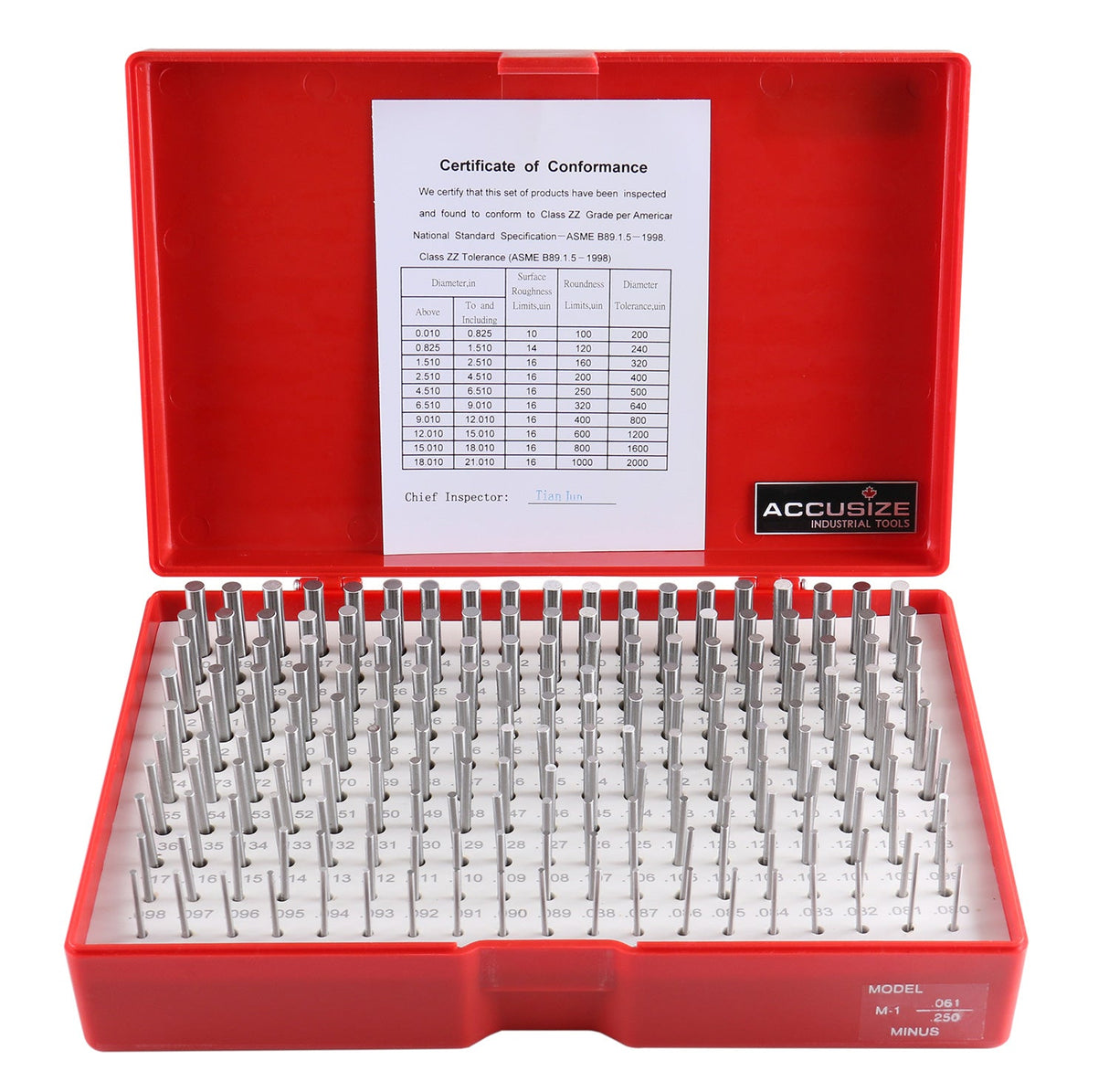

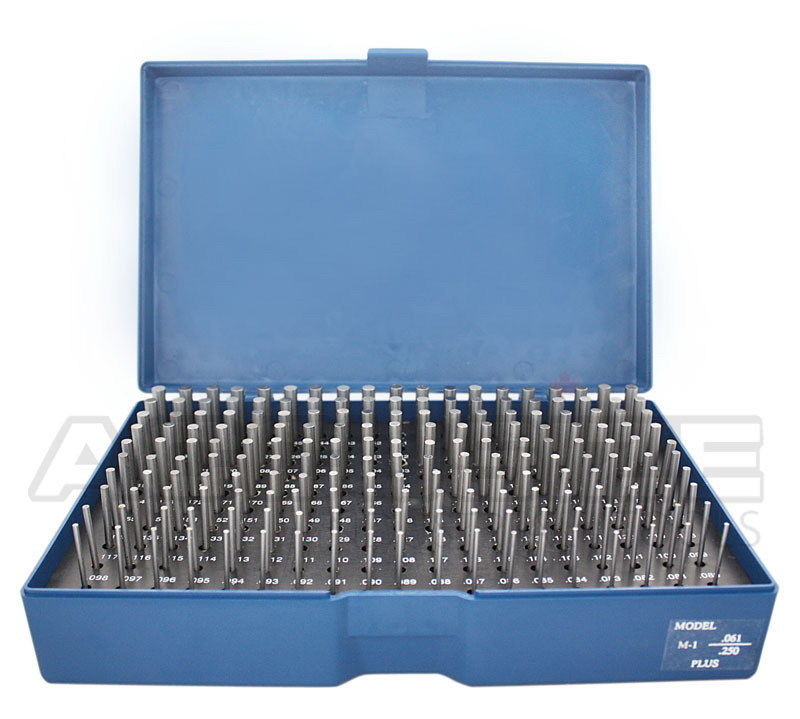

| M1(-) | 0.061"-0.250"x190PCS |

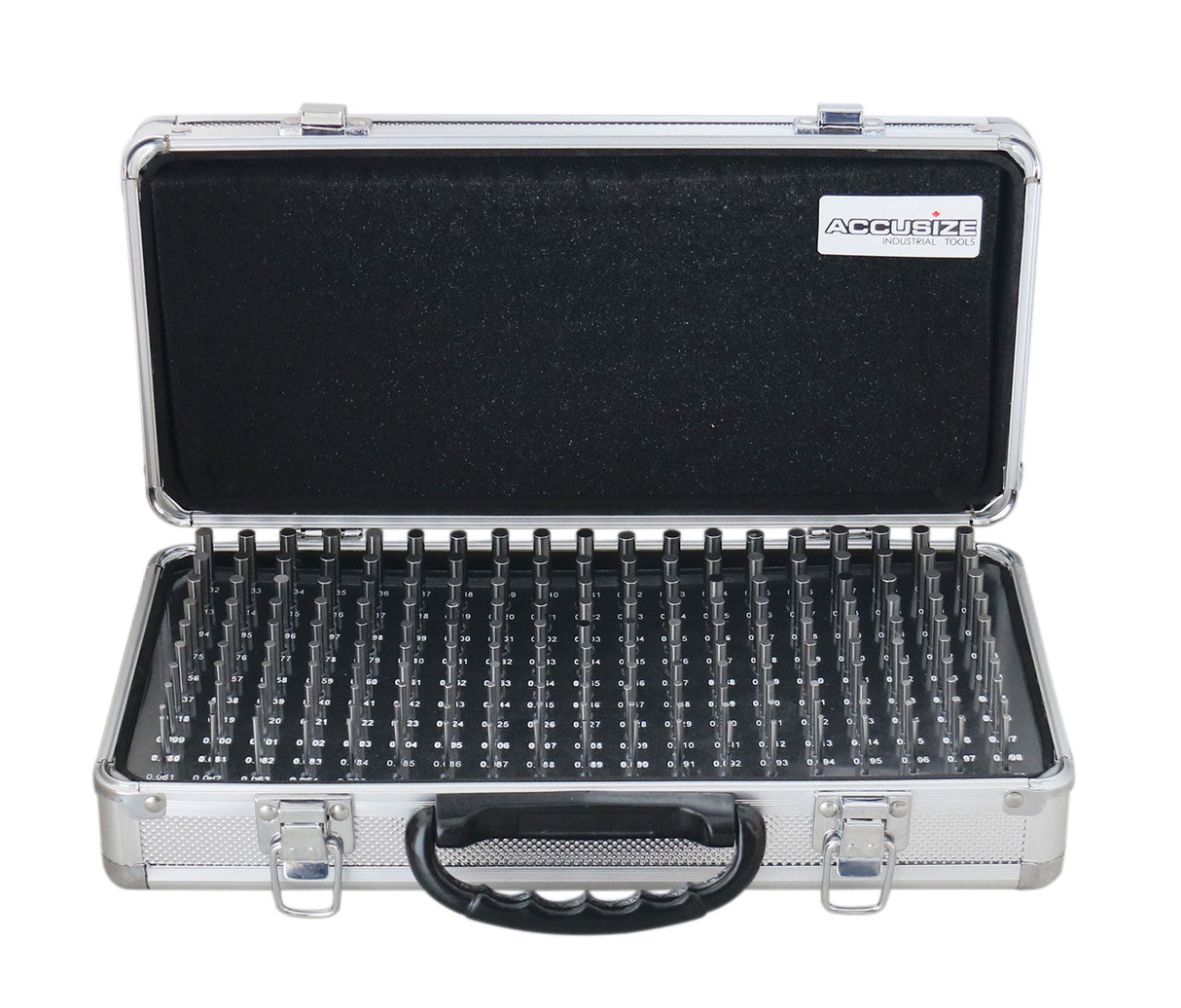

| M1(-)A | 0.061"-0.250"x190PCS with an Enhanced Aluminum Case |

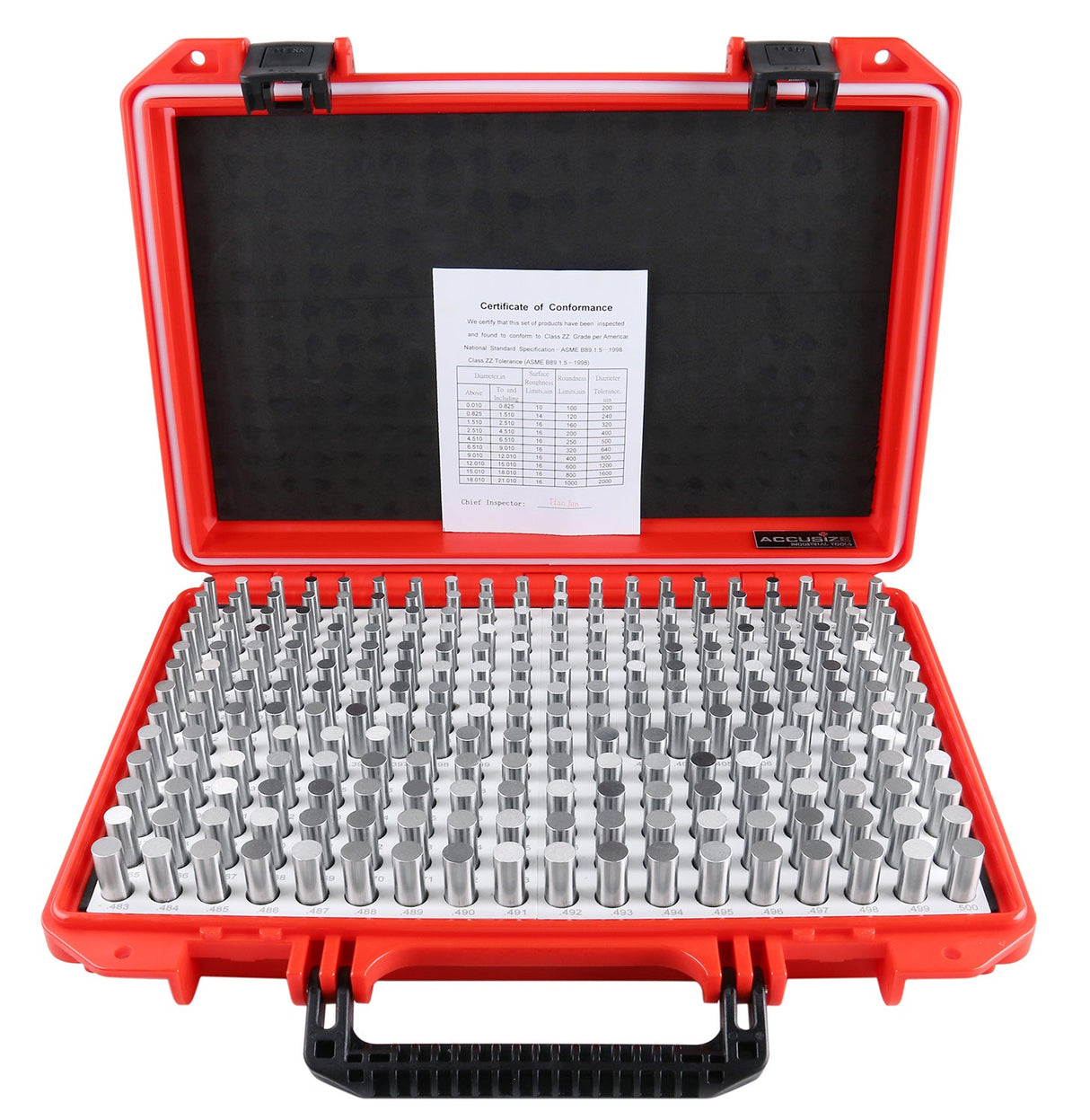

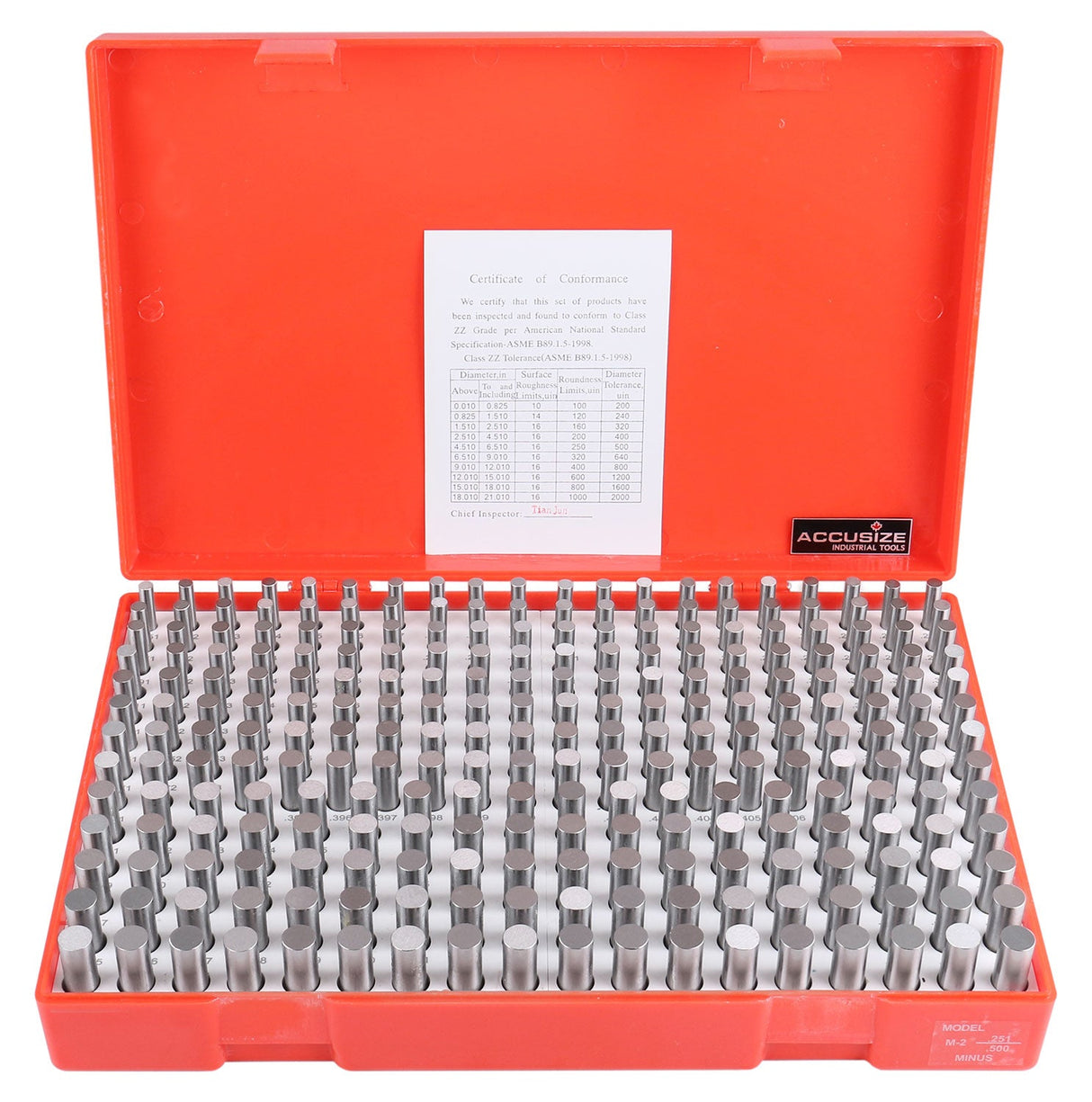

| M2(-) | 0.251"-0.500"x250PCS |
| M2(-)A | 0.251"-0.500"x250PCS with an Enhanced Aluminum Case |
| M3(-) | 0.501"-0.625"x125PCS |
| M4(-) | 0.626"-0.750"x125PCS |

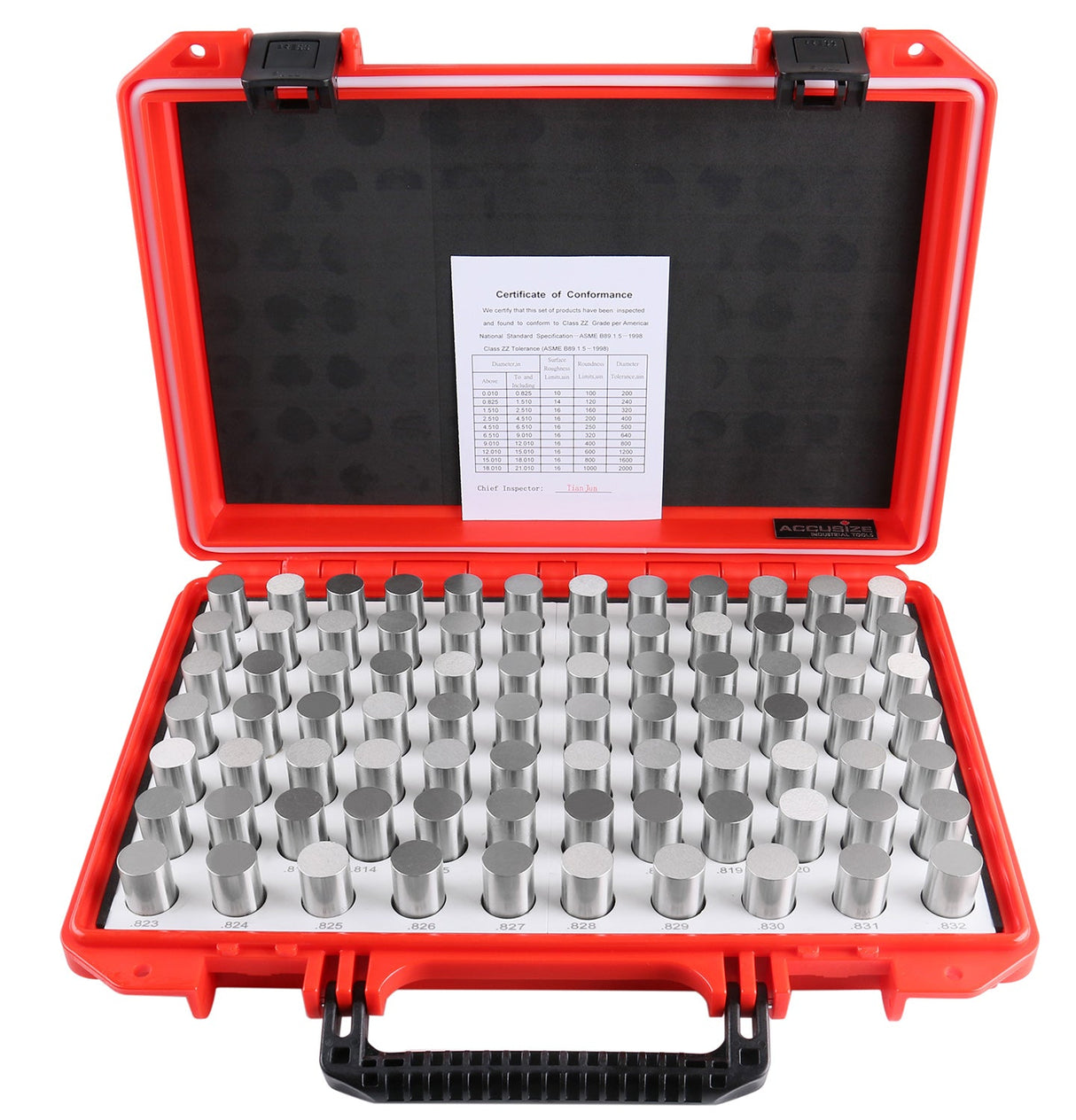

| M5(-) | 0.751"-0.832"x82PCS |

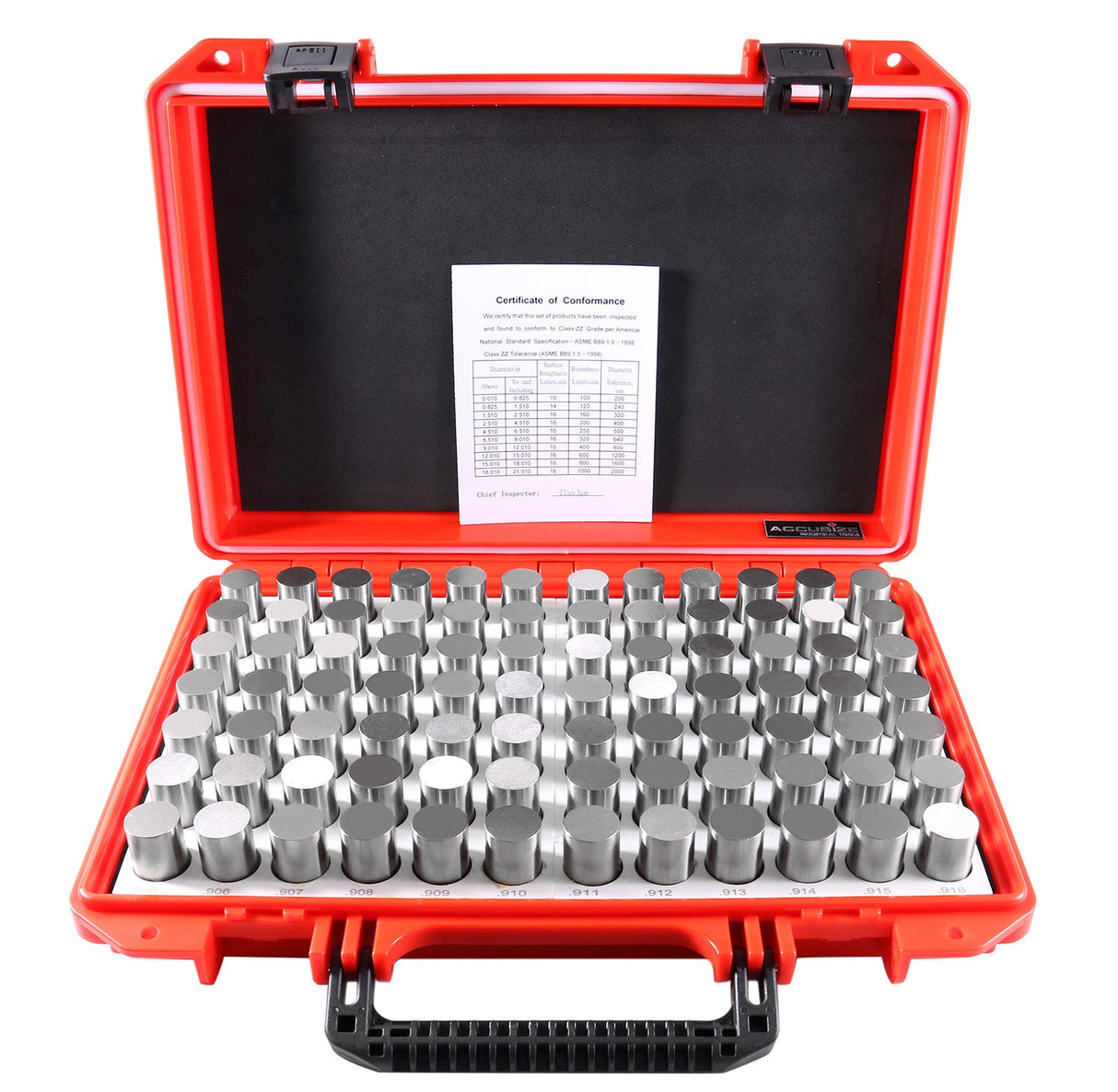

| M6(-) | 0.833"-0.916"x84PCS |

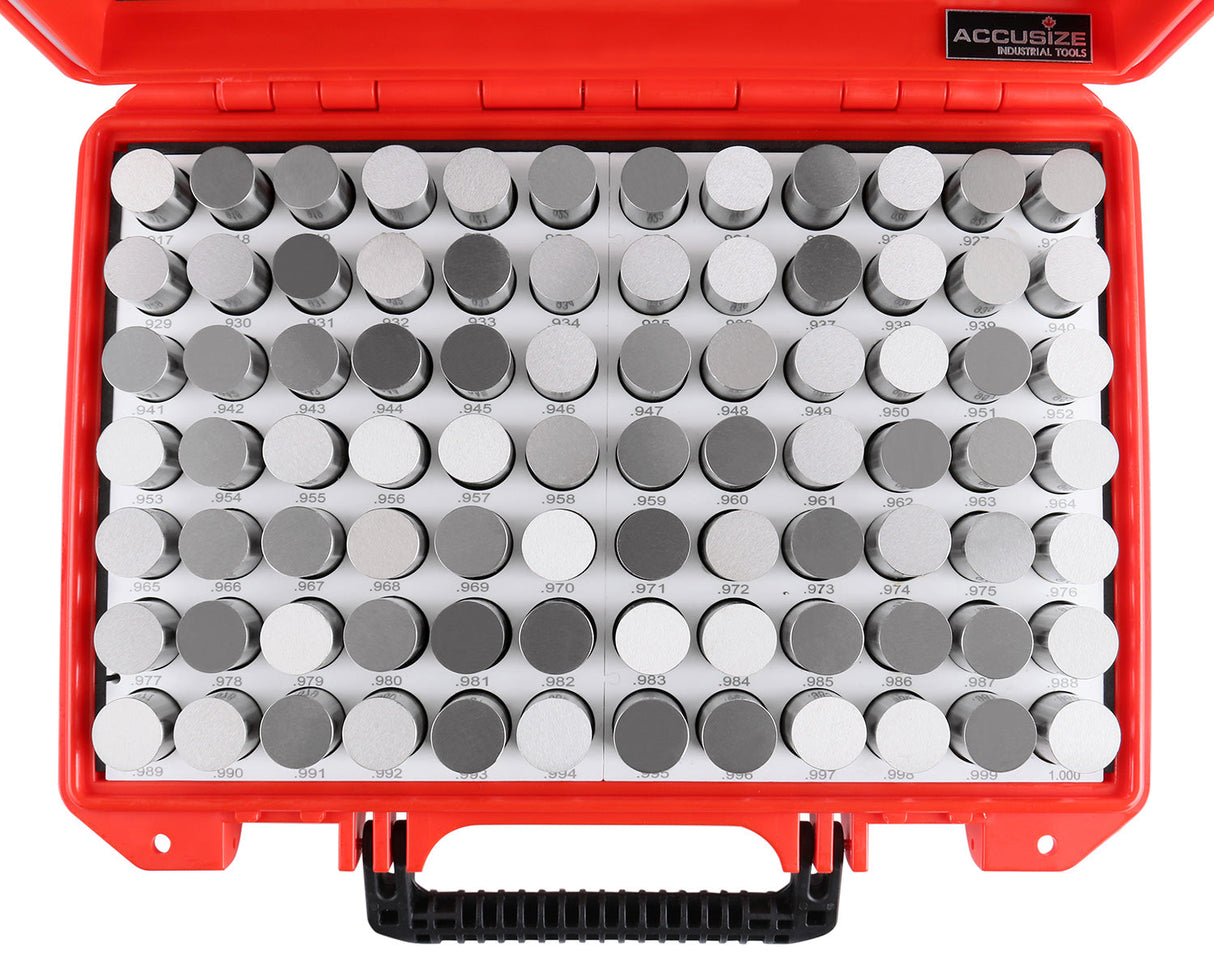

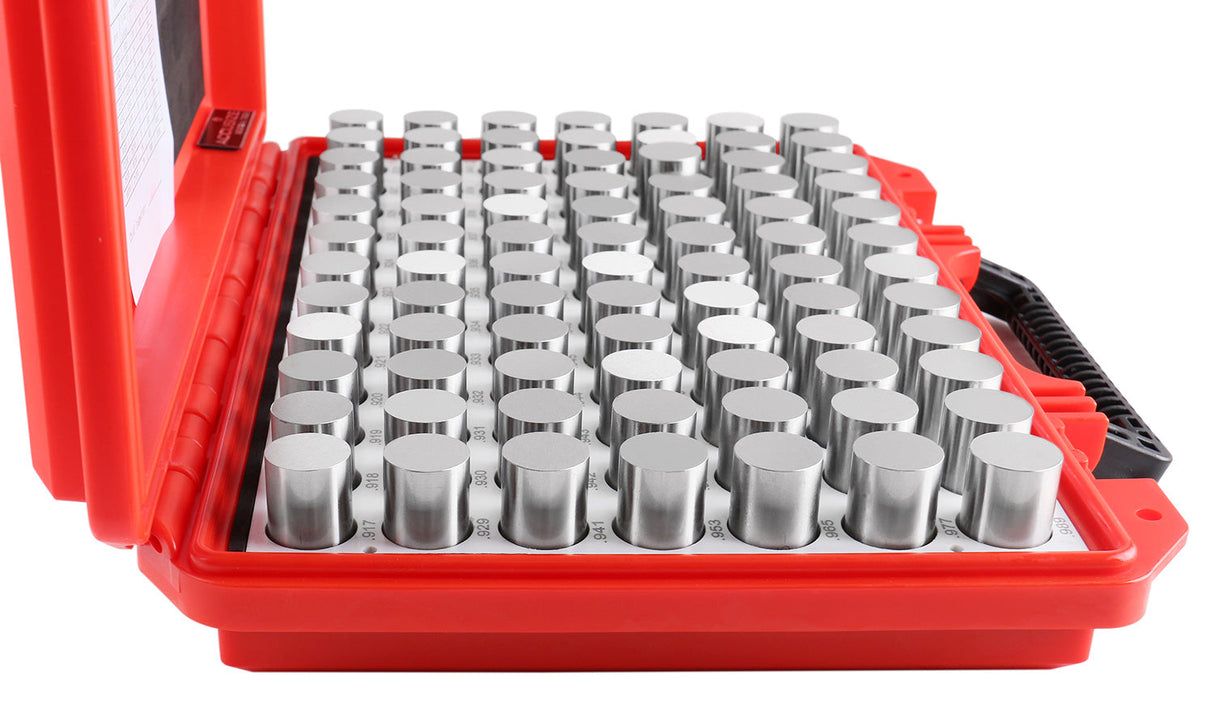

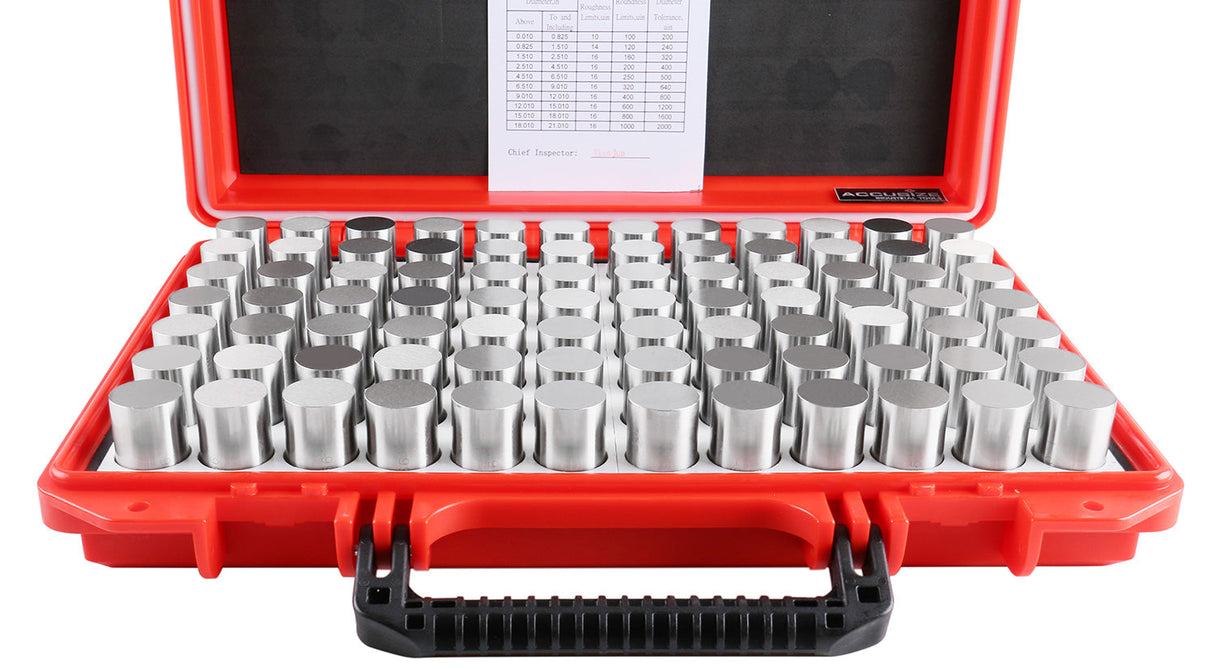

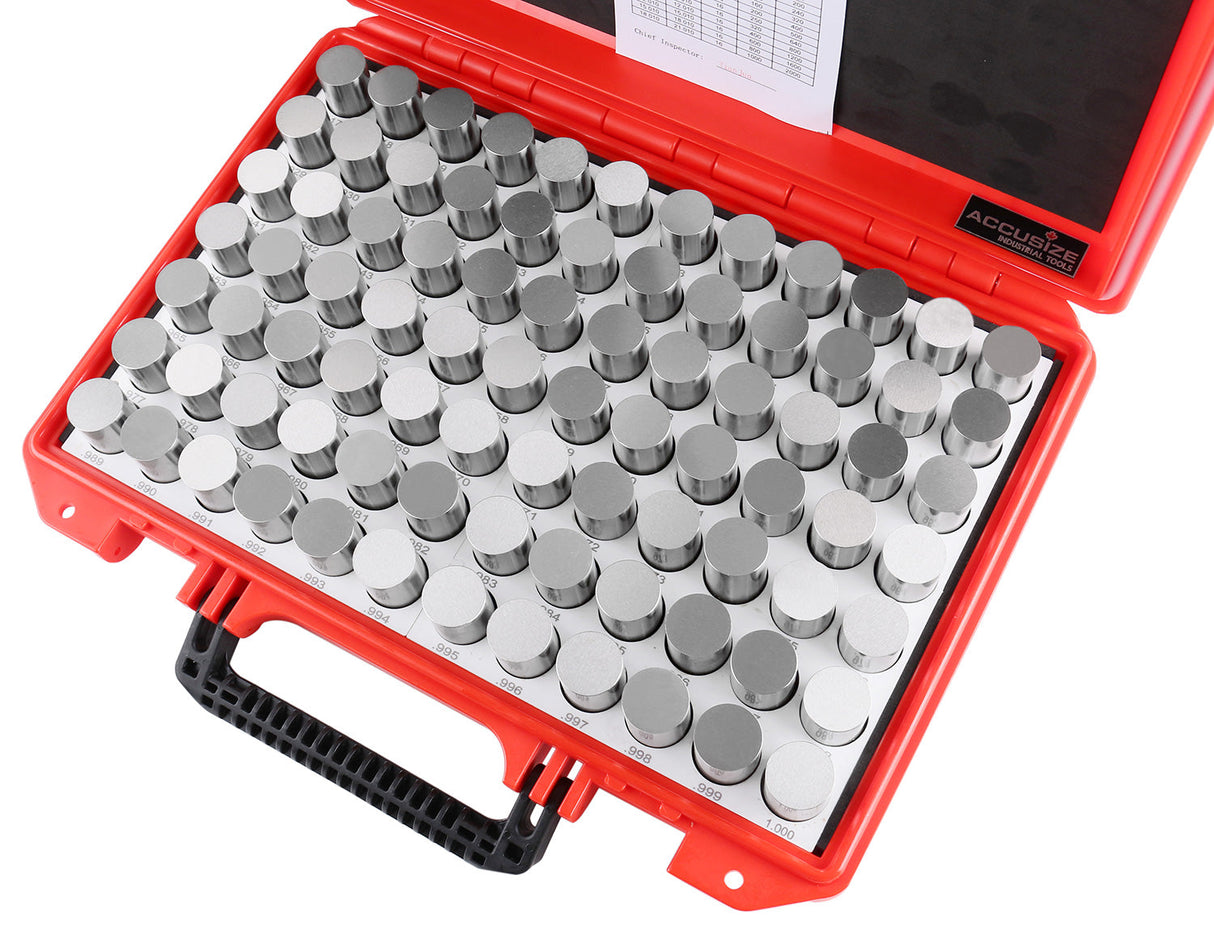

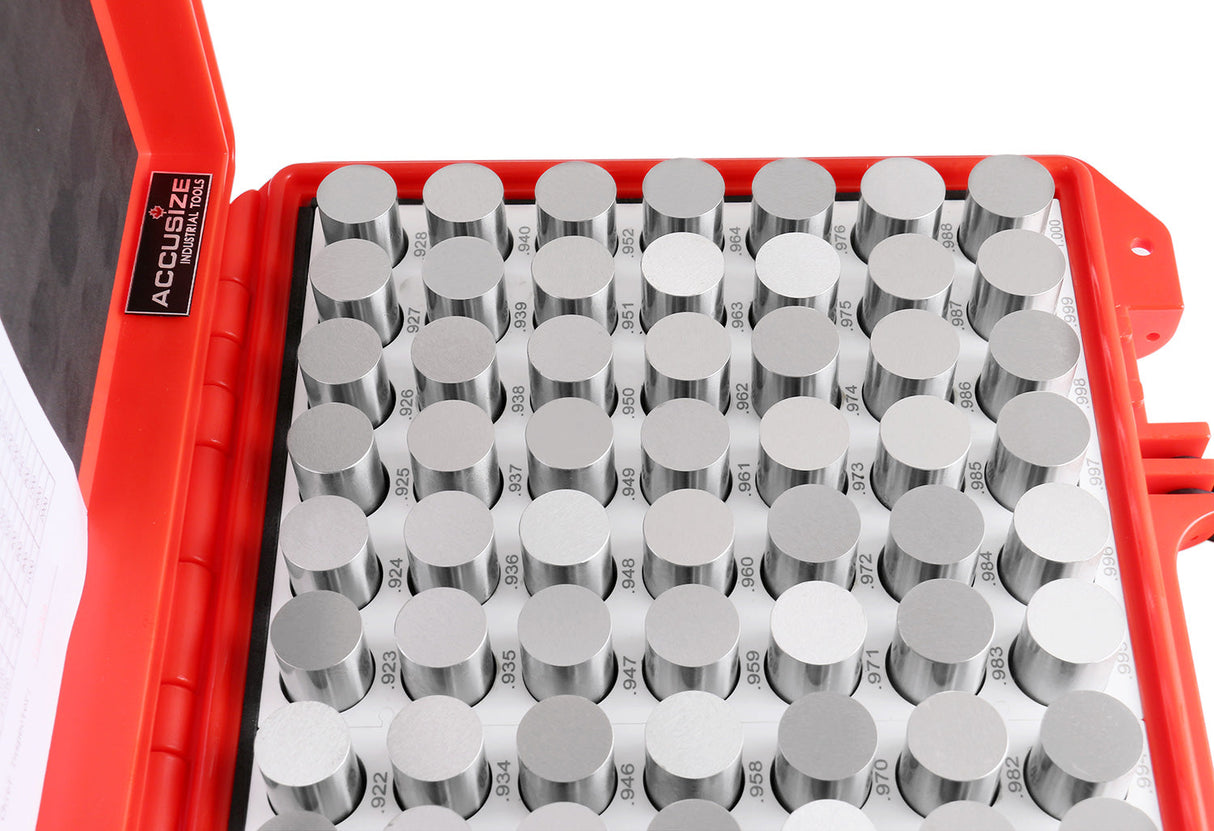

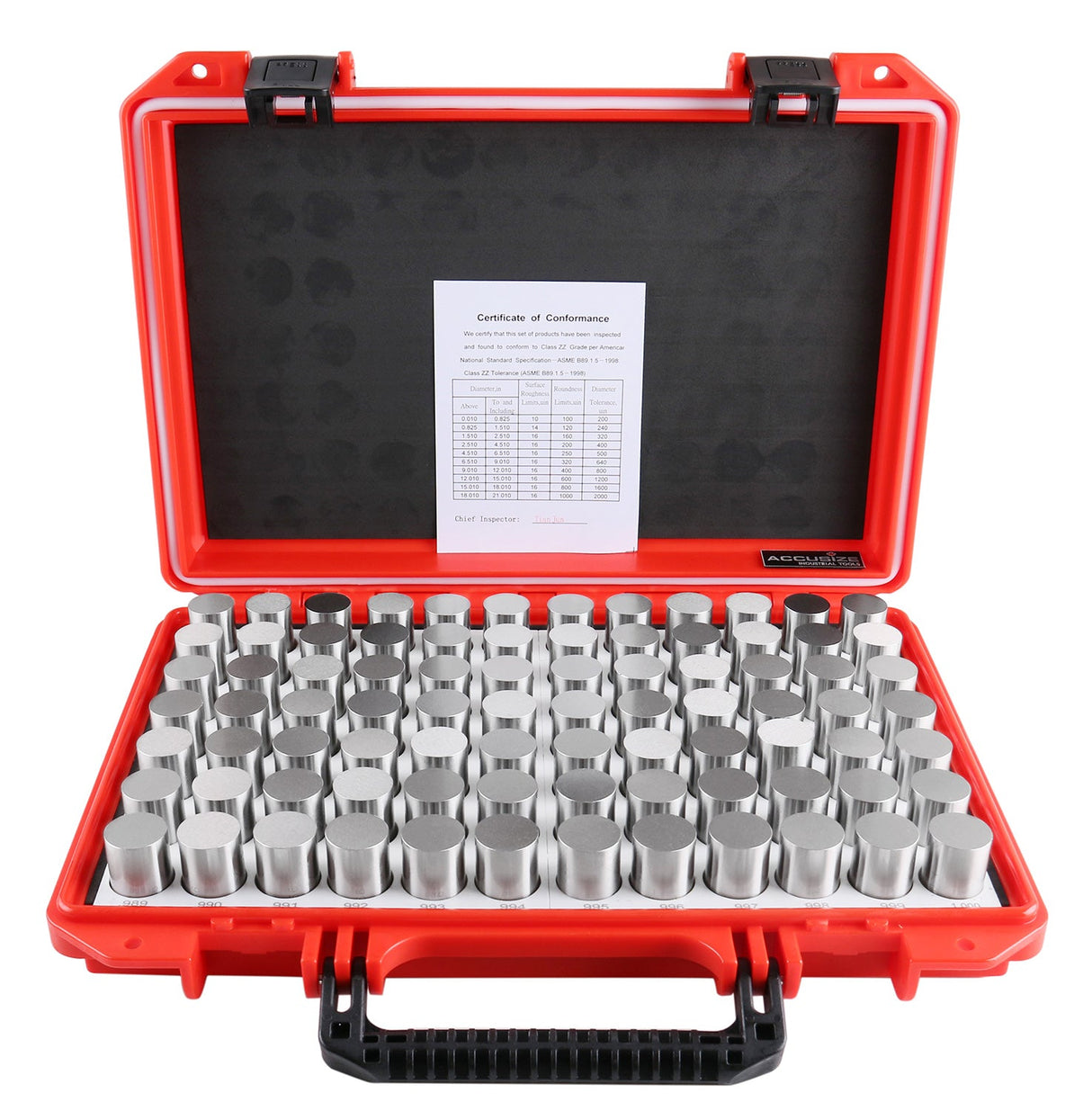

| M7(-) | 0.917"-1.000"x84PCS |
Plus tolerance sets
| Item | Range |

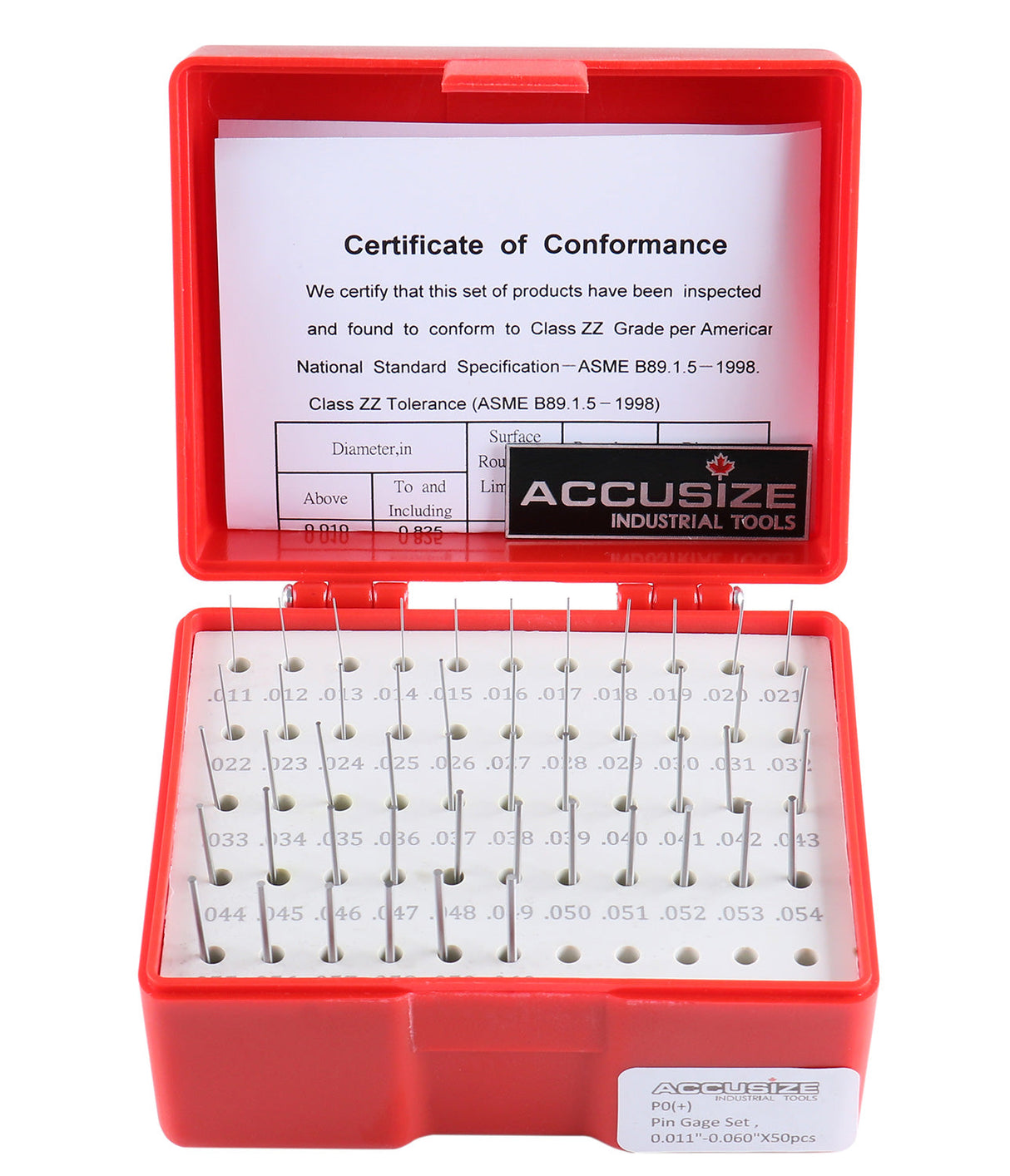

| P0(+) | 0.011"-0.060"x50PCS |
| P1(+) | 0.061"-0.250"x190PCS |
| P2(+) | 0.251"-0.500"x250PCS |

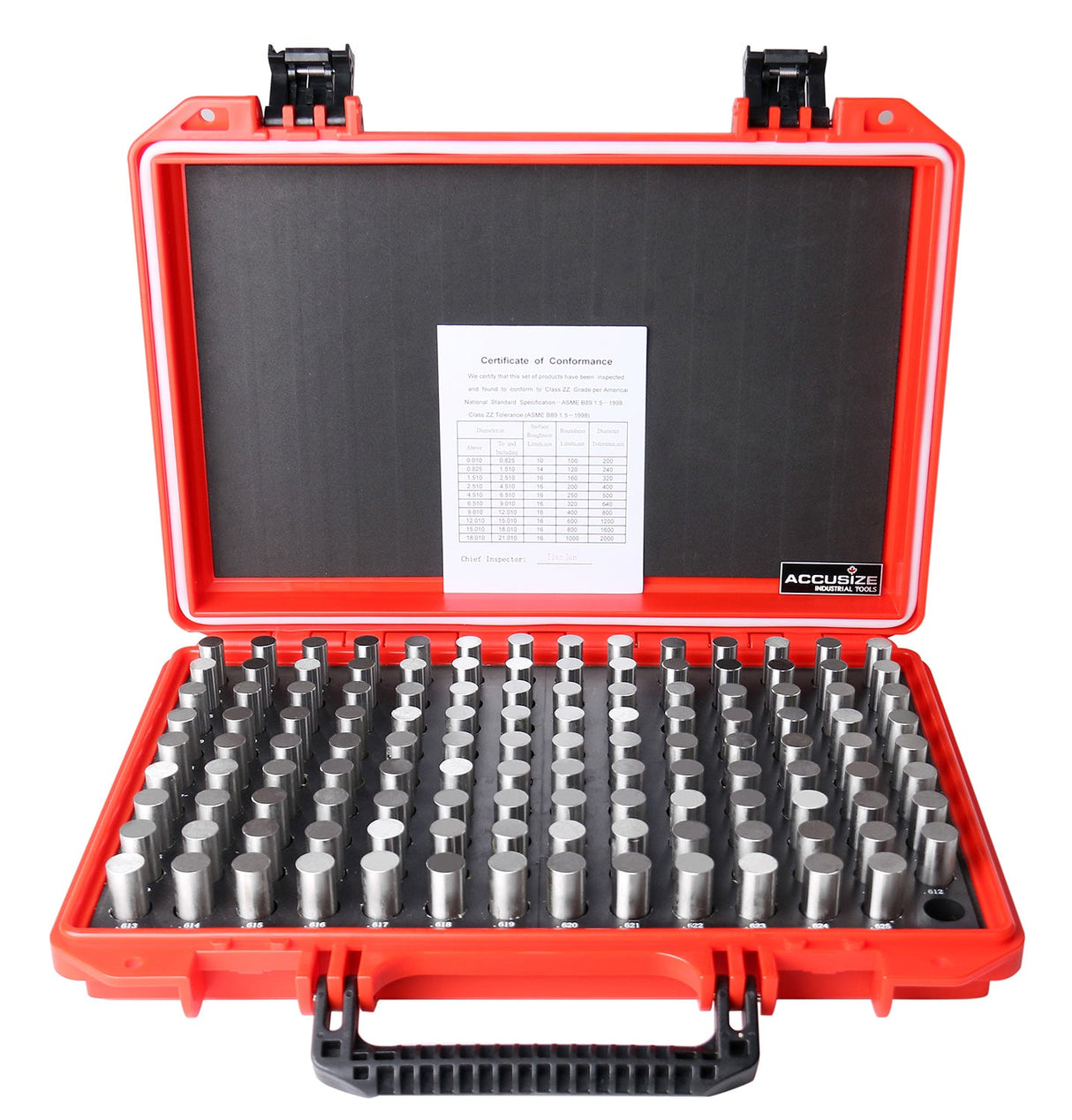

| P3(+) | 0.501"-0.625"x125PCS |

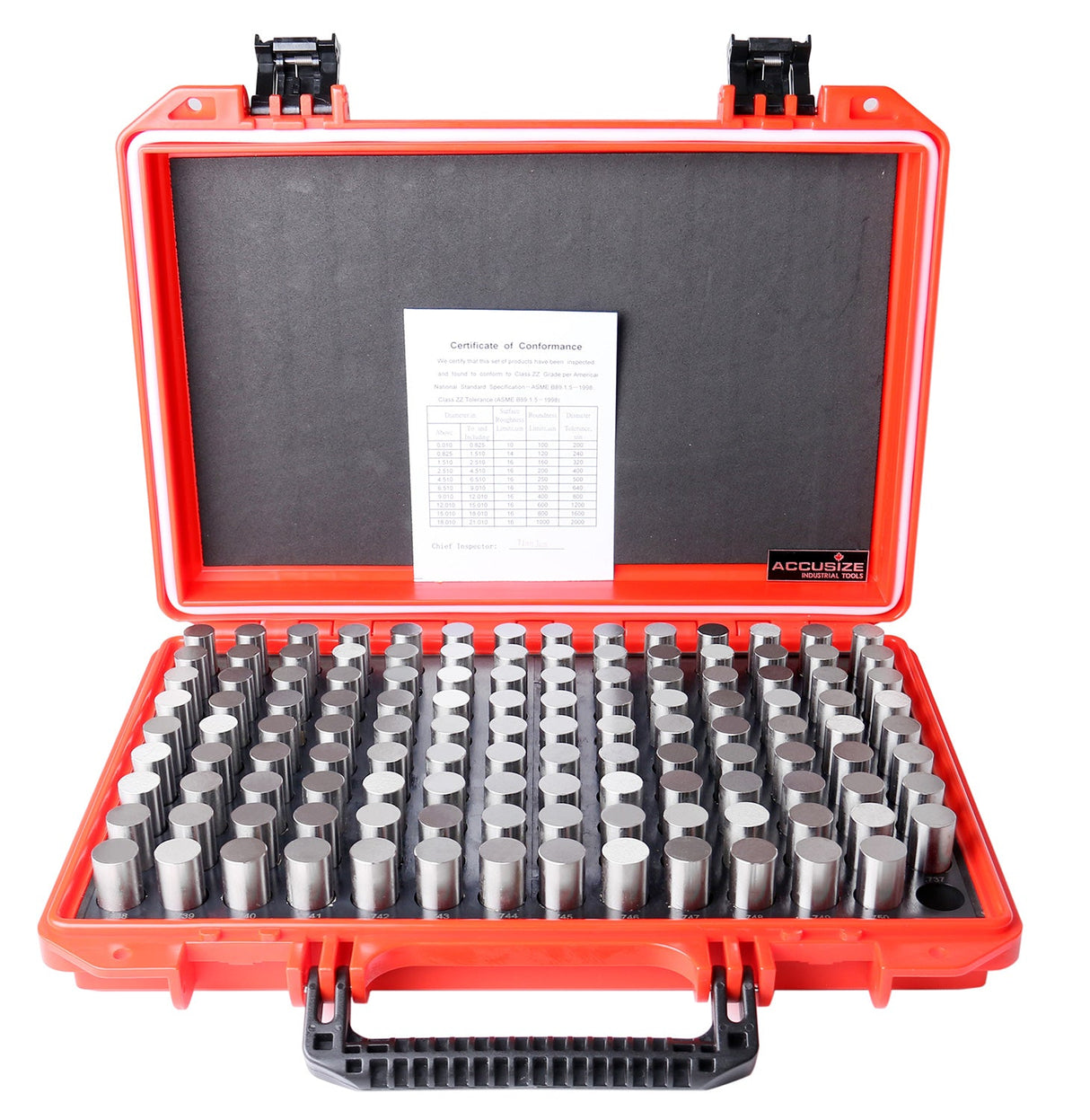

| P4(+) | 0.626"-0.750"x125PCS |
| P5(+) | 0.751"-0.832"x82PCS |
| P6(+) | 0.833"-0.916"x84PCS |
| P7(+) | 0.917"-1.000"x84PCS |
