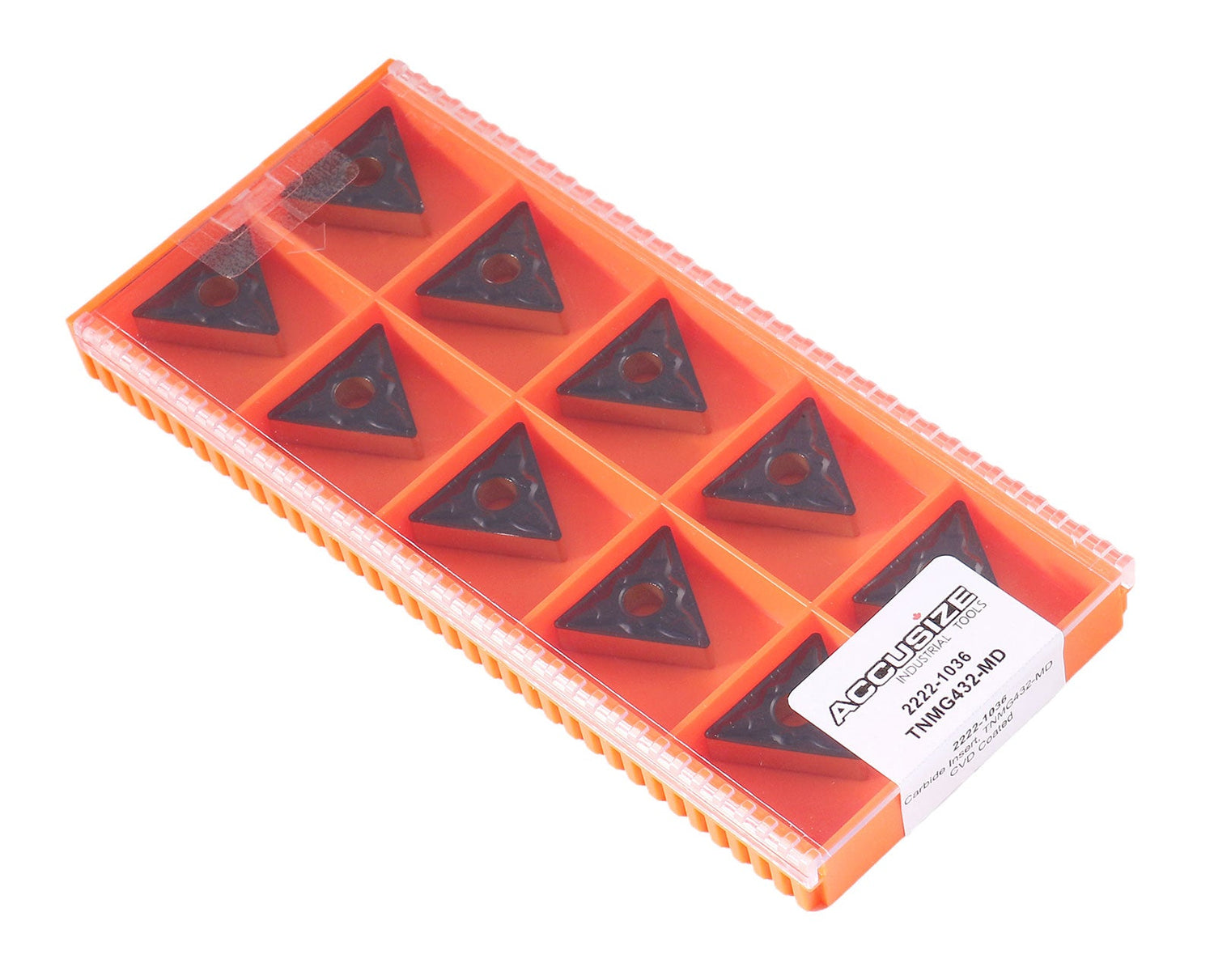

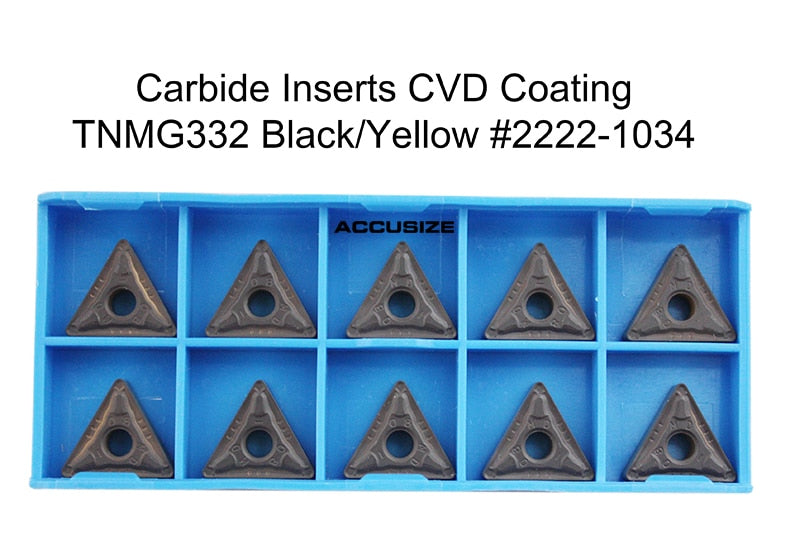

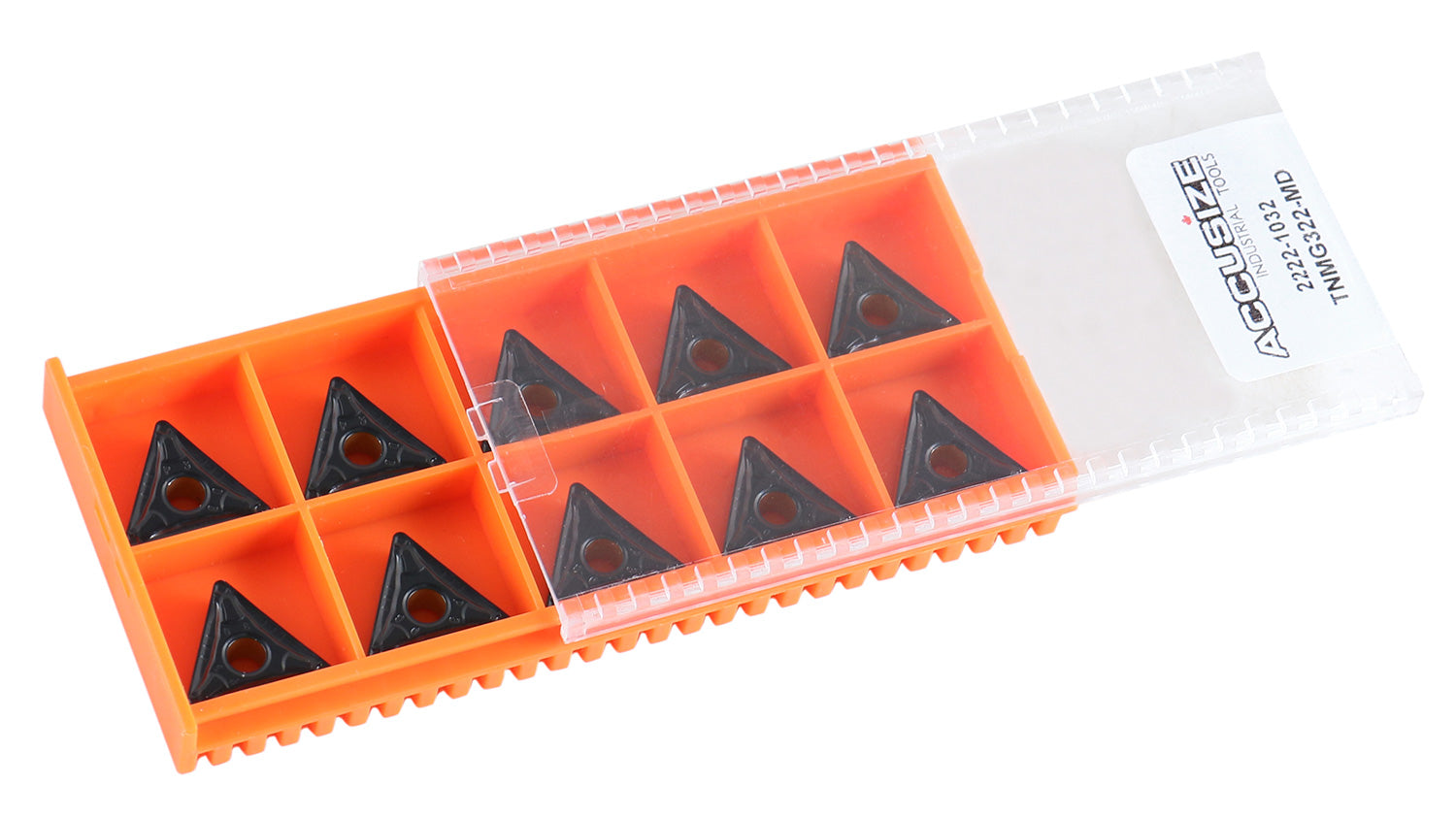

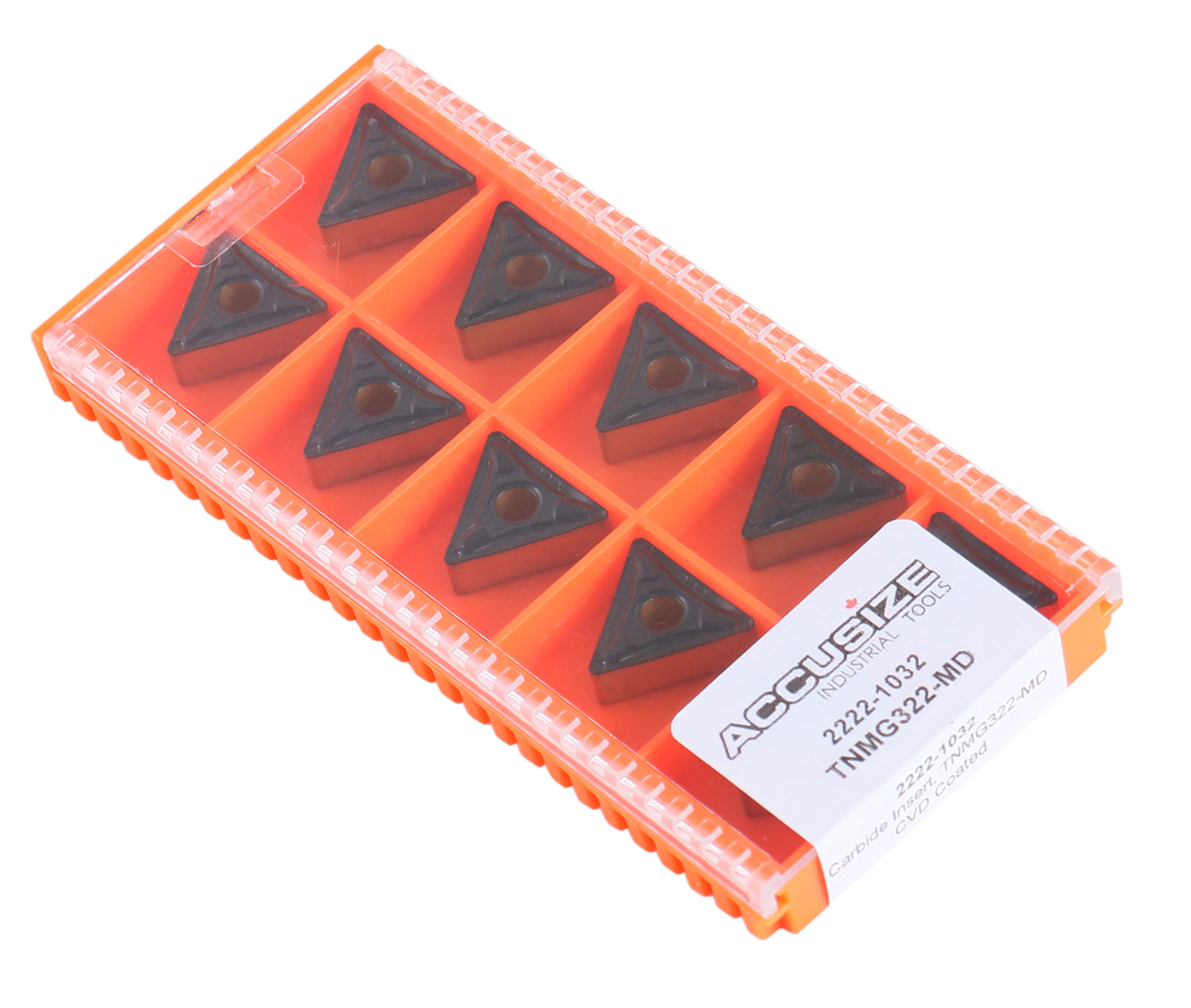

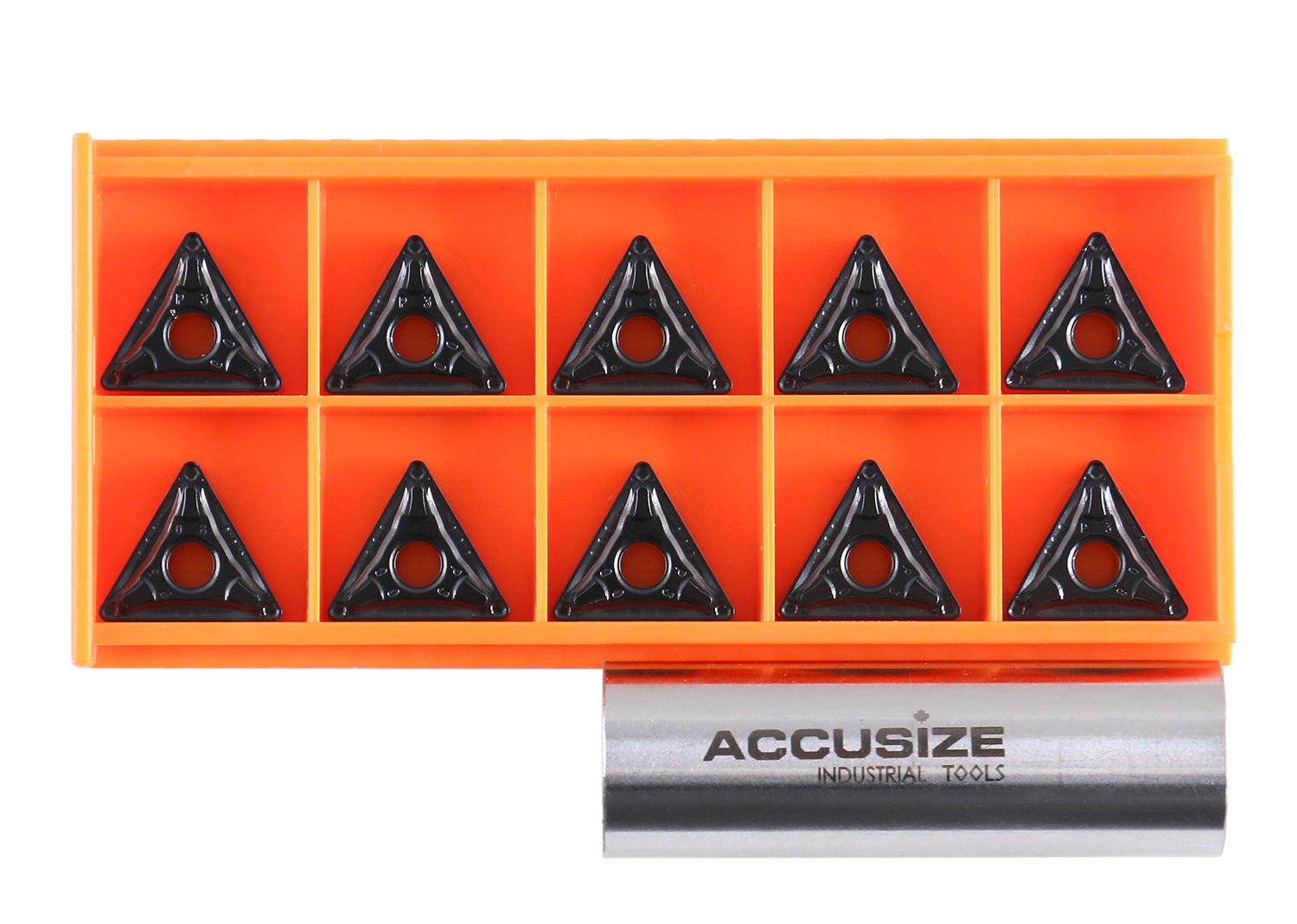

TNMG Carbide Inserts, CVD Coated, Black/Yellow, 10 ps/box

TNMG Carbide Inserts, CVD Coated, Black/Yellow, 10 ps/box

These premium TNMG carbide CVD coated turning inserts enables longer life and a smoother finish. Install them into a matching insert holder. When a cutting edge becomes dull, you just need to rotate the insert in the holder to use the sharp edge.

Negative-rake inserts have a 90-degree edge and sit at an angle in the holder to deliver a strong cutting force for heavy-duty applications. The inserts have cutting edges on both sides for twice the life compared to positive-rake inserts.

CVD (chemical vapor deposition) coated inserts work much longer and are able to run at faster speeds than uncoated inserts and are highly wear-resistant.

• 10 pc/box
• CVD Coated
• Insert Grade: BPS101
• Chip Breaker: MD
• Material: Carbide
• Coating: CVD Al2O3 TICN
• Machining Parts Material: Steel
• Machining Process: finish

Product features

• BPS101 Black/Yellow
• Coating Grade: CVD coated carbide grade, wear-resistance materials coated on the gradient sintered substrate which has both good hardness, toughness
• Can bear high temperatures
• For steel and steel castings finishing to roughing processing
• Continue cutting to light interrupted cutting. Machining of gray and ductile iron at low to medium cutting speed
• For hard materials, continuous cutting and light interrupted cutting from finishing to roughing
• Wet and dry processing
• Combination of fibrous TICN and fine-grained Al2O3 increases abrasion resistance and anti-chipping
• Preferred choice chip breaker on General Purpose Finishing

Features of chip breaker

• For medium-duty turning
• With the broad capability for steel, stainless steel, grey and nodular cast-iron
• Operations: turning, facing and profiling
• Advantages: all-round, reliable with problem-free machining
• Limitations: depth of cut and feed, risk of overloading the cutting edge
• Components typically: axles, shafts, hubs, gears, etc.

For DTGN, DTJN, MTAN, MTEN, MTGN, and MTJN Holders
