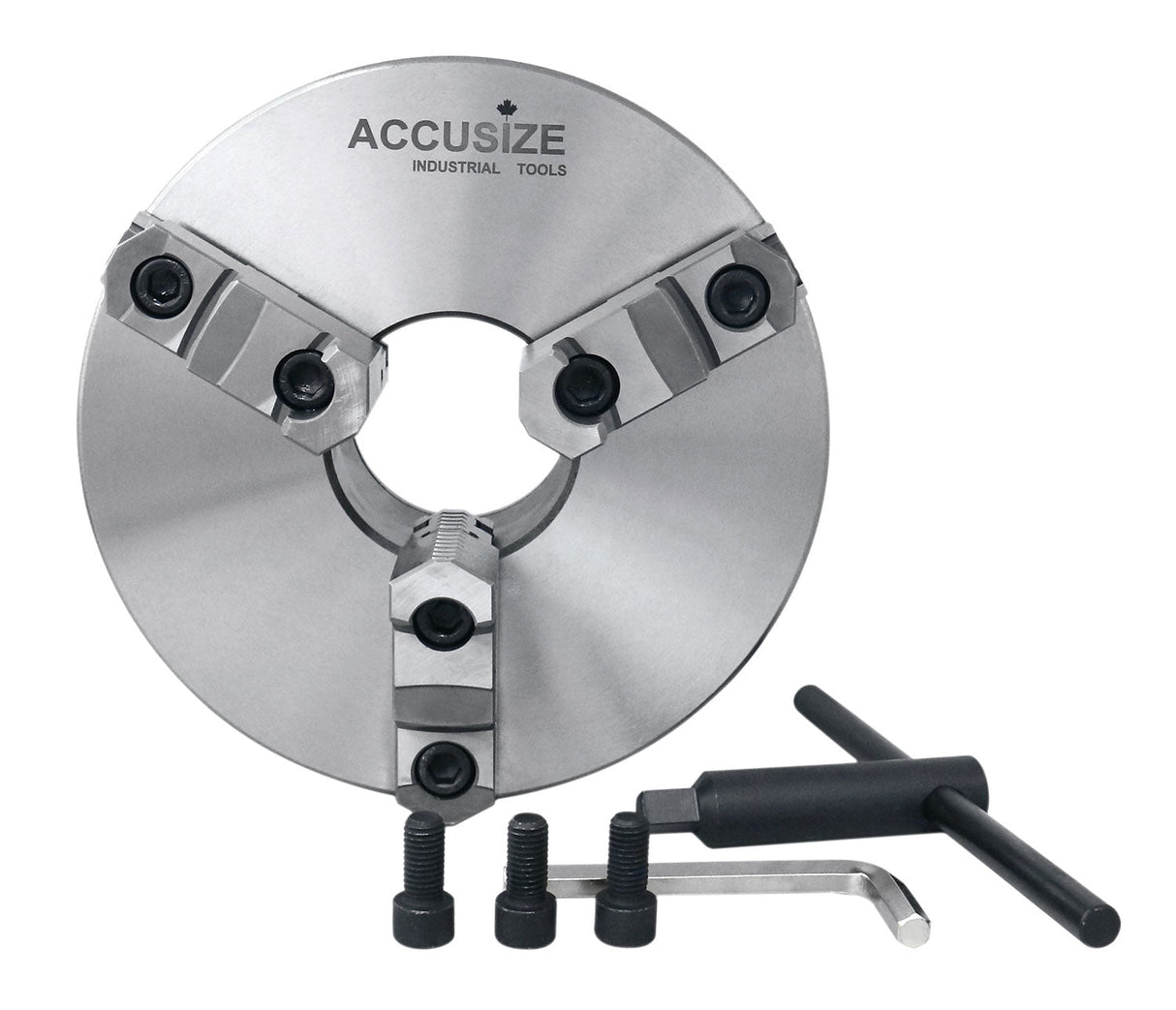

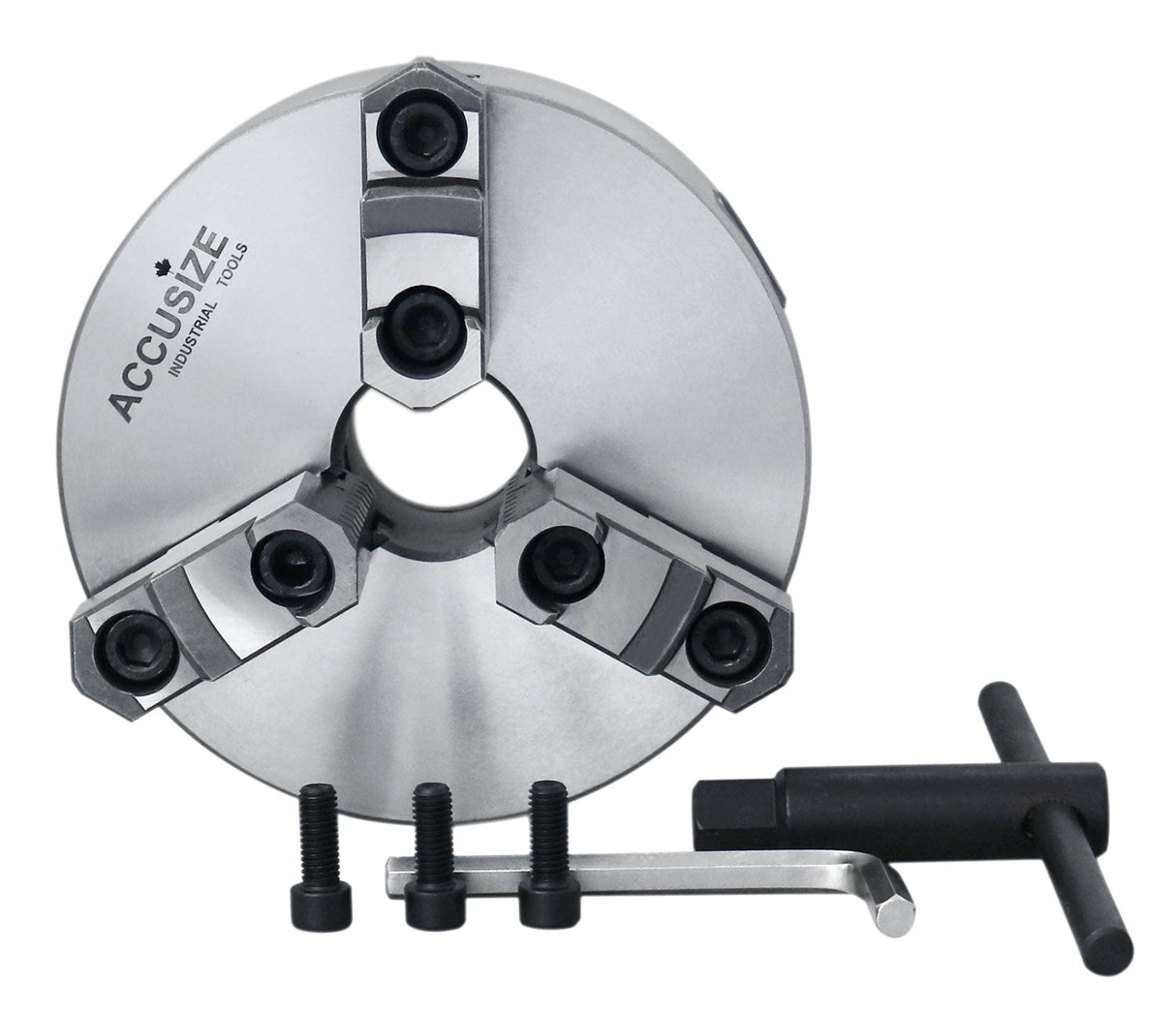

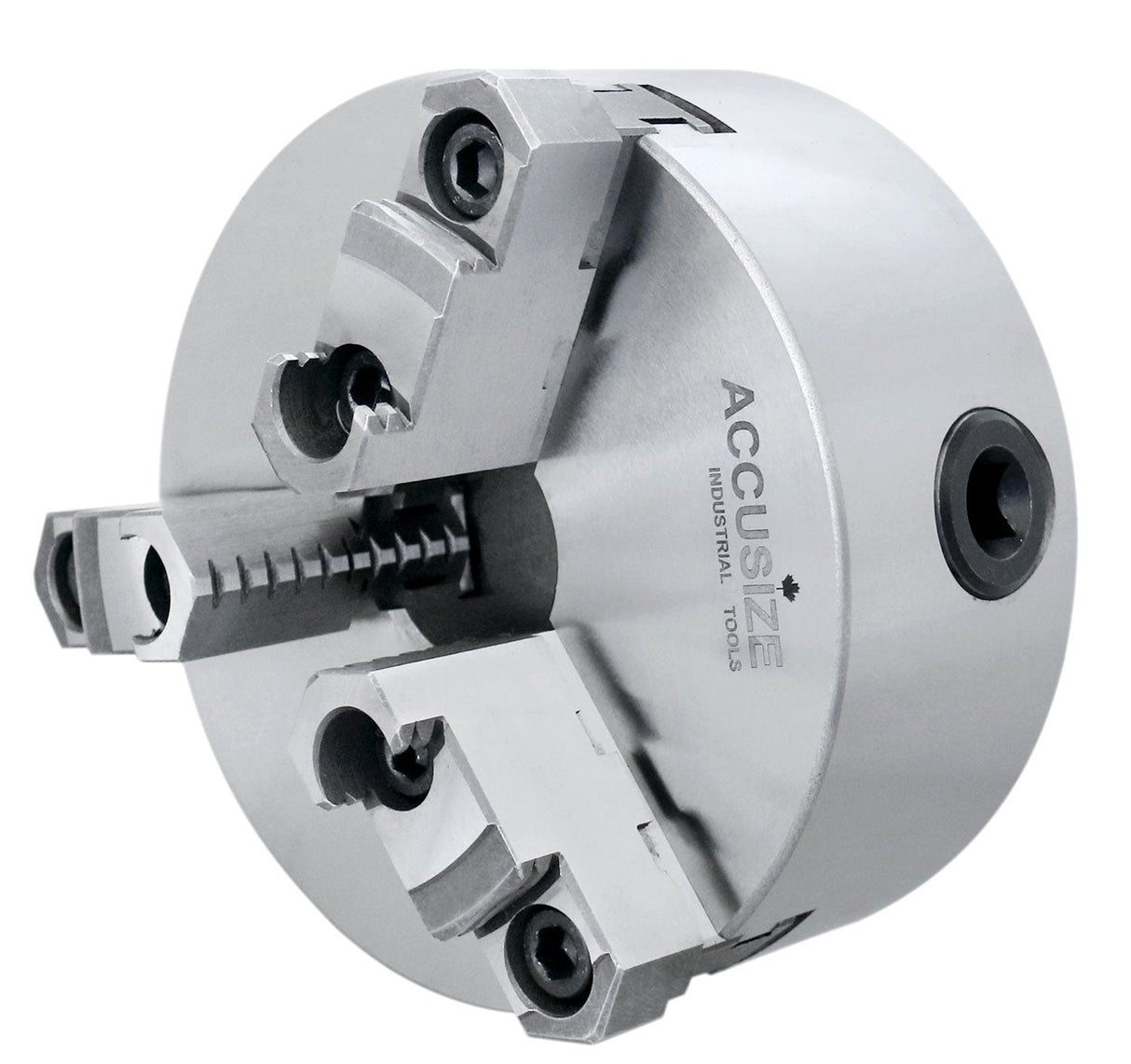

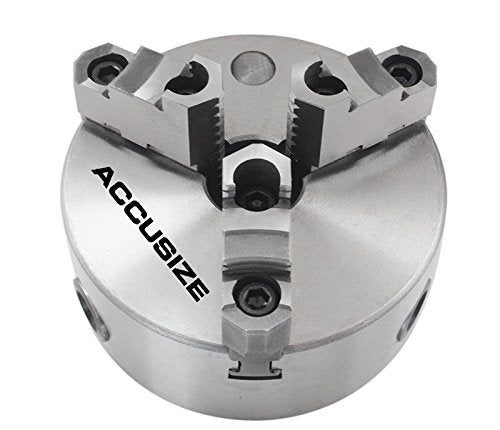

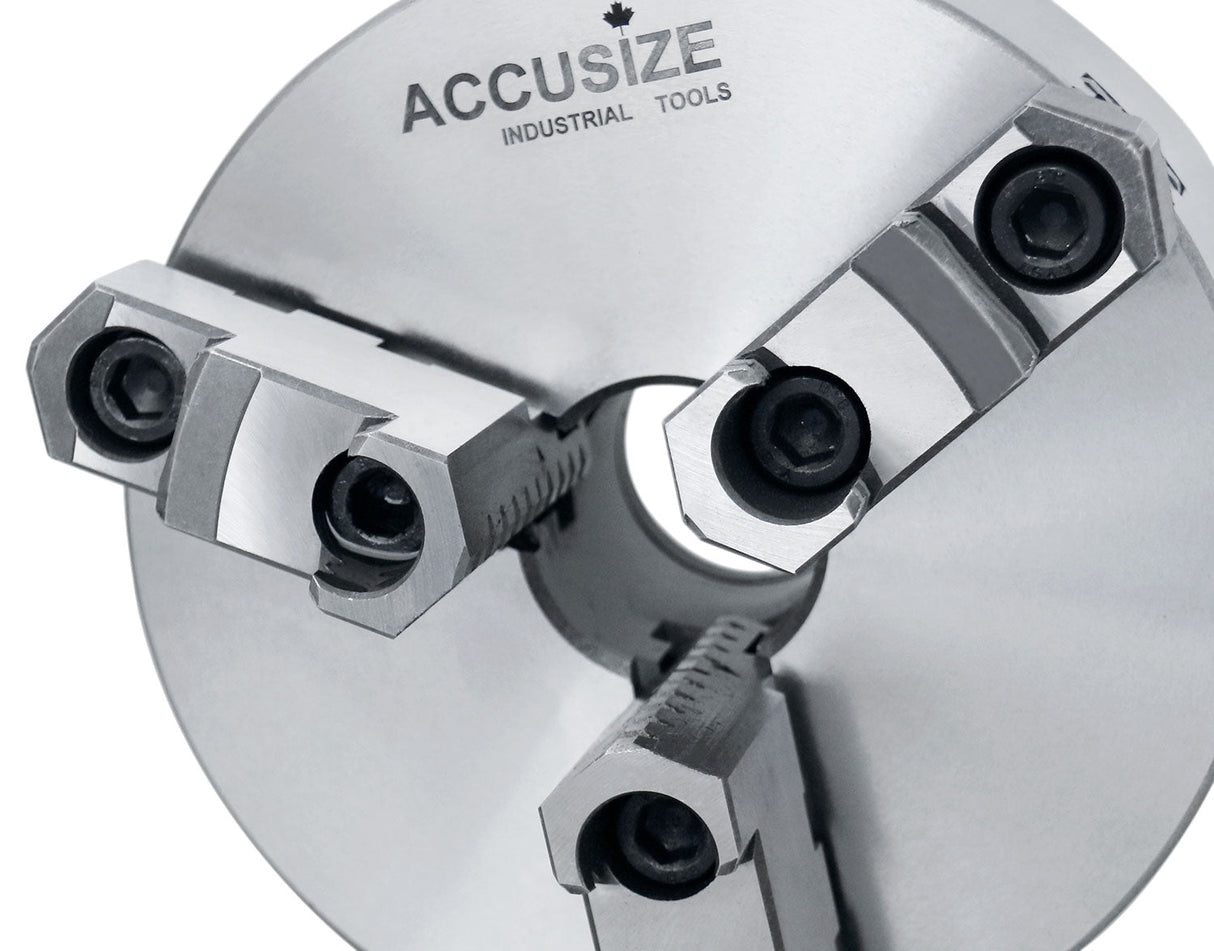

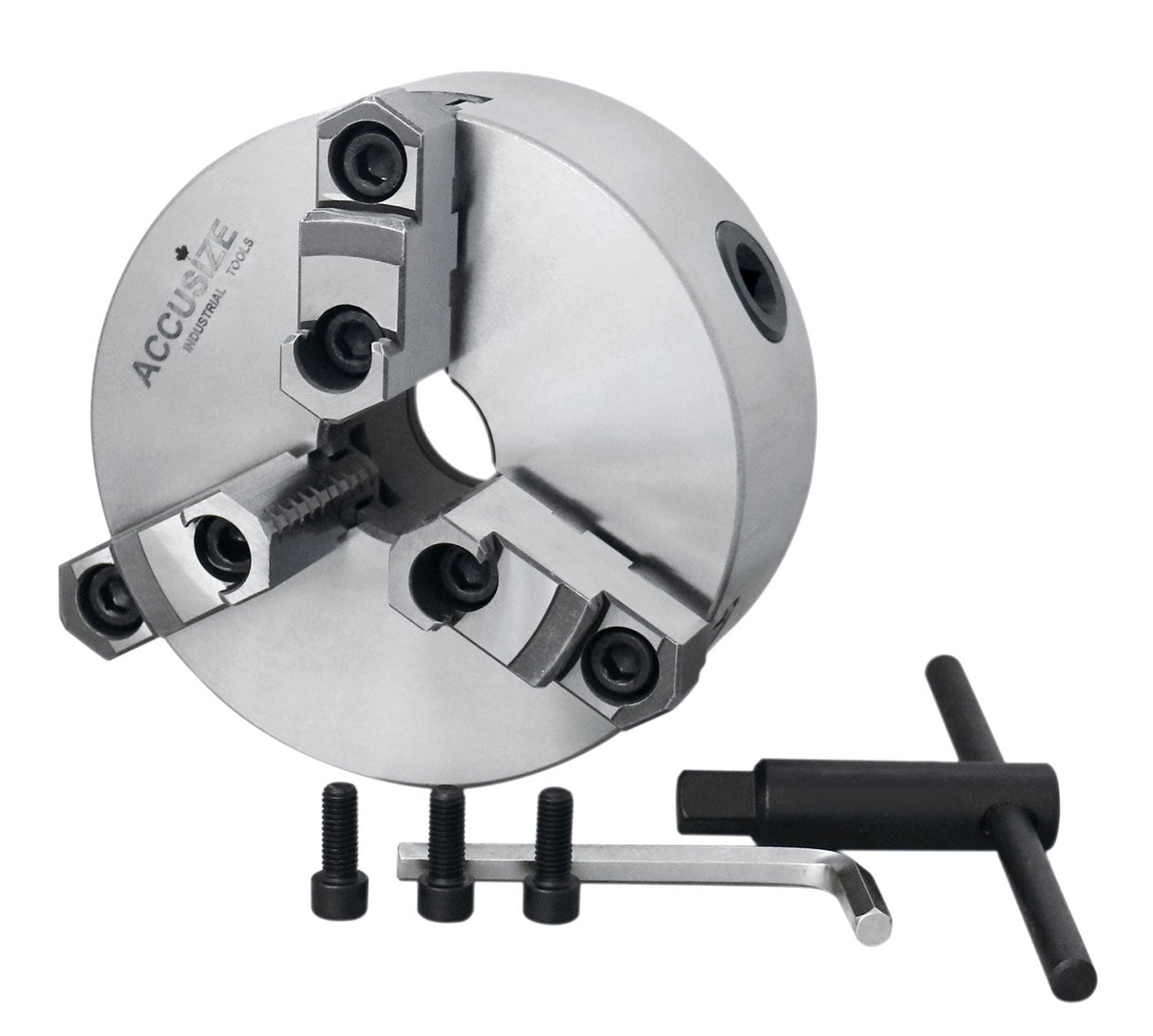

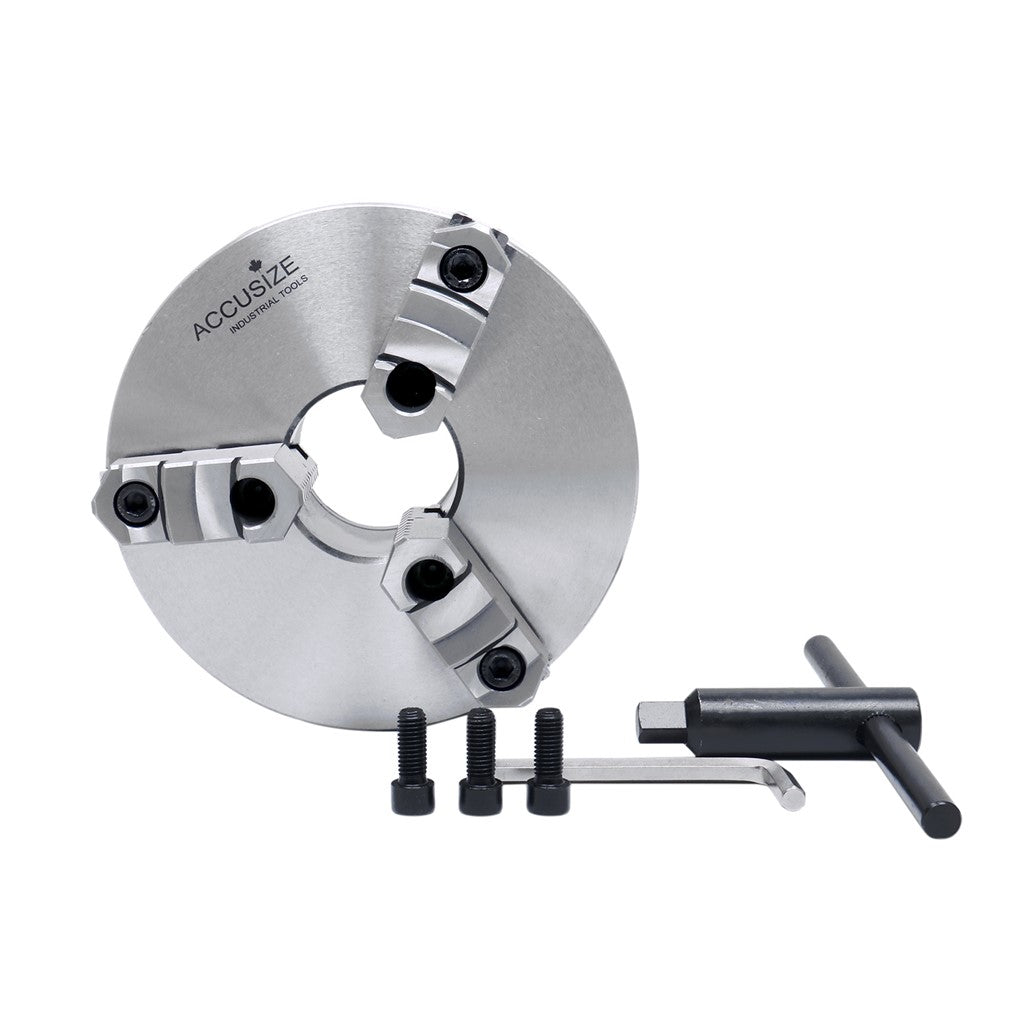

Two-Piece Reversible Jaw 3-Jaw Chucks, Plain Back
From
$340.00 CAD
Unit price
/
Unavailable
Two-Piece Reversible Jaw 3-Jaw Chucks, Plain Back
- 0.003" TIR
- 2-piece reversible jaws
- All jaws are hardened
| Item | Diameter | Center Hole | D1 | D2 | D3 | H | H1 | h | z-d | Max Input Torque (Nm) | Max Speed(r/min) |
| 0559-0114 | 6"/160mm | 1.575" | 5.118" | 5.591" | 1.575" | 4.291" | 2.559" | 0.197" | 3-M8 | 160 | 3000 |
| 0559-0115 | 8"/200mm | 2.559" | 6.496" | 7.087" | 2.559" | 4.724" | 2.953" | 0.217" | 3-M10 | 250 | 2500 |
| 0559-0116 | 10"/250mm | 3.150" | 8.110" | 8.898" | 3.150" | 5.236" | 3.150" | 0.217" | 3-M12 | 320 | 2000 |
| 0559-0117 | 12"/315mm | 3.937" | 10.236" | 11.220" | 4.134" | 5.827" | 3.543" | 0.236" | 3-M16 | 400 | 1500 |
