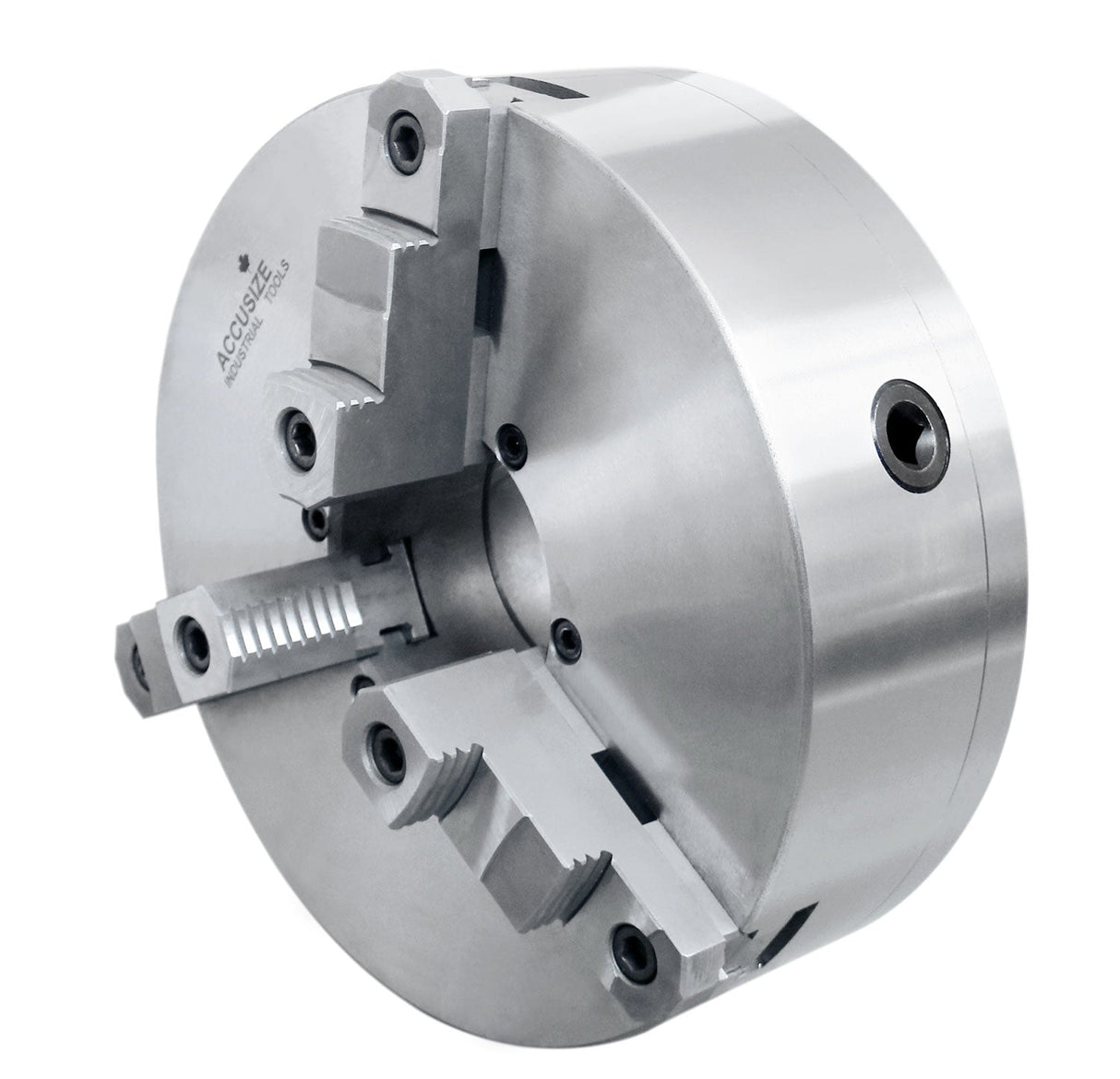

Two-Piece Reversible Jaws 3-Jaw Lathe Chucks, Direct Mount
- " D1" Series (Direct Mounting) Chucks.
- Hardened and ground two-piece reversible jaws
- Semi-steel body

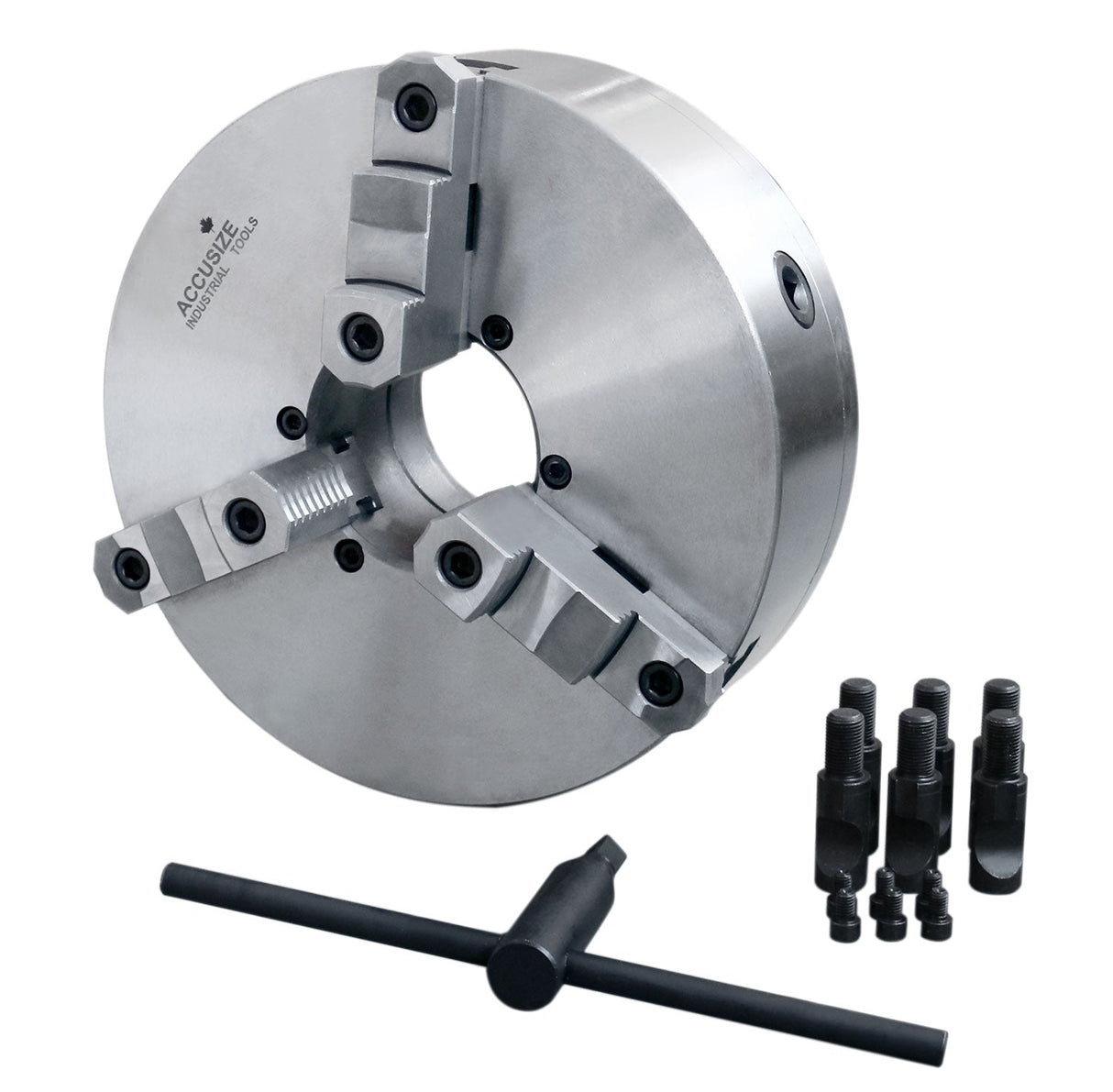

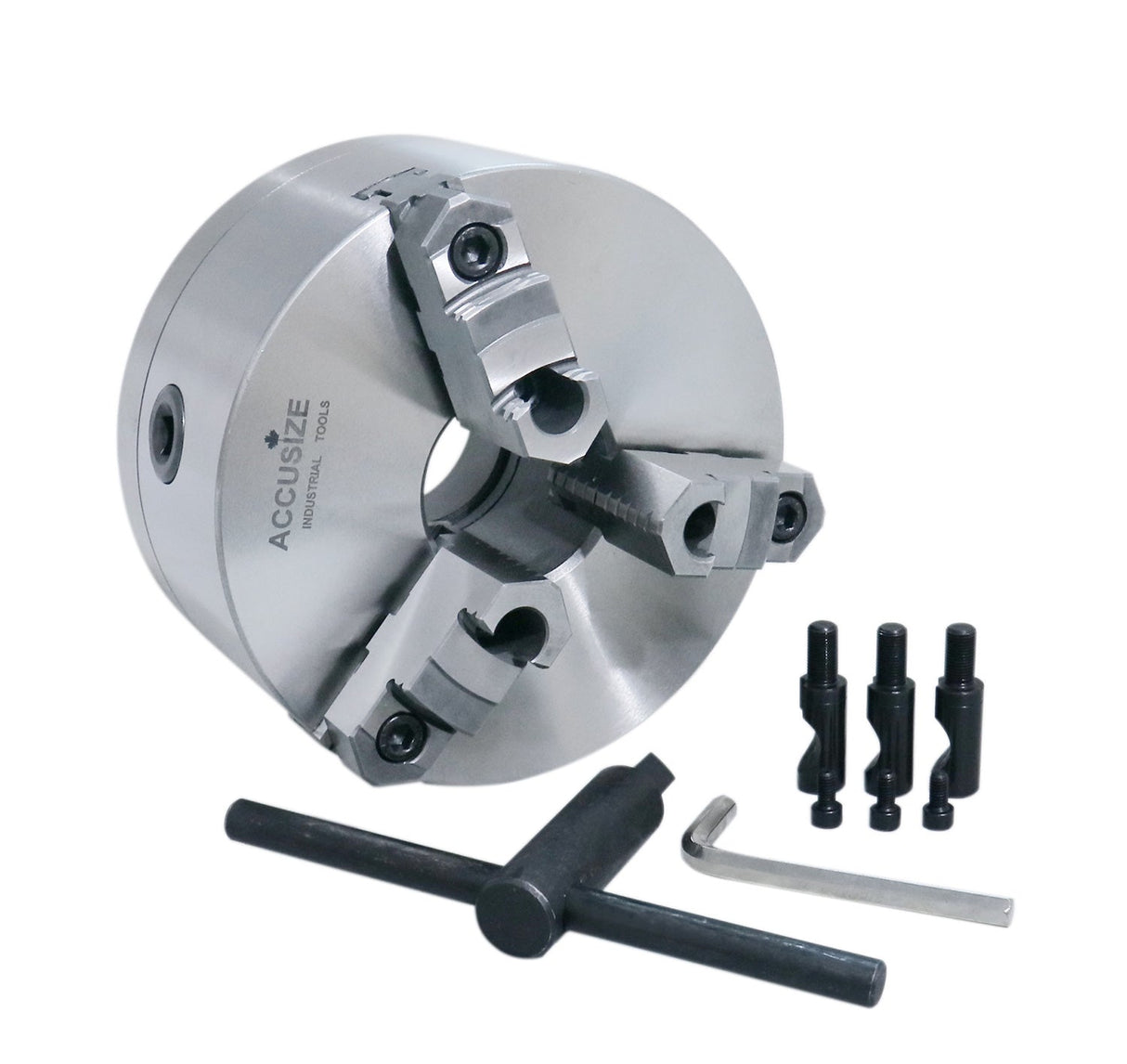

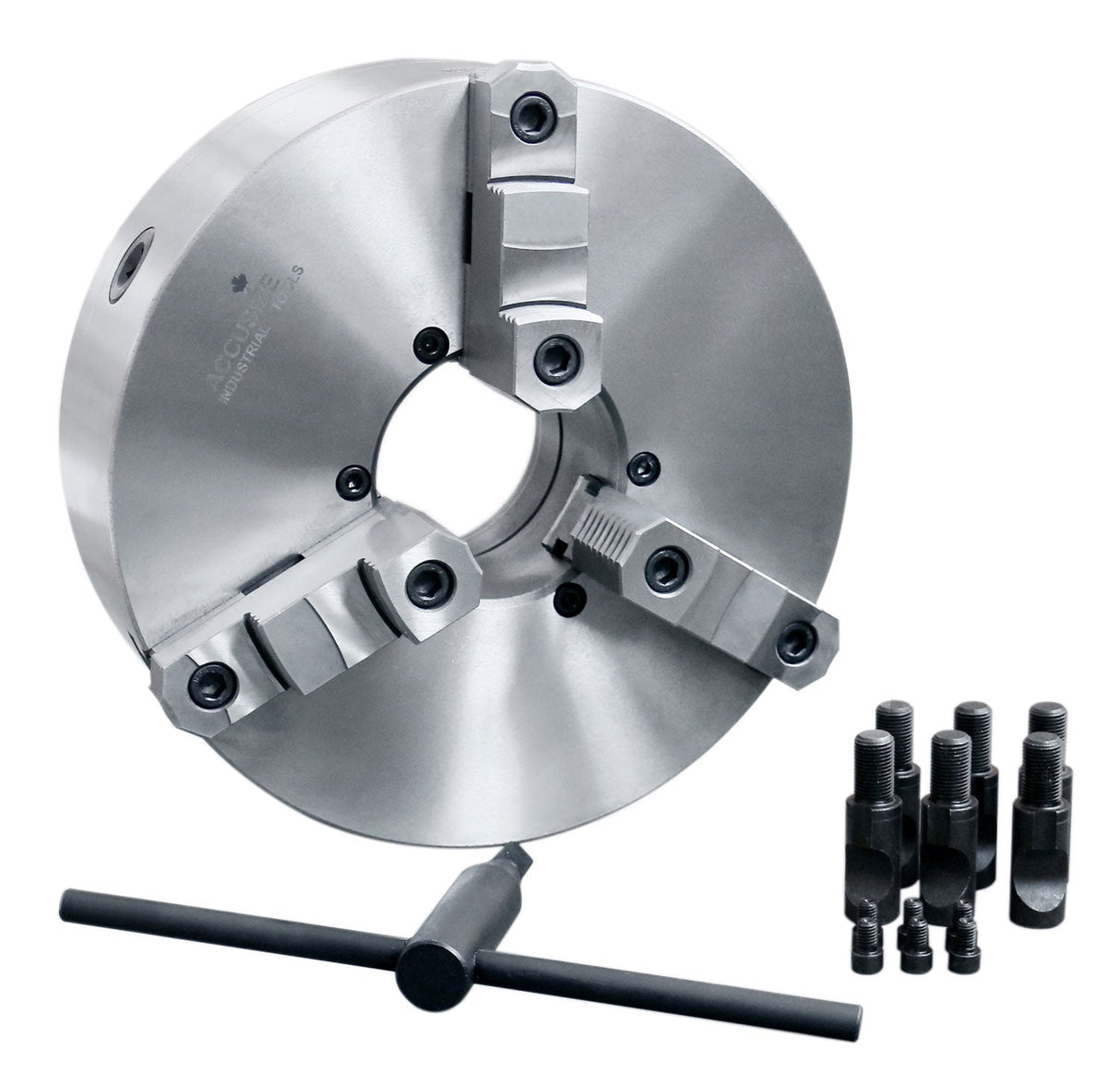

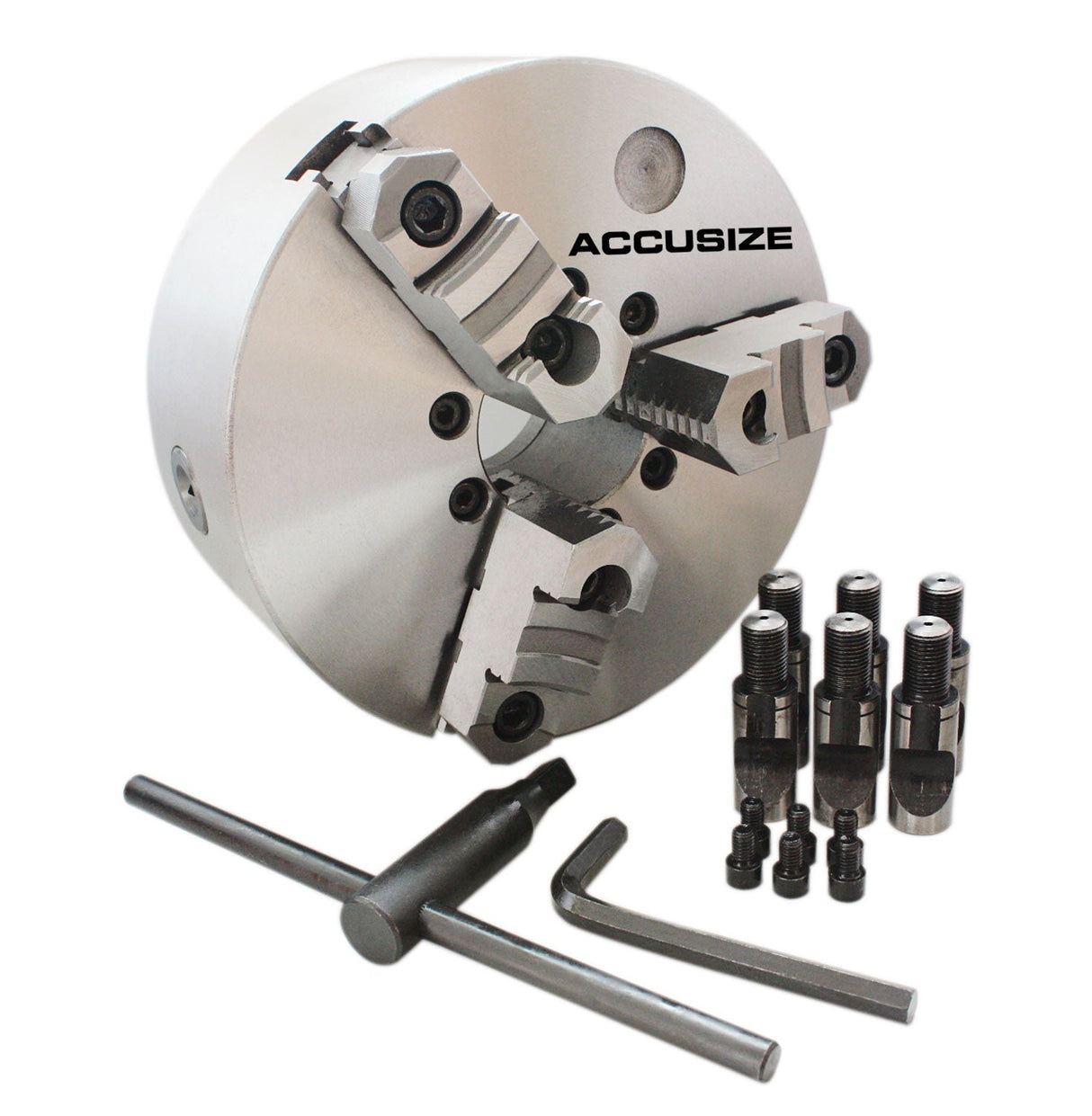

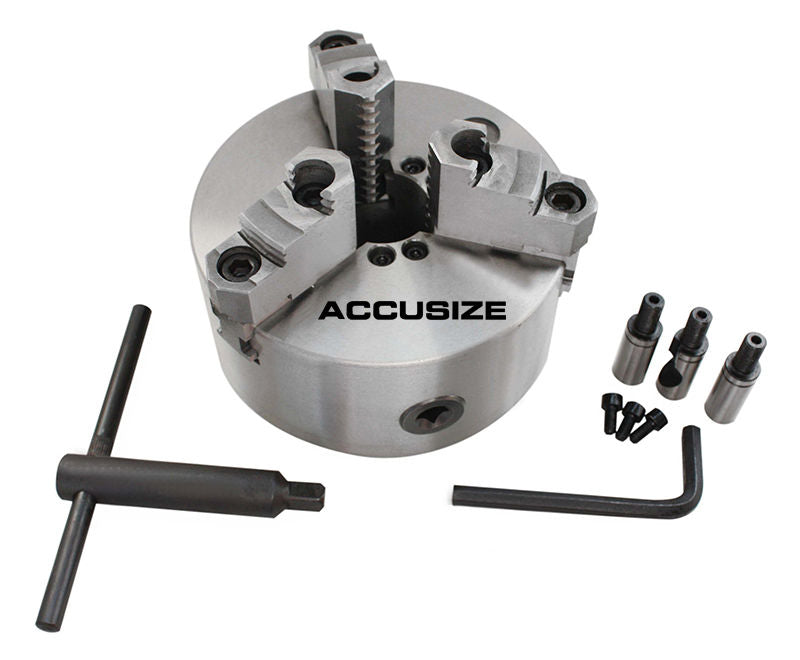

- Complete with chuck key
- Standard accuracy
- Standard scroll
- Runout: 0.06mm / 0.0024"
Please note that the standard runout on the market is 0.08mm / 0.0031"
| Item | Diameter | Mount | Center Hole | D1 | D2 | D3 | D4 | H | H1 | h | z-d | Max Input Torque (Nm) | Max Speed(r/min) | Cam lock pin Dia | Thread |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0559-0101 | 6"/160mm | D1-4 | 1.575" | 2.501" | 3.252" | 1.575" | 4.606" | 4.724" | 3.740" | 0.512" | 3-M10 | 160 | 3000 | 5/8" / 15.9mm | M10 x 1 |
| 0559-0102 | 8"/200mm | D1-4 | 2.362" | 2.501" | 3.252" | 2.362" | 4.606" | 5.709" | 3.858" | 0.512" | 3-M10 | 250 | 2500 | 5/8" / 15.9mm | M10 x 1 |
| 0559-0104 | 8"/200mm | D1-6 | 2.362" | 4.188" | 5.252" | 2.362" | 7.126" | 5.906" | 4.134" | 0.630" | 6-M16 | 250 | 2500 | 7/8" / 22.2mm | M16 x 1.5 |
| 0559-0106 | 10"/250mm | D1-6 | 2.756" | 4.188" | 5.252" | 3.150" | 7.126" | 6.417" | 4.331" | 0.630" | 6-M16 | 320 | 2000 | 7/8" / 22.2mm | M16 x 1.5 |
| 0559-0108 | 12"/315mm | D1-6 | 3.937" | 4.188" | 5.252" | 3.937" | 7.126" | 6.969" | 4.724" | 0.630" | 6-M20 | 400 | 1500 | 7/8" / 22.2mm | M16 x 1.5 |
CLAMPING RANGE / JAMMING RANGE FOR ACCUSIZE 2-PC REVERSIBLE JAW 3-JAW SELF-CENTERING CHUCKS WITH PLAIN BACKS, DIRECT MOUNT
| Item | Diameter | Mount | Inside Jaw | Outside Jaw | |
| Clamping range | Jamming range | Clamping range | |||
| A-A1 | B-B1 | C-C1 | |||
| 0559-0101 | 6"/160mm | D1-4 | 0.118"-2.165"/3-55mm | 1.968"-6.299"/50-160mm | 2.165"-5.708"/55-145mm |
| 0559-0102 | 8"/200mm | D1-4 | 0.157"-3.346"/4-85mm | 2.559"-7.874"/65-200mm | 2.559"-7.874"/65-200mm |
| 0559-0104 | 8"/200mm | D1-6 | 0.157"-3.346"/4-85mm | 2.559"-7.874"/65-200mm | 2.559"-7.874"/65-200mm |
| 0559-0106 | 10"/250mm | D1-6 | 0.236"-4.330"/6-110mm | 3.149"-9.842"/80-250mm | 3.543"-9.842"/90-250mm |
| 0559-0108 | 12"/315mm | D1-6 | 0.394"-5.511"/10-140mm | 3.740"-12.401"/95-315mm | 3.937"-12.401"/100-315mm |
