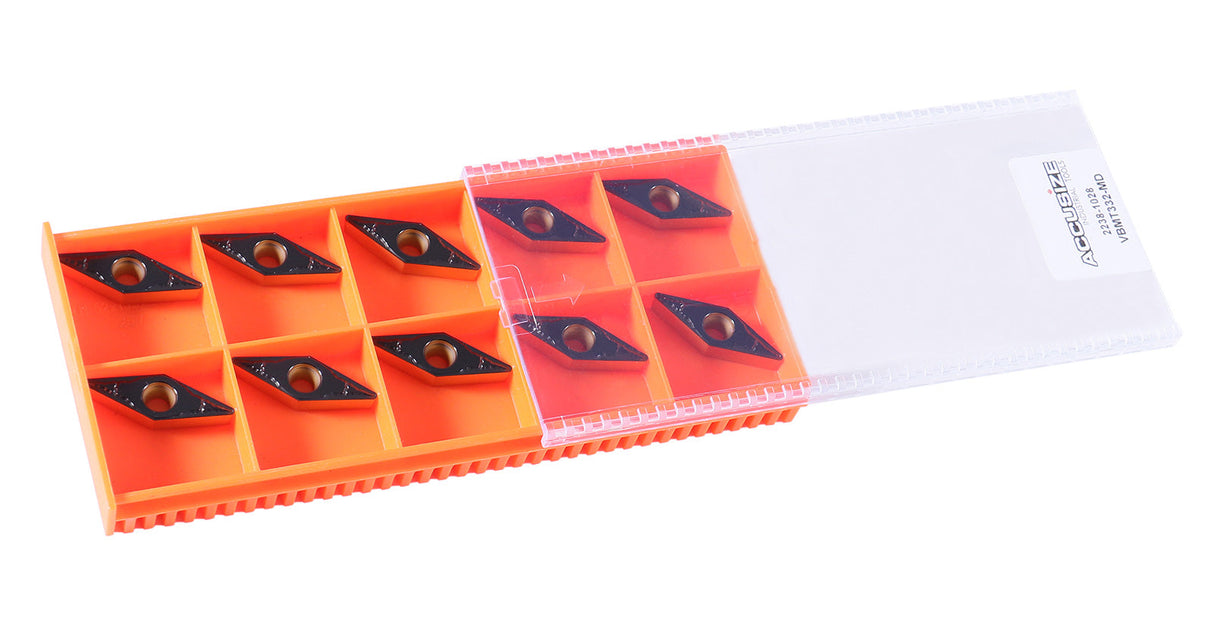

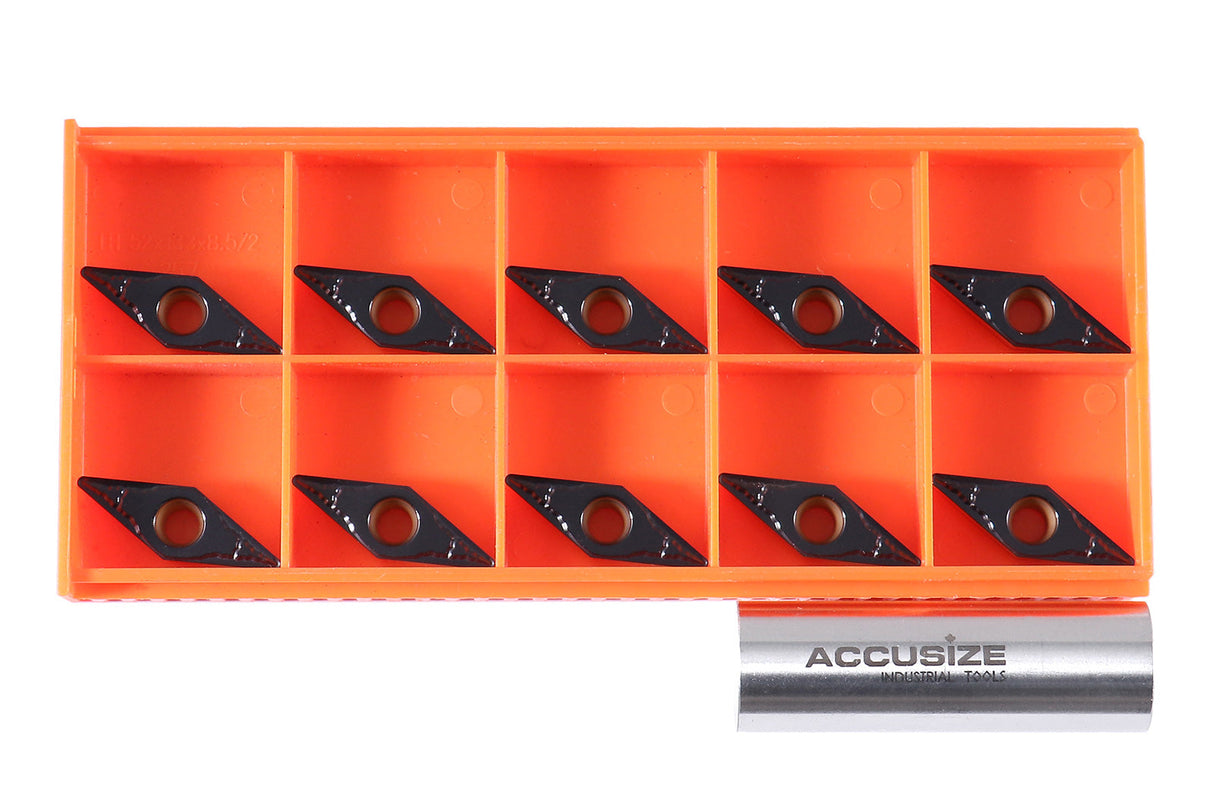

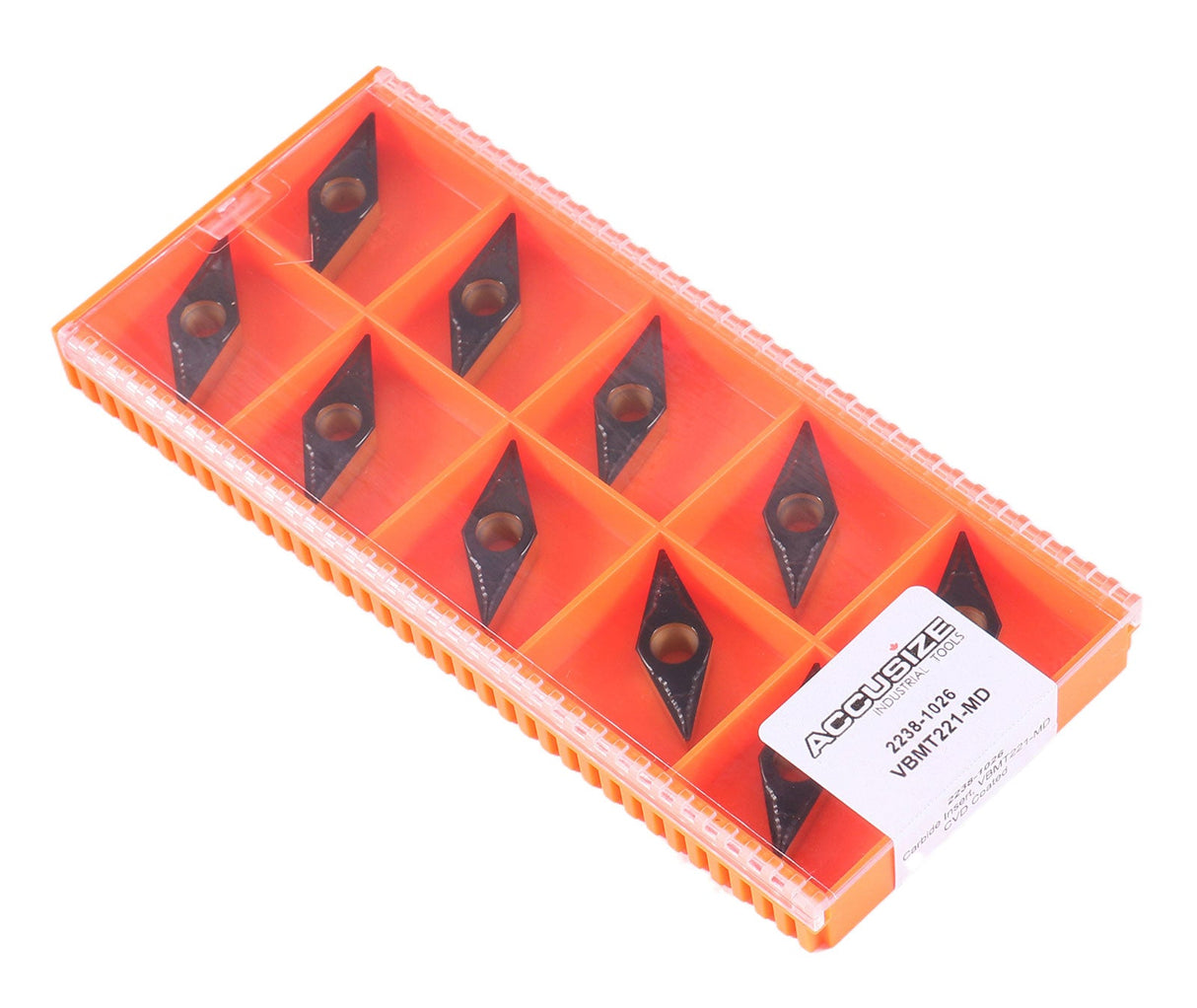

Carbide Inserts VBMT-MD CVD Coated, BPS101
From
$78.00 CAD
Unit price
/
Unavailable
Carbide Inserts VBMT-MD CVD Coated, BPS101
- CVD Coated
- Insert Grade: BPS101
- Chip Breaker: MD
- Material: Carbide
- VBMT
- Coating: CVD Al2O3 TICN
- Machining Parts Material: Steel
- Machining Process: finish
Product Features
- BPS101 Black/Yellow
- Coating Grade: CVD coated carbide grade, wear-resistance materials coated on the gradient sintered substrate which has both good hardness, toughness.
- Can bear high temperatures.
- For steel and steel castings finishing to roughing processing.
- Continue cutting to light interrupted cutting. Machining of gray and ductile iron at low to medium cutting speed.
- For hard materials continuous cutting and light interrupted cutting from finishing to roughing.
- Wet and dry processing.
- Combination of fibrous TICN and fine grained Al2O3 increases abrasion resistance and anti-chipping.
- Preferred choice chip breaker on General Purpose Finishing
Features of chipbreaker
- For medium-duty turning
- With broad capability for steel, stainless steel, grey and nodular cast-iron
- Operations: turning, facing and profiling
- Advantages: all-round, reliable with problem-free machining
- Limitations: depth of cut and feed, risk of overloading the cutting edge
- Components typically: axles, shafts, hubs, gears, etc.
| Item # | Product # | ANSI # | I.S.O. # | I.C | Thickness | Hole | Radius |
| 6238-1026 | 2238-1026 | VBMT221-MD | VBMT110304-MD | 1/4" | 1/8" | 0.110" | 1/64" |
| 6238-1028 | 2238-1028 | VBMT332-MD | VBMT160408-MD | 1/2'' | 3/16" | 0.110" | 1/32" |
